| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A13_071T08_9000006114_45633cztM0_level2.fits | modeM0/AS1A13_071T08_9000006114_45633cztM0_level2_quad_clean.evt |
| Size (bytes) | 498,349,440 | 102,415,680 |
| Size | 475.3 MB | 97.7 MB |
| Events in quadrant A | 5,325,541 | 704,890 |
| Events in quadrant B | 4,305,286 | 677,656 |
| Events in quadrant C | 2,741,215 | 698,469 |
| Events in quadrant D | 5,616,150 | 606,878 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12 | 0 |
| B | 0 | 12 | 0 |
| C | 0 | 12 | 0 |
| D | 0 | 12 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 19182 | 1 |
| B | 0 | 16577 | 1 |
| C | 0 | 12219 | 1 |
| D | 0 | 20766 | 4 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 120 | 0 |
| B | 0 | 120 | 0 |
| C | 0 | 120 | 0 |
| D | 0 | 120 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5919 | 184 | 3.108633% |
| B | 5919 | 555 | 9.376584% |
| C | 5919 | 52 | 0.878527% |
| D | 5919 | 497 | 8.396689% |

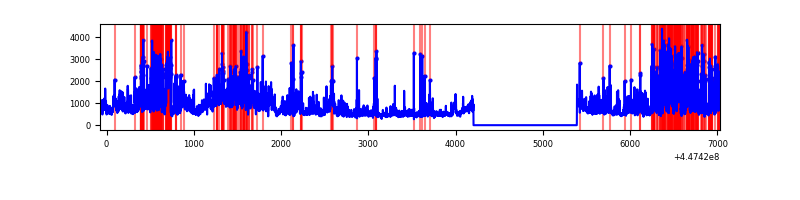

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7104 | 5919 | 18 | 18 | 0.25% | 0.30% |  |
| B | 7104 | 5920 | 415 | 415 | 5.84% | 7.01% |  |
| C | 7104 | 5920 | 1 | 1 | 0.01% | 0.02% |  |
| D | 7103 | 5919 | 390 | 390 | 5.49% | 6.59% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 2497589 | 17360.03 | 705 | 693 | 143.8 |
| A | 13 | 248 | 53887 | 369.84 | 705 | 693 | 143.8 |
| A | 0 | 243 | 14300 | 94.6 | 705 | 693 | 143.8 |
| B | 3 | 112 | 853772 | 6600.87 | 669 | 652 | 129.2 |
| B | 5 | 172 | 697068 | 5388.4 | 669 | 652 | 129.2 |
| B | 0 | 186 | 27021 | 204.03 | 669 | 652 | 129.2 |
| C | 14 | 254 | 42005 | 256.78 | 685 | 691 | 160.9 |
| C | 12 | 2 | 14008 | 82.77 | 685 | 691 | 160.9 |
| C | 12 | 249 | 9925 | 57.39 | 685 | 691 | 160.9 |
| D | 11 | 241 | 1002705 | 6001.4 | 675 | 654 | 167.0 |
| D | 1 | 52 | 877028 | 5248.71 | 675 | 654 | 167.0 |
| D | 13 | 249 | 615030 | 3679.57 | 675 | 654 | 167.0 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file

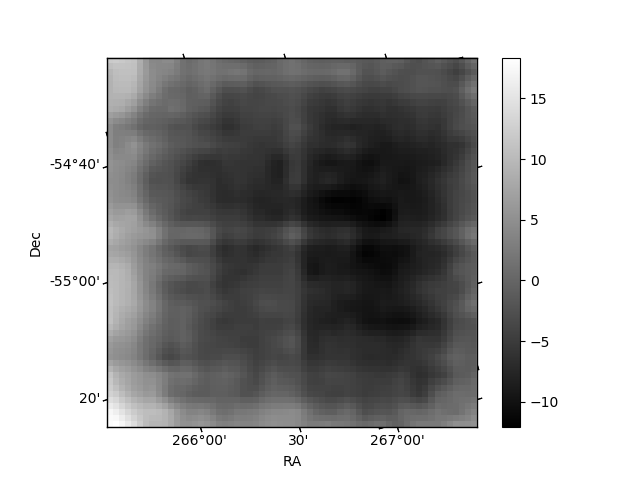

| Quadrant A |  |
 |

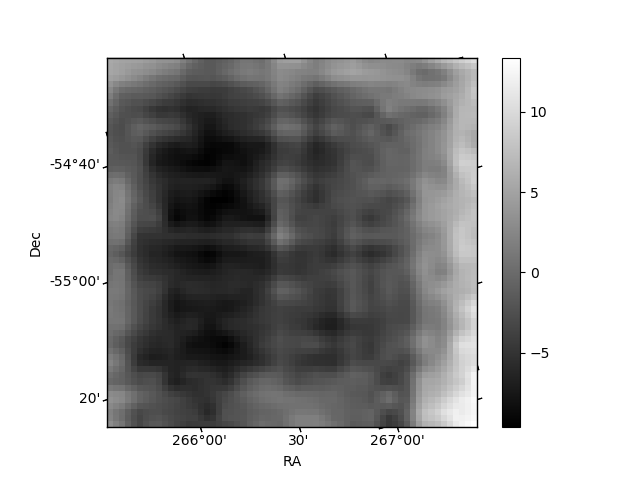

Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

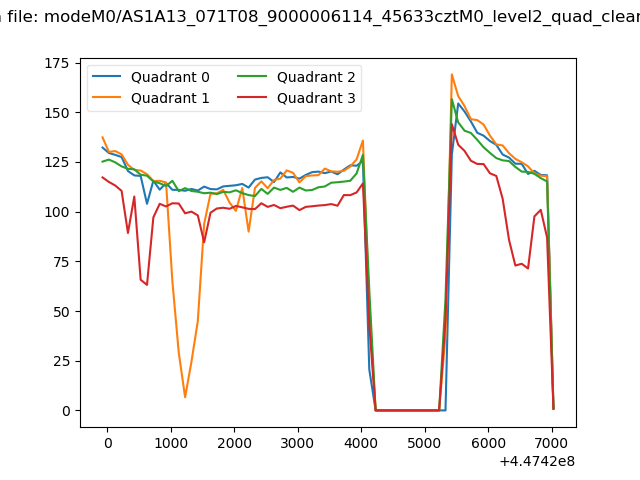

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

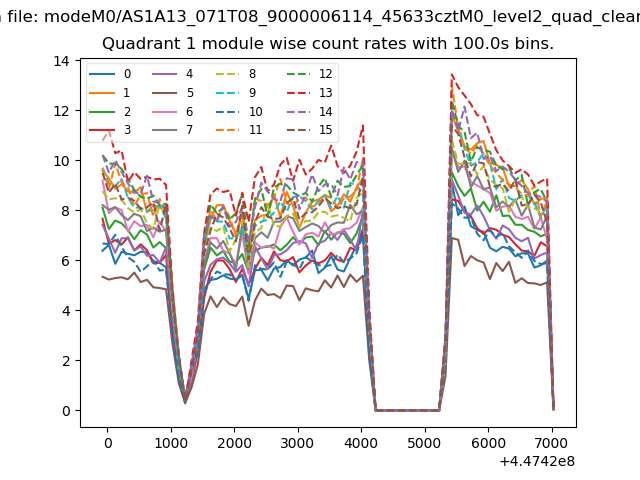

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |

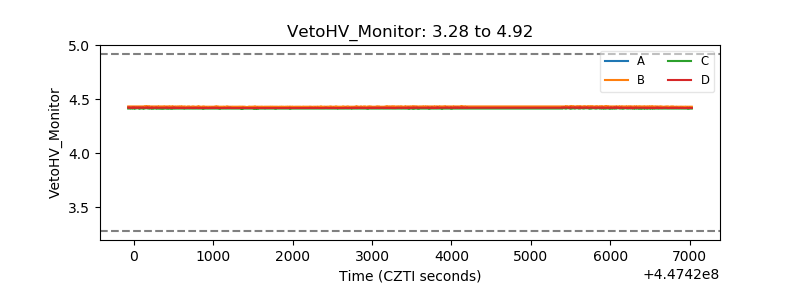

| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

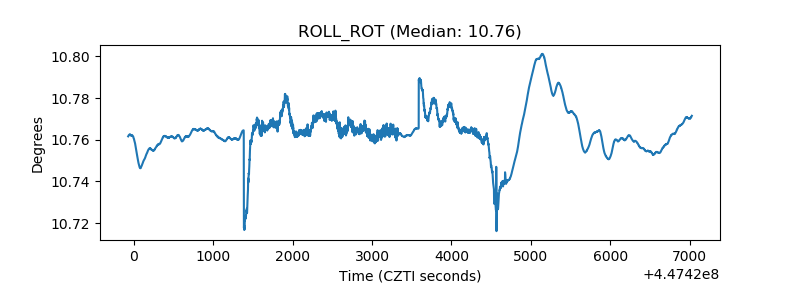

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
