| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A13_071T08_9000006114_45638cztM0_level2.fits | modeM0/AS1A13_071T08_9000006114_45638cztM0_level2_quad_clean.evt |
| Size (bytes) | 653,123,520 | 129,052,800 |
| Size | 622.9 MB | 123.1 MB |
| Events in quadrant A | 7,255,333 | 855,854 |
| Events in quadrant B | 4,558,192 | 875,485 |
| Events in quadrant C | 3,732,274 | 858,078 |
| Events in quadrant D | 8,002,998 | 753,786 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 2 | 0 |
| B | 0 | 2 | 0 |
| C | 0 | 2 | 0 |
| D | 0 | 2 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 27242 | 1 |
| B | 0 | 19230 | 2 |
| C | 0 | 17165 | 1 |
| D | 0 | 29598 | 1 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 166 | 0 |
| B | 0 | 166 | 0 |
| C | 0 | 166 | 0 |
| D | 0 | 166 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 8110 | 334 | 4.118372% |
| B | 8109 | 337 | 4.155876% |
| C | 8109 | 74 | 0.912566% |
| D | 8110 | 536 | 6.609125% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 8350 | 8112 | 30 | 30 | 0.36% | 0.37% |  |
| B | 8349 | 8110 | 113 | 113 | 1.35% | 1.39% |  |
| C | 8349 | 8111 | 24 | 24 | 0.29% | 0.30% |  |
| D | 8350 | 8111 | 327 | 327 | 3.92% | 4.03% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 3391624 | 17657.21 | 918 | 894 | 192.0 |
| A | 10 | 248 | 91558 | 472.13 | 918 | 894 | 192.0 |
| A | 12 | 189 | 86405 | 445.3 | 918 | 894 | 192.0 |
| B | 3 | 112 | 612717 | 3408.67 | 917 | 889 | 179.5 |
| B | 15 | 35 | 66750 | 366.93 | 917 | 889 | 179.5 |
| B | 0 | 183 | 41243 | 224.82 | 917 | 889 | 179.5 |
| C | 14 | 254 | 186805 | 879.32 | 899 | 900 | 211.4 |
| C | 2 | 14 | 13682 | 60.46 | 899 | 900 | 211.4 |
| C | 12 | 2 | 7661 | 31.98 | 899 | 900 | 211.4 |
| D | 11 | 241 | 2299660 | 10168.21 | 883 | 853 | 226.1 |
| D | 1 | 52 | 999097 | 4415.49 | 883 | 853 | 226.1 |
| D | 8 | 129 | 314583 | 1387.71 | 883 | 853 | 226.1 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

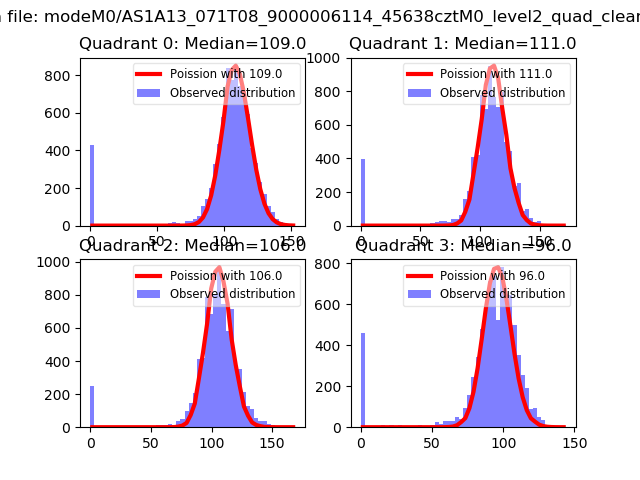

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

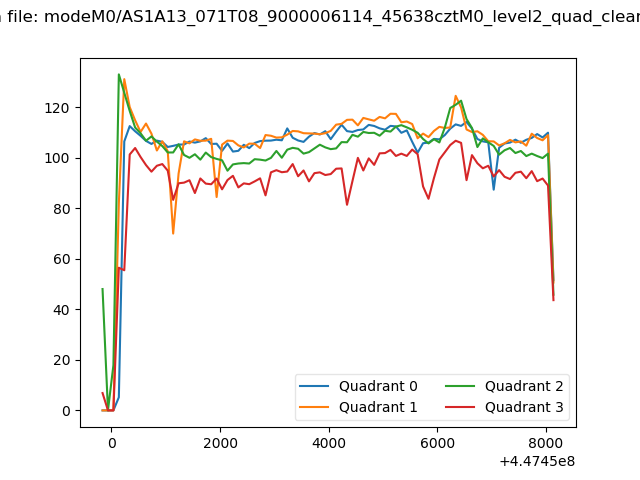

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

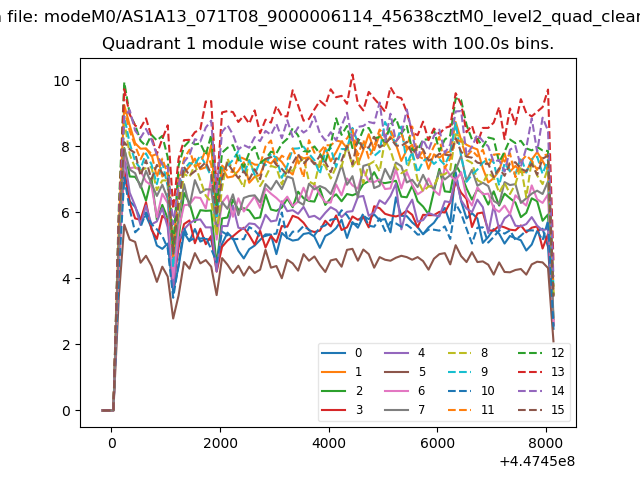

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

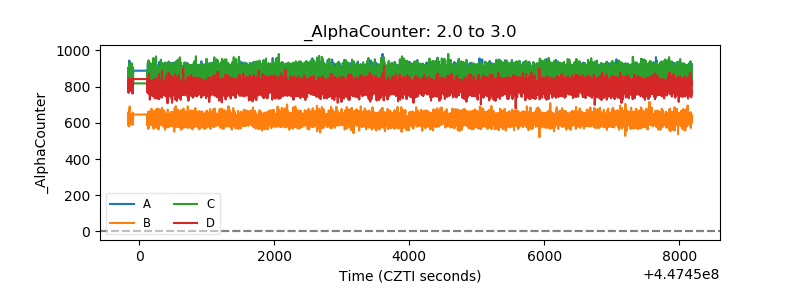

| Alpha Counter |  |

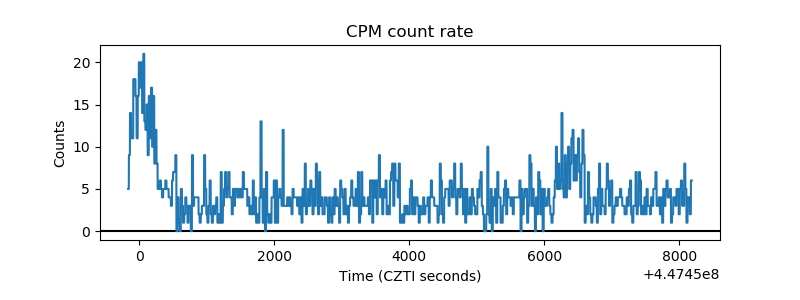

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

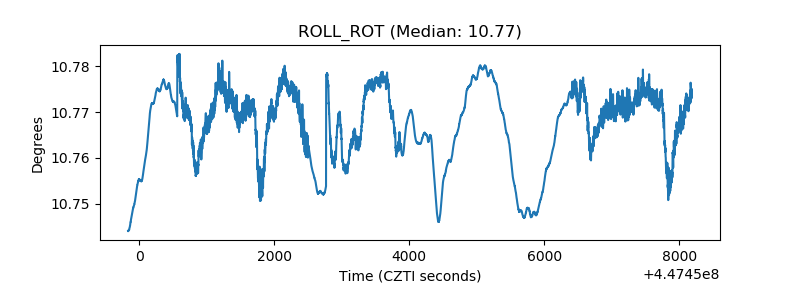

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

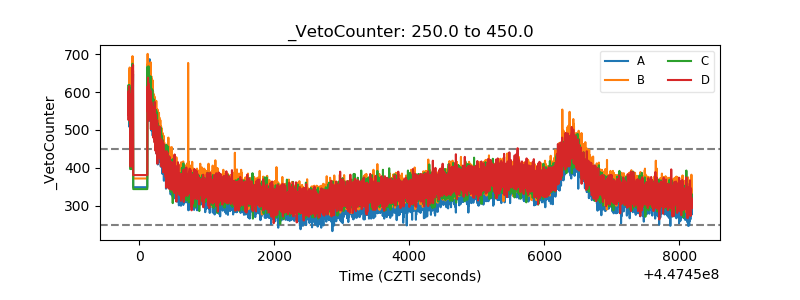

| Veto Counter |  |
