| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A13_071T08_9000006114_45639cztM0_level2.fits | modeM0/AS1A13_071T08_9000006114_45639cztM0_level2_quad_clean.evt |
| Size (bytes) | 627,477,120 | 123,969,600 |
| Size | 598.4 MB | 118.2 MB |
| Events in quadrant A | 7,045,699 | 839,041 |
| Events in quadrant B | 4,352,262 | 849,286 |
| Events in quadrant C | 3,770,504 | 814,959 |
| Events in quadrant D | 7,451,708 | 705,047 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 26553 | 2 |
| B | 0 | 18342 | 0 |
| C | 0 | 17030 | 0 |
| D | 0 | 27672 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 156 | 0 |
| B | 0 | 156 | 0 |
| C | 0 | 156 | 0 |
| D | 0 | 156 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7840 | 163 | 2.079082% |
| B | 7840 | 202 | 2.576531% |
| C | 7840 | 66 | 0.841837% |
| D | 7841 | 689 | 8.787144% |

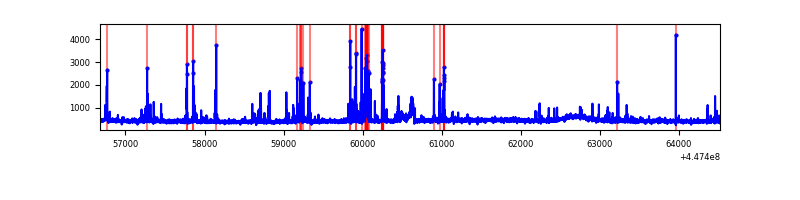

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7840 | 7840 | 41 | 41 | 0.52% | 0.52% |  |
| B | 7840 | 7840 | 134 | 134 | 1.71% | 1.71% |  |
| C | 7840 | 7840 | 51 | 51 | 0.65% | 0.65% |  |
| D | 7841 | 7841 | 535 | 535 | 6.82% | 6.82% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 3221501 | 17810.48 | 862 | 845 | 180.8 |
| A | 12 | 189 | 256245 | 1412.38 | 862 | 845 | 180.8 |
| A | 10 | 248 | 118922 | 652.98 | 862 | 845 | 180.8 |
| B | 5 | 172 | 484059 | 2870.4 | 860 | 832 | 168.3 |
| B | 3 | 112 | 182508 | 1079.17 | 860 | 832 | 168.3 |
| B | 12 | 3 | 60829 | 356.39 | 860 | 832 | 168.3 |
| C | 14 | 254 | 445398 | 2252.43 | 840 | 845 | 197.4 |
| C | 2 | 14 | 17140 | 82.56 | 840 | 845 | 197.4 |
| C | 12 | 2 | 12061 | 56.83 | 840 | 845 | 197.4 |
| D | 11 | 241 | 1422434 | 6866.42 | 818 | 791 | 207.0 |
| D | 12 | 32 | 1194174 | 5763.94 | 818 | 791 | 207.0 |
| D | 1 | 52 | 456275 | 2199.95 | 818 | 791 | 207.0 |

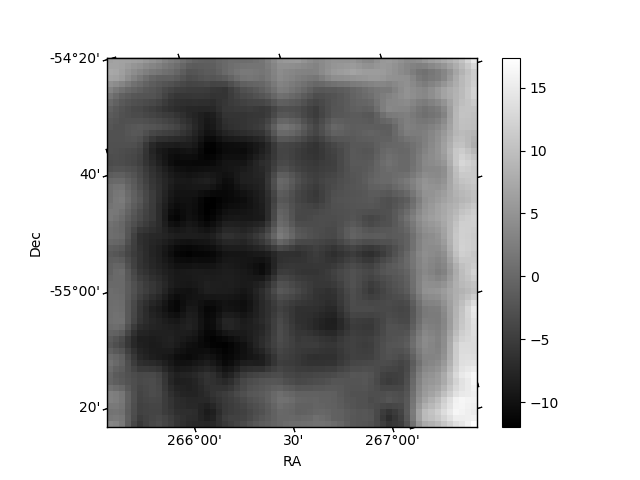

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

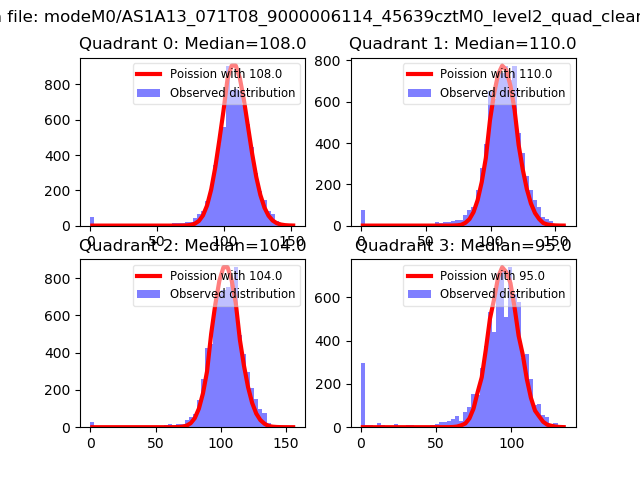

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

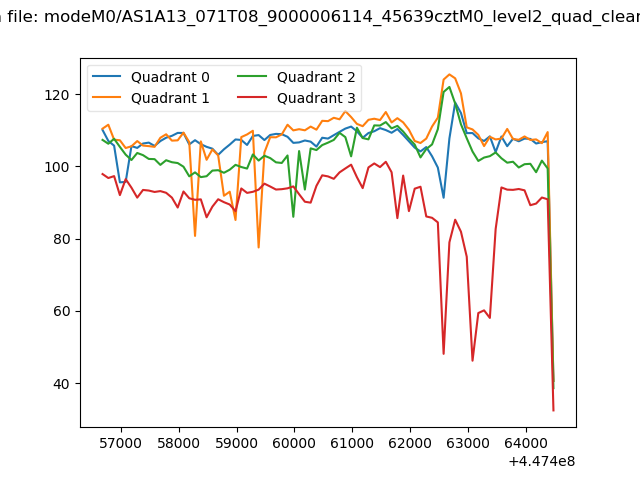

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

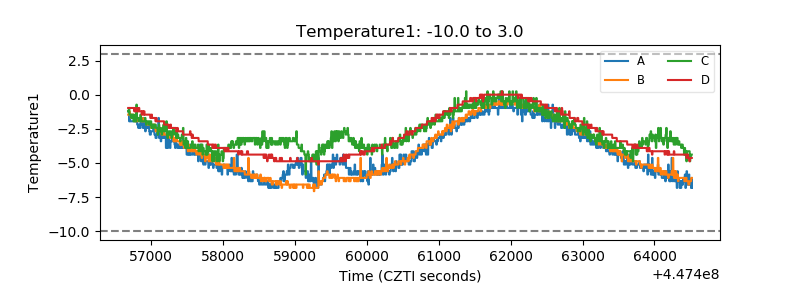

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

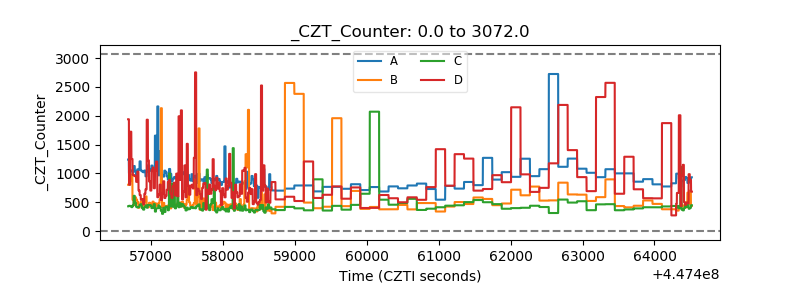

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |

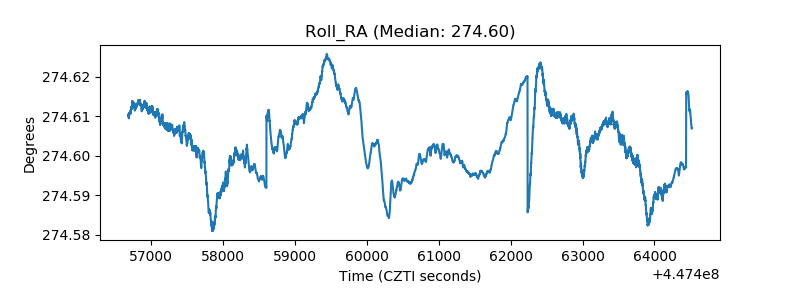

| _Roll_RA |  |

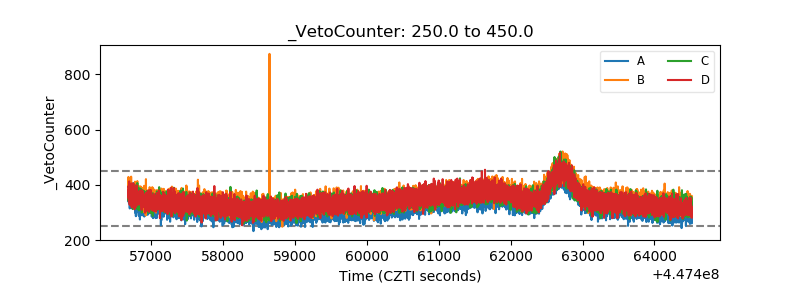

| Veto Counter |  |
