| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A13_071T07_9000006116_45649cztM0_level2.fits | modeM0/AS1A13_071T07_9000006116_45649cztM0_level2_quad_clean.evt |
| Size (bytes) | 601,107,840 | 96,935,040 |
| Size | 573.3 MB | 92.4 MB |
| Events in quadrant A | 5,268,612 | 695,175 |
| Events in quadrant B | 5,684,878 | 583,685 |
| Events in quadrant C | 3,115,258 | 685,310 |
| Events in quadrant D | 7,724,185 | 557,107 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12 | 0 |
| B | 0 | 12 | 0 |
| C | 0 | 12 | 0 |
| D | 0 | 12 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 19267 | 1 |
| B | 0 | 20770 | 8 |
| C | 0 | 13466 | 1 |
| D | 0 | 27147 | 1 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 122 | 0 |
| B | 0 | 122 | 0 |
| C | 0 | 122 | 0 |
| D | 0 | 122 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5918 | 164 | 2.771206% |
| B | 5917 | 1297 | 21.919892% |
| C | 5917 | 116 | 1.960453% |
| D | 5918 | 940 | 15.883745% |

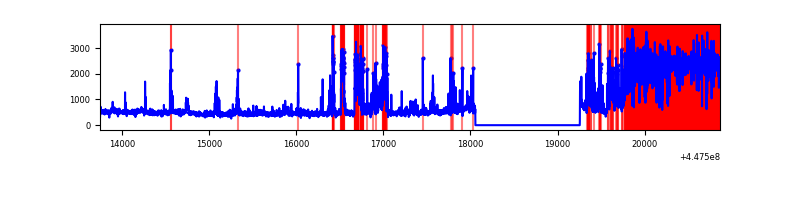

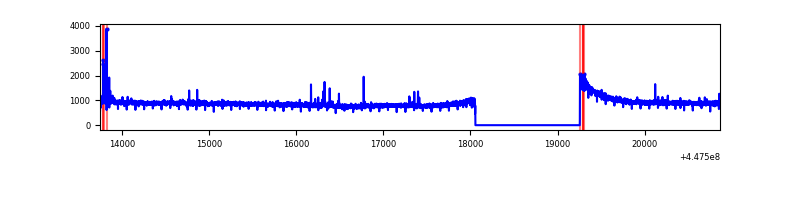

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7118 | 5919 | 9 | 9 | 0.13% | 0.15% |  |
| B | 7116 | 5917 | 1034 | 1034 | 14.53% | 17.48% |  |
| C | 7117 | 5918 | 82 | 82 | 1.15% | 1.39% |  |
| D | 7118 | 5919 | 912 | 912 | 12.81% | 15.41% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 2578146 | 18379.63 | 677 | 664 | 140.2 |
| A | 13 | 248 | 29896 | 208.45 | 677 | 664 | 140.2 |
| A | 14 | 235 | 21446 | 148.19 | 677 | 664 | 140.2 |
| B | 12 | 3 | 2120899 | 18159.54 | 608 | 591 | 116.8 |
| B | 4 | 171 | 451031 | 3857.83 | 608 | 591 | 116.8 |
| B | 3 | 112 | 450474 | 3853.06 | 608 | 591 | 116.8 |
| C | 14 | 254 | 507654 | 3317.86 | 659 | 665 | 152.8 |
| C | 3 | 233 | 10040 | 61.35 | 659 | 665 | 152.8 |
| C | 0 | 207 | 8753 | 52.93 | 659 | 665 | 152.8 |
| D | 1 | 52 | 2053750 | 13083.17 | 630 | 609 | 156.9 |
| D | 11 | 241 | 1709096 | 10886.94 | 630 | 609 | 156.9 |
| D | 8 | 48 | 926457 | 5899.76 | 630 | 609 | 156.9 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

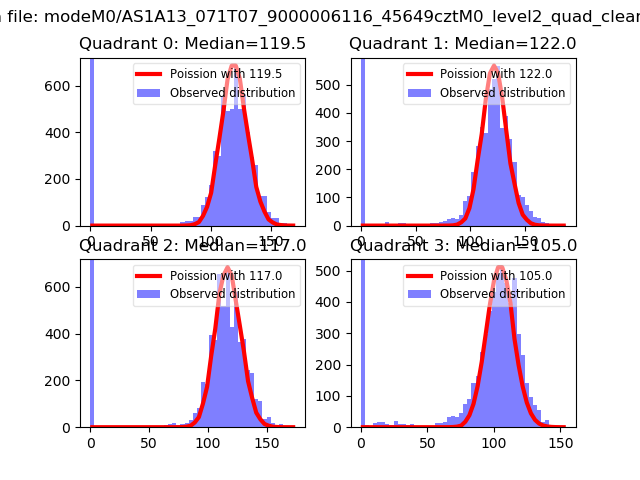

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

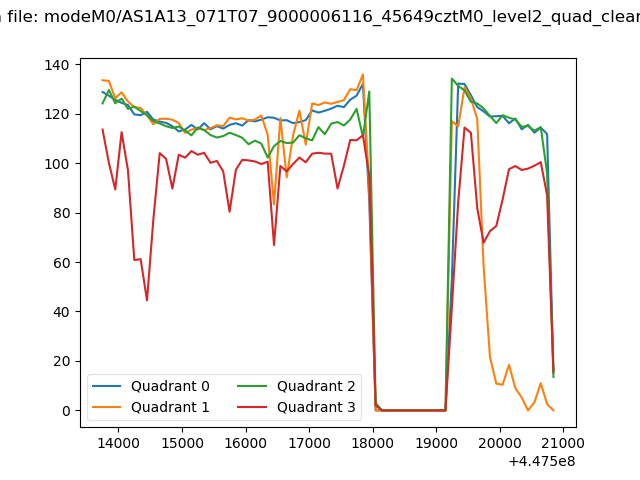

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

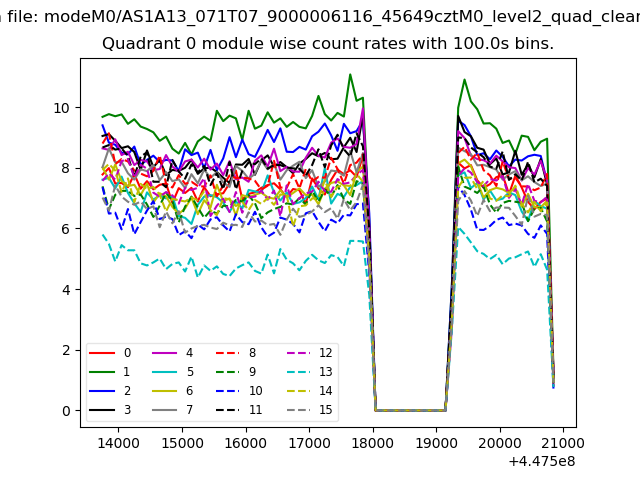

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

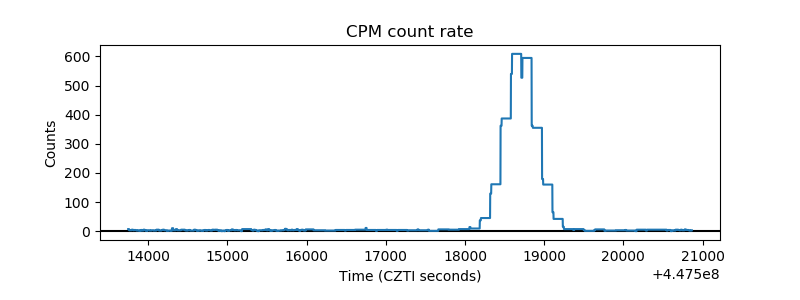

| _CPM_Rate |  |

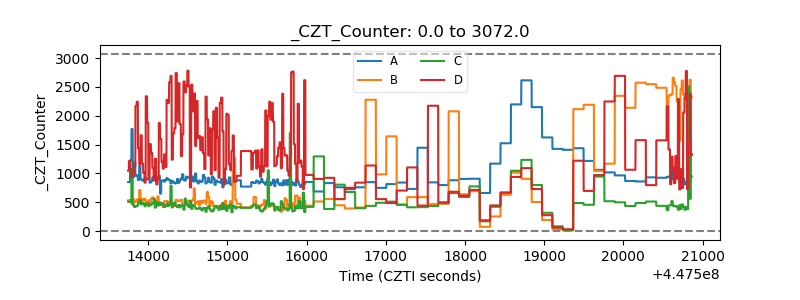

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
