| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A13_093T12_9000006118_45671cztM0_level2.fits | modeM0/AS1A13_093T12_9000006118_45671cztM0_level2_quad_clean.evt |
| Size (bytes) | 1,259,409,600 | 304,439,040 |
| Size | 1.2 GB | 290.3 MB |
| Events in quadrant A | 15,958,645 | 2,013,786 |
| Events in quadrant B | 9,669,396 | 2,066,840 |
| Events in quadrant C | 9,006,493 | 2,007,403 |
| Events in quadrant D | 10,490,151 | 1,798,337 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 61417 | 5 |
| B | 0 | 42158 | 3 |
| C | 0 | 41375 | 3 |
| D | 0 | 45592 | 3 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 394 | 0 |
| B | 0 | 394 | 0 |
| C | 0 | 394 | 0 |
| D | 0 | 394 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13 | 0 |
| B | 0 | 13 | 0 |
| C | 0 | 13 | 0 |
| D | 0 | 13 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 19321 | 362 | 1.873609% |
| B | 19321 | 369 | 1.909839% |
| C | 19322 | 195 | 1.009212% |
| D | 19322 | 497 | 2.572197% |

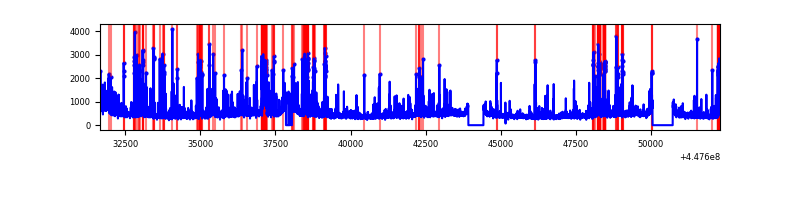

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 20652 | 19326 | 19 | 19 | 0.09% | 0.10% |  |
| B | 20652 | 19327 | 159 | 159 | 0.77% | 0.82% |  |
| C | 20653 | 19328 | 110 | 110 | 0.53% | 0.57% |  |
| D | 20652 | 19327 | 361 | 361 | 1.75% | 1.87% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 7538117 | 17132.87 | 2119 | 2074 | 439.9 |
| A | 13 | 248 | 141874 | 317.83 | 2119 | 2074 | 439.9 |
| A | 14 | 235 | 62059 | 136.37 | 2119 | 2074 | 439.9 |
| B | 5 | 172 | 559908 | 1357.65 | 2122 | 2059 | 410.9 |
| B | 0 | 183 | 119475 | 285.76 | 2122 | 2059 | 410.9 |
| B | 0 | 190 | 110981 | 265.09 | 2122 | 2059 | 410.9 |
| C | 14 | 254 | 670933 | 1356.58 | 2100 | 2109 | 493.0 |
| C | 1 | 3 | 79851 | 157.68 | 2100 | 2109 | 493.0 |
| C | 2 | 14 | 25506 | 47.46 | 2100 | 2109 | 493.0 |
| D | 13 | 249 | 924580 | 1772.45 | 2074 | 2009 | 520.5 |
| D | 1 | 52 | 452739 | 865.95 | 2074 | 2009 | 520.5 |
| D | 2 | 249 | 424951 | 812.56 | 2074 | 2009 | 520.5 |

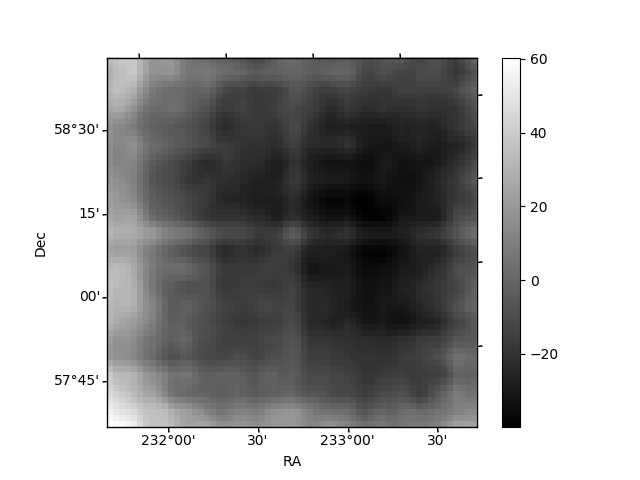

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

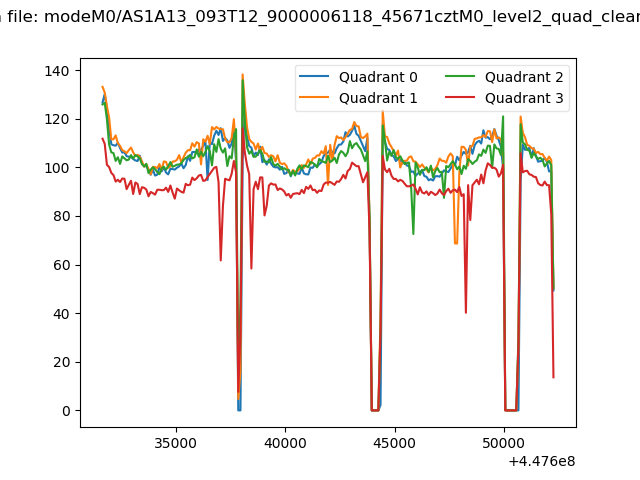

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

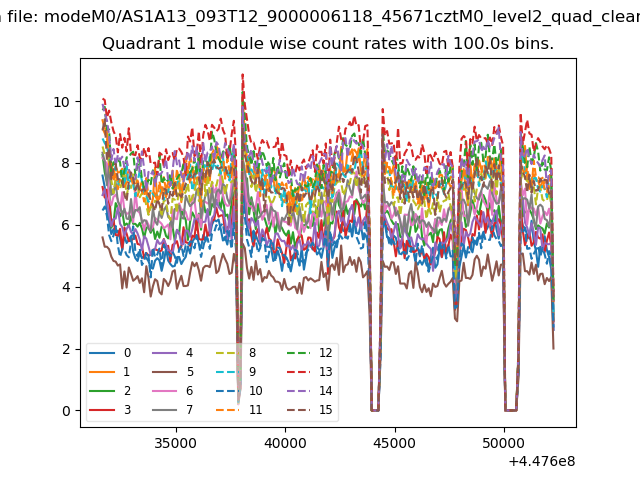

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

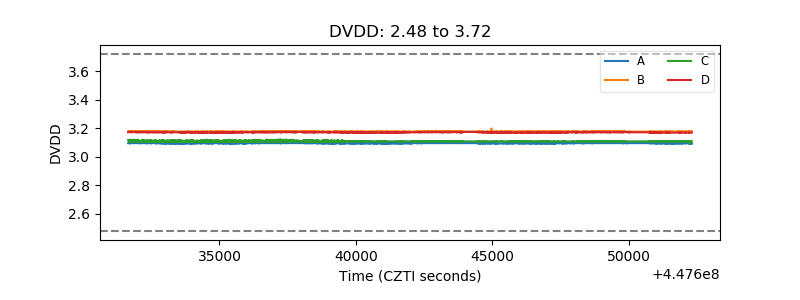

| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

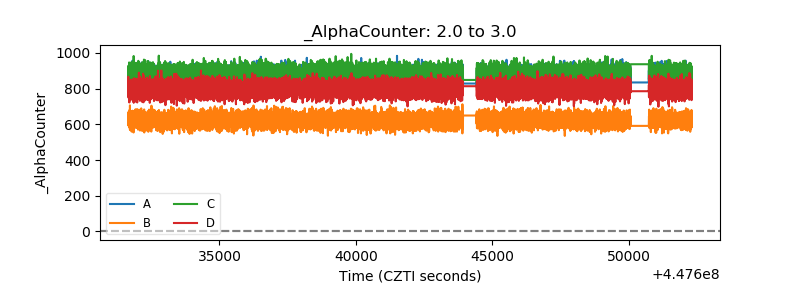

| Alpha Counter |  |

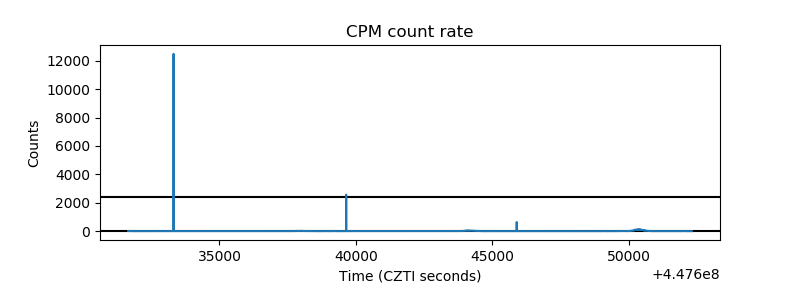

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

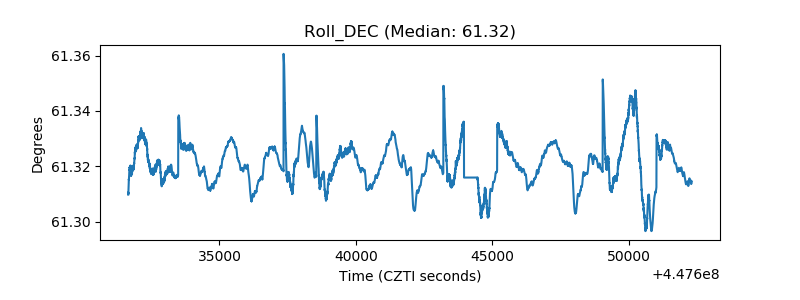

| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
