| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A13_028T01_9000006122_45704cztM0_level2.fits | modeM0/AS1A13_028T01_9000006122_45704cztM0_level2_quad_clean.evt |
| Size (bytes) | 850,812,480 | 195,868,800 |
| Size | 811.4 MB | 186.8 MB |
| Events in quadrant A | 10,539,072 | 1,290,276 |
| Events in quadrant B | 6,190,800 | 1,336,231 |
| Events in quadrant C | 5,809,381 | 1,298,584 |
| Events in quadrant D | 8,000,033 | 1,151,928 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 254 | 0 |
| B | 0 | 254 | 0 |
| C | 0 | 254 | 0 |
| D | 0 | 254 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 6 | 0 |
| B | 0 | 6 | 0 |
| C | 0 | 6 | 0 |
| D | 0 | 6 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 40114 | 2 |
| B | 0 | 26997 | 2 |
| C | 0 | 26175 | 2 |
| D | 0 | 32439 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 12336 | 342 | 2.772374% |
| B | 12337 | 295 | 2.391181% |
| C | 12337 | 129 | 1.045635% |
| D | 12337 | 477 | 3.866418% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 12941 | 12338 | 66 | 66 | 0.51% | 0.53% |  |
| B | 12942 | 12340 | 109 | 109 | 0.84% | 0.88% |  |
| C | 12942 | 12340 | 39 | 39 | 0.30% | 0.32% |  |
| D | 12942 | 12341 | 381 | 381 | 2.94% | 3.09% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 4919579 | 17053.18 | 1375 | 1345 | 288.4 |
| A | 13 | 248 | 238684 | 822.93 | 1375 | 1345 | 288.4 |
| A | 9 | 191 | 46313 | 155.92 | 1375 | 1345 | 288.4 |
| B | 5 | 172 | 400208 | 1480.52 | 1376 | 1332 | 269.4 |
| B | 3 | 112 | 137050 | 503.75 | 1376 | 1332 | 269.4 |
| B | 0 | 189 | 61846 | 224.61 | 1376 | 1332 | 269.4 |
| C | 3 | 233 | 194307 | 604.06 | 1363 | 1371 | 319.4 |
| C | 2 | 14 | 123239 | 381.55 | 1363 | 1371 | 319.4 |
| C | 14 | 254 | 94345 | 291.09 | 1363 | 1371 | 319.4 |
| D | 1 | 52 | 1231336 | 3645.53 | 1345 | 1302 | 337.4 |
| D | 13 | 249 | 741141 | 2192.71 | 1345 | 1302 | 337.4 |
| D | 2 | 249 | 444910 | 1314.75 | 1345 | 1302 | 337.4 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

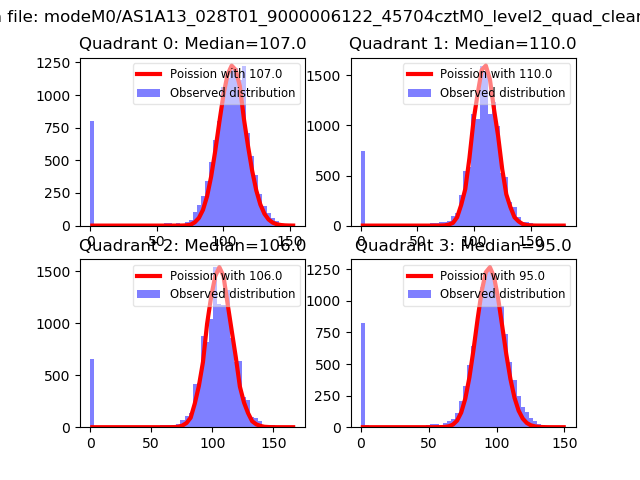

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

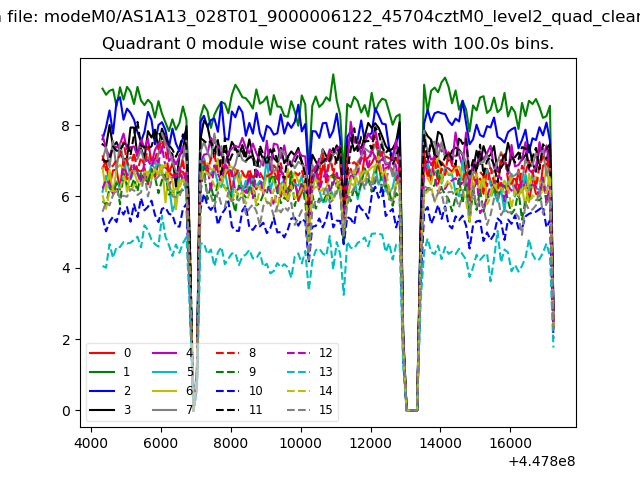

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

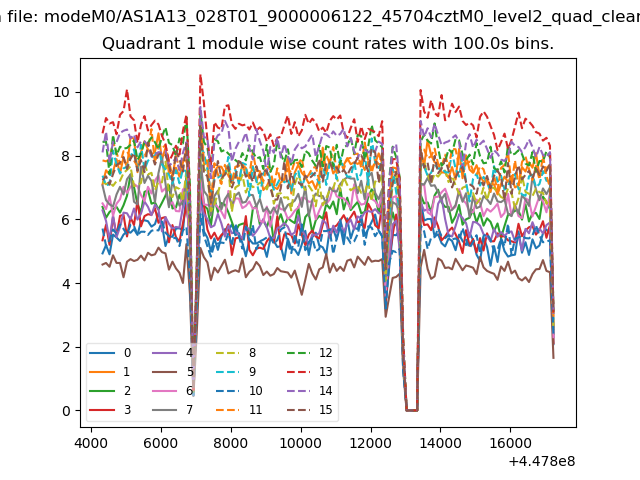

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

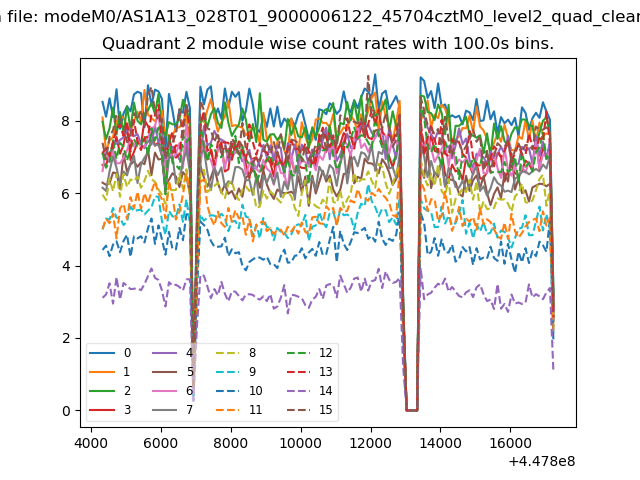

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

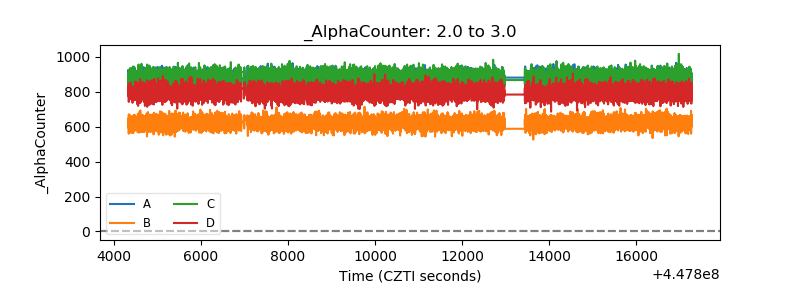

| Alpha Counter |  |

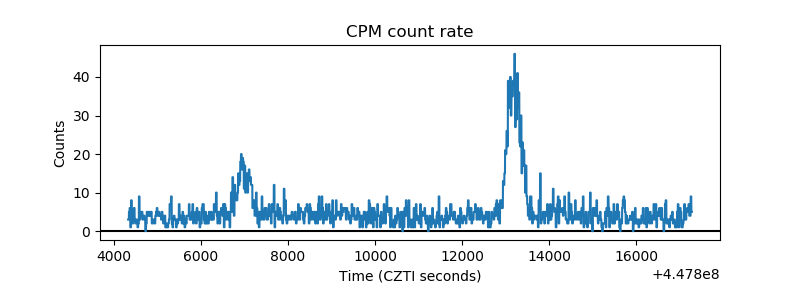

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

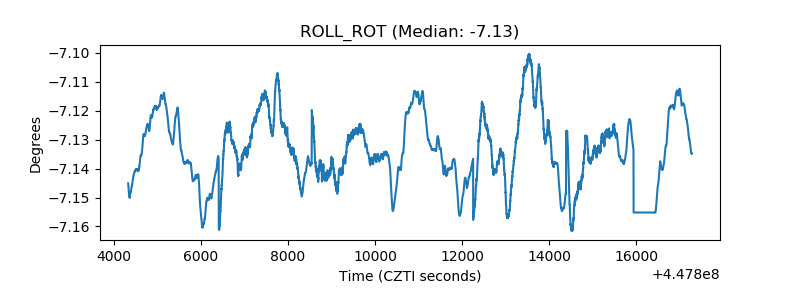

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

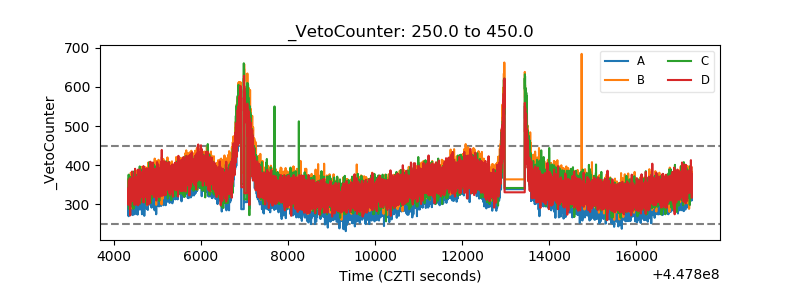

| Veto Counter |  |
