| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A13_028T01_9000006122_45708cztM0_level2.fits | modeM0/AS1A13_028T01_9000006122_45708cztM0_level2_quad_clean.evt |
| Size (bytes) | 531,063,360 | 116,596,800 |
| Size | 506.5 MB | 111.2 MB |
| Events in quadrant A | 6,311,580 | 773,302 |
| Events in quadrant B | 3,725,509 | 807,883 |
| Events in quadrant C | 4,753,993 | 763,875 |
| Events in quadrant D | 4,328,564 | 702,047 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 140 | 0 |
| B | 0 | 140 | 0 |
| C | 0 | 140 | 0 |
| D | 0 | 140 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 16 | 0 |
| B | 0 | 17 | 0 |
| C | 0 | 17 | 0 |
| D | 0 | 17 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 22922 | 2 |
| B | 0 | 15297 | 2 |
| C | 0 | 18860 | 5 |
| D | 0 | 17566 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6943 | 339 | 4.882616% |
| B | 6943 | 197 | 2.837390% |
| C | 6942 | 473 | 6.813598% |
| D | 6942 | 345 | 4.969749% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7923 | 6943 | 4 | 4 | 0.05% | 0.06% |  |
| B | 7923 | 6943 | 5 | 5 | 0.06% | 0.07% |  |
| C | 7922 | 6942 | 290 | 290 | 3.66% | 4.18% |  |
| D | 7922 | 6942 | 207 | 207 | 2.61% | 2.98% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 3113765 | 18405.75 | 817 | 799 | 169.1 |
| A | 13 | 254 | 12581 | 69.66 | 817 | 799 | 169.1 |
| A | 13 | 248 | 11058 | 60.66 | 817 | 799 | 169.1 |
| B | 3 | 112 | 234229 | 1460.57 | 821 | 797 | 159.8 |
| B | 0 | 189 | 65055 | 402.06 | 821 | 797 | 159.8 |
| B | 0 | 183 | 59390 | 366.61 | 821 | 797 | 159.8 |
| C | 9 | 54 | 1456851 | 7751.39 | 798 | 802 | 187.8 |
| C | 1 | 241 | 125782 | 665.34 | 798 | 802 | 187.8 |
| C | 0 | 207 | 46622 | 243.93 | 798 | 802 | 187.8 |
| D | 13 | 249 | 783193 | 3907.7 | 805 | 780 | 200.2 |
| D | 2 | 249 | 117086 | 580.88 | 805 | 780 | 200.2 |
| D | 1 | 52 | 88937 | 440.29 | 805 | 780 | 200.2 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

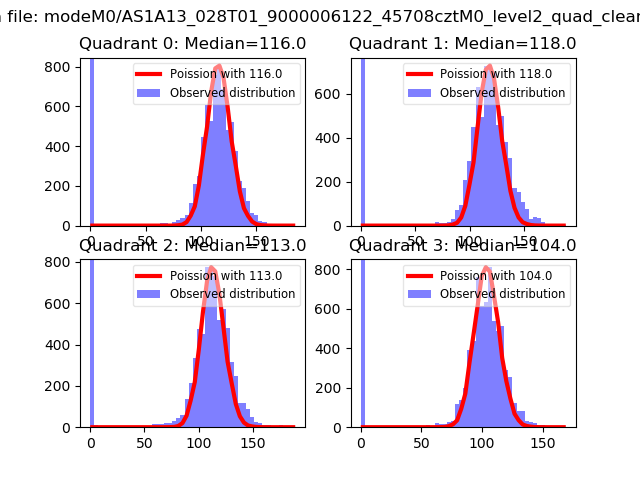

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

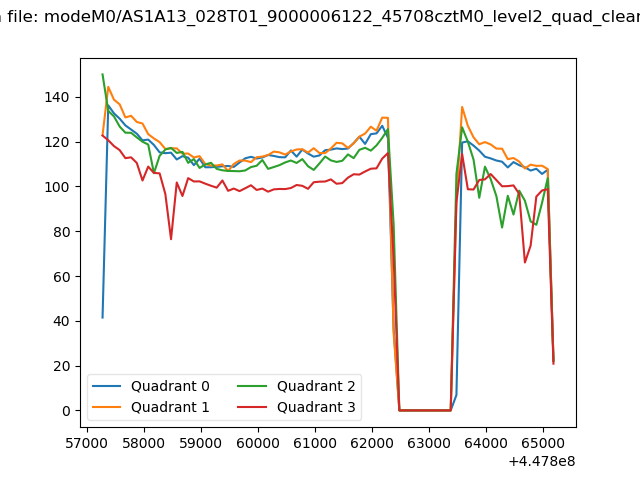

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

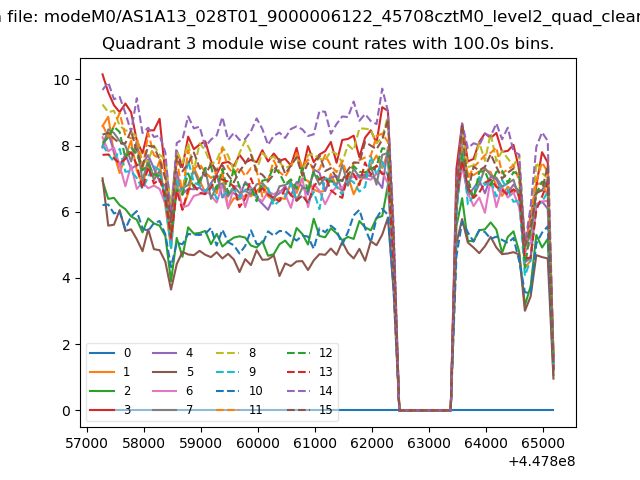

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

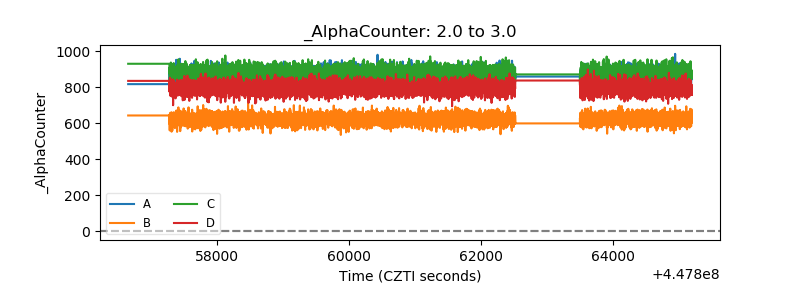

| Alpha Counter |  |

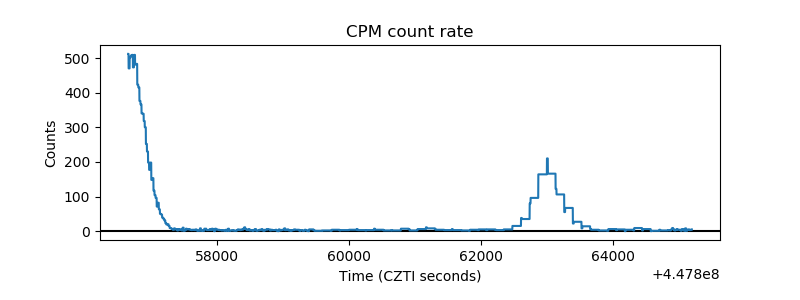

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

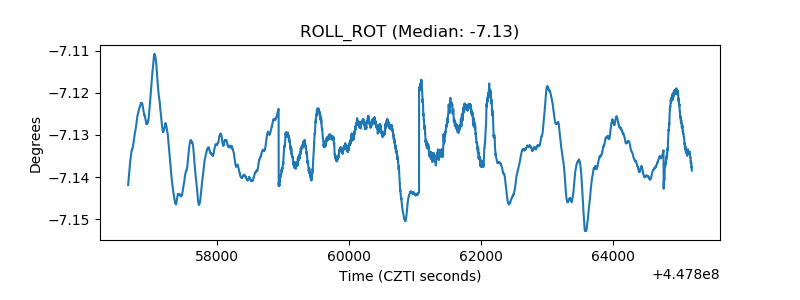

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

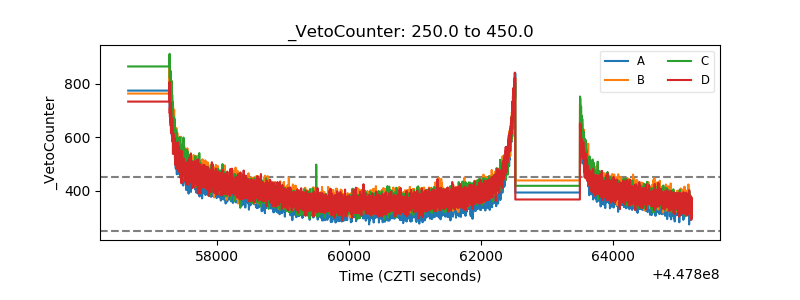

| Veto Counter |  |
