| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A13_028T01_9000006122_45720cztM0_level2.fits | modeM0/AS1A13_028T01_9000006122_45720cztM0_level2_quad_clean.evt |
| Size (bytes) | 759,441,600 | 170,268,480 |
| Size | 724.3 MB | 162.4 MB |
| Events in quadrant A | 9,203,784 | 1,117,130 |
| Events in quadrant B | 5,771,921 | 1,181,983 |
| Events in quadrant C | 4,582,502 | 1,148,160 |
| Events in quadrant D | 7,797,347 | 1,030,250 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 200 | 0 |
| B | 0 | 200 | 0 |
| C | 0 | 200 | 0 |
| D | 0 | 200 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 24 | 0 |
| B | 0 | 24 | 0 |
| C | 0 | 24 | 0 |
| D | 0 | 24 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 33367 | 2 |
| B | 0 | 23185 | 2 |
| C | 0 | 20245 | 2 |
| D | 0 | 29736 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 9786 | 401 | 4.097691% |
| B | 9787 | 186 | 1.900480% |
| C | 9787 | 70 | 0.715234% |
| D | 9787 | 318 | 3.249208% |

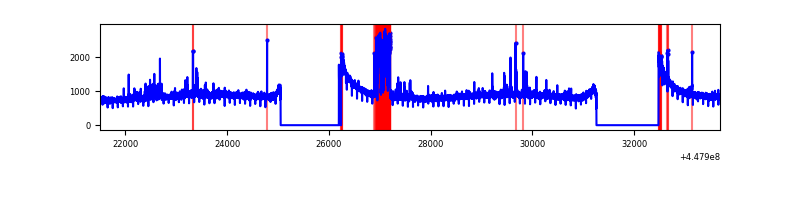

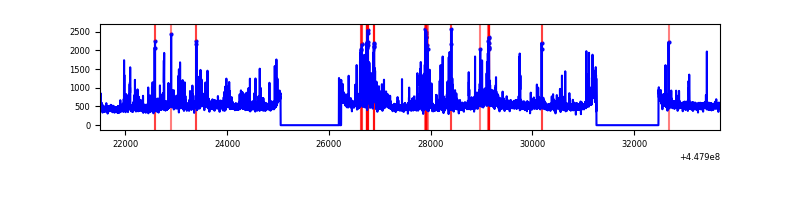

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 12181 | 9786 | 174 | 174 | 1.43% | 1.78% |  |
| B | 12182 | 9787 | 46 | 46 | 0.38% | 0.47% |  |
| C | 12182 | 9789 | 5 | 5 | 0.04% | 0.05% |  |
| D | 12182 | 9787 | 220 | 220 | 1.81% | 2.25% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 4148614 | 17536.46 | 1156 | 1133 | 236.5 |
| A | 9 | 191 | 424162 | 1788.66 | 1156 | 1133 | 236.5 |
| A | 7 | 3 | 65549 | 272.37 | 1156 | 1133 | 236.5 |
| B | 15 | 201 | 377356 | 1687.68 | 1152 | 1119 | 222.9 |
| B | 3 | 112 | 351983 | 1573.86 | 1152 | 1119 | 222.9 |
| B | 0 | 189 | 168708 | 751.75 | 1152 | 1119 | 222.9 |
| C | 12 | 2 | 42871 | 154.85 | 1152 | 1159 | 269.4 |
| C | 12 | 16 | 21423 | 75.23 | 1152 | 1159 | 269.4 |
| C | 0 | 207 | 18504 | 64.39 | 1152 | 1159 | 269.4 |
| D | 1 | 52 | 2284191 | 8005.24 | 1145 | 1112 | 285.2 |
| D | 13 | 249 | 410663 | 1436.02 | 1145 | 1112 | 285.2 |
| D | 2 | 249 | 225764 | 787.71 | 1145 | 1112 | 285.2 |

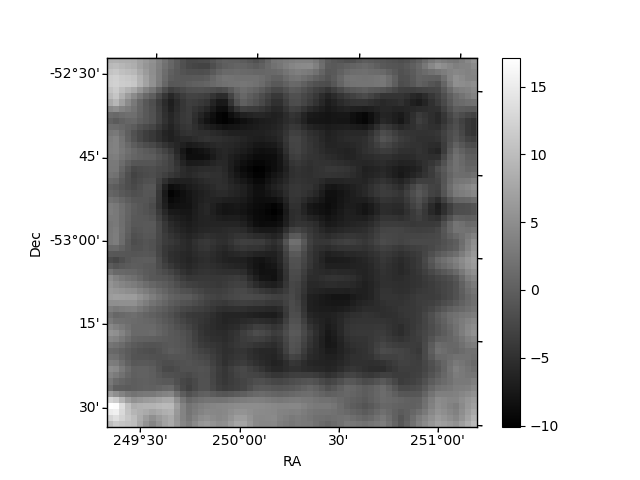

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

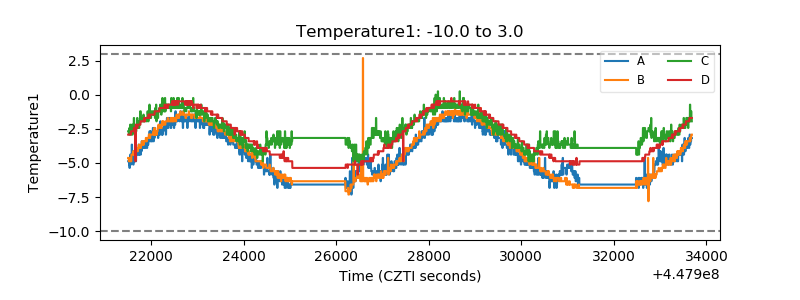

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

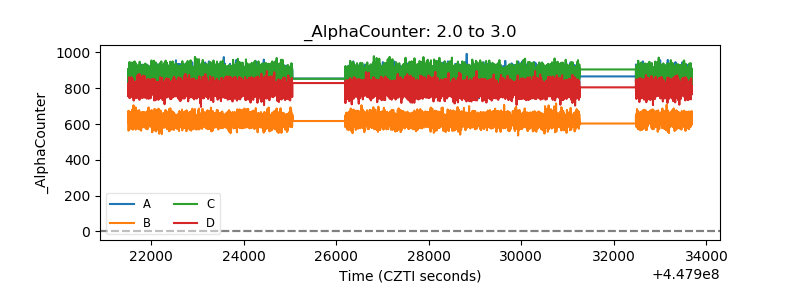

| Alpha Counter |  |

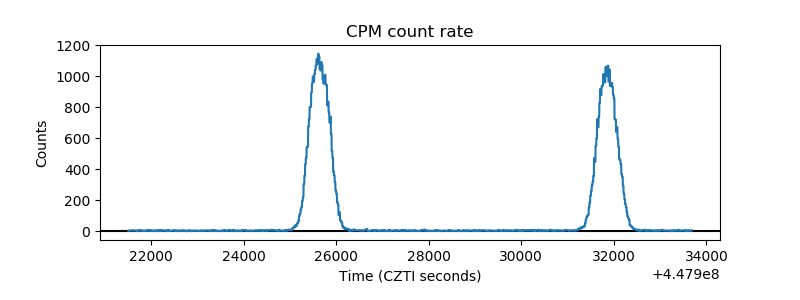

| _CPM_Rate |  |

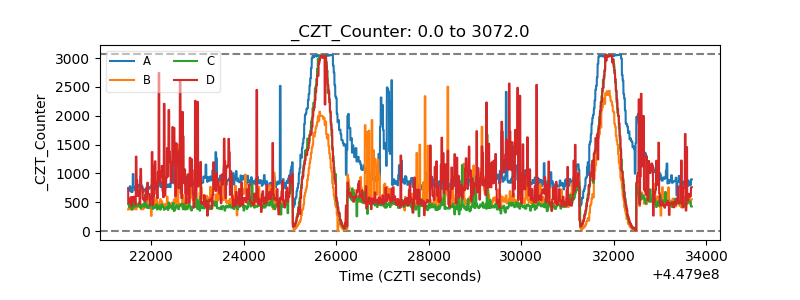

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

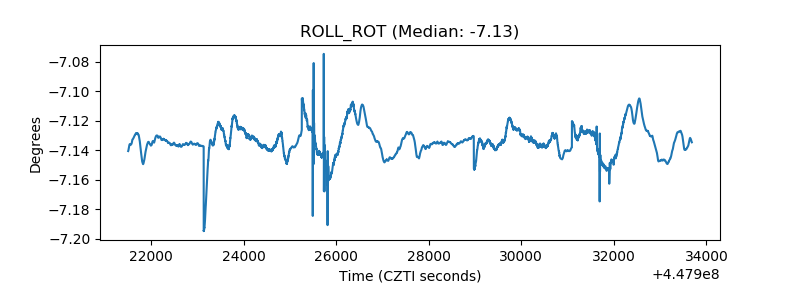

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
