| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1T05_183T01_9000006124_45732cztM0_level2.fits | modeM0/AS1T05_183T01_9000006124_45732cztM0_level2_quad_clean.evt |
| Size (bytes) | 511,266,240 | 109,051,200 |
| Size | 487.6 MB | 104.0 MB |
| Events in quadrant A | 6,012,055 | 723,900 |
| Events in quadrant B | 4,440,358 | 731,312 |
| Events in quadrant C | 3,099,845 | 736,049 |
| Events in quadrant D | 4,855,479 | 645,820 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 134 | 0 |
| B | 0 | 134 | 0 |
| C | 0 | 134 | 0 |
| D | 0 | 134 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 21998 | 2 |
| B | 0 | 17474 | 2 |
| C | 0 | 13863 | 2 |
| D | 0 | 18856 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13 | 0 |
| B | 0 | 14 | 0 |
| C | 0 | 14 | 0 |
| D | 0 | 14 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6674 | 215 | 3.221456% |
| B | 6673 | 365 | 5.469804% |
| C | 6673 | 67 | 1.004046% |
| D | 6673 | 325 | 4.870373% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7694 | 6675 | 9 | 9 | 0.12% | 0.13% |  |
| B | 7693 | 6674 | 194 | 194 | 2.52% | 2.91% |  |
| C | 7693 | 6674 | 10 | 10 | 0.13% | 0.15% |  |
| D | 7693 | 6674 | 265 | 265 | 3.44% | 3.97% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 2950311 | 18242.21 | 771 | 754 | 161.7 |
| A | 13 | 248 | 52780 | 321.76 | 771 | 754 | 161.7 |
| A | 13 | 254 | 11180 | 64.48 | 771 | 754 | 161.7 |
| B | 5 | 172 | 628617 | 4107.47 | 767 | 743 | 152.9 |
| B | 0 | 189 | 286711 | 1870.76 | 767 | 743 | 152.9 |
| B | 3 | 112 | 272469 | 1777.6 | 767 | 743 | 152.9 |
| C | 3 | 233 | 25621 | 136.82 | 767 | 772 | 181.6 |
| C | 12 | 249 | 24404 | 130.12 | 767 | 772 | 181.6 |
| C | 1 | 3 | 22732 | 120.91 | 767 | 772 | 181.6 |
| D | 1 | 52 | 918957 | 4882.99 | 751 | 728 | 188.0 |
| D | 13 | 249 | 547525 | 2907.77 | 751 | 728 | 188.0 |
| D | 2 | 249 | 251220 | 1332.07 | 751 | 728 | 188.0 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

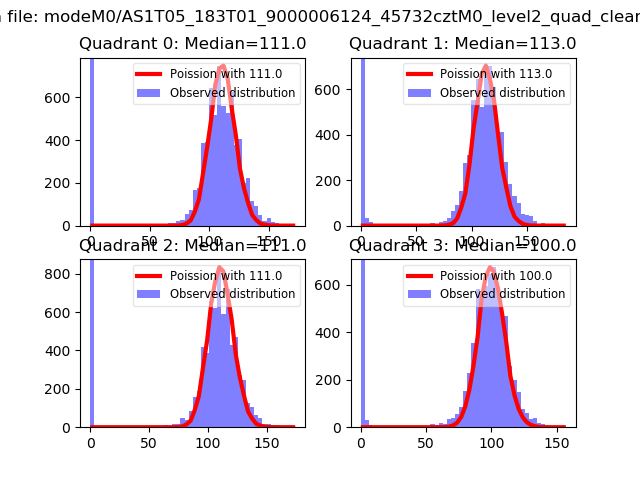

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

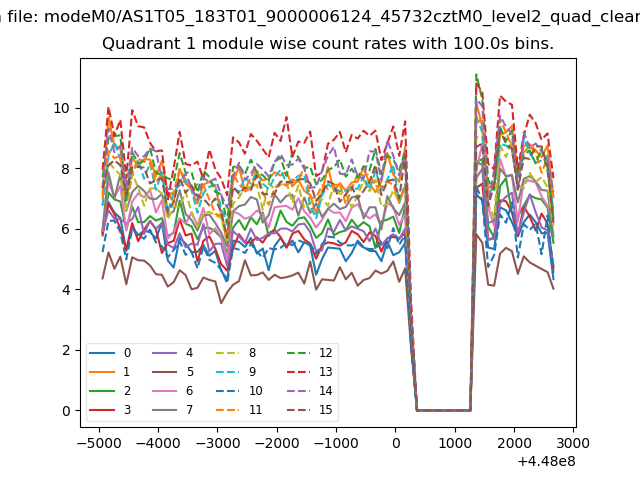

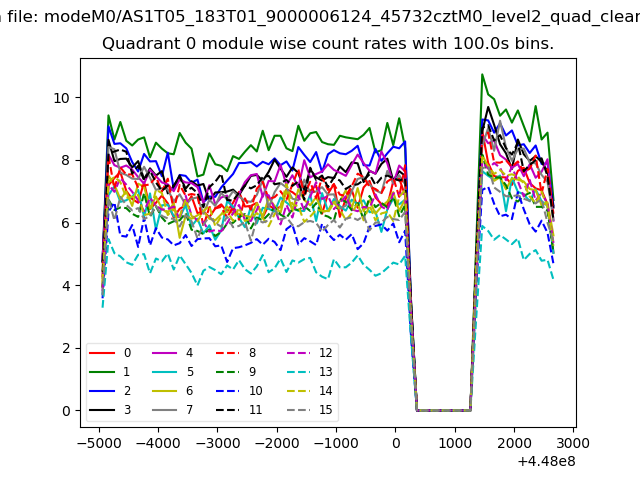

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

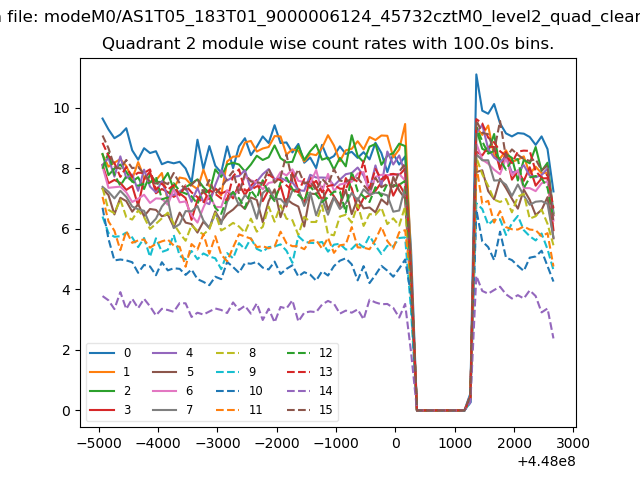

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|

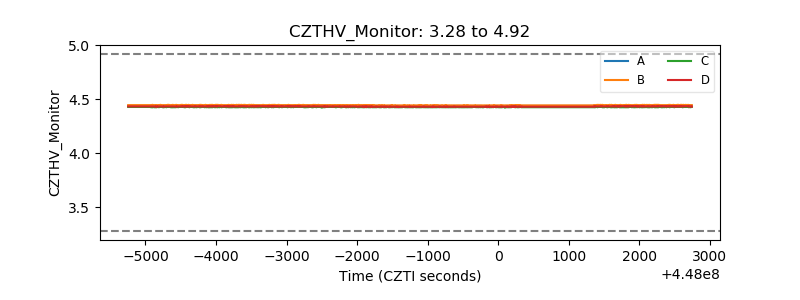

| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

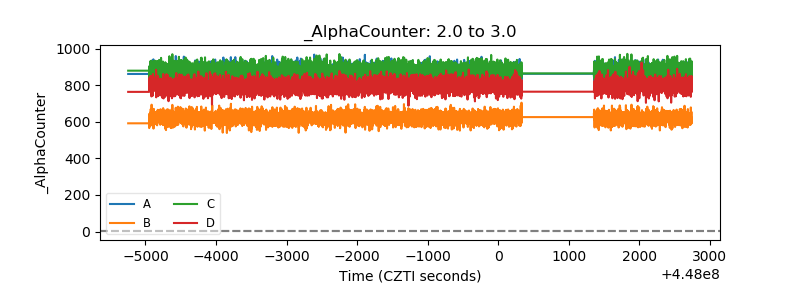

| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |

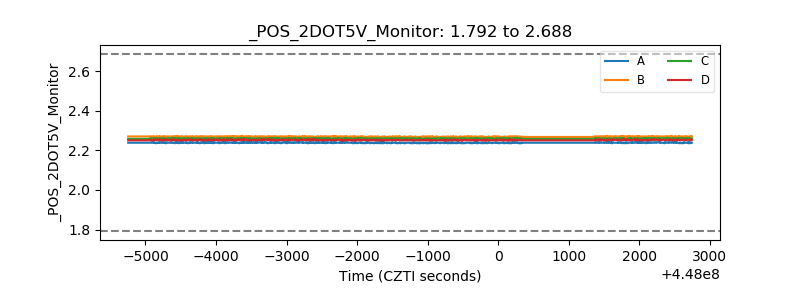

| +2.5 Volts monitor |  |

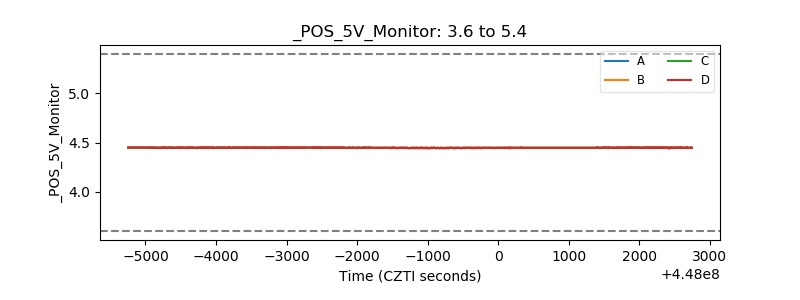

| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
