| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1T05_183T01_9000006124_45738cztM0_level2.fits | modeM0/AS1T05_183T01_9000006124_45738cztM0_level2_quad_clean.evt |
| Size (bytes) | 544,789,440 | 112,613,760 |
| Size | 519.6 MB | 107.4 MB |
| Events in quadrant A | 6,497,423 | 739,167 |
| Events in quadrant B | 5,057,418 | 760,663 |
| Events in quadrant C | 3,370,480 | 758,435 |
| Events in quadrant D | 4,708,684 | 672,566 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 140 | 0 |
| B | 0 | 140 | 0 |
| C | 0 | 140 | 0 |
| D | 0 | 140 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 23883 | 1 |
| B | 0 | 19543 | 1 |
| C | 0 | 14939 | 1 |
| D | 0 | 18660 | 1 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 6 | 0 |
| B | 0 | 6 | 0 |
| C | 0 | 6 | 0 |
| D | 0 | 6 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6870 | 274 | 3.988355% |
| B | 6871 | 262 | 3.813128% |
| C | 6871 | 77 | 1.120652% |
| D | 6871 | 345 | 5.021103% |

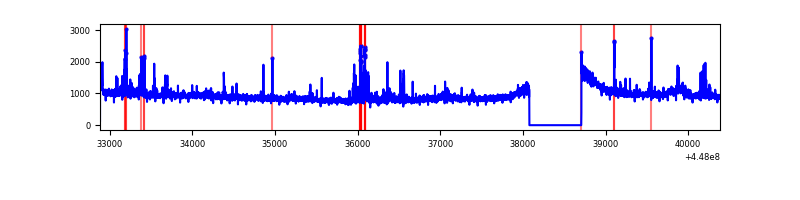

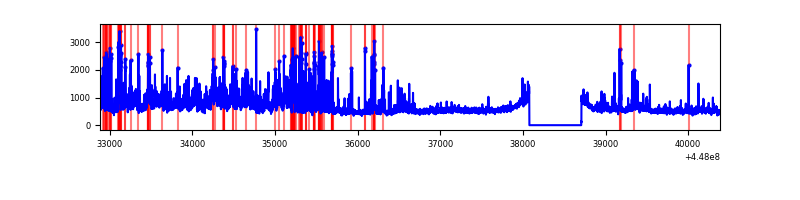

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7500 | 6871 | 27 | 27 | 0.36% | 0.39% |  |
| B | 7501 | 6872 | 132 | 132 | 1.76% | 1.92% |  |
| C | 7501 | 6872 | 39 | 39 | 0.52% | 0.57% |  |
| D | 7501 | 6872 | 312 | 312 | 4.16% | 4.54% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 3098505 | 18583.03 | 791 | 773 | 166.7 |
| A | 2 | 79 | 115195 | 686.41 | 791 | 773 | 166.7 |
| A | 13 | 248 | 60777 | 359.96 | 791 | 773 | 166.7 |
| B | 3 | 112 | 1065613 | 6849.2 | 786 | 764 | 155.5 |
| B | 5 | 255 | 328800 | 2109.96 | 786 | 764 | 155.5 |
| B | 4 | 171 | 197199 | 1263.49 | 786 | 764 | 155.5 |
| C | 14 | 254 | 215025 | 1165.47 | 778 | 785 | 183.8 |
| C | 14 | 96 | 32814 | 174.24 | 778 | 785 | 183.8 |
| C | 2 | 14 | 29405 | 155.69 | 778 | 785 | 183.8 |
| D | 1 | 52 | 889163 | 4506.81 | 771 | 749 | 197.1 |
| D | 10 | 253 | 364051 | 1842.98 | 771 | 749 | 197.1 |
| D | 13 | 249 | 202924 | 1025.61 | 771 | 749 | 197.1 |

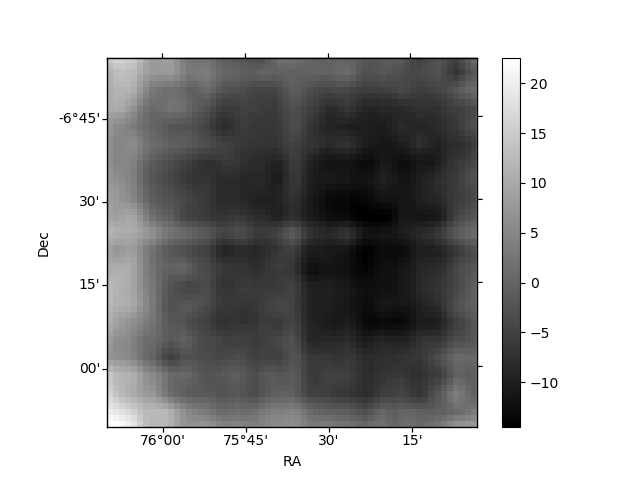

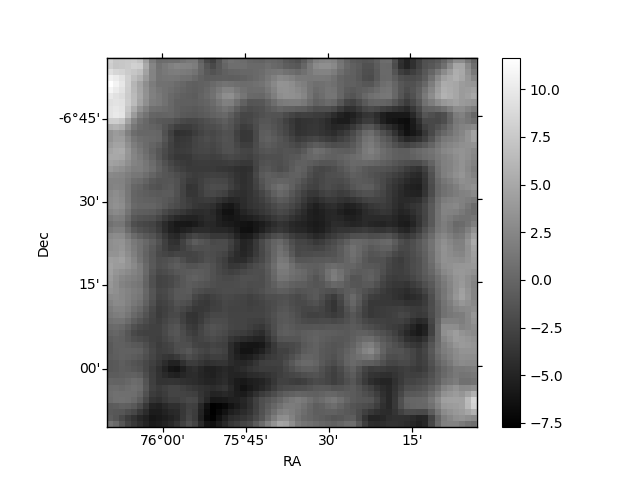

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

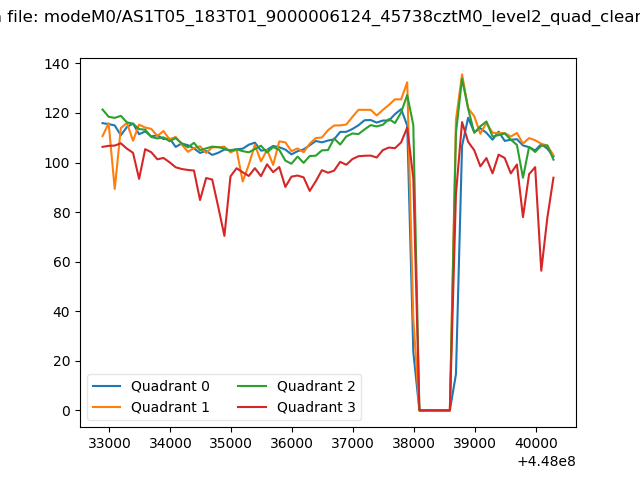

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

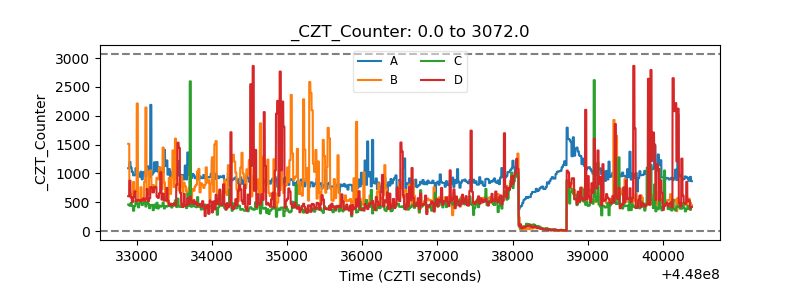

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

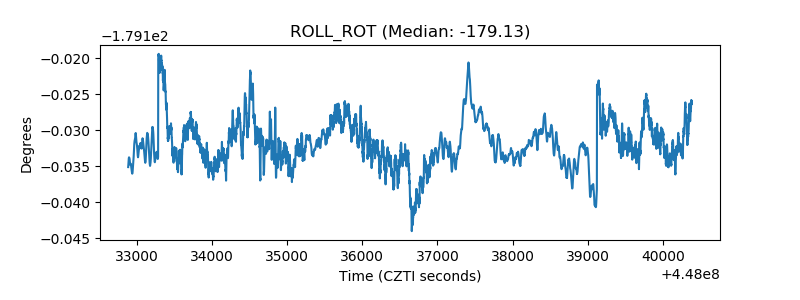

| _ROLL_ROT |  |

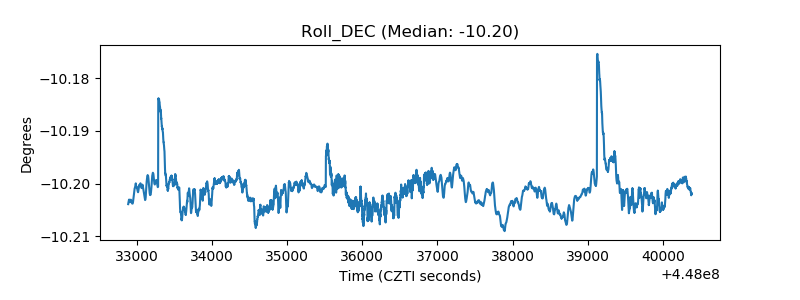

| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
