| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1T05_183T01_9000006124_45747cztM0_level2.fits | modeM0/AS1T05_183T01_9000006124_45747cztM0_level2_quad_clean.evt |
| Size (bytes) | 545,751,360 | 105,978,240 |
| Size | 520.5 MB | 101.1 MB |
| Events in quadrant A | 5,841,113 | 709,840 |
| Events in quadrant B | 4,849,214 | 738,178 |
| Events in quadrant C | 3,474,106 | 708,028 |
| Events in quadrant D | 5,541,456 | 605,857 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 130 | 0 |
| B | 0 | 130 | 0 |
| C | 0 | 130 | 0 |
| D | 0 | 130 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 21389 | 1 |
| B | 0 | 18882 | 1 |
| C | 0 | 14683 | 1 |
| D | 0 | 20832 | 1 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 11 | 0 |
| B | 0 | 11 | 0 |
| C | 0 | 11 | 0 |
| D | 0 | 11 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6404 | 180 | 2.810743% |
| B | 6405 | 227 | 3.544106% |
| C | 6405 | 181 | 2.825917% |
| D | 6405 | 637 | 9.945355% |

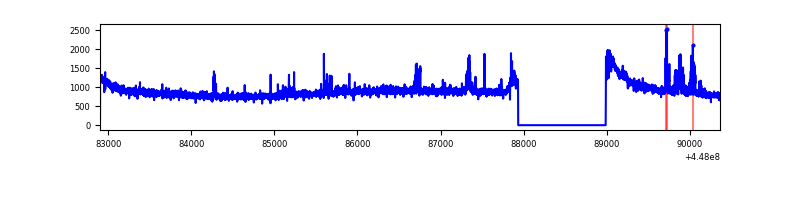

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7459 | 6405 | 3 | 3 | 0.04% | 0.05% |  |
| B | 7460 | 6406 | 65 | 65 | 0.87% | 1.01% |  |
| C | 7460 | 6406 | 112 | 112 | 1.50% | 1.75% |  |
| D | 7460 | 6406 | 518 | 518 | 6.94% | 8.09% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 2761217 | 17766.18 | 747 | 732 | 155.4 |
| A | 13 | 248 | 118745 | 759.52 | 747 | 732 | 155.4 |
| A | 14 | 235 | 50000 | 317.08 | 747 | 732 | 155.4 |
| B | 3 | 112 | 1654658 | 11283.84 | 748 | 726 | 146.6 |
| B | 5 | 255 | 59676 | 402.18 | 748 | 726 | 146.6 |
| B | 5 | 172 | 50085 | 336.75 | 748 | 726 | 146.6 |
| C | 14 | 254 | 516467 | 2974.45 | 737 | 742 | 173.4 |
| C | 12 | 2 | 68956 | 393.42 | 737 | 742 | 173.4 |
| C | 3 | 233 | 9897 | 52.8 | 737 | 742 | 173.4 |
| D | 1 | 52 | 956390 | 5359.29 | 708 | 686 | 178.3 |
| D | 1 | 47 | 399926 | 2238.81 | 708 | 686 | 178.3 |
| D | 7 | 38 | 364829 | 2042.0 | 708 | 686 | 178.3 |

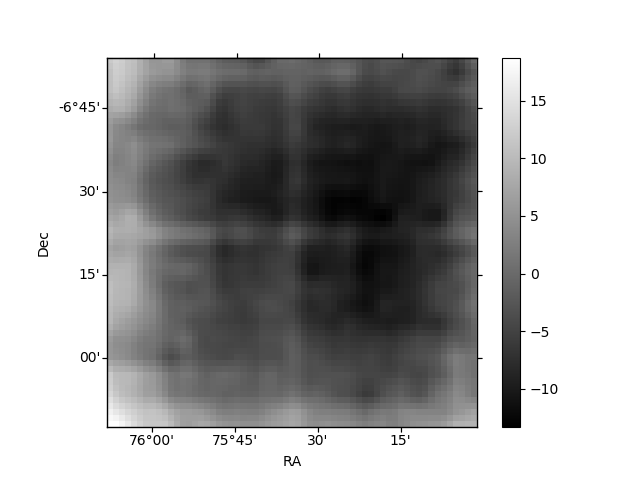

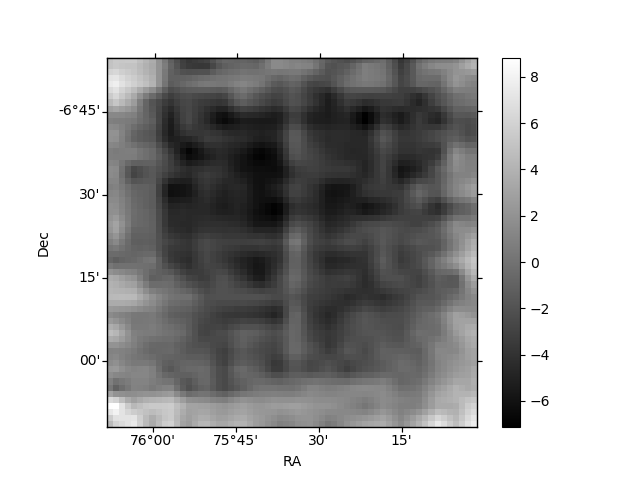

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

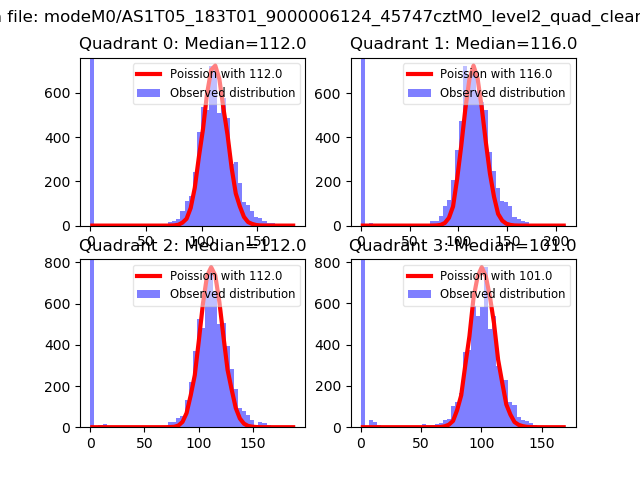

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

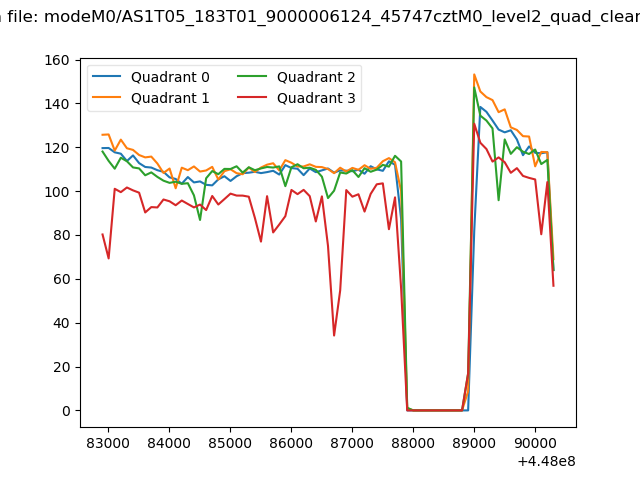

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

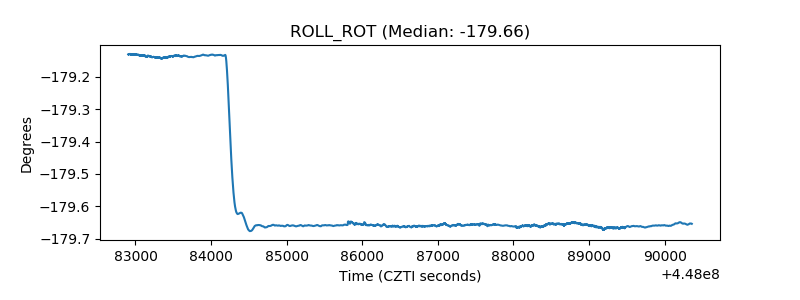

| _ROLL_ROT |  |
| _Roll_DEC |  |

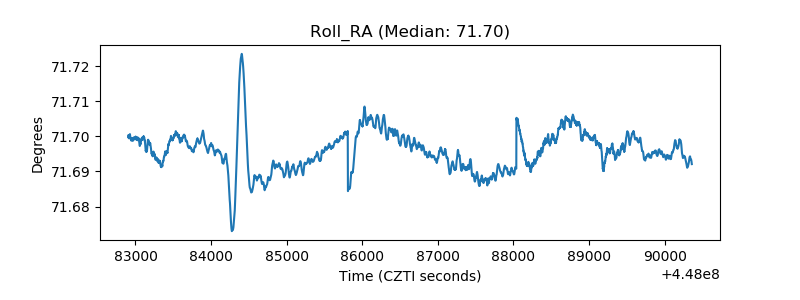

| _Roll_RA |  |

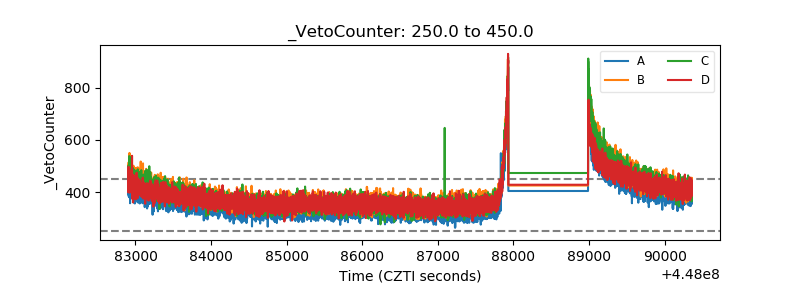

| Veto Counter |  |
