| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1T05_183T01_9000006124_45780cztM0_level2.fits | modeM0/AS1T05_183T01_9000006124_45780cztM0_level2_quad_clean.evt |
| Size (bytes) | 703,851,840 | 97,162,560 |
| Size | 671.2 MB | 92.7 MB |
| Events in quadrant A | 6,204,246 | 682,670 |
| Events in quadrant B | 5,468,785 | 697,516 |
| Events in quadrant C | 3,060,272 | 716,014 |
| Events in quadrant D | 10,845,051 | 415,799 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 126 | 0 |
| B | 0 | 126 | 0 |
| C | 0 | 126 | 0 |
| D | 0 | 126 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 22376 | 1 |
| B | 0 | 20621 | 1 |
| C | 0 | 13236 | 1 |
| D | 0 | 36425 | 1 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 10 | 0 |
| B | 0 | 10 | 0 |
| C | 0 | 10 | 0 |
| D | 0 | 10 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6152 | 451 | 7.330949% |
| B | 6152 | 526 | 8.550065% |
| C | 6152 | 106 | 1.723017% |
| D | 6153 | 2702 | 43.913538% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7227 | 6153 | 137 | 137 | 1.90% | 2.23% |  |
| B | 7227 | 6153 | 209 | 209 | 2.89% | 3.40% |  |
| C | 7227 | 6153 | 9 | 9 | 0.12% | 0.15% |  |
| D | 7228 | 6154 | 2508 | 2508 | 34.70% | 40.75% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 2816641 | 18538.35 | 730 | 712 | 151.9 |
| A | 13 | 248 | 397686 | 2613.43 | 730 | 712 | 151.9 |
| A | 4 | 0 | 124463 | 814.7 | 730 | 712 | 151.9 |
| B | 3 | 112 | 1850403 | 12942.79 | 720 | 698 | 142.9 |
| B | 5 | 172 | 158101 | 1101.38 | 720 | 698 | 142.9 |
| B | 15 | 201 | 146385 | 1019.4 | 720 | 698 | 142.9 |
| C | 14 | 254 | 92383 | 540.59 | 724 | 728 | 169.5 |
| C | 12 | 2 | 91235 | 533.82 | 724 | 728 | 169.5 |
| C | 2 | 14 | 36093 | 208.59 | 724 | 728 | 169.5 |
| D | 11 | 241 | 6642999 | 41519.44 | 623 | 603 | 160.0 |
| D | 2 | 249 | 694851 | 4339.52 | 623 | 603 | 160.0 |
| D | 1 | 52 | 454949 | 2839.97 | 623 | 603 | 160.0 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

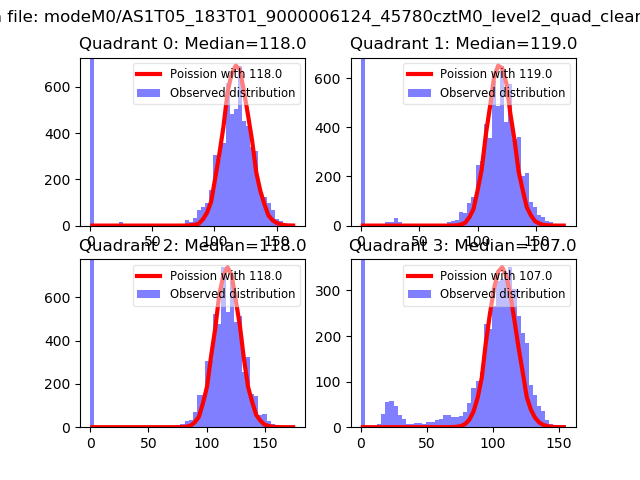

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

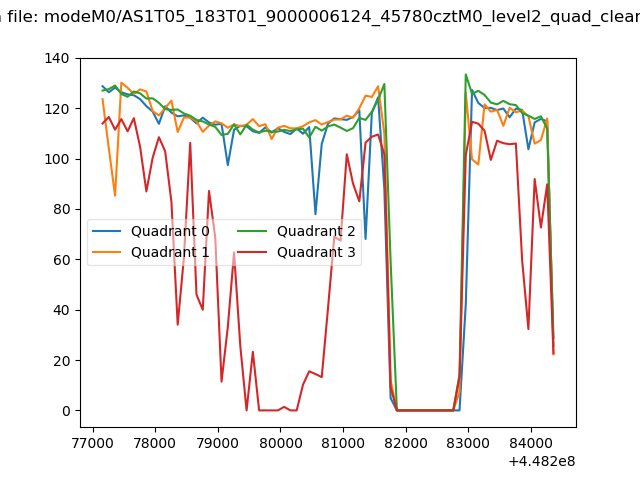

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

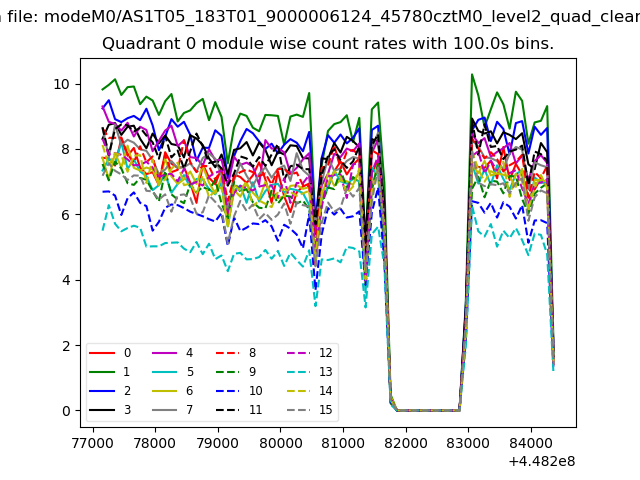

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

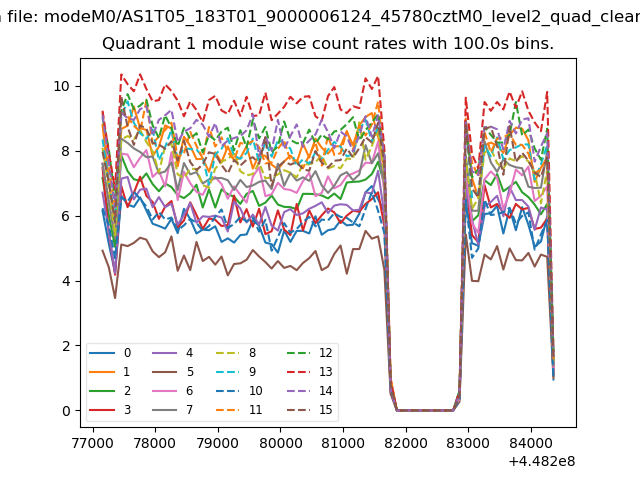

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

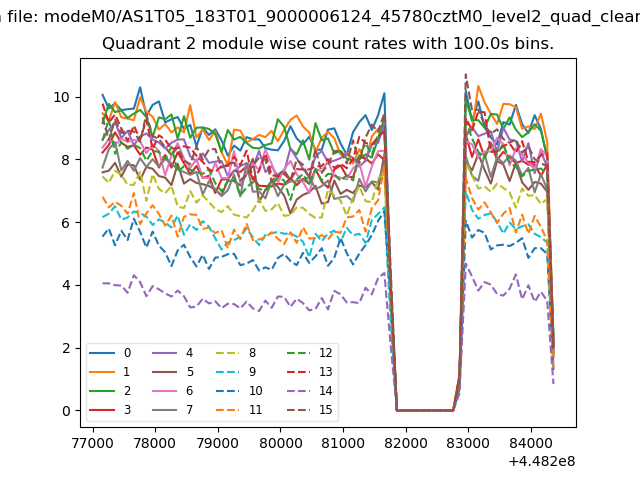

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

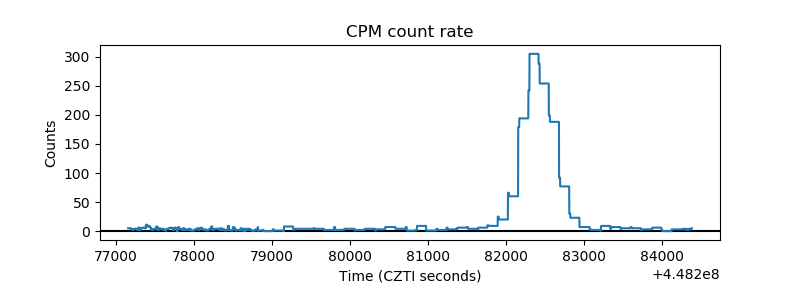

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

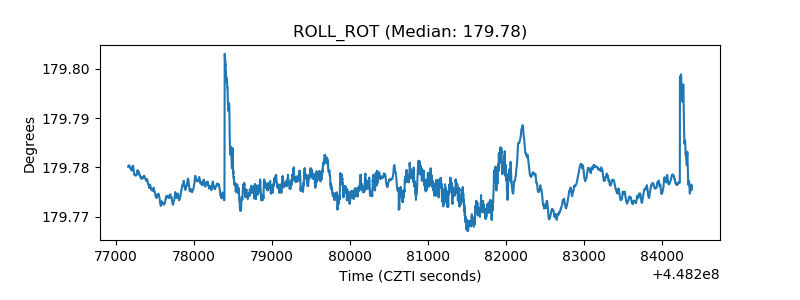

| _ROLL_ROT |  |

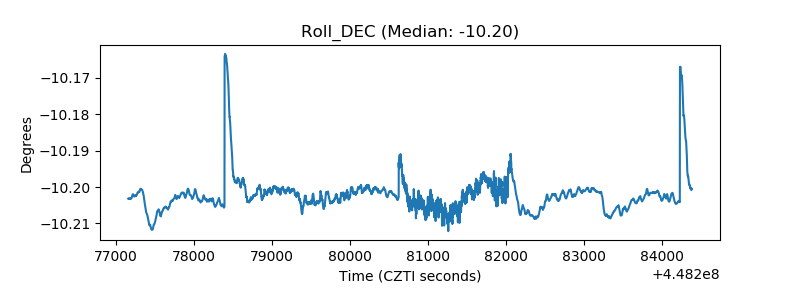

| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
