| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1T05_088T01_9000006126_45812cztM0_level2.fits | modeM0/AS1T05_088T01_9000006126_45812cztM0_level2_quad_clean.evt |
| Size (bytes) | 802,166,400 | 125,674,560 |
| Size | 765.0 MB | 119.9 MB |
| Events in quadrant A | 6,931,065 | 852,218 |
| Events in quadrant B | 9,414,015 | 777,918 |
| Events in quadrant C | 3,594,853 | 865,219 |
| Events in quadrant D | 9,138,417 | 755,487 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 25406 | 0 |
| B | 0 | 33637 | 0 |
| C | 0 | 16638 | 0 |
| D | 0 | 32867 | 1 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 158 | 0 |
| B | 0 | 158 | 0 |
| C | 0 | 158 | 0 |
| D | 0 | 158 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7978 | 268 | 3.359238% |
| B | 7978 | 1453 | 18.212585% |
| C | 7978 | 23 | 0.288293% |
| D | 7978 | 525 | 6.580597% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7978 | 7978 | 7 | 7 | 0.09% | 0.09% |  |
| B | 7978 | 7978 | 691 | 691 | 8.66% | 8.66% |  |
| C | 7978 | 7978 | 6 | 6 | 0.08% | 0.08% |  |
| D | 7978 | 7978 | 553 | 553 | 6.93% | 6.93% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 3232012 | 16832.27 | 918 | 894 | 192.0 |
| A | 13 | 248 | 124985 | 646.44 | 918 | 894 | 192.0 |
| A | 13 | 254 | 13903 | 67.77 | 918 | 894 | 192.0 |
| B | 3 | 112 | 5202204 | 30620.99 | 873 | 844 | 169.9 |
| B | 5 | 172 | 188668 | 1105.74 | 873 | 844 | 169.9 |
| B | 0 | 171 | 177308 | 1038.86 | 873 | 844 | 169.9 |
| C | 0 | 207 | 37814 | 173.8 | 907 | 910 | 212.3 |
| C | 3 | 233 | 9365 | 39.82 | 907 | 910 | 212.3 |
| C | 1 | 3 | 8417 | 35.35 | 907 | 910 | 212.3 |
| D | 11 | 241 | 4428693 | 19556.83 | 891 | 862 | 226.4 |
| D | 12 | 2 | 336977 | 1484.55 | 891 | 862 | 226.4 |
| D | 1 | 52 | 242910 | 1069.08 | 891 | 862 | 226.4 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

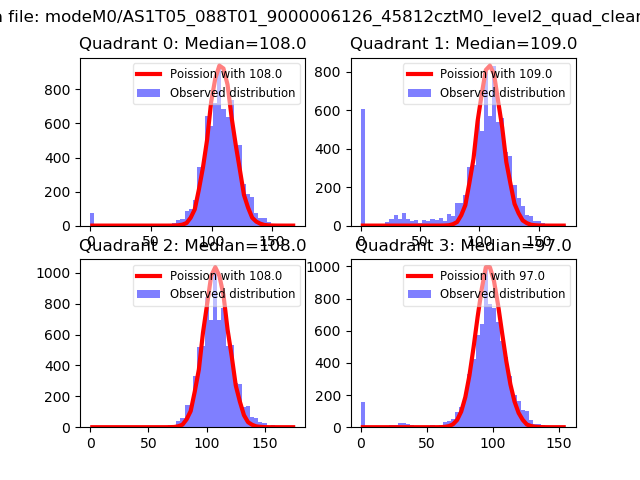

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

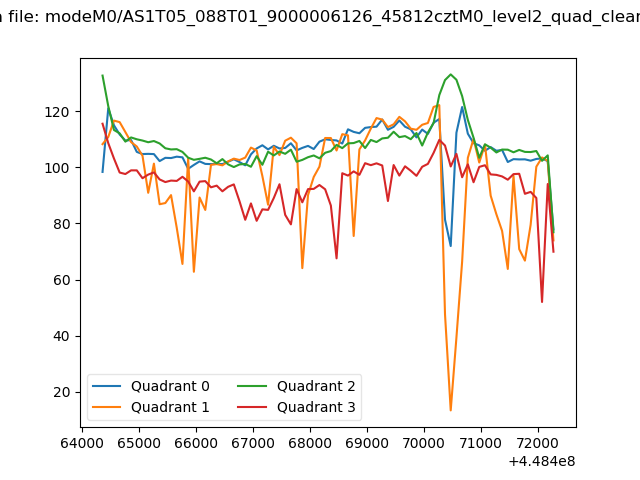

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

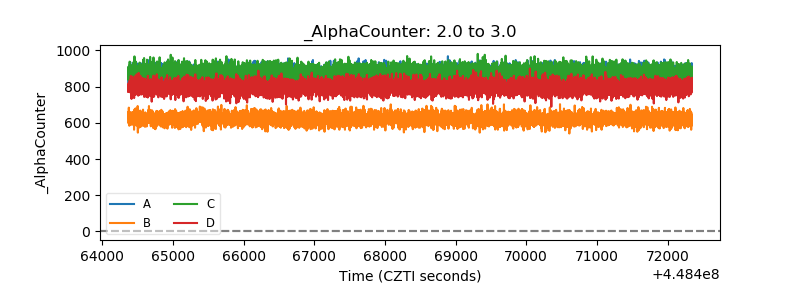

| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |

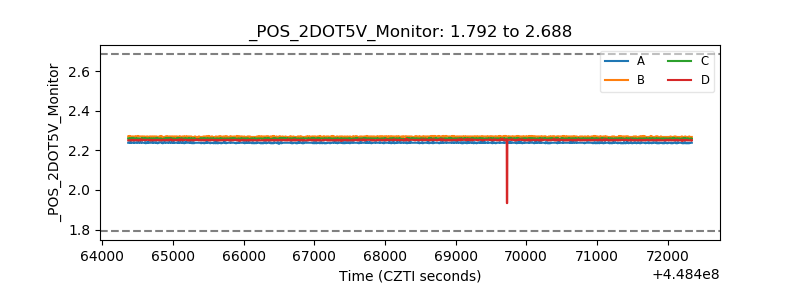

| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

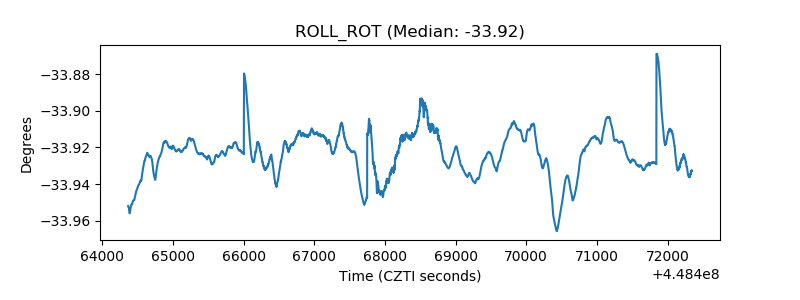

| _ROLL_ROT |  |

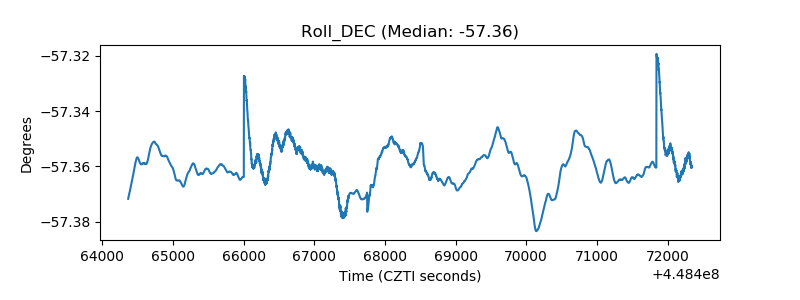

| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
