| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1T05_088T01_9000006126_45813cztM0_level2.fits | modeM0/AS1T05_088T01_9000006126_45813cztM0_level2_quad_clean.evt |
| Size (bytes) | 863,383,680 | 127,987,200 |
| Size | 823.4 MB | 122.1 MB |
| Events in quadrant A | 7,290,546 | 881,614 |
| Events in quadrant B | 10,083,688 | 785,147 |
| Events in quadrant C | 3,871,381 | 902,781 |
| Events in quadrant D | 10,072,002 | 727,059 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 26866 | 0 |
| B | 0 | 35958 | 0 |
| C | 0 | 17669 | 0 |
| D | 0 | 35826 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 166 | 0 |
| B | 0 | 166 | 0 |
| C | 0 | 166 | 0 |
| D | 0 | 166 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 8322 | 416 | 4.998798% |
| B | 8323 | 1691 | 20.317193% |
| C | 8323 | 35 | 0.420521% |
| D | 8322 | 1235 | 14.840183% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 8322 | 8322 | 7 | 7 | 0.08% | 0.08% |  |
| B | 8323 | 8323 | 596 | 596 | 7.16% | 7.16% |  |
| C | 8323 | 8323 | 6 | 6 | 0.07% | 0.07% |  |
| D | 8322 | 8322 | 902 | 902 | 10.84% | 10.84% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 3403637 | 16577.85 | 978 | 953 | 205.3 |
| A | 13 | 248 | 74399 | 357.83 | 978 | 953 | 205.3 |
| A | 13 | 254 | 15536 | 71.05 | 978 | 953 | 205.3 |
| B | 3 | 112 | 5775598 | 31350.93 | 927 | 894 | 184.2 |
| B | 0 | 189 | 161344 | 871.08 | 927 | 894 | 184.2 |
| B | 0 | 171 | 106336 | 572.45 | 927 | 894 | 184.2 |
| C | 0 | 207 | 41591 | 180.89 | 961 | 966 | 224.6 |
| C | 3 | 233 | 40626 | 176.59 | 961 | 966 | 224.6 |
| C | 12 | 16 | 18548 | 78.29 | 961 | 966 | 224.6 |
| D | 11 | 241 | 5704277 | 24083.58 | 929 | 899 | 236.8 |
| D | 1 | 52 | 263319 | 1108.12 | 929 | 899 | 236.8 |
| D | 2 | 249 | 136610 | 573.07 | 929 | 899 | 236.8 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

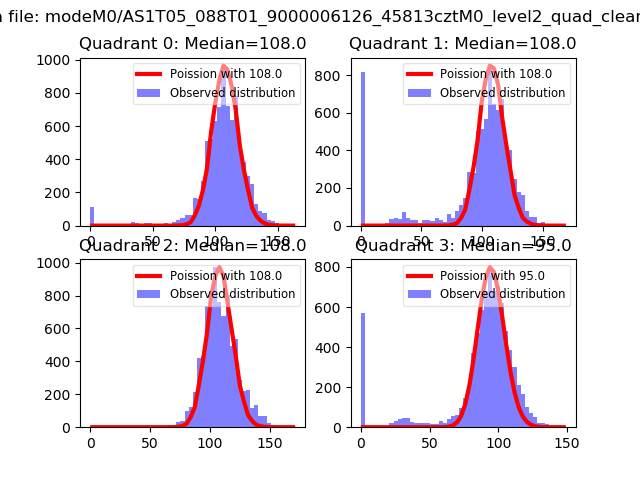

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

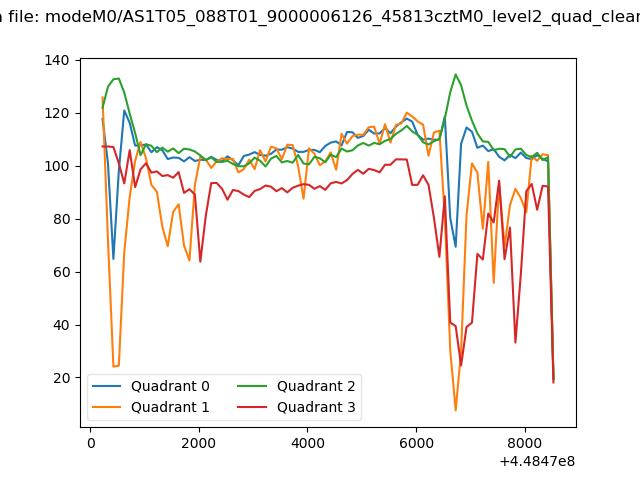

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

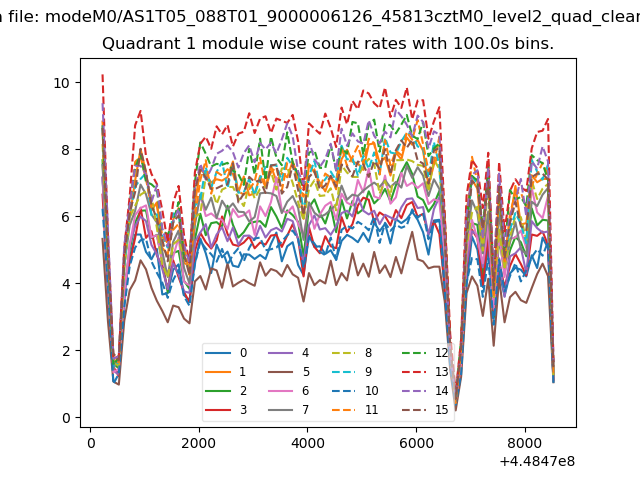

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

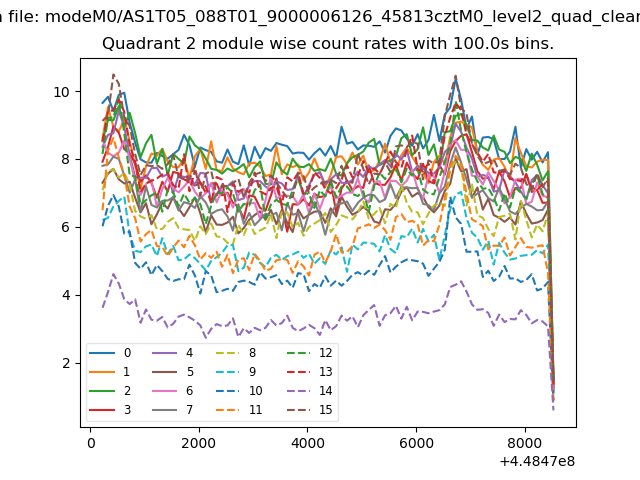

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |

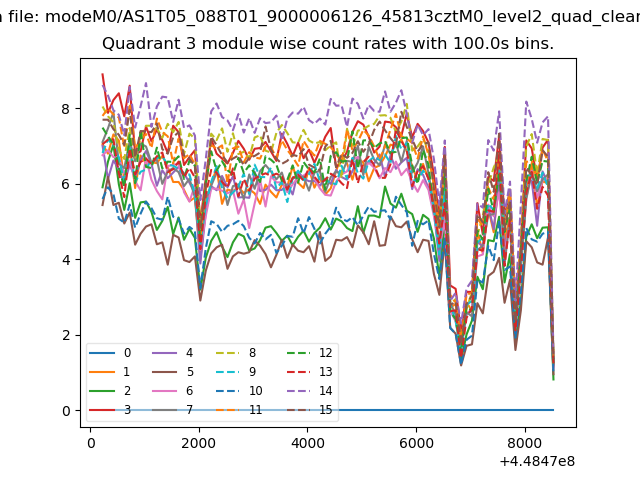

| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

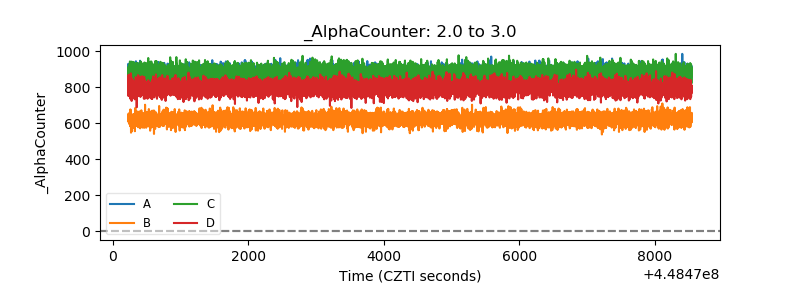

| Alpha Counter |  |

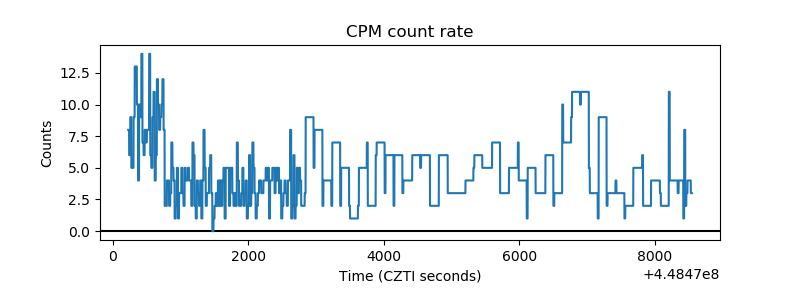

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

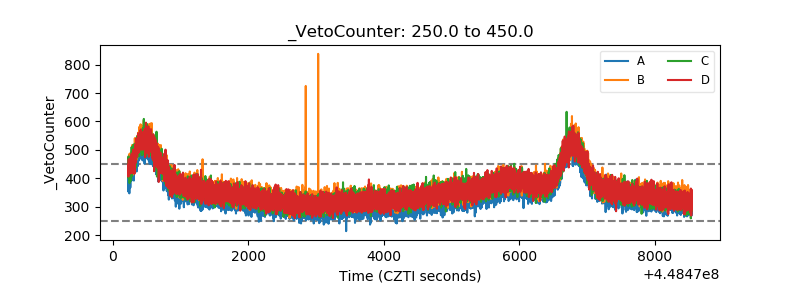

| Veto Counter |  |
