| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1T05_088T01_9000006126_45817cztM0_level2.fits | modeM0/AS1T05_088T01_9000006126_45817cztM0_level2_quad_clean.evt |
| Size (bytes) | 1,878,284,160 | 274,959,360 |
| Size | 1.7 GB | 262.2 MB |
| Events in quadrant A | 15,940,215 | 1,927,099 |
| Events in quadrant B | 21,144,496 | 1,642,329 |
| Events in quadrant C | 8,013,992 | 1,937,119 |
| Events in quadrant D | 23,015,080 | 1,550,450 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14 | 0 |
| B | 0 | 14 | 0 |
| C | 0 | 14 | 0 |
| D | 0 | 14 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 59766 | 4 |
| B | 0 | 75676 | 4 |
| C | 0 | 37475 | 4 |
| D | 0 | 81389 | 4 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 374 | 0 |
| B | 0 | 374 | 0 |
| C | 0 | 374 | 0 |
| D | 0 | 374 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 18381 | 588 | 3.198955% |
| B | 18382 | 3684 | 20.041345% |
| C | 18382 | 74 | 0.402568% |
| D | 18382 | 2526 | 13.741704% |

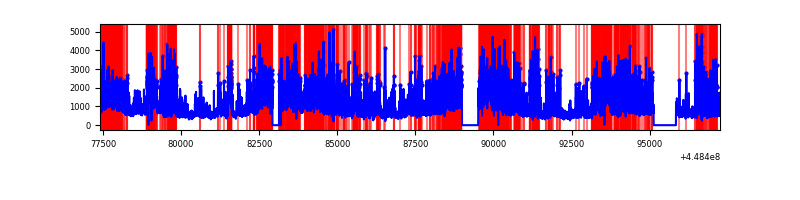

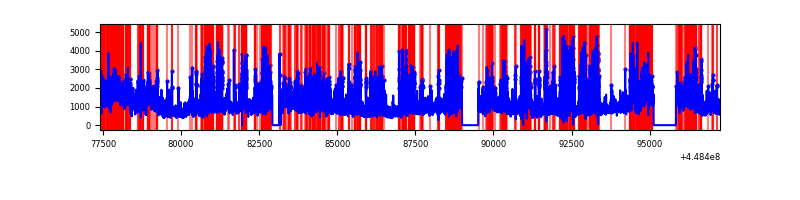

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 19846 | 18385 | 106 | 106 | 0.53% | 0.58% |  |
| B | 19847 | 18386 | 2111 | 2111 | 10.64% | 11.48% |  |
| C | 19847 | 18386 | 4 | 4 | 0.02% | 0.02% |  |
| D | 19847 | 18386 | 2105 | 2105 | 10.61% | 11.45% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 7613361 | 18030.27 | 2024 | 1978 | 422.1 |
| A | 13 | 248 | 405315 | 955.45 | 2024 | 1978 | 422.1 |
| A | 14 | 235 | 48152 | 109.38 | 2024 | 1978 | 422.1 |
| B | 3 | 112 | 10470212 | 28272.32 | 1898 | 1840 | 370.3 |
| B | 4 | 171 | 1591048 | 4292.03 | 1898 | 1840 | 370.3 |
| B | 0 | 171 | 431580 | 1160.61 | 1898 | 1840 | 370.3 |
| C | 5 | 128 | 71784 | 148.02 | 2004 | 2010 | 471.4 |
| C | 3 | 233 | 61981 | 127.22 | 2004 | 2010 | 471.4 |
| C | 2 | 14 | 35214 | 70.44 | 2004 | 2010 | 471.4 |
| D | 11 | 241 | 9402673 | 19664.38 | 1885 | 1827 | 478.1 |
| D | 12 | 2 | 2742001 | 5731.81 | 1885 | 1827 | 478.1 |
| D | 13 | 249 | 1418209 | 2962.74 | 1885 | 1827 | 478.1 |

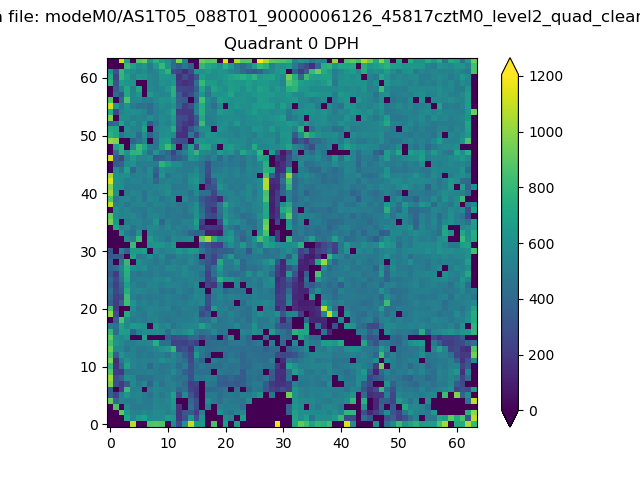

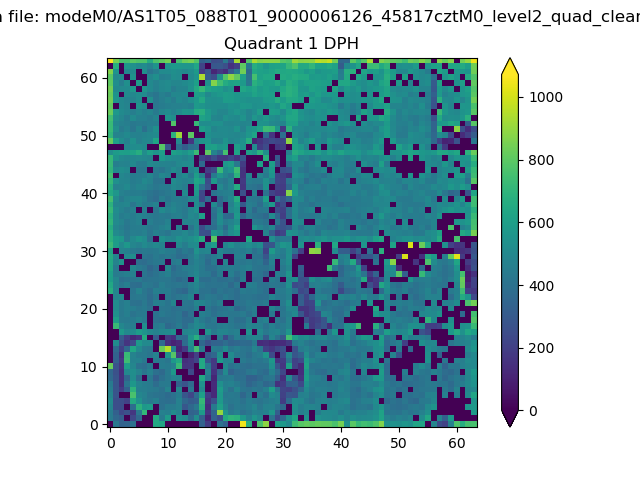

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

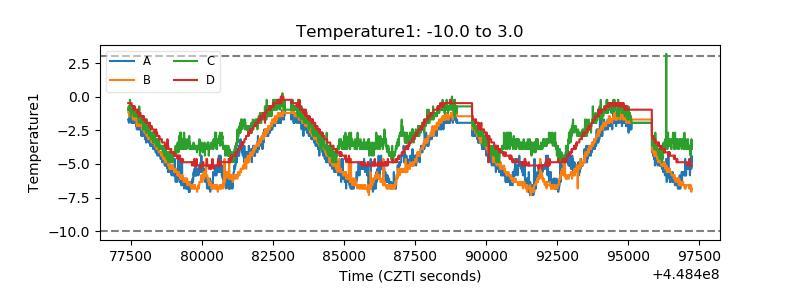

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |

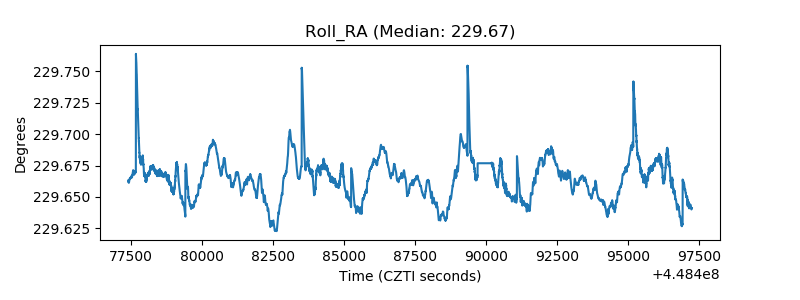

| _Roll_RA |  |

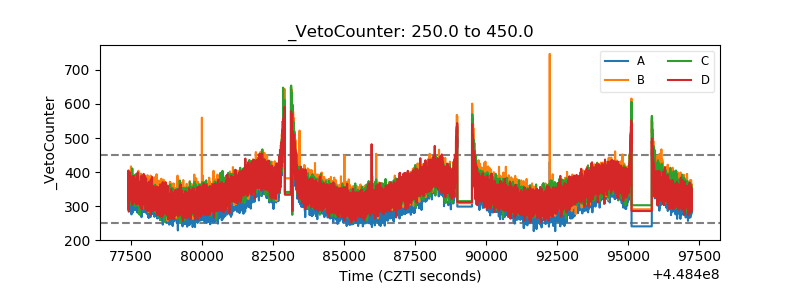

| Veto Counter |  |
