| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1T05_185T01_9000006128_45823cztM0_level2.fits | modeM0/AS1T05_185T01_9000006128_45823cztM0_level2_quad_clean.evt |
| Size (bytes) | 507,818,880 | 99,656,640 |
| Size | 484.3 MB | 95.0 MB |
| Events in quadrant A | 5,289,479 | 673,951 |
| Events in quadrant B | 5,058,429 | 660,486 |
| Events in quadrant C | 2,667,947 | 685,800 |
| Events in quadrant D | 5,326,018 | 586,037 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 120 | 0 |
| B | 0 | 120 | 0 |
| C | 0 | 120 | 0 |
| D | 0 | 120 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 19215 | 1 |
| B | 0 | 18878 | 1 |
| C | 0 | 11989 | 1 |
| D | 0 | 19759 | 1 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 11 | 0 |
| B | 0 | 11 | 0 |
| C | 0 | 11 | 0 |
| D | 0 | 11 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5883 | 165 | 2.804691% |
| B | 5884 | 599 | 10.180150% |
| C | 5884 | 43 | 0.730795% |
| D | 5884 | 468 | 7.953773% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7018 | 5884 | 4 | 4 | 0.06% | 0.07% |  |
| B | 7019 | 5885 | 365 | 365 | 5.20% | 6.20% |  |
| C | 7019 | 5885 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7019 | 5885 | 503 | 503 | 7.17% | 8.55% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 2508073 | 17819.2 | 680 | 664 | 140.7 |
| A | 15 | 14 | 113604 | 802.62 | 680 | 664 | 140.7 |
| A | 13 | 248 | 31733 | 220.8 | 680 | 664 | 140.7 |
| B | 3 | 112 | 1823801 | 14390.45 | 659 | 639 | 126.7 |
| B | 0 | 189 | 316667 | 2494.45 | 659 | 639 | 126.7 |
| B | 0 | 171 | 133369 | 1047.65 | 659 | 639 | 126.7 |
| C | 3 | 233 | 12619 | 74.49 | 681 | 685 | 160.2 |
| C | 13 | 61 | 4520 | 23.94 | 681 | 685 | 160.2 |
| C | 12 | 2 | 2241 | 9.71 | 681 | 685 | 160.2 |
| D | 11 | 241 | 1282220 | 7830.31 | 658 | 637 | 163.7 |
| D | 6 | 143 | 641858 | 3917.78 | 658 | 637 | 163.7 |
| D | 1 | 47 | 244970 | 1492.84 | 658 | 637 | 163.7 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

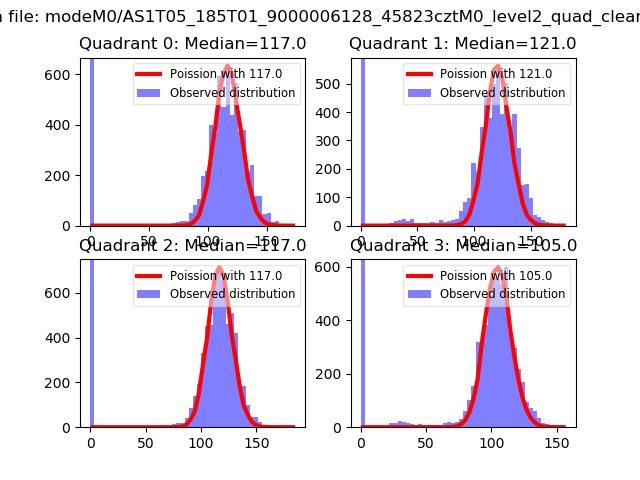

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

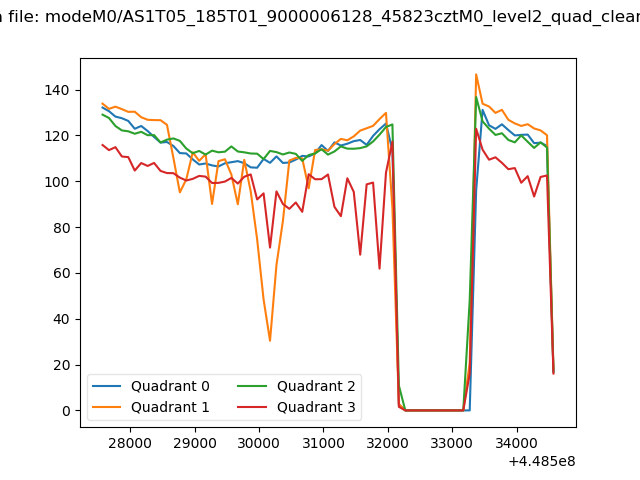

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

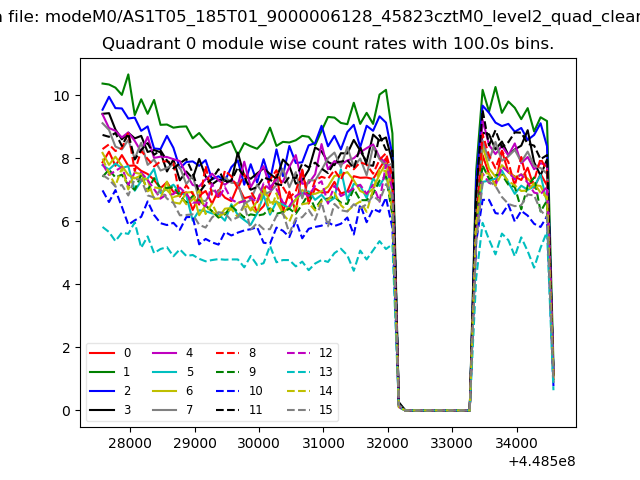

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

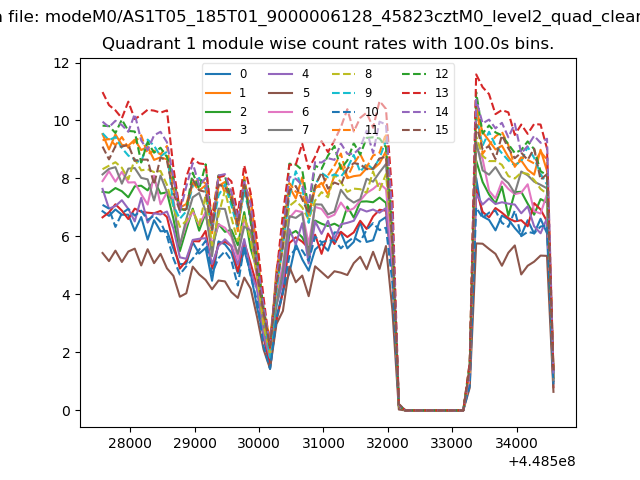

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

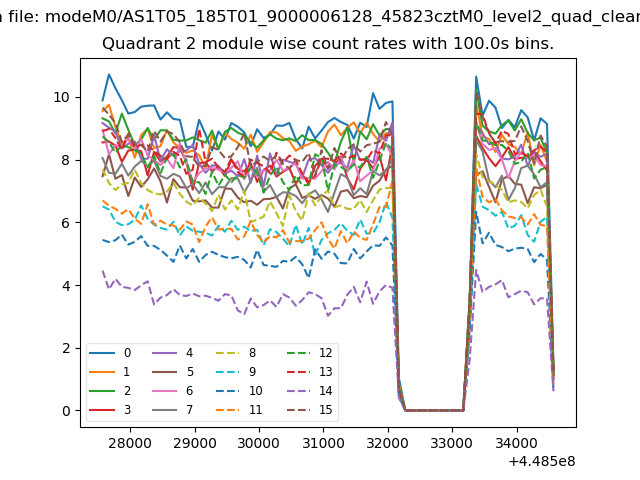

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
