| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1T05_186T01_9000006130_45840cztM0_level2.fits | modeM0/AS1T05_186T01_9000006130_45840cztM0_level2_quad_clean.evt |
| Size (bytes) | 753,431,040 | 109,195,200 |
| Size | 718.5 MB | 104.1 MB |
| Events in quadrant A | 6,583,483 | 735,247 |
| Events in quadrant B | 9,056,395 | 691,021 |
| Events in quadrant C | 3,351,824 | 776,348 |
| Events in quadrant D | 8,347,296 | 607,263 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 24234 | 419 |
| B | 0 | 32859 | 855 |
| C | 0 | 15209 | 237 |
| D | 0 | 30256 | 429 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 3 | 1 |
| B | 0 | 2 | 0 |
| C | 0 | 2 | 0 |
| D | 0 | 2 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 148 | 3 |
| B | 0 | 148 | 2 |
| C | 0 | 149 | 2 |
| D | 0 | 150 | 6 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7126 | 383 | 5.374684% |
| B | 7116 | 1384 | 19.449129% |
| C | 7147 | 80 | 1.119351% |
| D | 7127 | 1220 | 17.118002% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7522 | 7160 | 27 | 27 | 0.36% | 0.38% |  |
| B | 7521 | 7142 | 904 | 904 | 12.02% | 12.66% |  |
| C | 7522 | 7172 | 1 | 1 | 0.01% | 0.01% |  |
| D | 7522 | 7151 | 960 | 960 | 12.76% | 13.42% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 2937568 | 16862.03 | 830 | 812 | 174.2 |
| A | 15 | 14 | 348397 | 1995.73 | 830 | 812 | 174.2 |
| A | 13 | 248 | 27750 | 154.67 | 830 | 812 | 174.2 |
| B | 3 | 112 | 5161680 | 32540.82 | 794 | 769 | 158.6 |
| B | 12 | 18 | 369130 | 2322.61 | 794 | 769 | 158.6 |
| B | 0 | 171 | 90359 | 564.89 | 794 | 769 | 158.6 |
| C | 3 | 233 | 50354 | 252.64 | 826 | 829 | 196.0 |
| C | 9 | 54 | 50284 | 252.28 | 826 | 829 | 196.0 |
| C | 2 | 14 | 27420 | 135.65 | 826 | 829 | 196.0 |
| D | 12 | 2 | 2408883 | 11824.73 | 784 | 759 | 203.7 |
| D | 1 | 52 | 1008893 | 4950.29 | 784 | 759 | 203.7 |
| D | 11 | 241 | 851701 | 4178.42 | 784 | 759 | 203.7 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

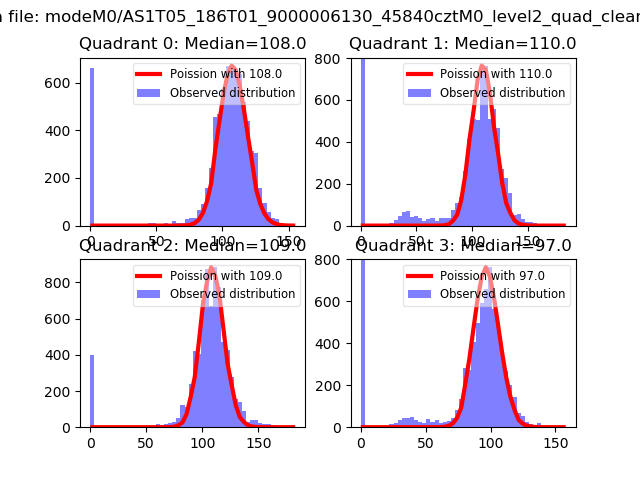

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

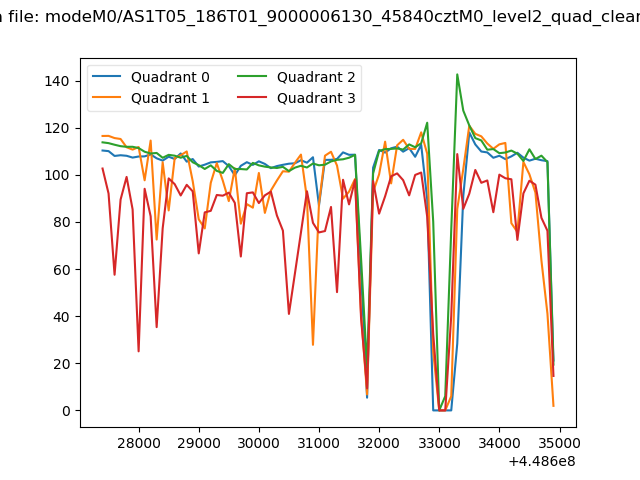

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

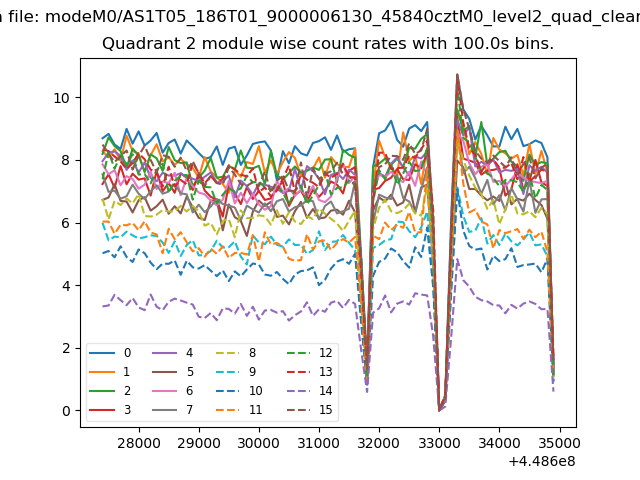

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

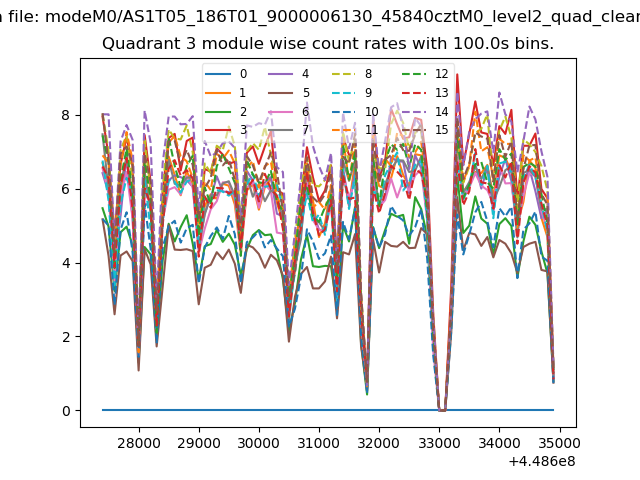

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

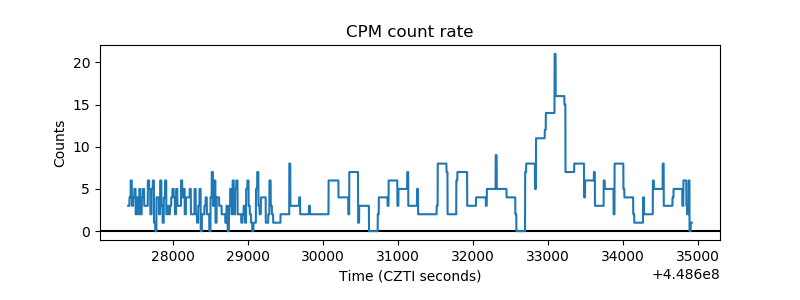

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |

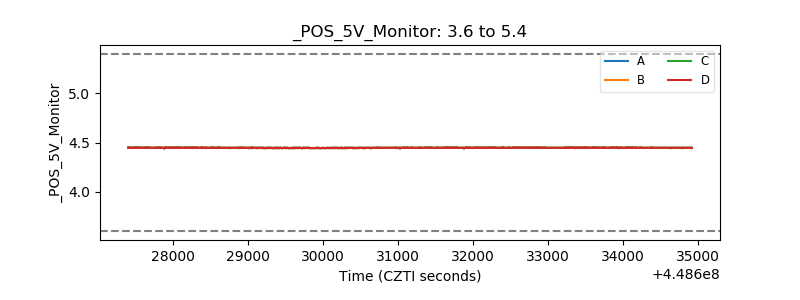

| +5 Volts monitor |  |

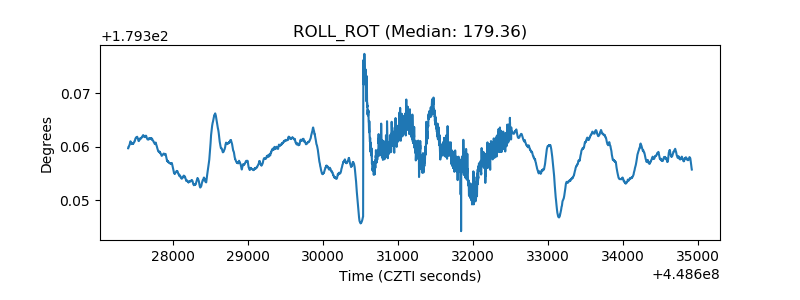

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

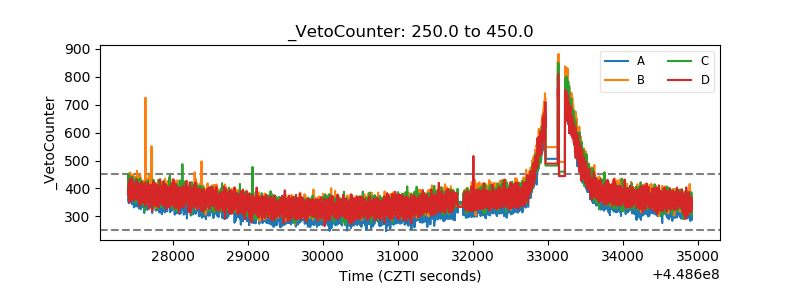

| Veto Counter |  |
