| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1T05_186T01_9000006130_45841cztM0_level2.fits | modeM0/AS1T05_186T01_9000006130_45841cztM0_level2_quad_clean.evt |
| Size (bytes) | 817,899,840 | 106,217,280 |
| Size | 780.0 MB | 101.3 MB |
| Events in quadrant A | 6,510,343 | 765,814 |
| Events in quadrant B | 10,800,729 | 575,725 |
| Events in quadrant C | 3,184,850 | 775,943 |
| Events in quadrant D | 9,223,445 | 596,197 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 23520 | 0 |
| B | 0 | 37132 | 0 |
| C | 0 | 14891 | 0 |
| D | 0 | 32472 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 144 | 0 |
| B | 0 | 144 | 0 |
| C | 0 | 144 | 0 |
| D | 0 | 144 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7211 | 191 | 2.648731% |
| B | 7212 | 2469 | 34.234609% |
| C | 7212 | 12 | 0.166389% |
| D | 7211 | 1361 | 18.873943% |

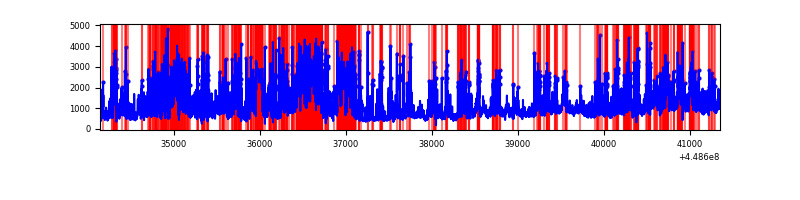

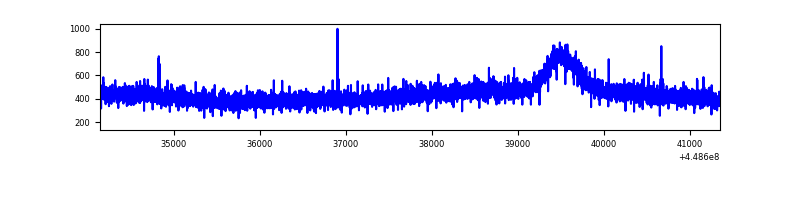

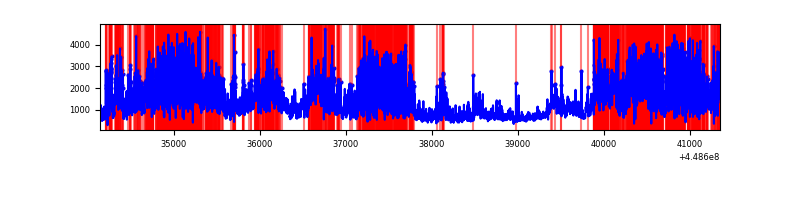

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7211 | 7211 | 81 | 81 | 1.12% | 1.12% |  |
| B | 7212 | 7212 | 1677 | 1677 | 23.25% | 23.25% |  |
| C | 7212 | 7212 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7211 | 7211 | 1134 | 1134 | 15.73% | 15.73% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 2932759 | 16823.21 | 828 | 809 | 174.3 |
| A | 15 | 14 | 263624 | 1508.0 | 828 | 809 | 174.3 |
| A | 14 | 235 | 34526 | 193.46 | 828 | 809 | 174.3 |
| B | 3 | 112 | 7558327 | 51658.07 | 732 | 707 | 146.3 |
| B | 5 | 172 | 92508 | 627.48 | 732 | 707 | 146.3 |
| B | 4 | 158 | 62860 | 424.83 | 732 | 707 | 146.3 |
| C | 2 | 14 | 6233 | 27.82 | 815 | 818 | 194.7 |
| C | 13 | 61 | 5443 | 23.76 | 815 | 818 | 194.7 |
| C | 3 | 233 | 3840 | 15.53 | 815 | 818 | 194.7 |
| D | 12 | 2 | 2440335 | 12707.18 | 757 | 735 | 192.0 |
| D | 1 | 52 | 1340841 | 6980.23 | 757 | 735 | 192.0 |
| D | 11 | 241 | 1091231 | 5680.08 | 757 | 735 | 192.0 |

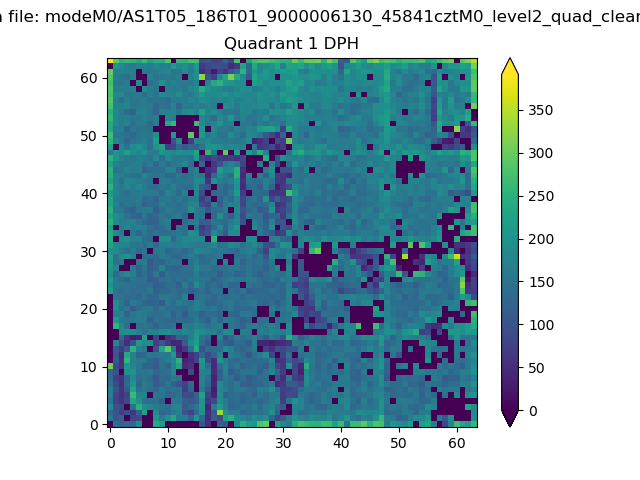

Histogram calculated using DETX and DETY for each event in the final _common_clean file

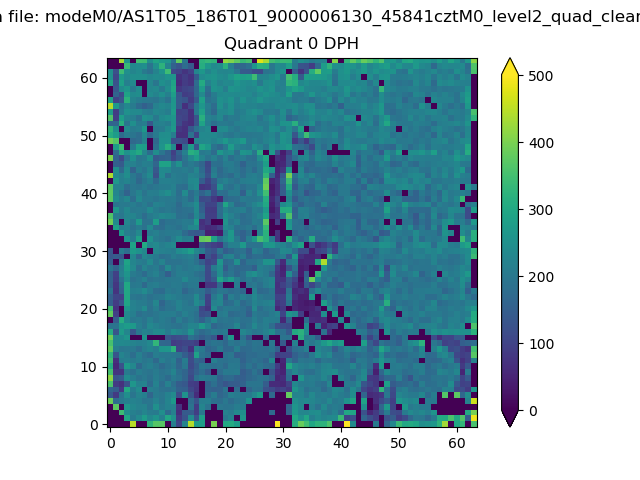

| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |

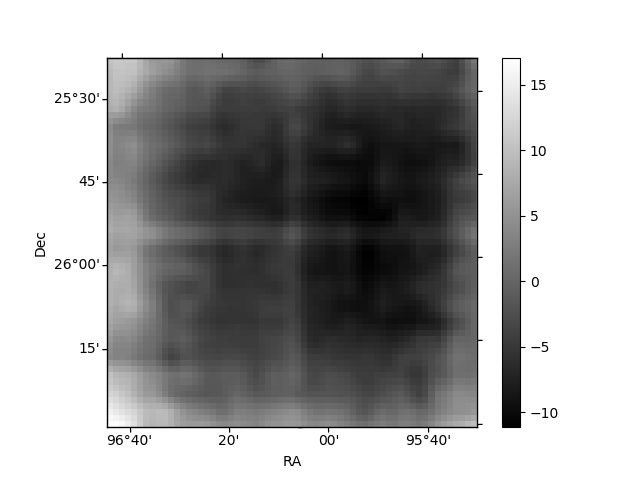

| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

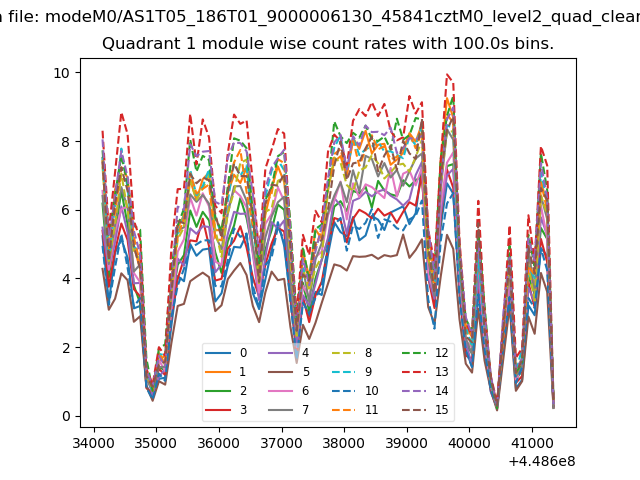

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

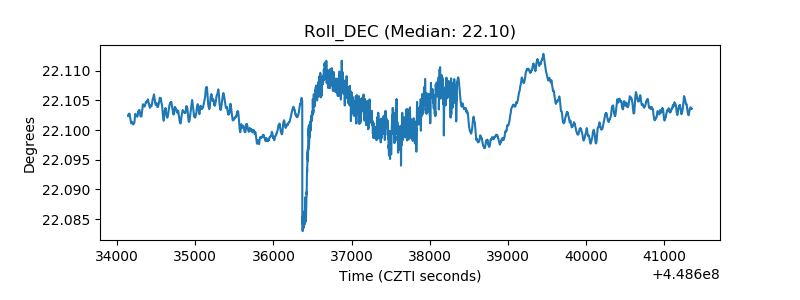

| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
