| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1T05_186T01_9000006130_45851cztM0_level2.fits | modeM0/AS1T05_186T01_9000006130_45851cztM0_level2_quad_clean.evt |
| Size (bytes) | 611,398,080 | 108,794,880 |
| Size | 583.1 MB | 103.8 MB |
| Events in quadrant A | 5,913,823 | 748,394 |
| Events in quadrant B | 7,392,946 | 721,337 |
| Events in quadrant C | 3,068,173 | 759,570 |
| Events in quadrant D | 5,766,473 | 622,756 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 21480 | 4 |
| B | 0 | 26539 | 2 |
| C | 0 | 13285 | 2 |
| D | 0 | 21318 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 15 | 0 |
| B | 0 | 16 | 0 |
| C | 0 | 16 | 0 |
| D | 0 | 16 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 128 | 0 |
| B | 0 | 128 | 0 |
| C | 0 | 128 | 0 |
| D | 0 | 128 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6340 | 258 | 4.069401% |
| B | 6340 | 1004 | 15.835962% |
| C | 6340 | 83 | 1.309148% |
| D | 6340 | 772 | 12.176656% |

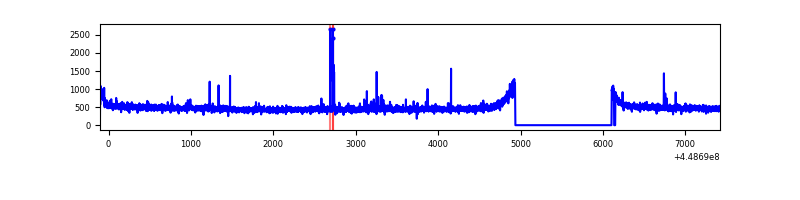

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7526 | 6343 | 11 | 11 | 0.15% | 0.17% |  |
| B | 7526 | 6343 | 537 | 537 | 7.14% | 8.47% |  |
| C | 7526 | 6343 | 3 | 3 | 0.04% | 0.05% |  |
| D | 7526 | 6343 | 632 | 632 | 8.40% | 9.96% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 2888823 | 17935.91 | 777 | 763 | 161.0 |
| A | 13 | 254 | 9652 | 55.2 | 777 | 763 | 161.0 |
| A | 3 | 137 | 8443 | 47.7 | 777 | 763 | 161.0 |
| B | 3 | 112 | 3999353 | 27264.39 | 756 | 734 | 146.7 |
| B | 0 | 189 | 175380 | 1190.82 | 756 | 734 | 146.7 |
| B | 0 | 171 | 91194 | 616.8 | 756 | 734 | 146.7 |
| C | 12 | 249 | 31659 | 171.93 | 771 | 777 | 179.6 |
| C | 12 | 2 | 10419 | 53.68 | 771 | 777 | 179.6 |
| C | 3 | 233 | 10000 | 51.35 | 771 | 777 | 179.6 |
| D | 12 | 2 | 1863995 | 10210.26 | 730 | 710 | 182.5 |
| D | 1 | 52 | 355927 | 1946.49 | 730 | 710 | 182.5 |
| D | 13 | 249 | 219344 | 1198.05 | 730 | 710 | 182.5 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

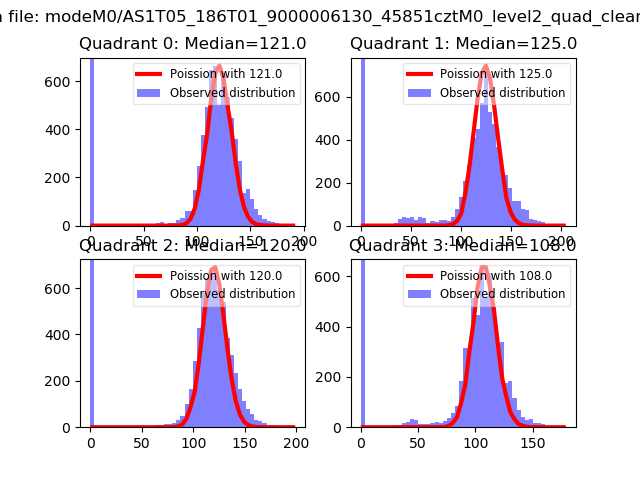

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

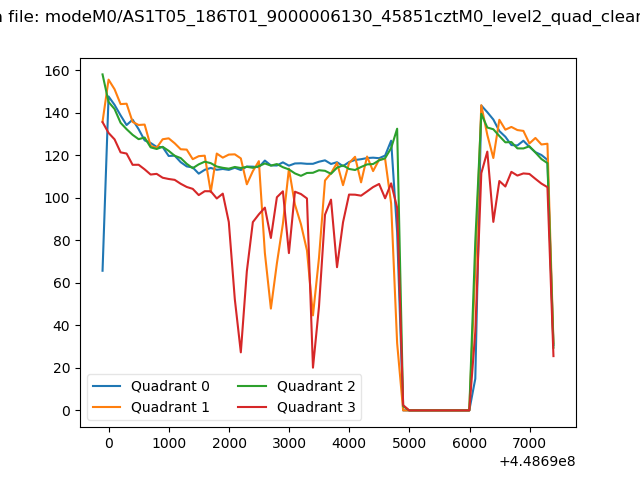

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

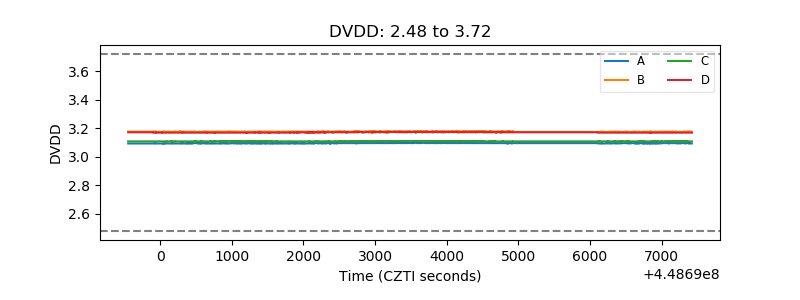

| D_VDD |  |
| Temperature 1 |  |

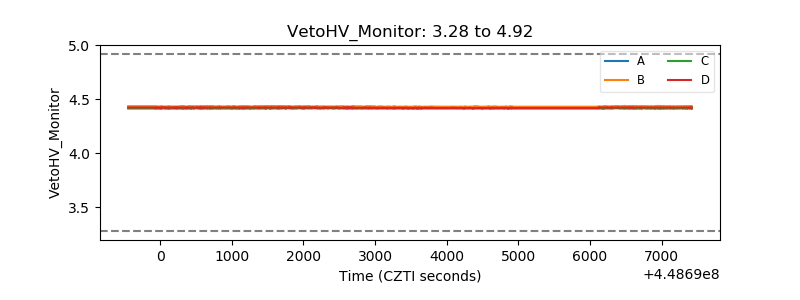

| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

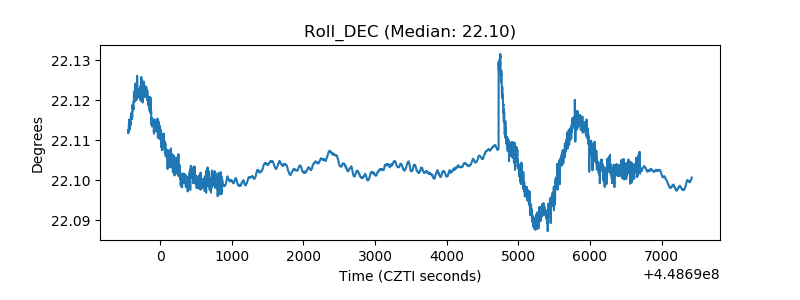

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
