| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A13_034T01_9000006134_45869cztM0_level2.fits | modeM0/AS1A13_034T01_9000006134_45869cztM0_level2_quad_clean.evt |
| Size (bytes) | 738,780,480 | 90,411,840 |
| Size | 704.6 MB | 86.2 MB |
| Events in quadrant A | 5,858,757 | 678,912 |
| Events in quadrant B | 13,341,853 | 275,562 |
| Events in quadrant C | 3,061,964 | 697,605 |
| Events in quadrant D | 4,558,162 | 612,825 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 136 | 0 |
| B | 0 | 136 | 0 |
| C | 0 | 136 | 0 |
| D | 0 | 136 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 21537 | 2 |
| B | 0 | 44328 | 4 |
| C | 0 | 14233 | 2 |
| D | 0 | 18173 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 1 | 0 |
| B | 0 | 1 | 0 |
| C | 0 | 1 | 0 |
| D | 0 | 1 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6781 | 445 | 6.562454% |
| B | 6781 | 4712 | 69.488276% |
| C | 6781 | 285 | 4.202920% |
| D | 6781 | 583 | 8.597552% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

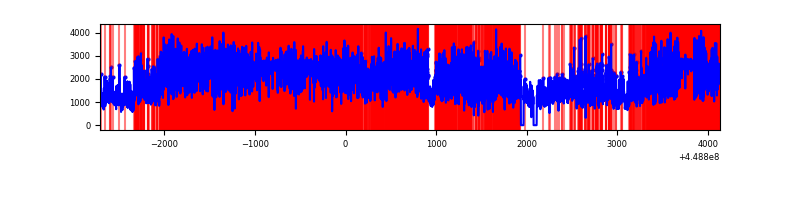

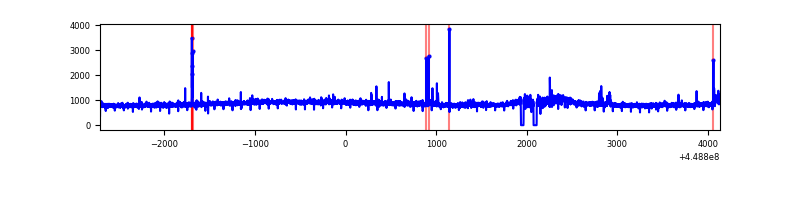

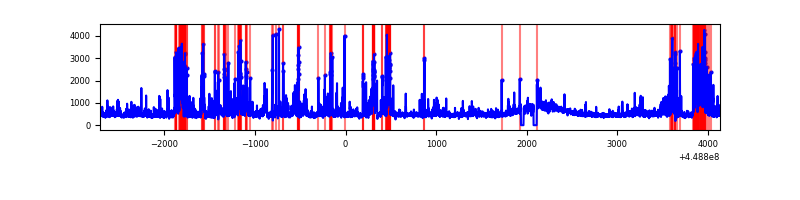

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 6846 | 6783 | 9 | 9 | 0.13% | 0.13% |  |
| B | 6846 | 6782 | 3243 | 3243 | 47.37% | 47.82% |  |
| C | 6846 | 6783 | 13 | 13 | 0.19% | 0.19% |  |
| D | 6846 | 6783 | 226 | 226 | 3.30% | 3.33% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 2754207 | 17084.77 | 768 | 748 | 161.2 |
| A | 0 | 247 | 50496 | 308.68 | 768 | 748 | 161.2 |
| A | 7 | 16 | 18439 | 109.77 | 768 | 748 | 161.2 |
| B | 3 | 112 | 10575184 | 93962.15 | 568 | 549 | 112.5 |
| B | 4 | 171 | 279985 | 2482.96 | 568 | 549 | 112.5 |
| B | 0 | 171 | 79174 | 698.63 | 568 | 549 | 112.5 |
| C | 12 | 2 | 58068 | 315.14 | 769 | 770 | 181.8 |
| C | 13 | 61 | 5163 | 24.16 | 769 | 770 | 181.8 |
| C | 12 | 250 | 4335 | 19.61 | 769 | 770 | 181.8 |
| D | 13 | 249 | 723828 | 3755.4 | 761 | 736 | 192.5 |
| D | 1 | 52 | 247360 | 1280.85 | 761 | 736 | 192.5 |
| D | 12 | 2 | 197593 | 1022.38 | 761 | 736 | 192.5 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

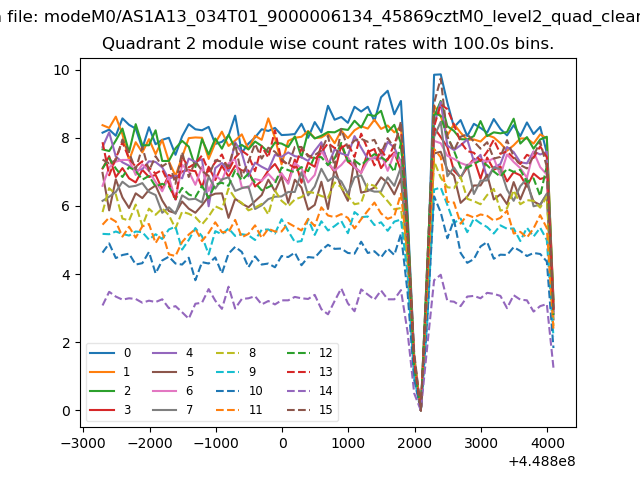

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

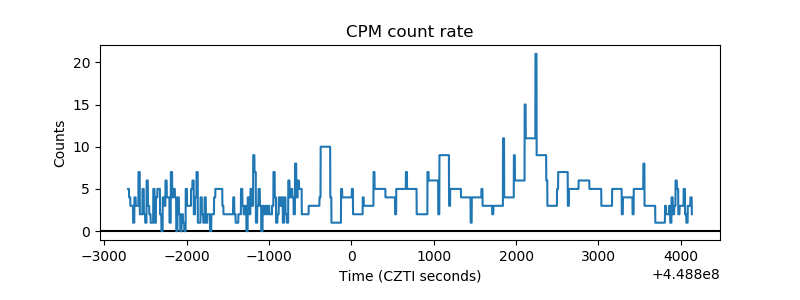

| _CPM_Rate |  |

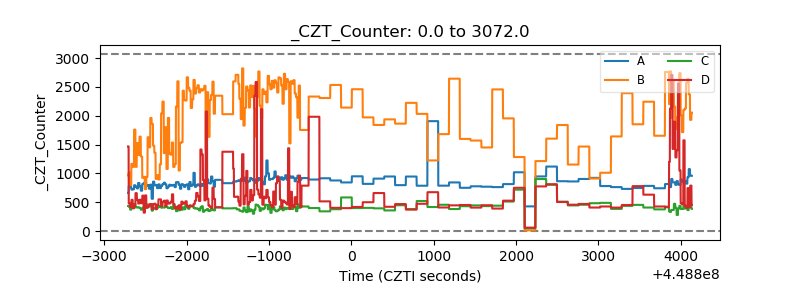

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

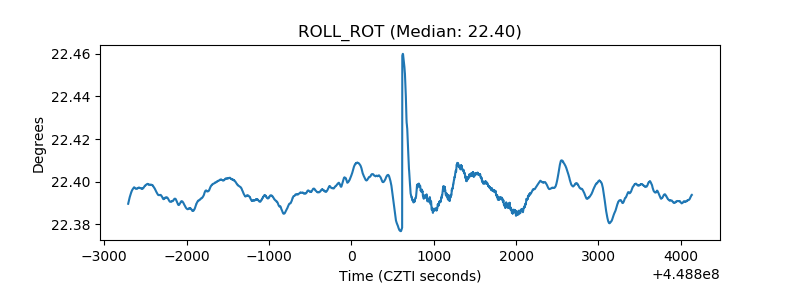

| _ROLL_ROT |  |
| _Roll_DEC |  |

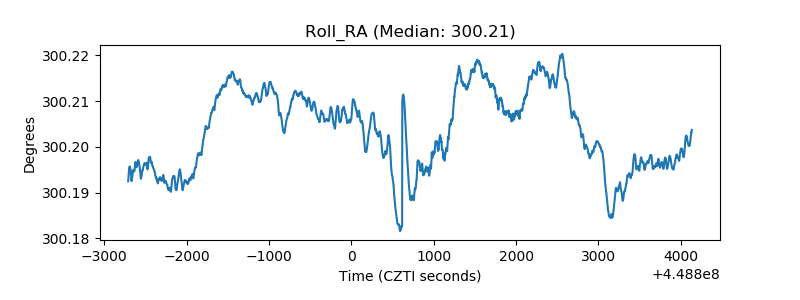

| _Roll_RA |  |
| Veto Counter |  |
