| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1C07_001T01_9000006136_45875cztM0_level2.fits | modeM0/AS1C07_001T01_9000006136_45875cztM0_level2_quad_clean.evt |
| Size (bytes) | 557,107,200 | 103,121,280 |
| Size | 531.3 MB | 98.3 MB |
| Events in quadrant A | 5,739,084 | 701,255 |
| Events in quadrant B | 7,626,965 | 589,812 |
| Events in quadrant C | 2,843,067 | 720,511 |
| Events in quadrant D | 3,896,848 | 646,371 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 9 | 0 |
| B | 0 | 9 | 0 |
| C | 0 | 9 | 0 |
| D | 0 | 9 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 134 | 0 |
| B | 0 | 134 | 0 |
| C | 0 | 134 | 0 |
| D | 0 | 134 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 22008 | 1 |
| B | 0 | 27278 | 1 |
| C | 0 | 13464 | 1 |
| D | 0 | 16380 | 1 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6660 | 111 | 1.666667% |
| B | 6660 | 1556 | 23.363363% |
| C | 6661 | 3 | 0.045038% |
| D | 6661 | 100 | 1.501276% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7560 | 6661 | 24 | 24 | 0.32% | 0.36% |  |
| B | 7560 | 6660 | 1036 | 1036 | 13.70% | 15.56% |  |
| C | 7561 | 6662 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7561 | 6662 | 68 | 68 | 0.90% | 1.02% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 2872191 | 19229.62 | 716 | 702 | 149.3 |
| A | 0 | 247 | 53135 | 351.13 | 716 | 702 | 149.3 |
| A | 7 | 3 | 12459 | 78.73 | 716 | 702 | 149.3 |
| B | 3 | 112 | 4785537 | 37328.36 | 653 | 633 | 128.2 |
| B | 4 | 171 | 91652 | 710.06 | 653 | 633 | 128.2 |
| B | 5 | 172 | 42183 | 324.14 | 653 | 633 | 128.2 |
| C | 15 | 208 | 7662 | 41.09 | 723 | 727 | 168.8 |
| C | 3 | 233 | 6330 | 33.2 | 723 | 727 | 168.8 |
| C | 14 | 254 | 5844 | 30.32 | 723 | 727 | 168.8 |
| D | 1 | 52 | 417247 | 2315.4 | 714 | 693 | 179.9 |
| D | 13 | 249 | 136615 | 755.52 | 714 | 693 | 179.9 |
| D | 11 | 241 | 131426 | 726.68 | 714 | 693 | 179.9 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

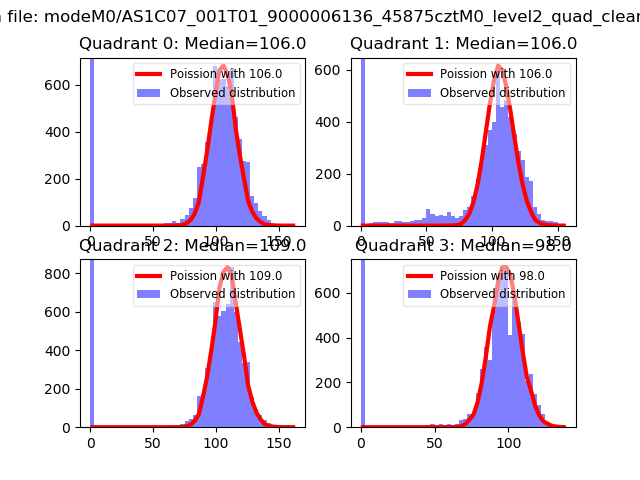

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

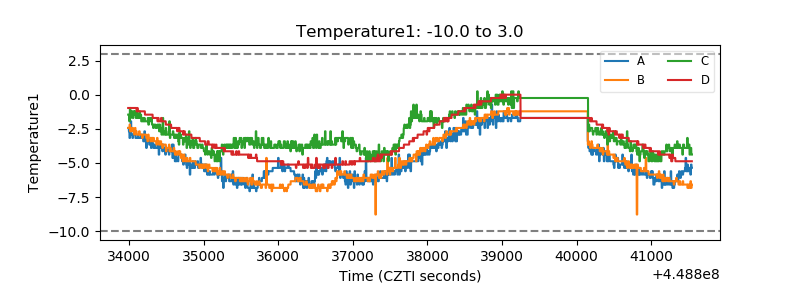

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

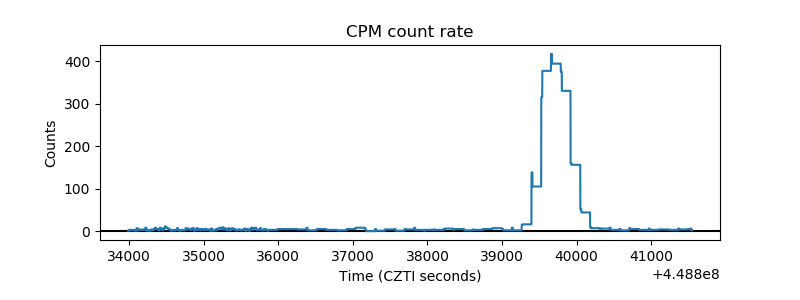

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

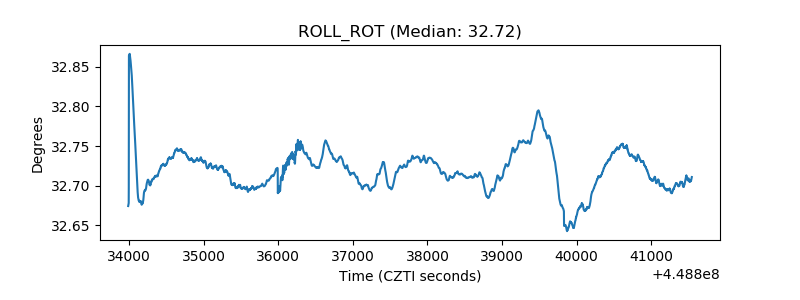

| _ROLL_ROT |  |

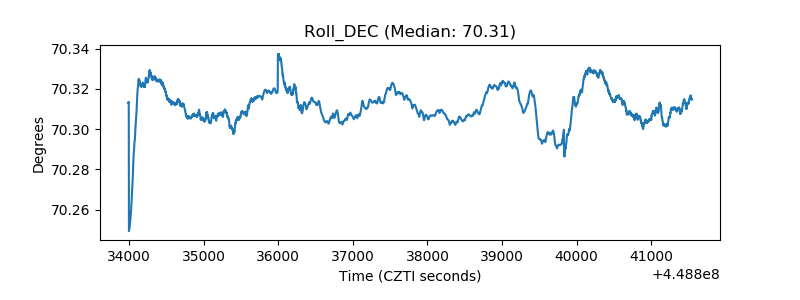

| _Roll_DEC |  |
| _Roll_RA |  |

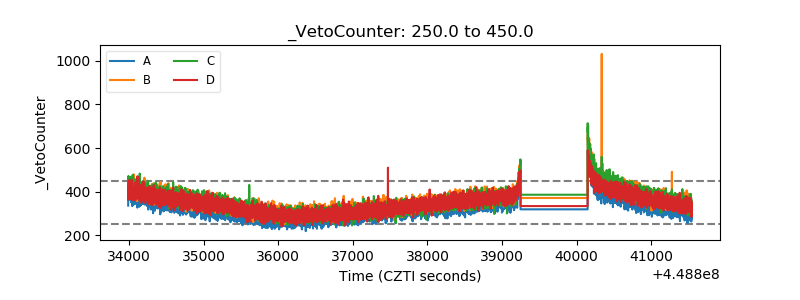

| Veto Counter |  |
