| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1C07_001T01_9000006136_45883cztM0_level2.fits | modeM0/AS1C07_001T01_9000006136_45883cztM0_level2_quad_clean.evt |
| Size (bytes) | 599,045,760 | 99,017,280 |
| Size | 571.3 MB | 94.4 MB |
| Events in quadrant A | 5,471,527 | 676,814 |
| Events in quadrant B | 9,491,729 | 535,477 |
| Events in quadrant C | 2,803,378 | 704,054 |
| Events in quadrant D | 3,900,675 | 625,147 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 5 | 0 |
| B | 0 | 5 | 0 |
| C | 0 | 5 | 0 |
| D | 0 | 5 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 132 | 0 |
| B | 0 | 132 | 0 |
| C | 0 | 132 | 0 |
| D | 0 | 132 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 20309 | 1 |
| B | 0 | 32798 | 1 |
| C | 0 | 13390 | 1 |
| D | 0 | 16191 | 1 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6544 | 260 | 3.973105% |
| B | 6544 | 2155 | 32.930929% |
| C | 6544 | 74 | 1.130807% |
| D | 6545 | 214 | 3.269672% |

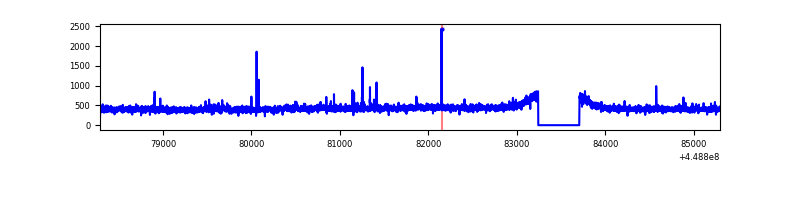

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7009 | 6545 | 6 | 6 | 0.09% | 0.09% |  |
| B | 7009 | 6545 | 1468 | 1468 | 20.94% | 22.43% |  |
| C | 7009 | 6545 | 1 | 1 | 0.01% | 0.02% |  |
| D | 7010 | 6546 | 94 | 94 | 1.34% | 1.44% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 2675244 | 18060.75 | 712 | 695 | 148.1 |
| A | 13 | 248 | 12653 | 80.75 | 712 | 695 | 148.1 |
| A | 13 | 254 | 9854 | 61.85 | 712 | 695 | 148.1 |
| B | 3 | 112 | 6782025 | 54372.5 | 636 | 616 | 124.7 |
| B | 5 | 172 | 68627 | 545.3 | 636 | 616 | 124.7 |
| B | 4 | 158 | 46333 | 366.55 | 636 | 616 | 124.7 |
| C | 12 | 2 | 15665 | 90.68 | 707 | 710 | 164.9 |
| C | 2 | 14 | 9379 | 52.56 | 707 | 710 | 164.9 |
| C | 3 | 233 | 7023 | 38.28 | 707 | 710 | 164.9 |
| D | 13 | 249 | 302555 | 1726.17 | 699 | 677 | 174.9 |
| D | 1 | 52 | 242844 | 1384.74 | 699 | 677 | 174.9 |
| D | 11 | 241 | 182495 | 1039.66 | 699 | 677 | 174.9 |

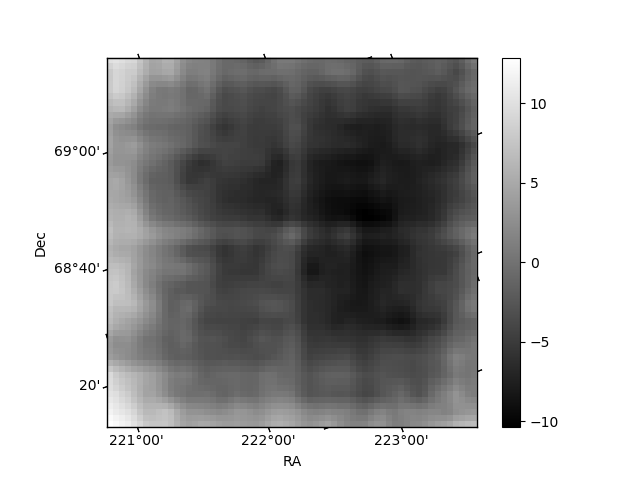

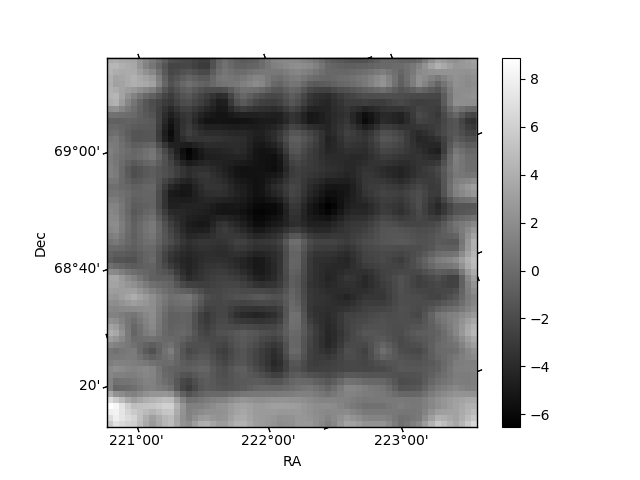

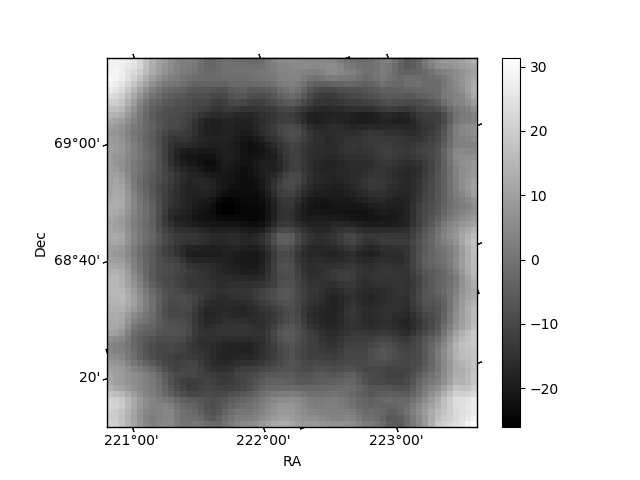

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

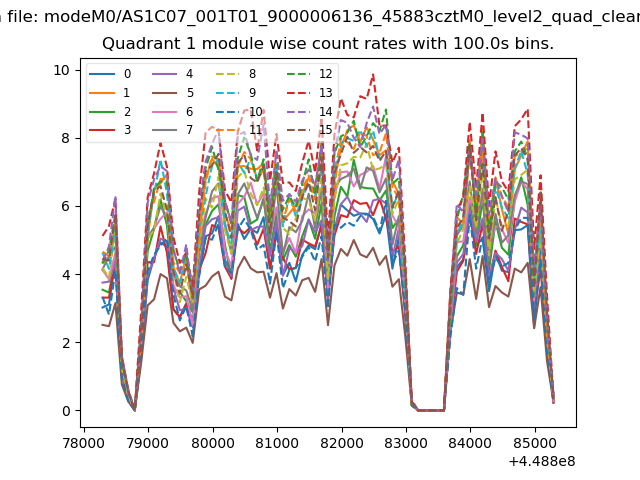

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

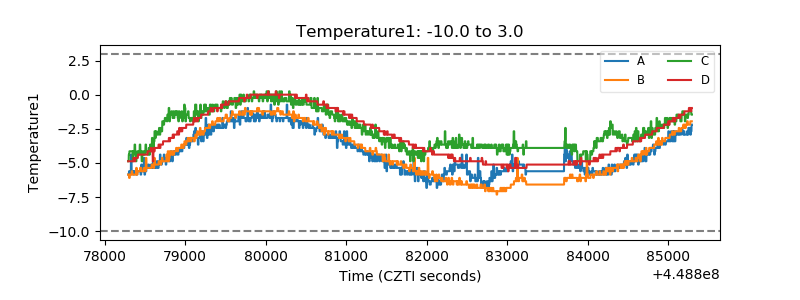

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

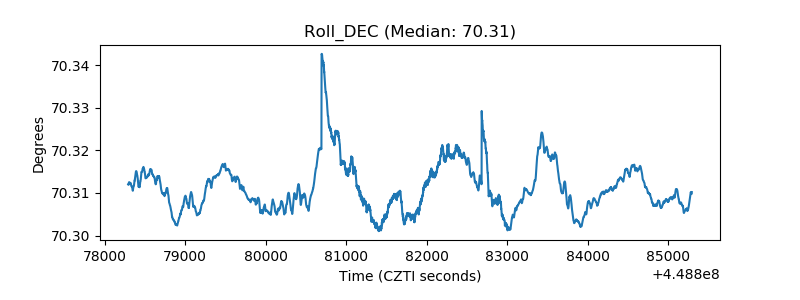

| _Roll_DEC |  |

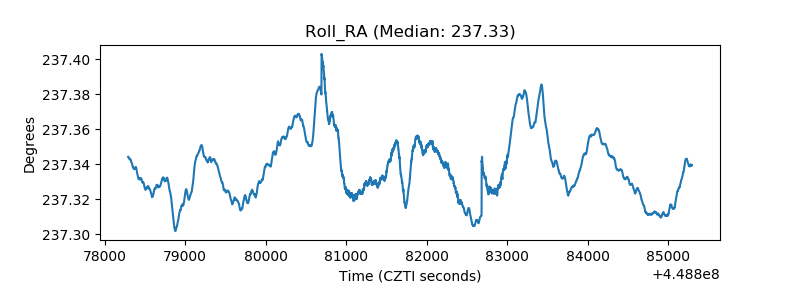

| _Roll_RA |  |
| Veto Counter |  |
