| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A13_092T03_9000006176_46151cztM0_level2.fits | modeM0/AS1A13_092T03_9000006176_46151cztM0_level2_quad_clean.evt |
| Size (bytes) | 877,057,920 | 82,500,480 |
| Size | 836.4 MB | 78.7 MB |
| Events in quadrant A | 5,864,244 | 704,246 |
| Events in quadrant B | 17,937,287 | 10,582 |
| Events in quadrant C | 3,240,262 | 700,716 |
| Events in quadrant D | 4,909,340 | 619,023 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 21407 | 3 |
| B | 0 | 57701 | 1 |
| C | 0 | 14346 | 1 |
| D | 0 | 19233 | 1 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 136 | 0 |
| B | 0 | 136 | 0 |
| C | 0 | 136 | 0 |
| D | 0 | 136 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 9 | 0 |
| B | 0 | 9 | 0 |
| C | 0 | 9 | 0 |
| D | 0 | 9 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6639 | 189 | 2.846814% |
| B | 6640 | 6553 | 98.689759% |
| C | 6640 | 88 | 1.325301% |
| D | 6640 | 385 | 5.798193% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

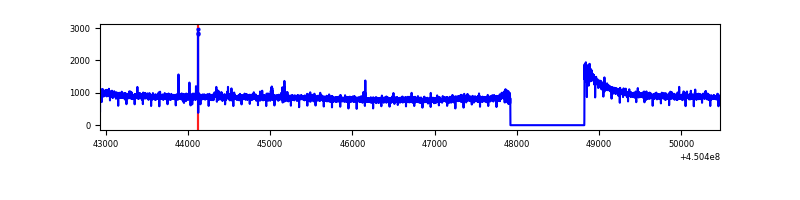

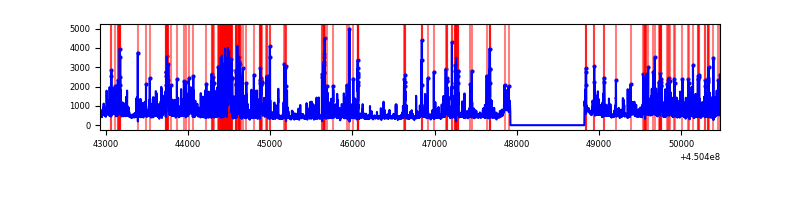

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7539 | 6639 | 3 | 3 | 0.04% | 0.05% |  |
| B | 7540 | 6640 | 6414 | 6414 | 85.07% | 96.60% |  |
| C | 7540 | 6641 | 33 | 33 | 0.44% | 0.50% |  |
| D | 7540 | 6641 | 248 | 248 | 3.29% | 3.73% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 2912305 | 18609.27 | 746 | 729 | 156.5 |
| A | 0 | 247 | 22561 | 139.54 | 746 | 729 | 156.5 |
| A | 10 | 255 | 16792 | 102.67 | 746 | 729 | 156.5 |
| B | 10 | 246 | 17306029 | 673882.15 | 123 | 119 | 25.7 |
| B | 3 | 112 | 111528 | 4338.2 | 123 | 119 | 25.7 |
| B | 5 | 172 | 23760 | 920.57 | 123 | 119 | 25.7 |
| C | 12 | 2 | 201569 | 1155.06 | 735 | 738 | 173.9 |
| C | 14 | 254 | 125376 | 716.84 | 735 | 738 | 173.9 |
| C | 2 | 14 | 17403 | 95.84 | 735 | 738 | 173.9 |
| D | 5 | 235 | 669118 | 3703.02 | 723 | 701 | 180.5 |
| D | 2 | 249 | 612280 | 3388.13 | 723 | 701 | 180.5 |
| D | 13 | 249 | 417742 | 2310.4 | 723 | 701 | 180.5 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |

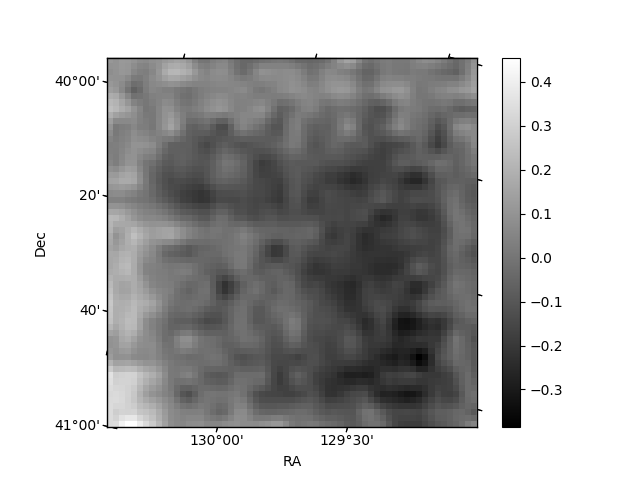

| Plot type | Count rate plots | Images |
|---|---|---|

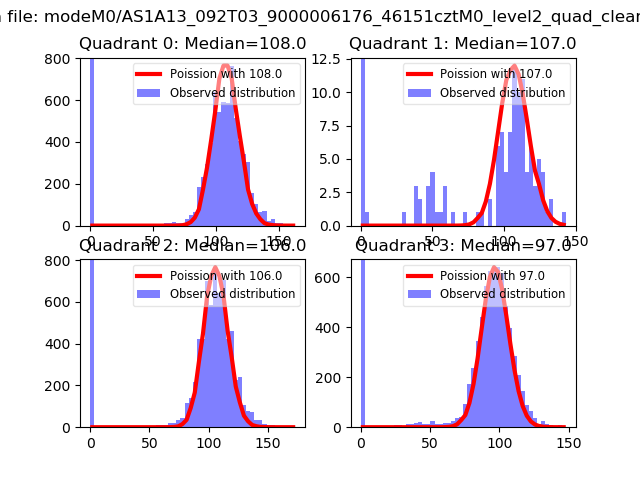

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

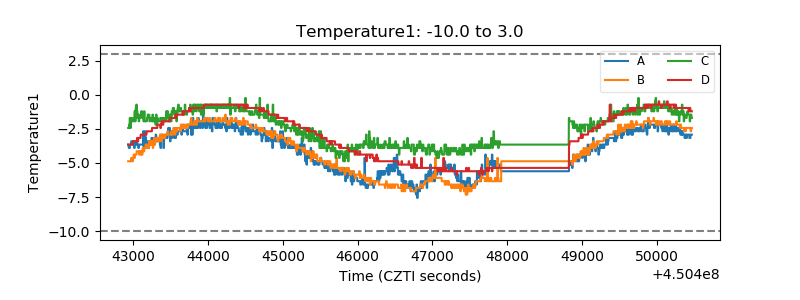

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

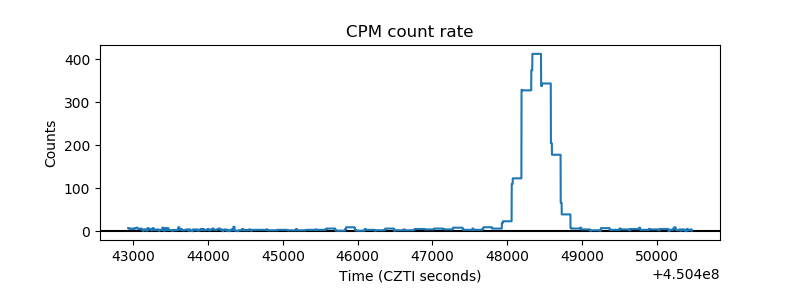

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |

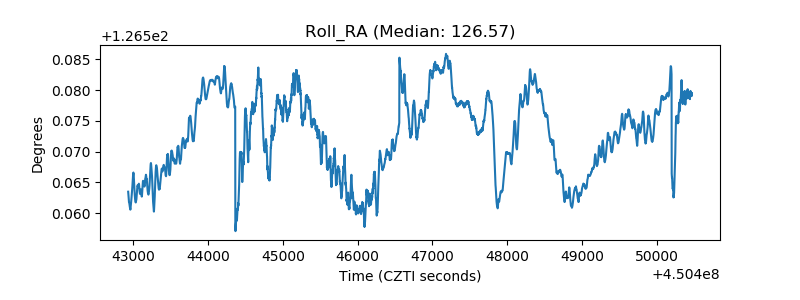

| _Roll_RA |  |
| Veto Counter |  |
