| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A13_093T40_9000006182_46194cztM0_level2.fits | modeM0/AS1A13_093T40_9000006182_46194cztM0_level2_quad_clean.evt |
| Size (bytes) | 779,987,520 | 159,883,200 |
| Size | 743.9 MB | 152.5 MB |
| Events in quadrant A | 9,291,185 | 1,069,023 |
| Events in quadrant B | 5,353,907 | 1,104,403 |
| Events in quadrant C | 4,519,414 | 1,068,727 |
| Events in quadrant D | 8,917,097 | 890,577 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 208 | 0 |
| B | 0 | 208 | 0 |
| C | 0 | 208 | 0 |
| D | 0 | 208 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 33526 | 2 |
| B | 0 | 22336 | 2 |
| C | 0 | 21082 | 2 |
| D | 0 | 33574 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 15 | 0 |
| B | 0 | 15 | 0 |
| C | 0 | 15 | 0 |
| D | 0 | 15 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 10220 | 325 | 3.180039% |
| B | 10220 | 222 | 2.172211% |
| C | 10220 | 110 | 1.076321% |
| D | 10220 | 1172 | 11.467710% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 11695 | 10220 | 7 | 7 | 0.06% | 0.07% |  |
| B | 11695 | 10221 | 68 | 68 | 0.58% | 0.67% |  |
| C | 11695 | 10220 | 16 | 16 | 0.14% | 0.16% |  |
| D | 11695 | 10220 | 935 | 935 | 7.99% | 9.15% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 4540859 | 19531.16 | 1128 | 1100 | 232.4 |
| A | 0 | 247 | 266185 | 1140.46 | 1128 | 1100 | 232.4 |
| A | 9 | 191 | 54407 | 229.34 | 1128 | 1100 | 232.4 |
| B | 3 | 112 | 512284 | 2327.29 | 1124 | 1086 | 219.7 |
| B | 5 | 172 | 340487 | 1545.16 | 1124 | 1086 | 219.7 |
| B | 4 | 171 | 32415 | 142.63 | 1124 | 1086 | 219.7 |
| C | 12 | 2 | 125998 | 480.47 | 1110 | 1111 | 259.9 |
| C | 11 | 16 | 31882 | 118.38 | 1110 | 1111 | 259.9 |
| C | 14 | 254 | 27053 | 99.81 | 1110 | 1111 | 259.9 |
| D | 1 | 52 | 2249267 | 8339.34 | 1062 | 1023 | 269.6 |
| D | 13 | 249 | 877437 | 3250.85 | 1062 | 1023 | 269.6 |
| D | 2 | 249 | 677516 | 2509.29 | 1062 | 1023 | 269.6 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |

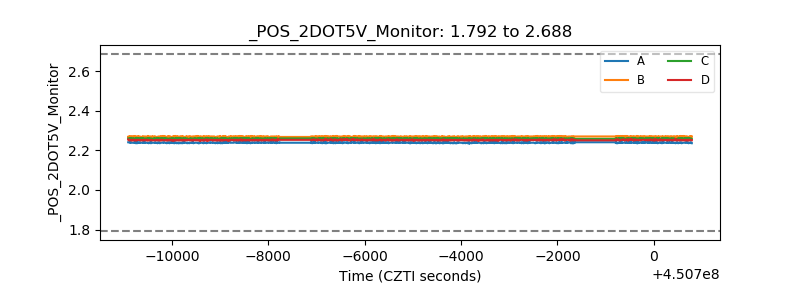

| +2.5 Volts monitor |  |

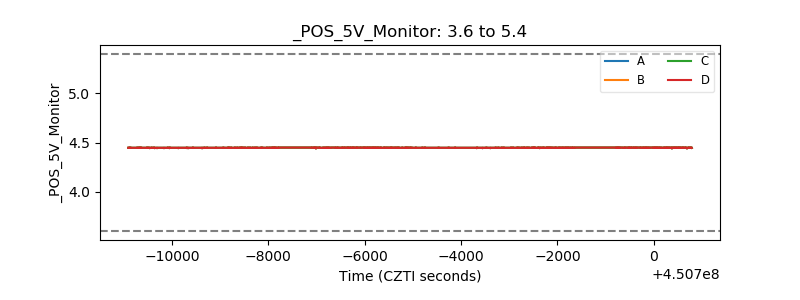

| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
