| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A13_070T04_9000006204_46407cztM0_level2.fits | modeM0/AS1A13_070T04_9000006204_46407cztM0_level2_quad_clean.evt |
| Size (bytes) | 545,143,680 | 117,391,680 |
| Size | 519.9 MB | 112.0 MB |
| Events in quadrant A | 6,721,072 | 790,676 |
| Events in quadrant B | 4,519,948 | 805,215 |
| Events in quadrant C | 4,099,393 | 743,668 |
| Events in quadrant D | 4,266,138 | 700,515 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 148 | 0 |
| B | 0 | 148 | 0 |
| C | 0 | 148 | 0 |
| D | 0 | 148 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 25097 | 0 |
| B | 0 | 18651 | 0 |
| C | 0 | 17677 | 4 |
| D | 0 | 18058 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7389 | 99 | 1.339829% |
| B | 7389 | 164 | 2.219515% |
| C | 7389 | 320 | 4.330762% |
| D | 7389 | 193 | 2.611991% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7389 | 7389 | 16 | 16 | 0.22% | 0.22% |  |
| B | 7389 | 7389 | 121 | 121 | 1.64% | 1.64% |  |
| C | 7389 | 7389 | 266 | 266 | 3.60% | 3.60% |  |
| D | 7389 | 7389 | 130 | 130 | 1.76% | 1.76% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 3410068 | 20167.87 | 807 | 789 | 169.0 |
| A | 13 | 248 | 99376 | 583.2 | 807 | 789 | 169.0 |
| A | 15 | 14 | 40440 | 234.56 | 807 | 789 | 169.0 |
| B | 2 | 2 | 928207 | 5893.16 | 803 | 776 | 157.4 |
| B | 5 | 172 | 166633 | 1053.9 | 803 | 776 | 157.4 |
| B | 15 | 201 | 113649 | 717.23 | 803 | 776 | 157.4 |
| C | 12 | 249 | 939041 | 5092.66 | 781 | 784 | 184.2 |
| C | 14 | 254 | 57779 | 309.36 | 781 | 784 | 184.2 |
| C | 3 | 233 | 30027 | 158.72 | 781 | 784 | 184.2 |
| D | 2 | 37 | 431864 | 2184.2 | 788 | 763 | 197.4 |
| D | 5 | 235 | 177482 | 895.36 | 788 | 763 | 197.4 |
| D | 14 | 34 | 133955 | 674.82 | 788 | 763 | 197.4 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

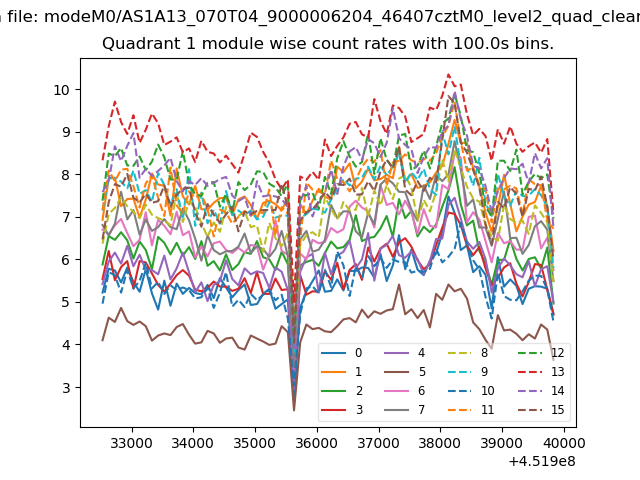

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

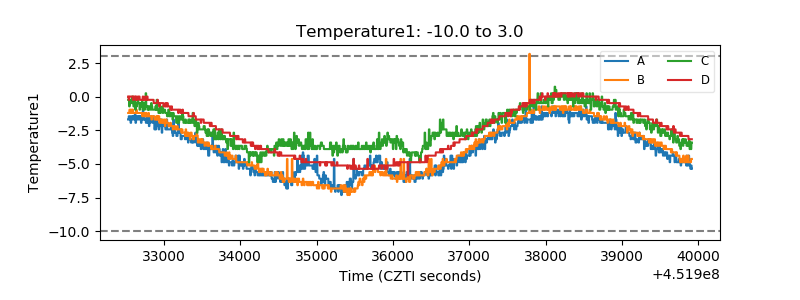

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

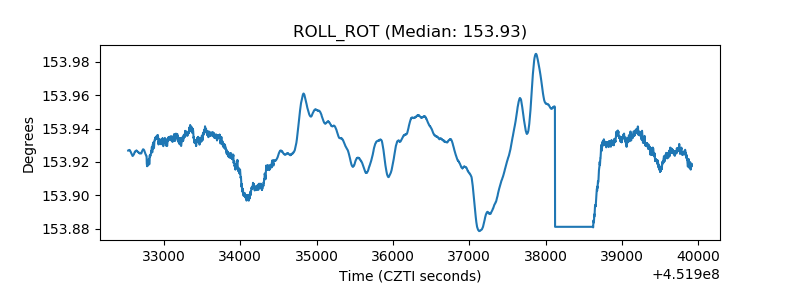

| _ROLL_ROT |  |

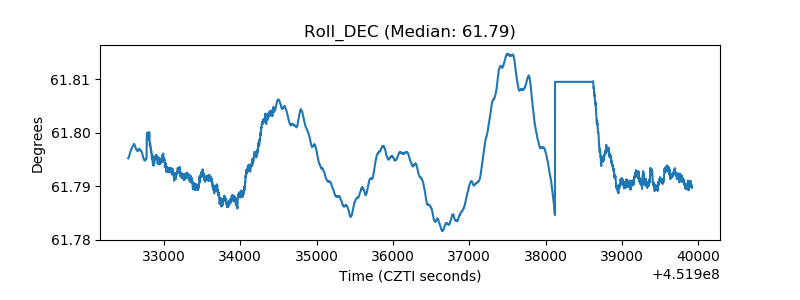

| _Roll_DEC |  |

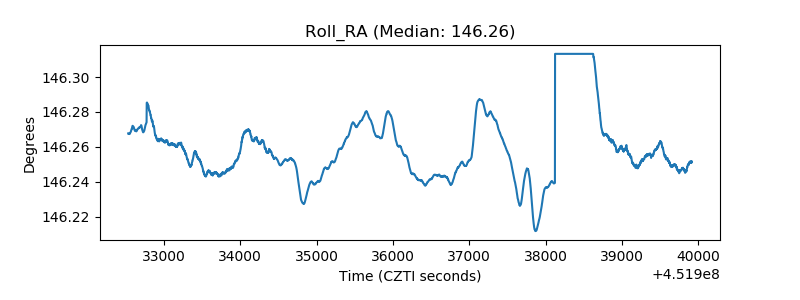

| _Roll_RA |  |

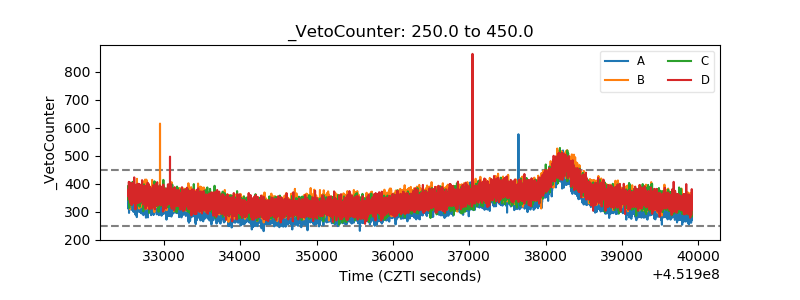

| Veto Counter |  |
