| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1C07_001T10_9000006232_46577cztM0_level2.fits | modeM0/AS1C07_001T10_9000006232_46577cztM0_level2_quad_clean.evt |
| Size (bytes) | 532,100,160 | 89,804,160 |
| Size | 507.5 MB | 85.6 MB |
| Events in quadrant A | 5,262,821 | 624,030 |
| Events in quadrant B | 2,633,260 | 656,301 |
| Events in quadrant C | 2,456,287 | 635,089 |
| Events in quadrant D | 8,900,923 | 403,736 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 11 | 0 |
| B | 0 | 11 | 0 |
| C | 0 | 11 | 0 |
| D | 0 | 11 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 19411 | 1 |
| B | 0 | 11920 | 1 |
| C | 0 | 11703 | 1 |
| D | 0 | 30424 | 1 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 118 | 0 |
| B | 0 | 118 | 0 |
| C | 0 | 118 | 0 |
| D | 0 | 118 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5712 | 151 | 2.643557% |
| B | 5712 | 46 | 0.805322% |
| C | 5713 | 21 | 0.367583% |
| D | 5713 | 1958 | 34.272711% |

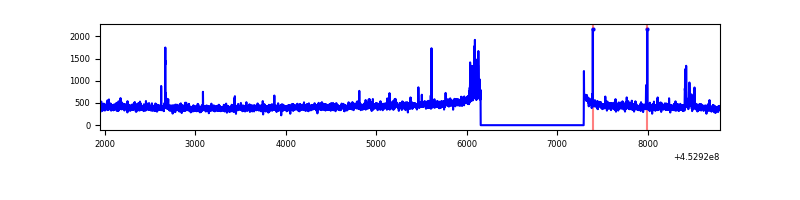

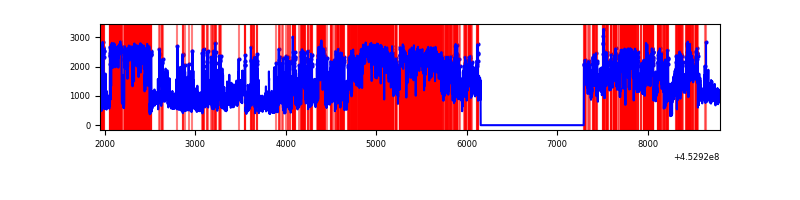

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 6852 | 5713 | 11 | 11 | 0.16% | 0.19% |  |
| B | 6852 | 5712 | 2 | 2 | 0.03% | 0.04% |  |
| C | 6853 | 5713 | 2 | 2 | 0.03% | 0.04% |  |
| D | 6853 | 5713 | 1785 | 1785 | 26.05% | 31.24% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 2778750 | 21820.05 | 620 | 608 | 127.3 |
| A | 13 | 248 | 24811 | 190.09 | 620 | 608 | 127.3 |
| A | 15 | 192 | 24045 | 184.08 | 620 | 608 | 127.3 |
| B | 3 | 112 | 76464 | 627.23 | 624 | 605 | 120.9 |
| B | 15 | 201 | 38600 | 314.16 | 624 | 605 | 120.9 |
| B | 0 | 245 | 32044 | 259.95 | 624 | 605 | 120.9 |
| C | 1 | 3 | 28745 | 198.93 | 610 | 611 | 141.4 |
| C | 12 | 249 | 24945 | 172.06 | 610 | 611 | 141.4 |
| C | 14 | 254 | 10244 | 68.11 | 610 | 611 | 141.4 |
| D | 13 | 138 | 3422835 | 25928.54 | 529 | 513 | 132.0 |
| D | 1 | 52 | 1658718 | 12563.06 | 529 | 513 | 132.0 |
| D | 5 | 33 | 832939 | 6306.71 | 529 | 513 | 132.0 |

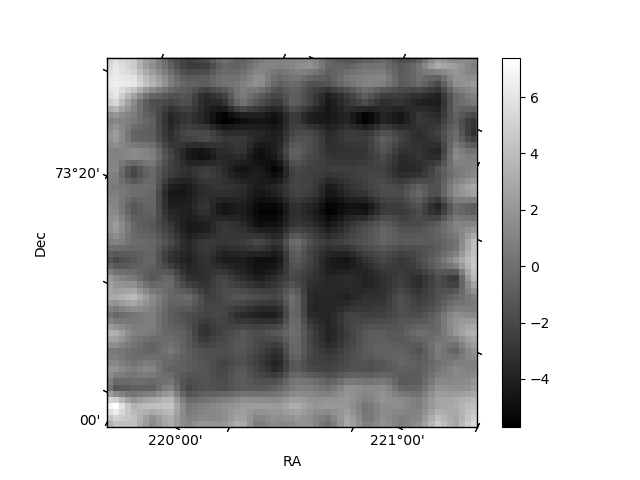

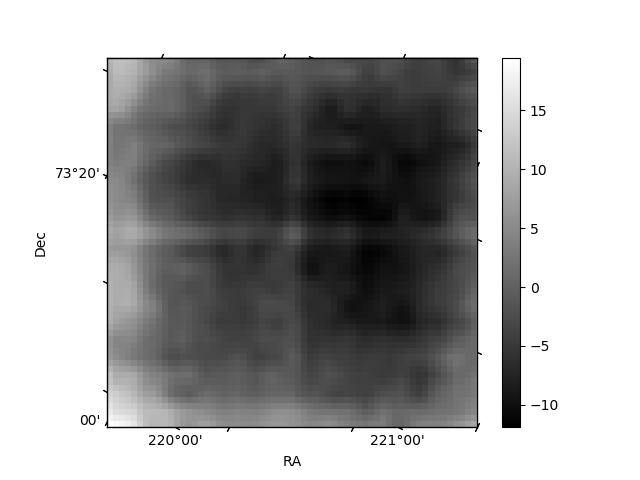

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

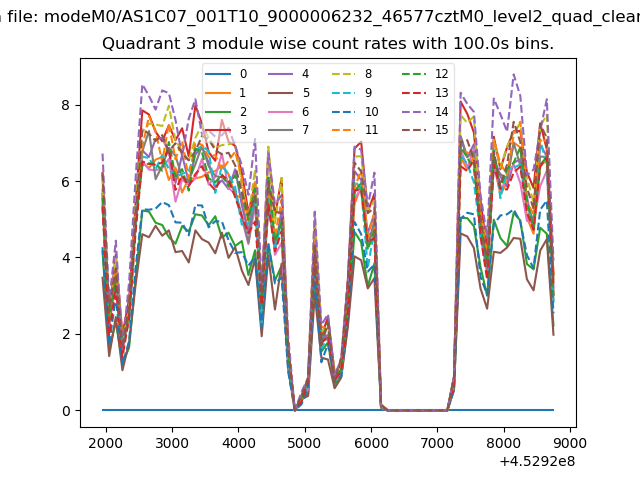

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

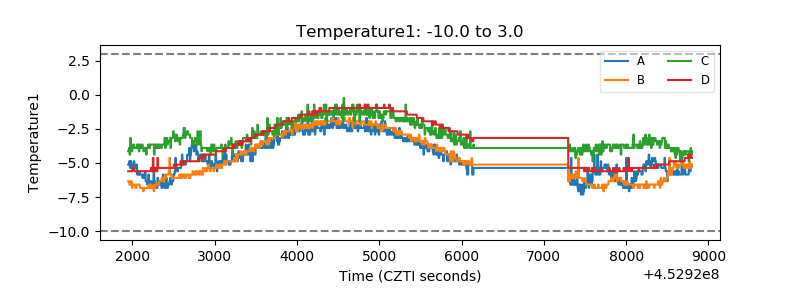

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

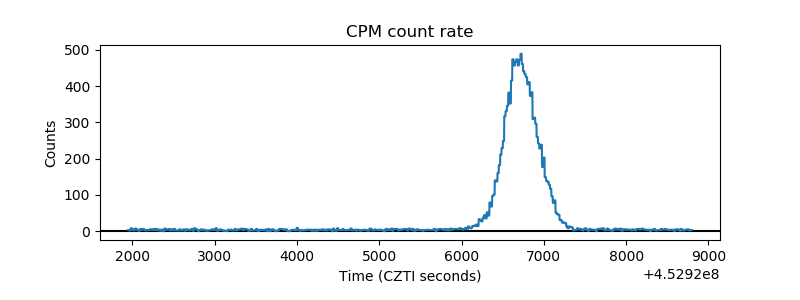

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

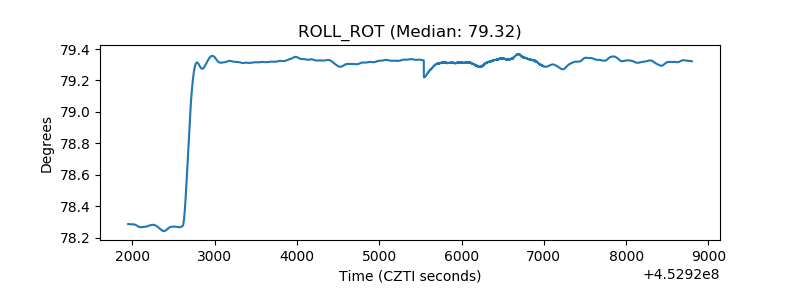

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
