| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A13_039T01_9000006246_46653cztM0_level2.fits | modeM0/AS1A13_039T01_9000006246_46653cztM0_level2_quad_clean.evt |
| Size (bytes) | 529,007,040 | 115,191,360 |
| Size | 504.5 MB | 109.9 MB |
| Events in quadrant A | 6,583,728 | 765,721 |
| Events in quadrant B | 3,618,724 | 785,039 |
| Events in quadrant C | 3,145,347 | 755,349 |
| Events in quadrant D | 5,665,294 | 670,409 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 24348 | 0 |
| B | 0 | 15826 | 0 |
| C | 0 | 15016 | 0 |
| D | 0 | 22065 | 1 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 148 | 0 |
| B | 0 | 148 | 0 |
| C | 0 | 148 | 0 |
| D | 0 | 148 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7341 | 61 | 0.830949% |
| B | 7342 | 72 | 0.980659% |
| C | 7342 | 13 | 0.177063% |
| D | 7341 | 333 | 4.536167% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7341 | 7341 | 20 | 20 | 0.27% | 0.27% |  |
| B | 7342 | 7342 | 38 | 38 | 0.52% | 0.52% |  |
| C | 7342 | 7342 | 15 | 15 | 0.20% | 0.20% |  |
| D | 7341 | 7341 | 303 | 303 | 4.13% | 4.13% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 3408077 | 21177.19 | 776 | 758 | 160.9 |
| A | 7 | 3 | 68650 | 421.96 | 776 | 758 | 160.9 |
| A | 0 | 243 | 33575 | 203.96 | 776 | 758 | 160.9 |
| B | 5 | 255 | 131450 | 854.33 | 776 | 751 | 153.0 |
| B | 0 | 189 | 127202 | 826.56 | 776 | 751 | 153.0 |
| B | 0 | 198 | 81282 | 526.4 | 776 | 751 | 153.0 |
| C | 14 | 254 | 74094 | 409.7 | 759 | 761 | 179.0 |
| C | 8 | 131 | 63326 | 349.54 | 759 | 761 | 179.0 |
| C | 12 | 250 | 21116 | 113.72 | 759 | 761 | 179.0 |
| D | 12 | 128 | 1582249 | 8421.58 | 747 | 721 | 187.8 |
| D | 1 | 52 | 428195 | 2276.28 | 747 | 721 | 187.8 |
| D | 13 | 249 | 266090 | 1413.08 | 747 | 721 | 187.8 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

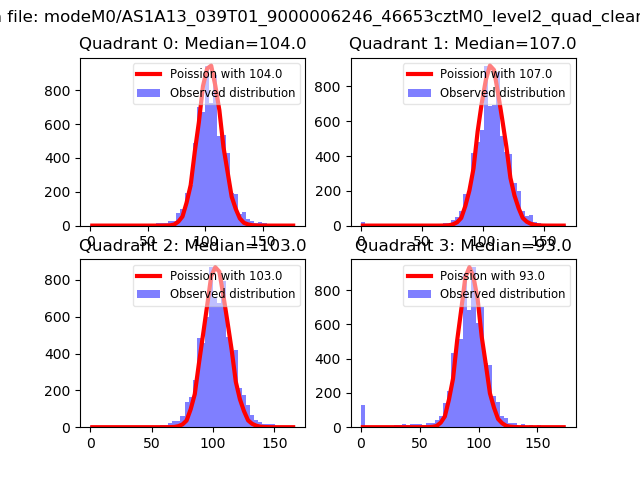

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

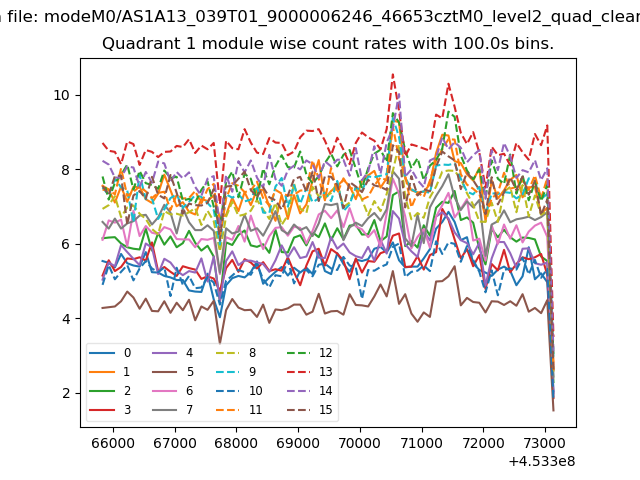

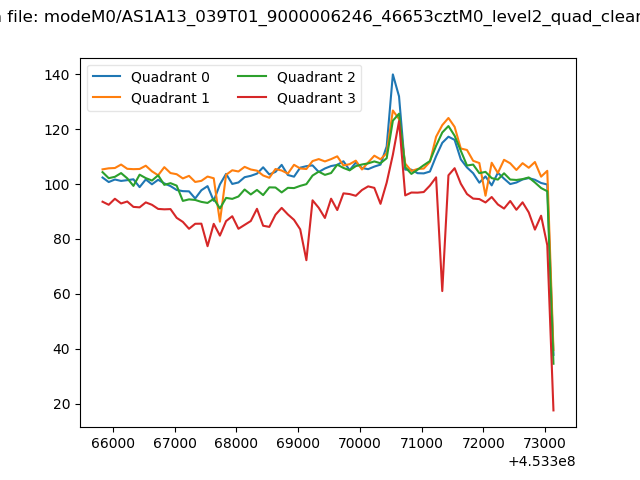

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

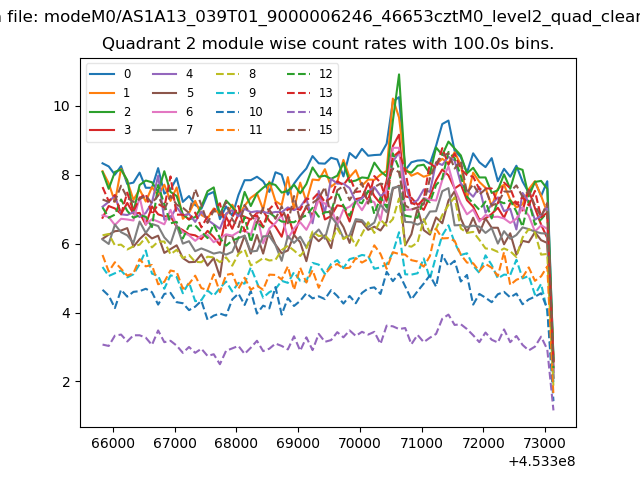

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

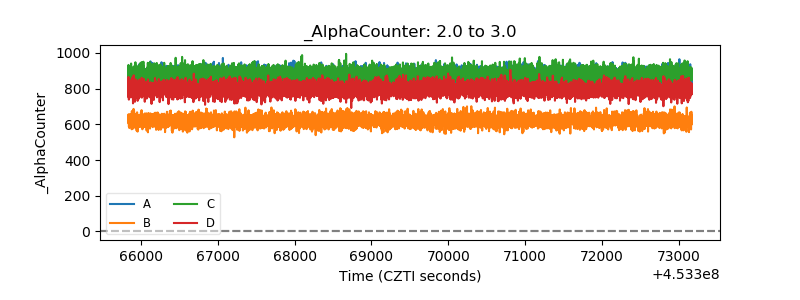

| Alpha Counter |  |

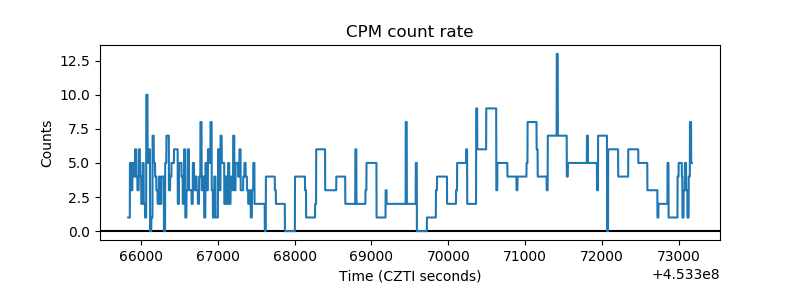

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

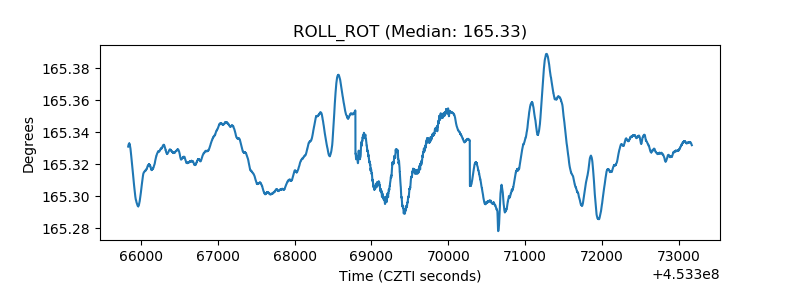

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

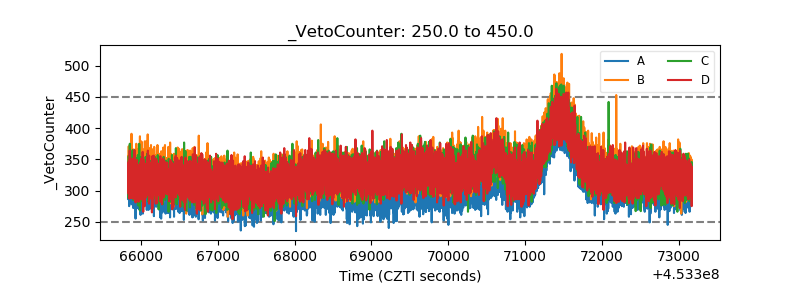

| Veto Counter |  |
