| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A13_092T20_9000006254_46695cztM0_level2.fits | modeM0/AS1A13_092T20_9000006254_46695cztM0_level2_quad_clean.evt |
| Size (bytes) | 547,787,520 | 116,138,880 |
| Size | 522.4 MB | 110.8 MB |
| Events in quadrant A | 7,040,999 | 752,774 |
| Events in quadrant B | 3,583,251 | 788,779 |
| Events in quadrant C | 3,454,352 | 777,580 |
| Events in quadrant D | 5,613,361 | 672,204 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 10 | 0 |
| B | 0 | 11 | 0 |
| C | 0 | 11 | 0 |
| D | 0 | 11 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 154 | 0 |
| B | 0 | 154 | 0 |
| C | 0 | 154 | 0 |
| D | 0 | 154 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 25695 | 2 |
| B | 0 | 15977 | 2 |
| C | 0 | 16006 | 2 |
| D | 0 | 22035 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7544 | 374 | 4.957582% |
| B | 7544 | 256 | 3.393425% |
| C | 7544 | 117 | 1.550901% |
| D | 7544 | 583 | 7.727996% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7964 | 7545 | 8 | 8 | 0.10% | 0.11% |  |
| B | 7964 | 7545 | 4 | 4 | 0.05% | 0.05% |  |
| C | 7964 | 7545 | 18 | 18 | 0.23% | 0.24% |  |
| D | 7963 | 7543 | 400 | 400 | 5.02% | 5.30% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 3756077 | 21528.51 | 836 | 816 | 174.4 |
| A | 9 | 191 | 14855 | 80.48 | 836 | 816 | 174.4 |
| A | 15 | 235 | 12202 | 65.27 | 836 | 816 | 174.4 |
| B | 0 | 198 | 64454 | 372.73 | 847 | 817 | 170.7 |
| B | 15 | 36 | 42158 | 242.14 | 847 | 817 | 170.7 |
| B | 0 | 190 | 38419 | 220.24 | 847 | 817 | 170.7 |
| C | 12 | 2 | 108832 | 545.1 | 836 | 841 | 198.1 |
| C | 14 | 254 | 25377 | 123.85 | 836 | 841 | 198.1 |
| C | 15 | 208 | 21220 | 102.87 | 836 | 841 | 198.1 |
| D | 1 | 52 | 1696926 | 8320.12 | 804 | 779 | 203.9 |
| D | 13 | 249 | 539025 | 2640.26 | 804 | 779 | 203.9 |
| D | 12 | 1 | 85047 | 413.36 | 804 | 779 | 203.9 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |

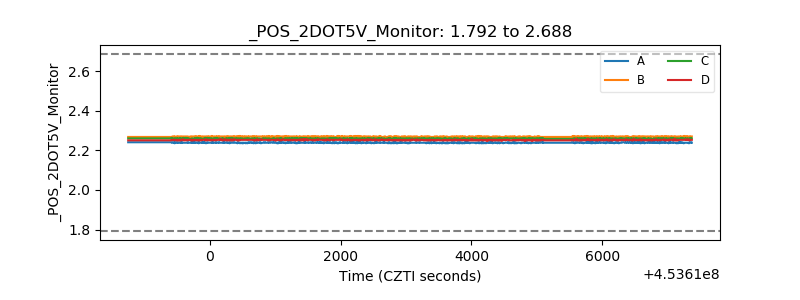

| +2.5 Volts monitor |  |

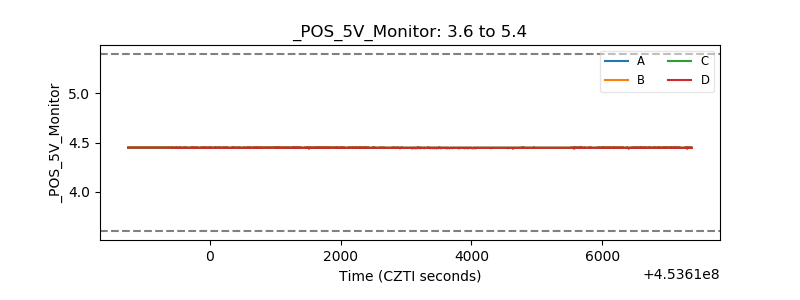

| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
