| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A13_092T09_9000006258_46724cztM0_level2.fits | modeM0/AS1A13_092T09_9000006258_46724cztM0_level2_quad_clean.evt |
| Size (bytes) | 463,279,680 | 106,560,000 |
| Size | 441.8 MB | 101.6 MB |
| Events in quadrant A | 6,270,410 | 685,649 |
| Events in quadrant B | 3,325,270 | 719,277 |
| Events in quadrant C | 3,078,211 | 709,155 |
| Events in quadrant D | 3,943,480 | 635,156 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 23182 | 3 |
| B | 0 | 14632 | 1 |
| C | 0 | 14327 | 1 |
| D | 0 | 16789 | 1 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 4 | 0 |
| B | 0 | 4 | 0 |
| C | 0 | 4 | 0 |
| D | 0 | 4 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 140 | 0 |
| B | 0 | 140 | 0 |
| C | 0 | 140 | 0 |
| D | 0 | 140 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6845 | 275 | 4.017531% |
| B | 6845 | 179 | 2.615047% |
| C | 6846 | 64 | 0.934852% |
| D | 6846 | 238 | 3.476483% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7265 | 6846 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7265 | 6845 | 7 | 7 | 0.10% | 0.10% |  |
| C | 7266 | 6847 | 4 | 4 | 0.06% | 0.06% |  |
| D | 7266 | 6847 | 136 | 136 | 1.87% | 1.99% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 3240798 | 20504.13 | 753 | 736 | 158.0 |
| A | 9 | 191 | 56996 | 356.03 | 753 | 736 | 158.0 |
| A | 13 | 248 | 17139 | 103.8 | 753 | 736 | 158.0 |
| B | 4 | 171 | 94324 | 609.76 | 763 | 740 | 153.5 |
| B | 3 | 112 | 66585 | 429.02 | 763 | 740 | 153.5 |
| B | 0 | 198 | 39627 | 253.37 | 763 | 740 | 153.5 |
| C | 14 | 254 | 45636 | 251.2 | 753 | 756 | 178.7 |
| C | 1 | 241 | 29080 | 158.53 | 753 | 756 | 178.7 |
| C | 3 | 233 | 27297 | 148.55 | 753 | 756 | 178.7 |
| D | 1 | 52 | 587605 | 3136.33 | 743 | 720 | 187.1 |
| D | 13 | 249 | 158942 | 845.54 | 743 | 720 | 187.1 |
| D | 13 | 171 | 127197 | 675.9 | 743 | 720 | 187.1 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

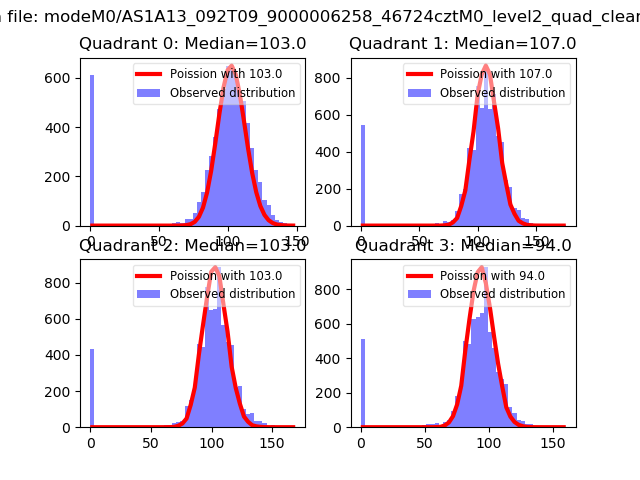

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

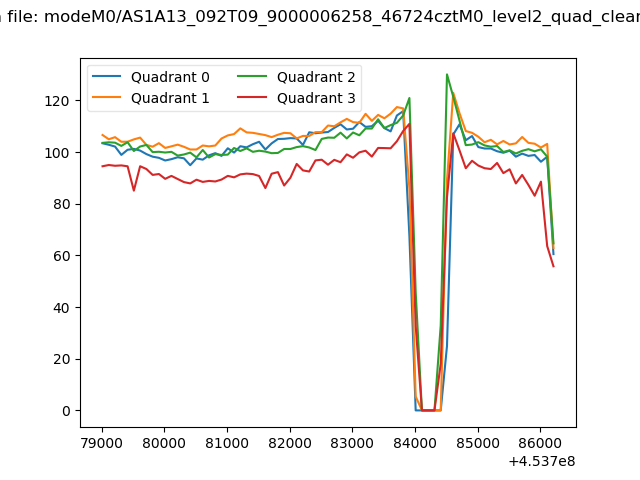

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

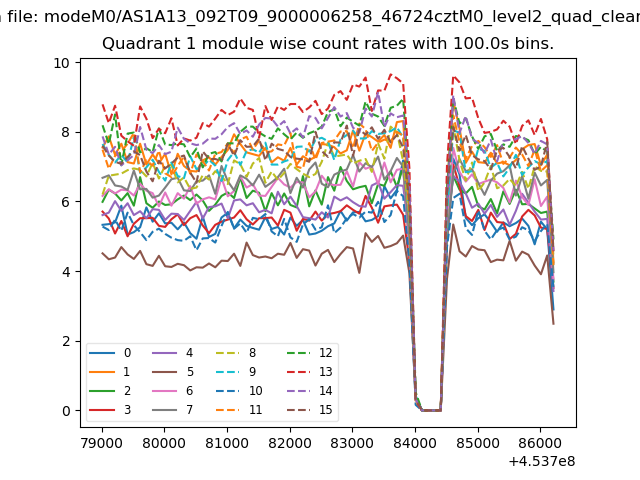

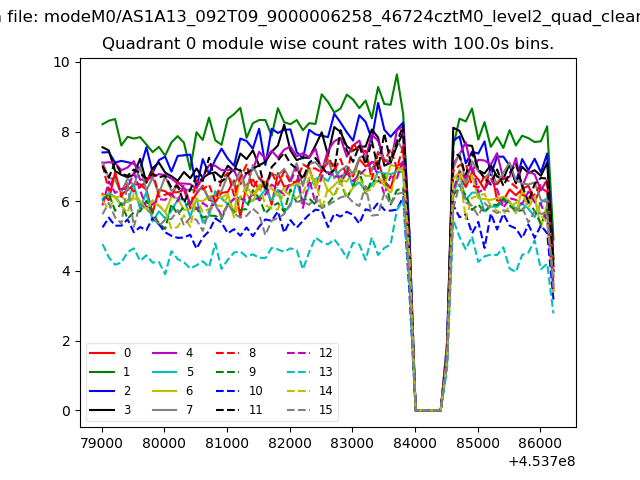

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

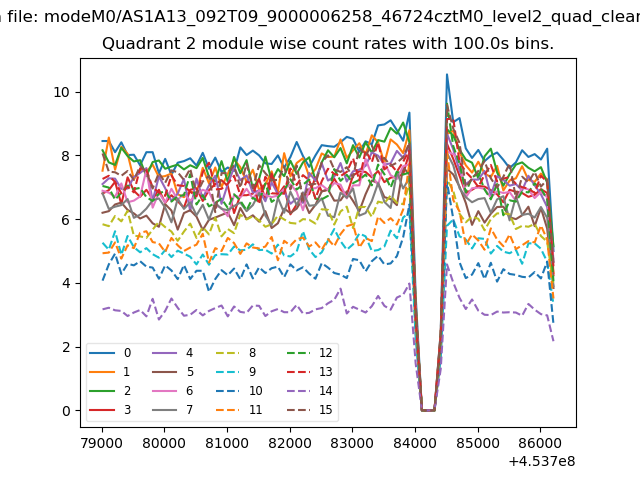

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

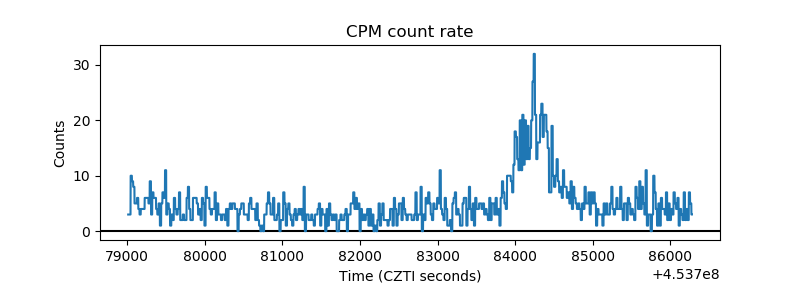

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

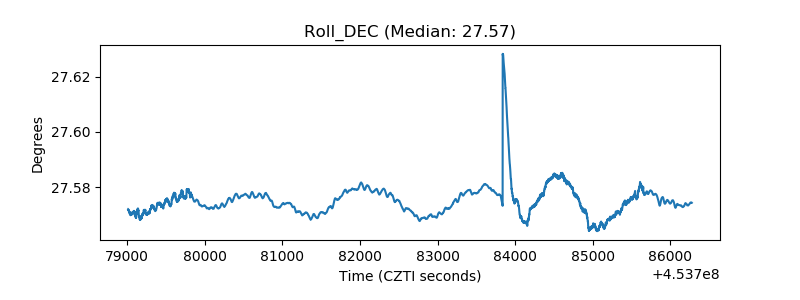

| _Roll_DEC |  |
| _Roll_RA |  |

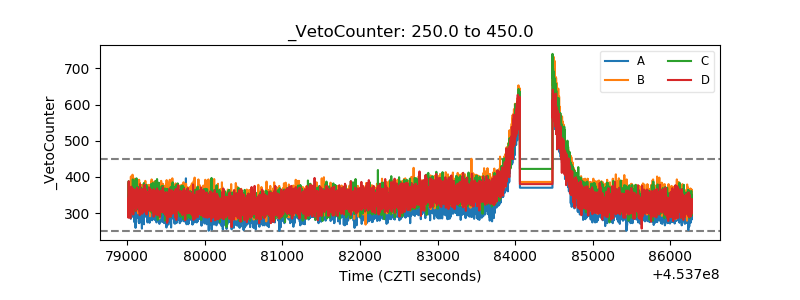

| Veto Counter |  |
