| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A13_071T08_9000006292_46980cztM0_level2.fits | modeM0/AS1A13_071T08_9000006292_46980cztM0_level2_quad_clean.evt |
| Size (bytes) | 577,992,960 | 101,226,240 |
| Size | 551.2 MB | 96.5 MB |
| Events in quadrant A | 6,052,767 | 685,496 |
| Events in quadrant B | 6,988,728 | 675,449 |
| Events in quadrant C | 3,569,061 | 658,700 |
| Events in quadrant D | 4,302,573 | 610,734 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 126 | 0 |
| B | 0 | 126 | 0 |
| C | 0 | 126 | 0 |
| D | 0 | 126 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 22155 | 1 |
| B | 0 | 25267 | 1 |
| C | 0 | 14989 | 3 |
| D | 0 | 16998 | 1 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 11 | 0 |
| B | 0 | 11 | 0 |
| C | 0 | 11 | 0 |
| D | 0 | 11 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6230 | 187 | 3.001605% |
| B | 6231 | 741 | 11.892152% |
| C | 6230 | 373 | 5.987159% |
| D | 6230 | 343 | 5.505618% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7330 | 6231 | 21 | 21 | 0.29% | 0.34% |  |
| B | 7331 | 6232 | 458 | 458 | 6.25% | 7.35% |  |
| C | 7330 | 6231 | 195 | 195 | 2.66% | 3.13% |  |
| D | 7330 | 6231 | 193 | 193 | 2.63% | 3.10% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 3214734 | 22214.8 | 703 | 689 | 144.7 |
| A | 9 | 191 | 76221 | 522.06 | 703 | 689 | 144.7 |
| A | 15 | 235 | 23888 | 160.35 | 703 | 689 | 144.7 |
| B | 3 | 112 | 3784030 | 28251.11 | 685 | 663 | 133.9 |
| B | 15 | 201 | 398959 | 2974.15 | 685 | 663 | 133.9 |
| B | 0 | 200 | 55923 | 412.64 | 685 | 663 | 133.9 |
| C | 14 | 254 | 831436 | 5258.84 | 677 | 679 | 158.0 |
| C | 3 | 233 | 59908 | 374.93 | 677 | 679 | 158.0 |
| C | 12 | 2 | 36126 | 224.39 | 677 | 679 | 158.0 |
| D | 1 | 52 | 809676 | 4657.48 | 690 | 668 | 173.7 |
| D | 13 | 171 | 467215 | 2685.92 | 690 | 668 | 173.7 |
| D | 13 | 249 | 253725 | 1456.86 | 690 | 668 | 173.7 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

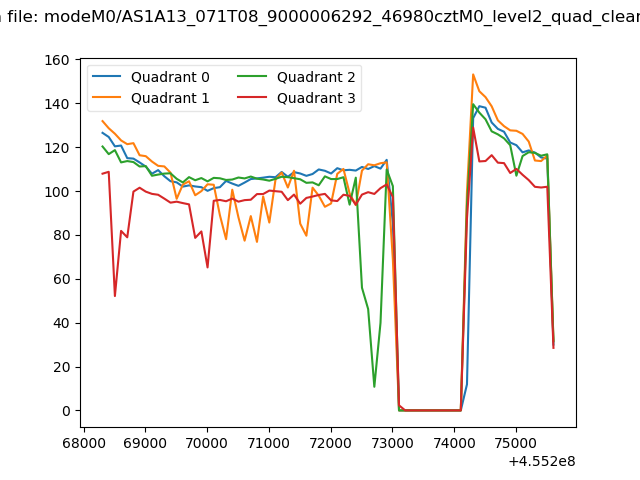

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

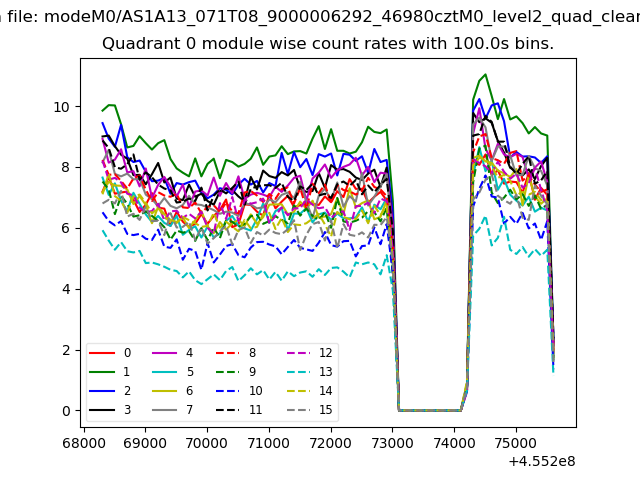

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

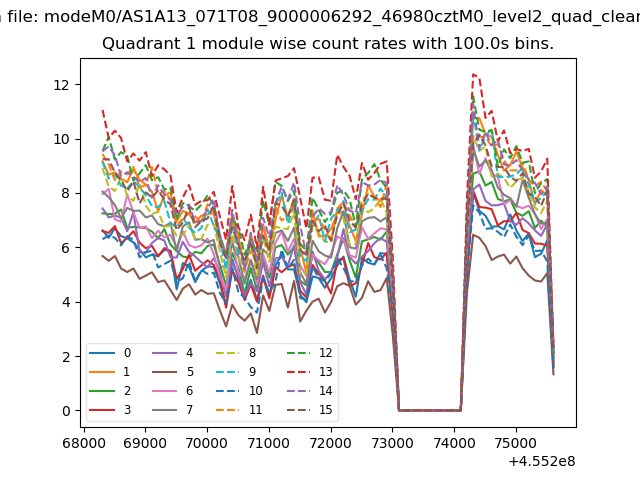

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|

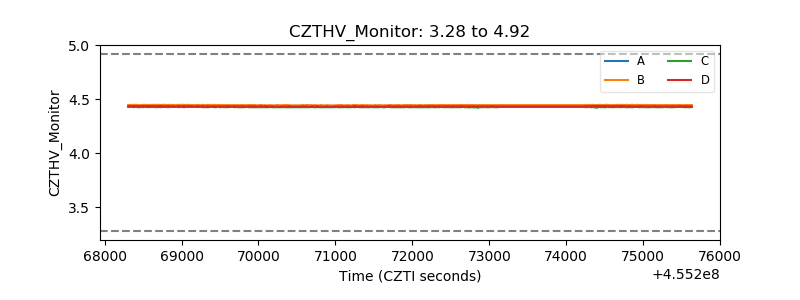

| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

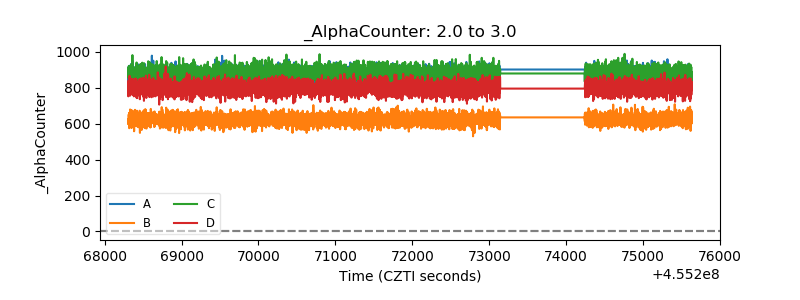

| Alpha Counter |  |

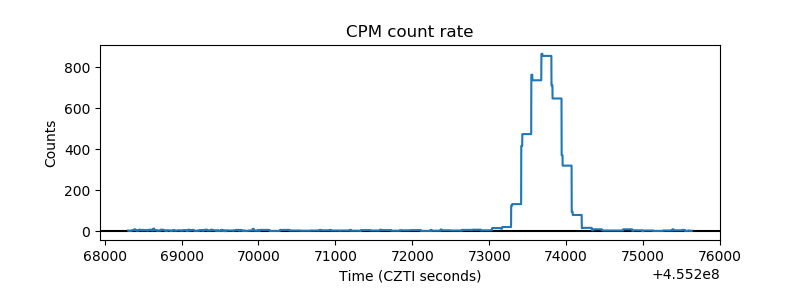

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

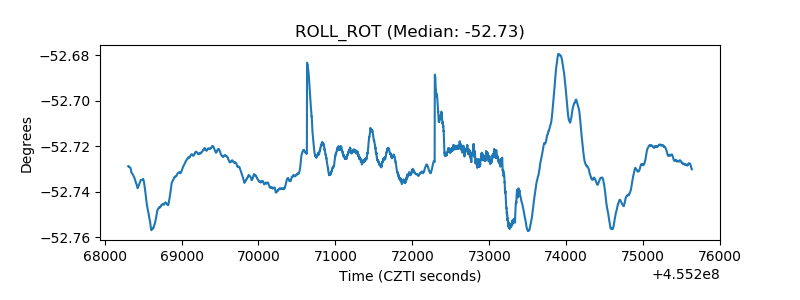

| _ROLL_ROT |  |

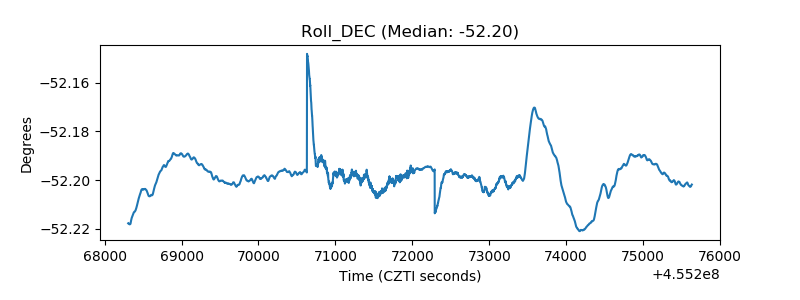

| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
