| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1T05_218T01_9000006386_48011cztM0_level2.fits | modeM0/AS1T05_218T01_9000006386_48011cztM0_level2_quad_clean.evt |
| Size (bytes) | 513,734,400 | 98,832,960 |
| Size | 489.9 MB | 94.3 MB |
| Events in quadrant A | 7,237,859 | 645,224 |
| Events in quadrant B | 2,933,207 | 713,015 |
| Events in quadrant C | 2,811,444 | 672,558 |
| Events in quadrant D | 5,557,478 | 533,300 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 122 | 0 |
| B | 0 | 122 | 0 |
| C | 0 | 122 | 0 |
| D | 0 | 122 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 26028 | 46 |
| B | 0 | 13020 | 13 |
| C | 0 | 12915 | 10 |
| D | 0 | 20845 | 66 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12 | 0 |
| B | 0 | 12 | 0 |
| C | 0 | 12 | 0 |
| D | 0 | 12 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6148 | 509 | 8.279115% |
| B | 6150 | 51 | 0.829268% |
| C | 6152 | 33 | 0.536411% |
| D | 6147 | 774 | 12.591508% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

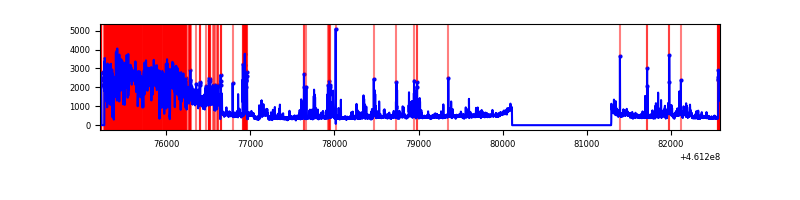

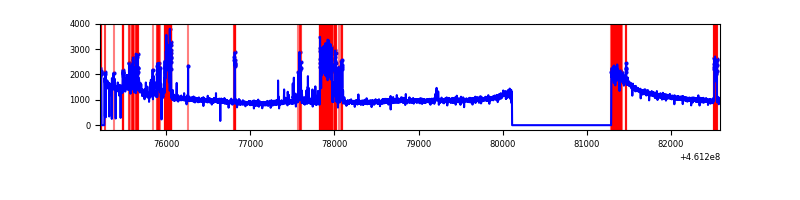

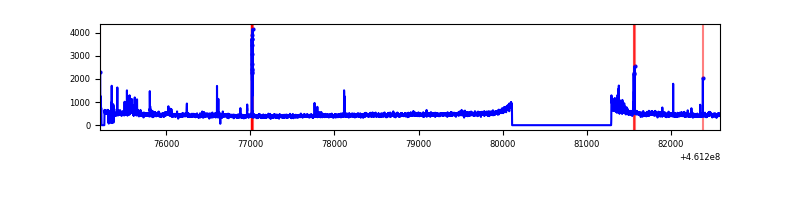

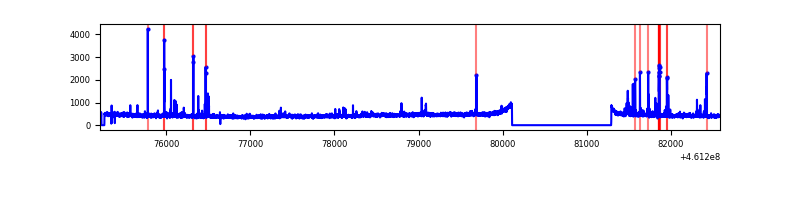

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7372 | 6158 | 416 | 416 | 5.64% | 6.76% |  |
| B | 7372 | 6158 | 16 | 16 | 0.22% | 0.26% |  |
| C | 7372 | 6158 | 22 | 22 | 0.30% | 0.36% |  |
| D | 7372 | 6158 | 835 | 835 | 11.33% | 13.56% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 3786015 | 27300.02 | 666 | 653 | 138.7 |
| A | 0 | 31 | 805209 | 5802.46 | 666 | 653 | 138.7 |
| A | 13 | 248 | 66348 | 473.79 | 666 | 653 | 138.7 |
| B | 0 | 200 | 81798 | 603.4 | 688 | 668 | 134.5 |
| B | 5 | 32 | 39202 | 286.6 | 688 | 668 | 134.5 |
| B | 0 | 198 | 27685 | 200.94 | 688 | 668 | 134.5 |
| C | 12 | 2 | 90849 | 569.38 | 671 | 676 | 158.4 |
| C | 14 | 254 | 73245 | 458.22 | 671 | 676 | 158.4 |
| C | 14 | 67 | 11343 | 67.35 | 671 | 676 | 158.4 |
| D | 2 | 37 | 2609780 | 16445.98 | 626 | 603 | 158.7 |
| D | 2 | 249 | 224995 | 1414.37 | 626 | 603 | 158.7 |
| D | 11 | 224 | 101056 | 633.17 | 626 | 603 | 158.7 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

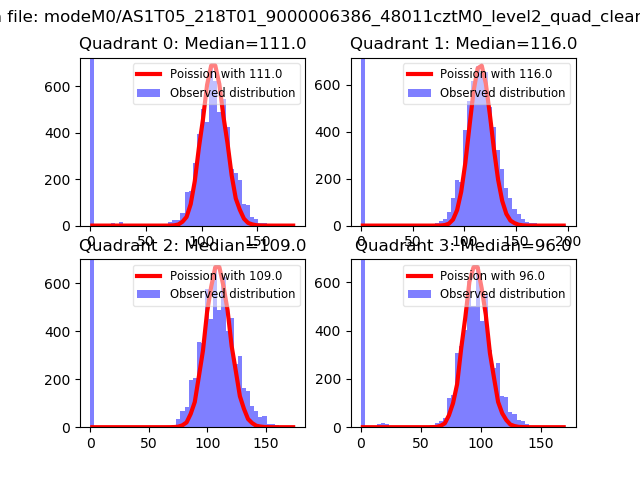

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

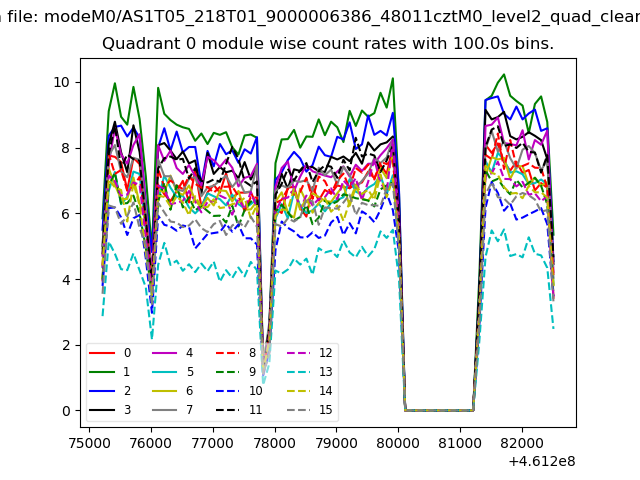

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

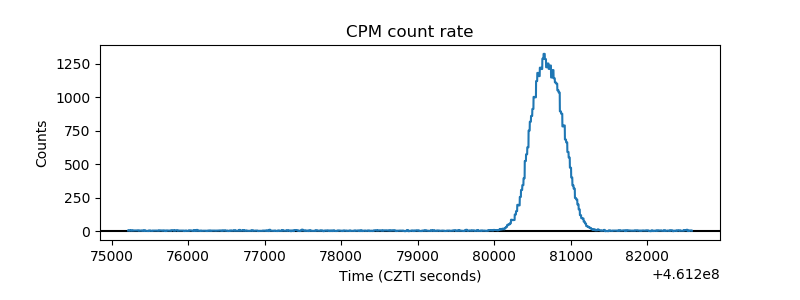

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

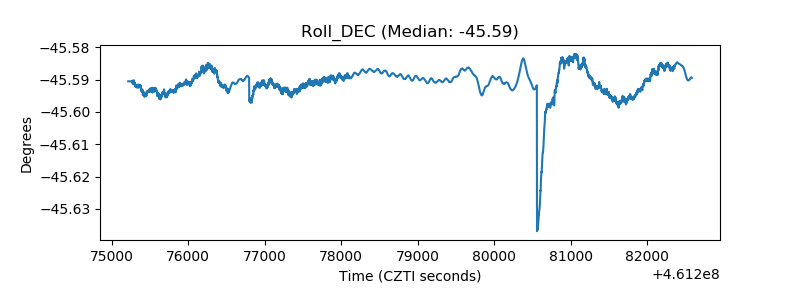

| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
