| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1T05_233T01_9000006438_49606cztM0_level2.fits | modeM0/AS1T05_233T01_9000006438_49606cztM0_level2_quad_clean.evt |
| Size (bytes) | 1,082,148,480 | 42,796,800 |
| Size | 1.0 GB | 40.8 MB |
| Events in quadrant A | 15,220,680 | 134,806 |
| Events in quadrant B | 6,060,748 | 587,131 |
| Events in quadrant C | 3,530,240 | 3,497 |
| Events in quadrant D | 14,790,747 | 151,930 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 10 | 0 |
| B | 0 | 10 | 0 |
| C | 0 | 10 | 0 |
| D | 0 | 10 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 120 | 0 |
| B | 0 | 120 | 0 |
| C | 0 | 120 | 0 |
| D | 0 | 120 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 49290 | 3 |
| B | 0 | 21958 | 1 |
| C | 0 | 14828 | 1 |
| D | 0 | 47941 | 1 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5859 | 5859 | 100.000000% |
| B | 5859 | 975 | 16.641065% |
| C | 5859 | 5859 | 100.000000% |
| D | 5859 | 5631 | 96.108551% |

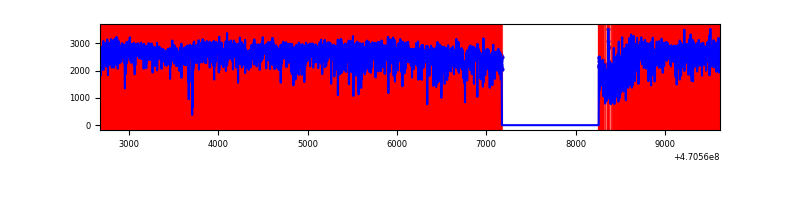

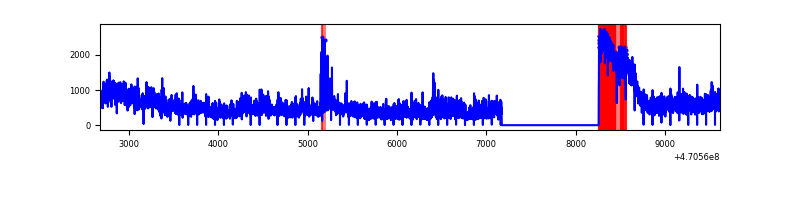

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 6944 | 5860 | 5656 | 5656 | 81.45% | 96.52% |  |
| B | 6944 | 5860 | 772 | 772 | 11.12% | 13.17% |  |
| C | 6943 | 5857 | 173 | 173 | 2.49% | 2.95% |  |
| D | 6944 | 5859 | 5369 | 5369 | 77.32% | 91.64% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 0 | 99 | 5753986 | 83899.49 | 170 | 160 | 68.6 |
| A | 10 | 83 | 2450142 | 35724.45 | 170 | 160 | 68.6 |
| A | 0 | 98 | 1400615 | 20420.75 | 170 | 160 | 68.6 |
| B | 5 | 172 | 1198400 | 9480.76 | 595 | 579 | 126.3 |
| B | 4 | 206 | 1162506 | 9196.66 | 595 | 579 | 126.3 |
| B | 3 | 232 | 357332 | 2823.7 | 595 | 579 | 126.3 |
| C | 15 | 181 | 1449228 | 119499.95 | 13 | 11 | 12.1 |
| C | 15 | 180 | 597738 | 49287.54 | 13 | 11 | 12.1 |
| C | 15 | 190 | 172578 | 14229.58 | 13 | 11 | 12.1 |
| D | 15 | 40 | 3349062 | 35397.59 | 203 | 189 | 94.6 |
| D | 15 | 184 | 1748908 | 18483.96 | 203 | 189 | 94.6 |
| D | 15 | 74 | 1166059 | 12323.25 | 203 | 189 | 94.6 |

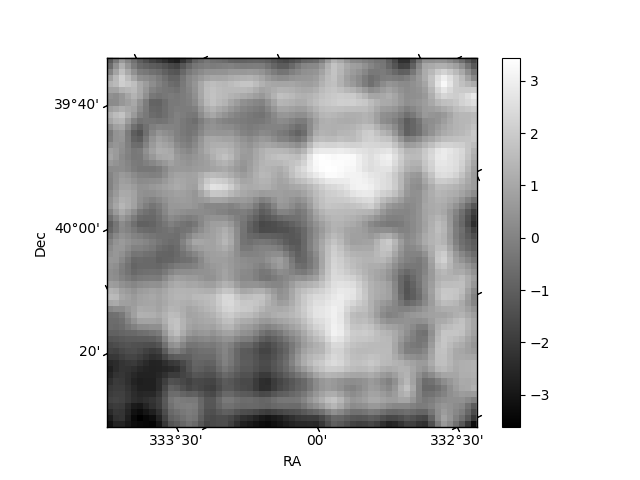

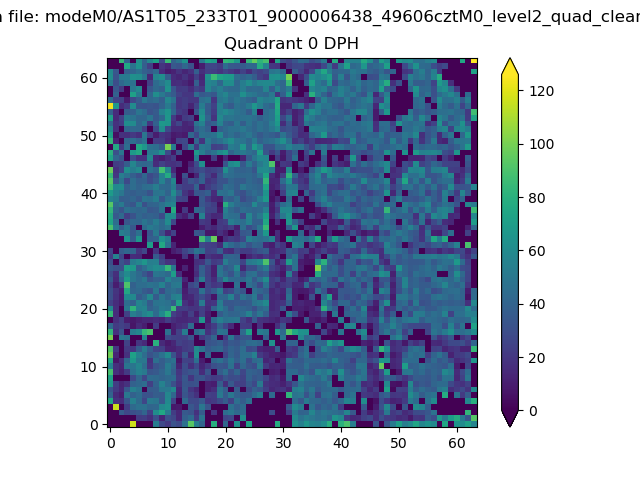

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

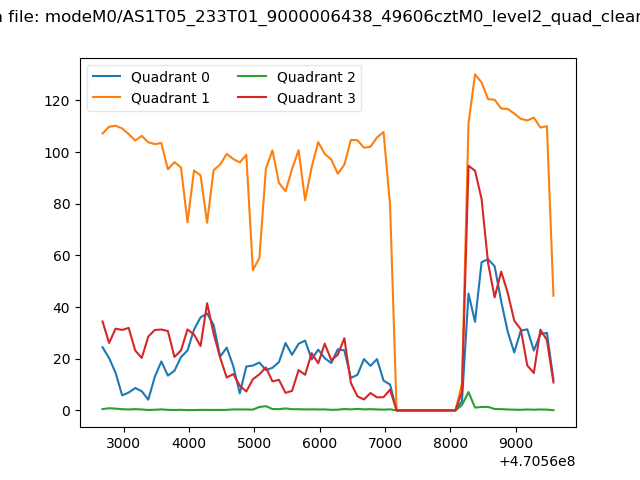

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

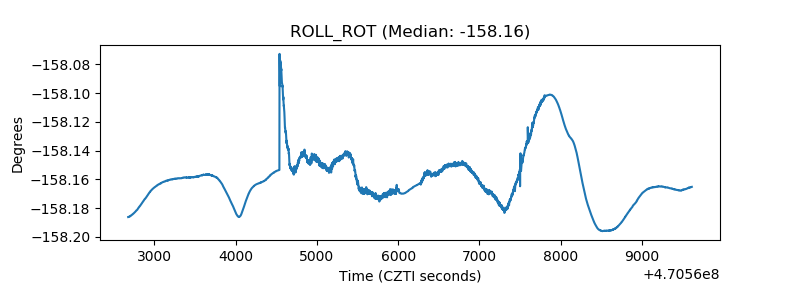

| _ROLL_ROT |  |
| _Roll_DEC |  |

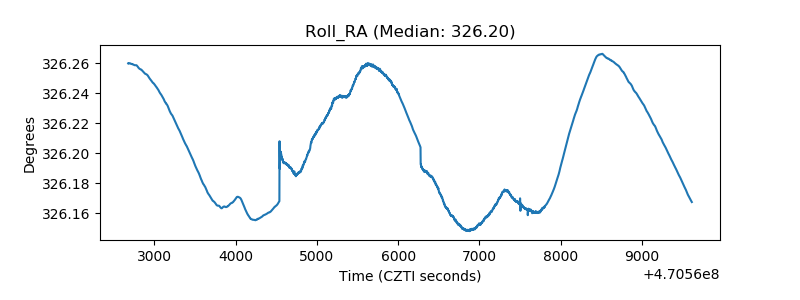

| _Roll_RA |  |

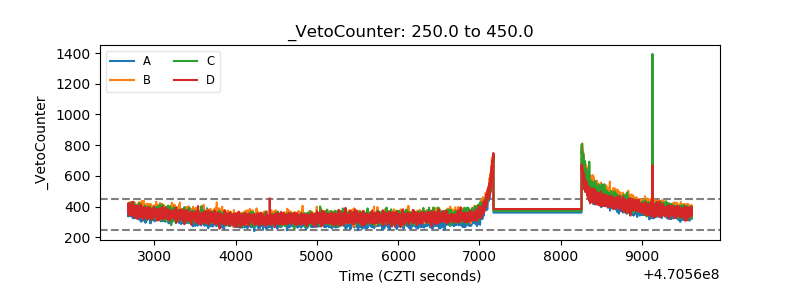

| Veto Counter |  |
