| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1T05_233T01_9000006438_49704cztM0_level2.fits | modeM0/AS1T05_233T01_9000006438_49704cztM0_level2_quad_clean.evt |
| Size (bytes) | 1,609,657,920 | 52,416,000 |
| Size | 1.5 GB | 50.0 MB |
| Events in quadrant A | 20,287,049 | 118,929 |
| Events in quadrant B | 5,616,036 | 823,985 |
| Events in quadrant C | 11,910,568 | 134 |
| Events in quadrant D | 21,119,501 | 58,412 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 16 | 0 |
| B | 0 | 16 | 0 |
| C | 0 | 16 | 0 |
| D | 0 | 16 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 170 | 0 |
| B | 0 | 170 | 0 |
| C | 0 | 170 | 0 |
| D | 0 | 170 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 65988 | 2 |
| B | 0 | 22525 | 2 |
| C | 0 | 41282 | 2 |
| D | 0 | 68609 | 6 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 8431 | 7447 | 88.328787% |
| B | 8432 | 380 | 4.506641% |
| C | 8432 | 8431 | 99.988140% |
| D | 8431 | 7846 | 93.061321% |

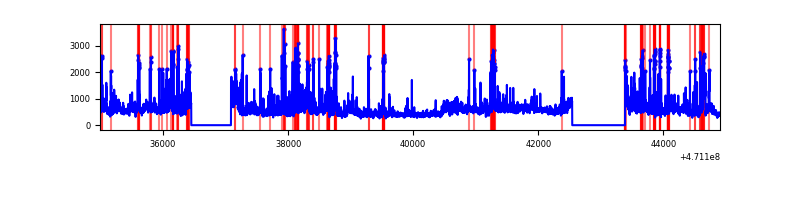

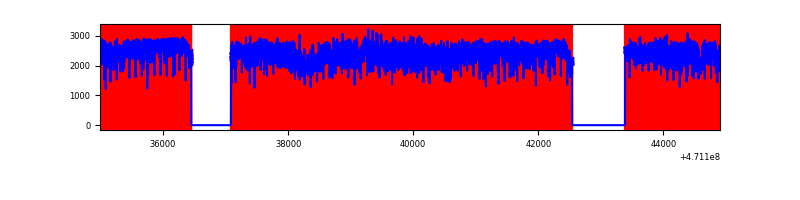

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 9911 | 8431 | 7757 | 7757 | 78.27% | 92.01% |  |
| B | 9912 | 8432 | 205 | 205 | 2.07% | 2.43% |  |
| C | 9911 | 8431 | 1397 | 1397 | 14.10% | 16.57% |  |
| D | 9910 | 8430 | 7733 | 7733 | 78.03% | 91.73% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 9118902 | 54607.89 | 582 | 563 | 167.0 |
| A | 12 | 50 | 1689904 | 10117.12 | 582 | 563 | 167.0 |
| A | 0 | 98 | 950737 | 5690.4 | 582 | 563 | 167.0 |
| B | 4 | 169 | 412629 | 2189.09 | 892 | 863 | 188.1 |
| B | 1 | 255 | 352524 | 1869.55 | 892 | 863 | 188.1 |
| B | 4 | 249 | 324881 | 1722.59 | 892 | 863 | 188.1 |
| C | 15 | 190 | 3014611 | 76549.8 | 68 | 64 | 39.4 |
| C | 15 | 180 | 2649922 | 67289.08 | 68 | 64 | 39.4 |
| C | 15 | 181 | 1102558 | 27996.14 | 68 | 64 | 39.4 |
| D | 15 | 40 | 6356758 | 46380.83 | 378 | 361 | 137.0 |
| D | 15 | 168 | 2947998 | 21508.07 | 378 | 361 | 137.0 |
| D | 2 | 165 | 1259200 | 9185.39 | 378 | 361 | 137.0 |

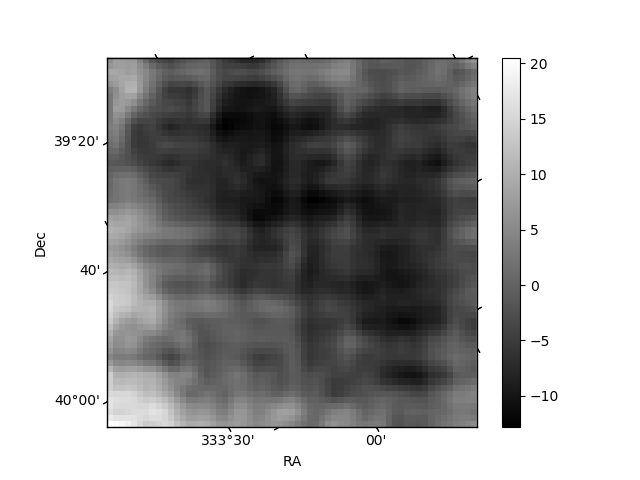

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

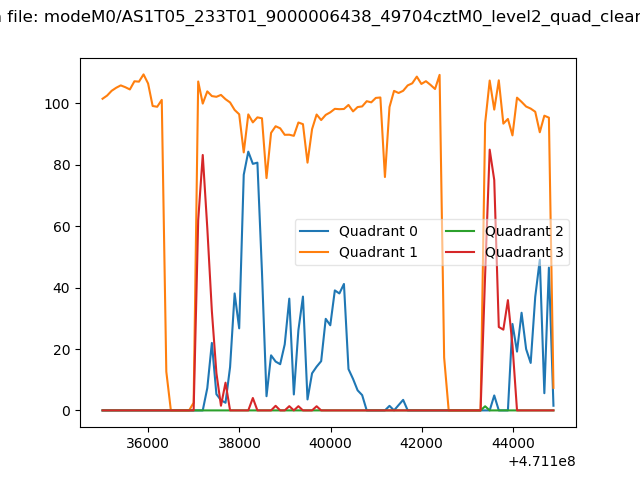

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |

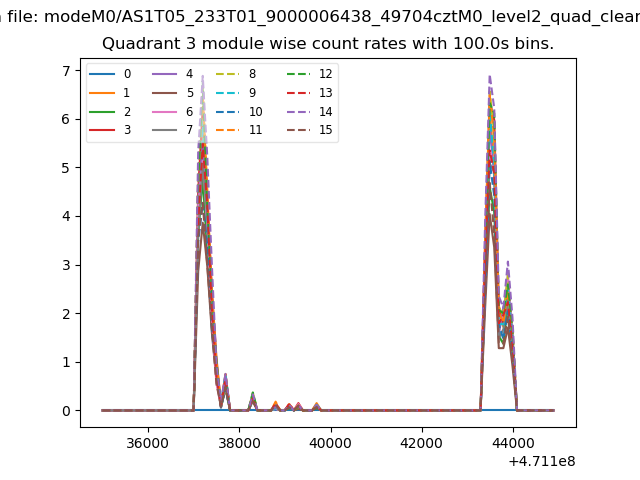

| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

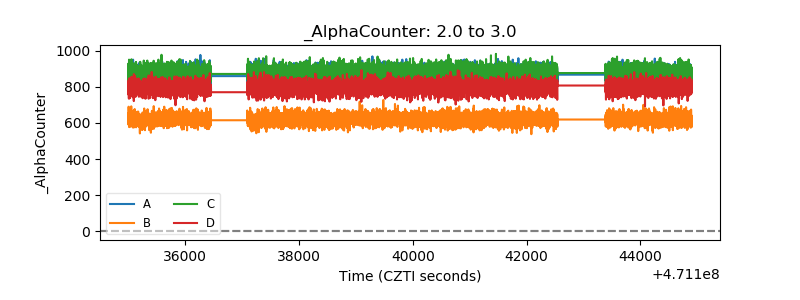

| Alpha Counter |  |

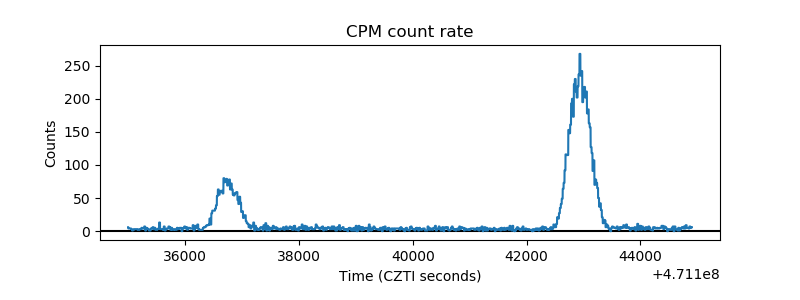

| _CPM_Rate |  |

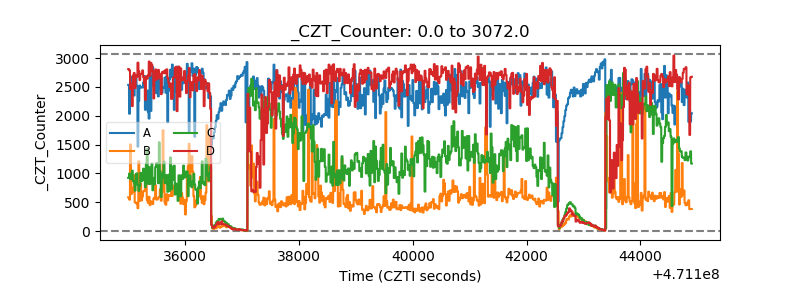

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
