| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A13_037T01_9000006440_49748cztM0_level2.fits | modeM0/AS1A13_037T01_9000006440_49748cztM0_level2_quad_clean.evt |
| Size (bytes) | 1,297,615,680 | 44,308,800 |
| Size | 1.2 GB | 42.3 MB |
| Events in quadrant A | 15,843,589 | 85,741 |
| Events in quadrant B | 5,535,916 | 638,592 |
| Events in quadrant C | 10,620,834 | 8,924 |
| Events in quadrant D | 15,526,968 | 150,398 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 9 | 0 |
| B | 0 | 9 | 0 |
| C | 0 | 9 | 0 |
| D | 0 | 9 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 132 | 0 |
| B | 0 | 132 | 0 |
| C | 0 | 132 | 0 |
| D | 0 | 132 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 51494 | 1 |
| B | 0 | 20991 | 1 |
| C | 0 | 36128 | 6 |
| D | 0 | 50730 | 1 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6561 | 5937 | 90.489255% |
| B | 6562 | 349 | 5.318500% |
| C | 6561 | 6489 | 98.902606% |
| D | 6561 | 5089 | 77.564396% |

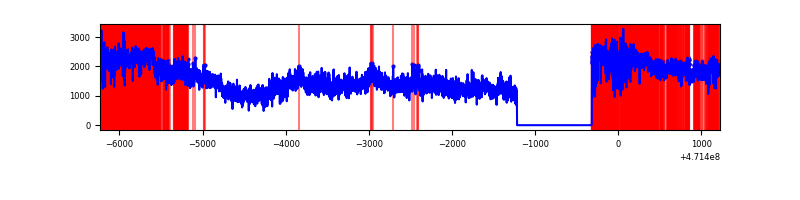

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7461 | 6561 | 5853 | 5853 | 78.45% | 89.21% |  |
| B | 7462 | 6562 | 174 | 174 | 2.33% | 2.65% |  |
| C | 7460 | 6560 | 1491 | 1491 | 19.99% | 22.73% |  |
| D | 7460 | 6560 | 5093 | 5093 | 68.27% | 77.64% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 6792803 | 53138.02 | 446 | 430 | 127.8 |
| A | 7 | 64 | 1902273 | 14878.48 | 446 | 430 | 127.8 |
| A | 0 | 98 | 1190681 | 9311.56 | 446 | 430 | 127.8 |
| B | 10 | 128 | 1051472 | 7178.55 | 686 | 663 | 146.4 |
| B | 1 | 207 | 936445 | 6392.75 | 686 | 663 | 146.4 |
| B | 4 | 21 | 282385 | 1924.57 | 686 | 663 | 146.4 |
| C | 15 | 180 | 3360985 | 97165.61 | 100 | 99 | 34.6 |
| C | 15 | 190 | 1283641 | 37108.11 | 100 | 99 | 34.6 |
| C | 15 | 181 | 1131699 | 32715.36 | 100 | 99 | 34.6 |
| D | 15 | 168 | 2524554 | 19880.19 | 419 | 404 | 127.0 |
| D | 8 | 129 | 2152013 | 16946.06 | 419 | 404 | 127.0 |
| D | 15 | 185 | 1551941 | 12219.89 | 419 | 404 | 127.0 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

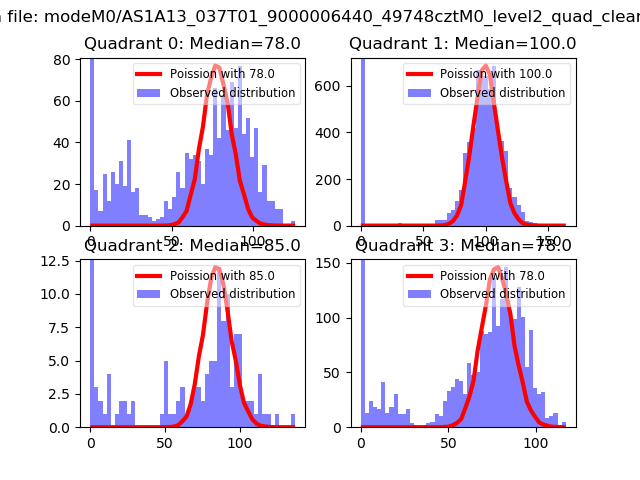

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

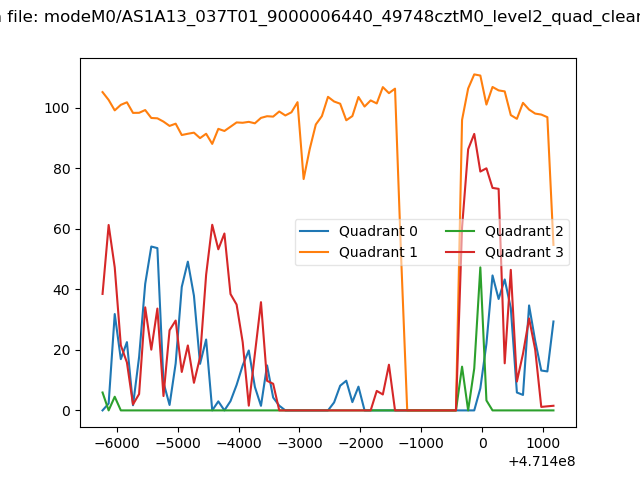

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

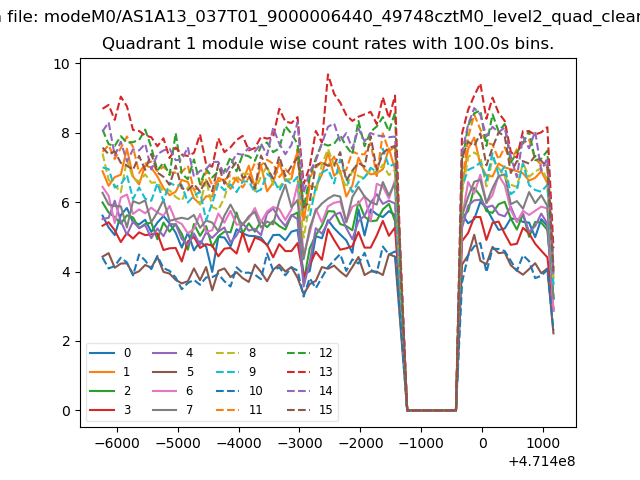

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

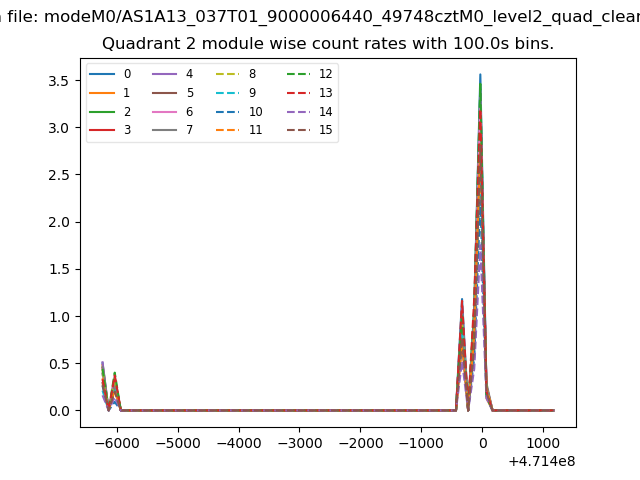

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

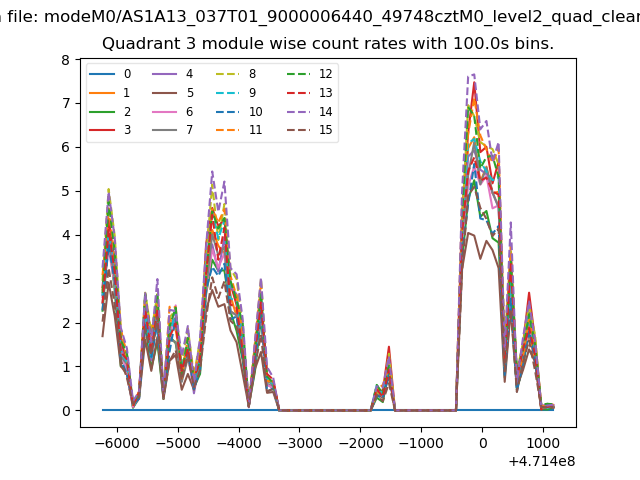

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

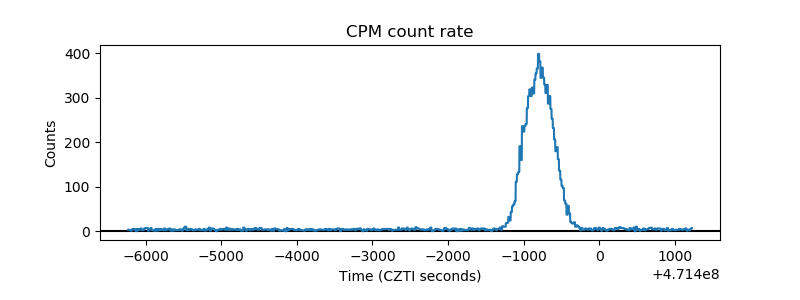

| _CPM_Rate |  |
| CZT Counter |  |

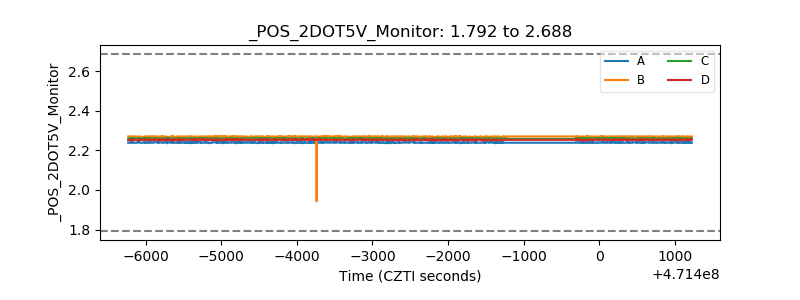

| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
