| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A13_037T01_9000006440_49751cztM0_level2.fits | modeM0/AS1A13_037T01_9000006440_49751cztM0_level2_quad_clean.evt |
| Size (bytes) | 1,126,241,280 | 46,952,640 |
| Size | 1.0 GB | 44.8 MB |
| Events in quadrant A | 13,322,313 | 176,781 |
| Events in quadrant B | 4,932,748 | 584,680 |
| Events in quadrant C | 9,985,205 | 40,240 |
| Events in quadrant D | 12,998,628 | 211,237 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 11 | 0 |
| B | 0 | 11 | 0 |
| C | 0 | 11 | 0 |
| D | 0 | 11 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 118 | 0 |
| B | 0 | 118 | 0 |
| C | 0 | 118 | 0 |
| D | 0 | 118 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 43519 | 4 |
| B | 0 | 18613 | 1 |
| C | 0 | 33725 | 1 |
| D | 0 | 42681 | 1 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5841 | 4503 | 77.092964% |
| B | 5842 | 571 | 9.774050% |
| C | 5842 | 5514 | 94.385484% |
| D | 5842 | 3814 | 65.285861% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 6940 | 5840 | 4756 | 4756 | 68.53% | 81.44% |  |
| B | 6942 | 5842 | 409 | 409 | 5.89% | 7.00% |  |
| C | 6941 | 5841 | 1460 | 1460 | 21.03% | 25.00% |  |
| D | 6942 | 5842 | 3939 | 3939 | 56.74% | 67.43% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 7377569 | 54895.78 | 509 | 497 | 134.4 |
| A | 3 | 84 | 717797 | 5337.72 | 509 | 497 | 134.4 |
| A | 12 | 50 | 655766 | 4876.12 | 509 | 497 | 134.4 |
| B | 1 | 207 | 1634174 | 12203.65 | 630 | 608 | 133.9 |
| B | 4 | 206 | 277026 | 2065.0 | 630 | 608 | 133.9 |
| B | 4 | 21 | 226374 | 1686.6 | 630 | 608 | 133.9 |
| C | 15 | 180 | 4316842 | 113599.74 | 110 | 108 | 38.0 |
| C | 15 | 181 | 1197875 | 31520.59 | 110 | 108 | 38.0 |
| C | 15 | 163 | 846668 | 22278.18 | 110 | 108 | 38.0 |
| D | 15 | 168 | 2646780 | 19611.89 | 432 | 416 | 134.9 |
| D | 12 | 6 | 1408280 | 10433.51 | 432 | 416 | 134.9 |
| D | 15 | 185 | 1236856 | 9163.11 | 432 | 416 | 134.9 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |

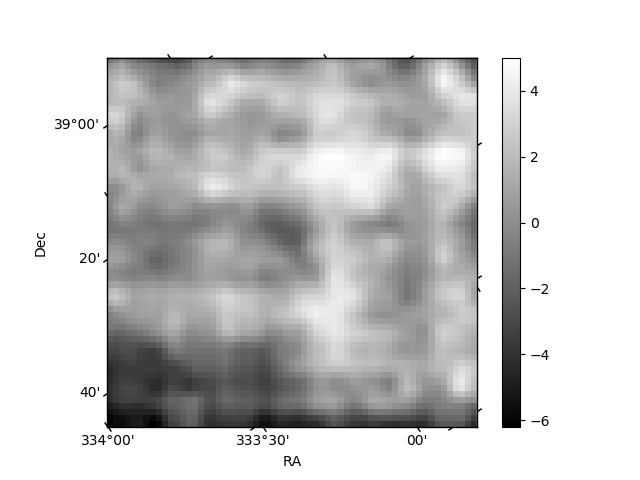

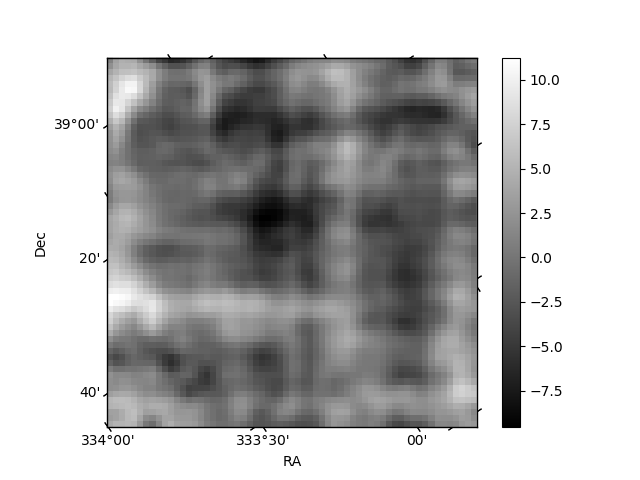

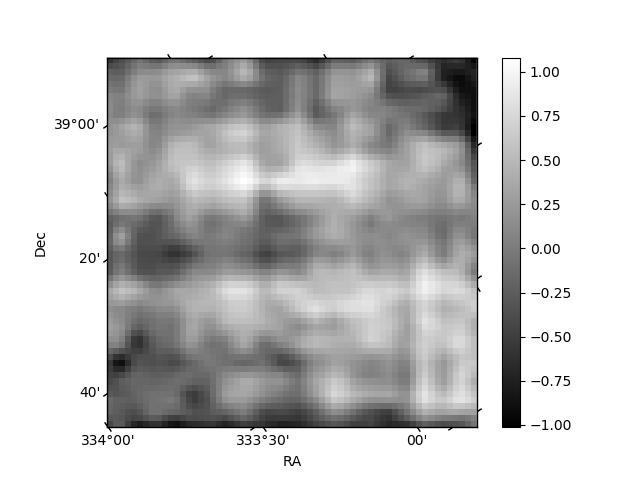

| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

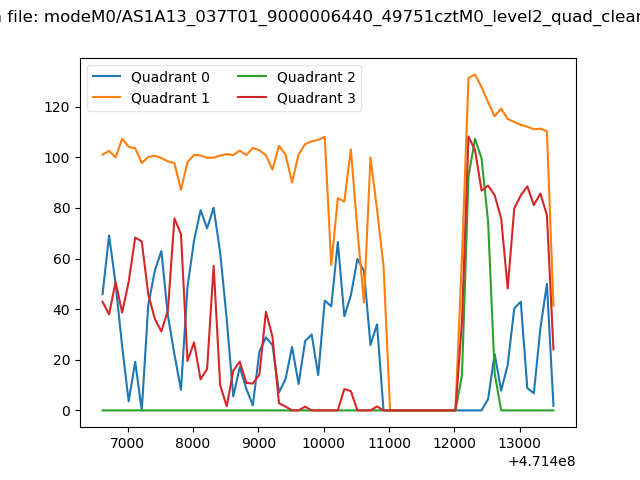

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

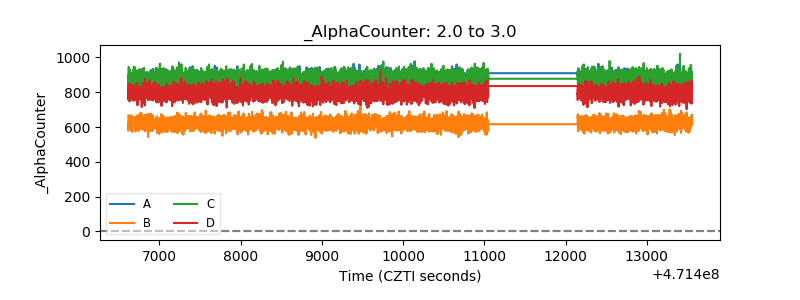

| Alpha Counter |  |

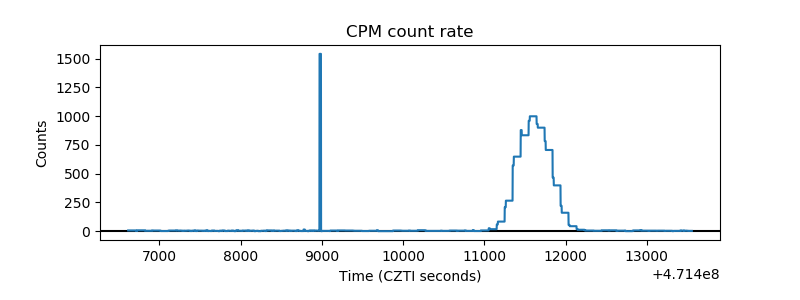

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |

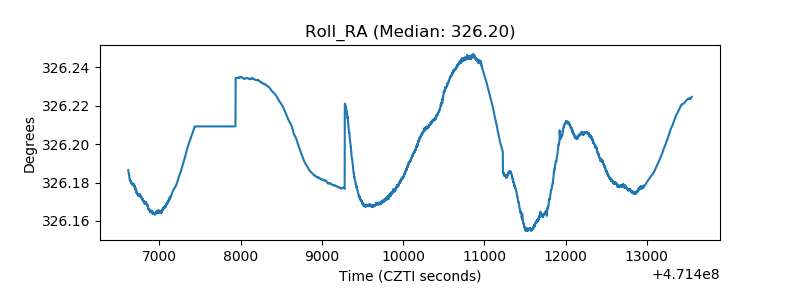

| _Roll_RA |  |

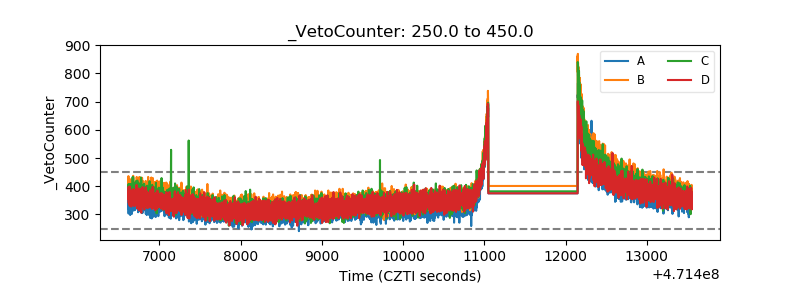

| Veto Counter |  |
