| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A13_037T01_9000006440_49758cztM0_level2.fits | modeM0/AS1A13_037T01_9000006440_49758cztM0_level2_quad_clean.evt |
| Size (bytes) | 1,264,167,360 | 51,154,560 |
| Size | 1.2 GB | 48.8 MB |
| Events in quadrant A | 19,091,199 | 188,290 |
| Events in quadrant B | 6,020,843 | 704,278 |
| Events in quadrant C | 6,265,821 | 2,321 |
| Events in quadrant D | 14,856,180 | 140,660 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 144 | 0 |
| B | 0 | 144 | 0 |
| C | 0 | 144 | 0 |
| D | 0 | 144 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 61761 | 0 |
| B | 0 | 22781 | 0 |
| C | 0 | 23784 | 0 |
| D | 0 | 49130 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7221 | 7219 | 99.972303% |
| B | 7222 | 639 | 8.847965% |
| C | 7222 | 7222 | 100.000000% |
| D | 7222 | 7120 | 98.587649% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

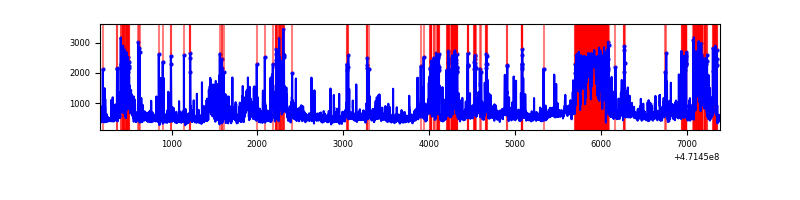

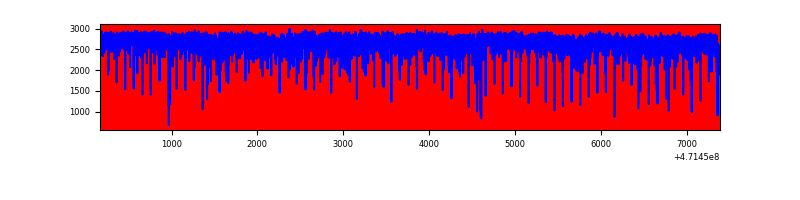

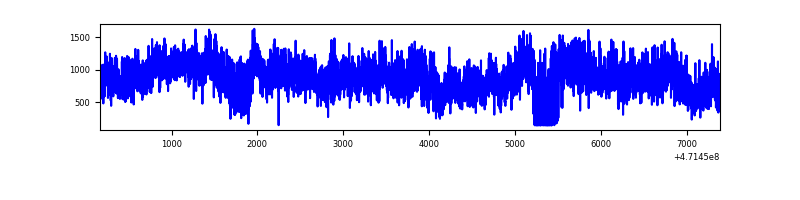

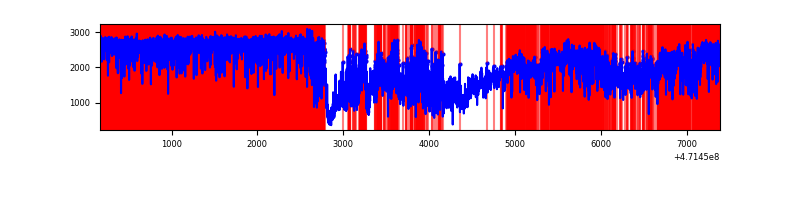

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7220 | 7220 | 7083 | 7083 | 98.10% | 98.10% |  |
| B | 7222 | 7222 | 515 | 515 | 7.13% | 7.13% |  |
| C | 7221 | 7221 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7221 | 7221 | 4048 | 4048 | 56.06% | 56.06% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 0 | 98 | 4707030 | 67172.16 | 229 | 221 | 70.1 |
| A | 10 | 83 | 3918428 | 55917.8 | 229 | 221 | 70.1 |
| A | 12 | 50 | 2263185 | 32295.38 | 229 | 221 | 70.1 |
| B | 3 | 232 | 1197337 | 7593.39 | 732 | 708 | 157.6 |
| B | 10 | 128 | 321258 | 2034.1 | 732 | 708 | 157.6 |
| B | 3 | 233 | 308230 | 1951.43 | 732 | 708 | 157.6 |
| C | 15 | 190 | 1180391 | 88028.58 | 14 | 13 | 13.4 |
| C | 15 | 180 | 940272 | 70121.32 | 14 | 13 | 13.4 |
| C | 15 | 181 | 625218 | 46625.66 | 14 | 13 | 13.4 |
| D | 7 | 61 | 2979354 | 36766.74 | 190 | 178 | 81.0 |
| D | 15 | 168 | 2823614 | 34844.72 | 190 | 178 | 81.0 |
| D | 15 | 25 | 1796041 | 22163.19 | 190 | 178 | 81.0 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |

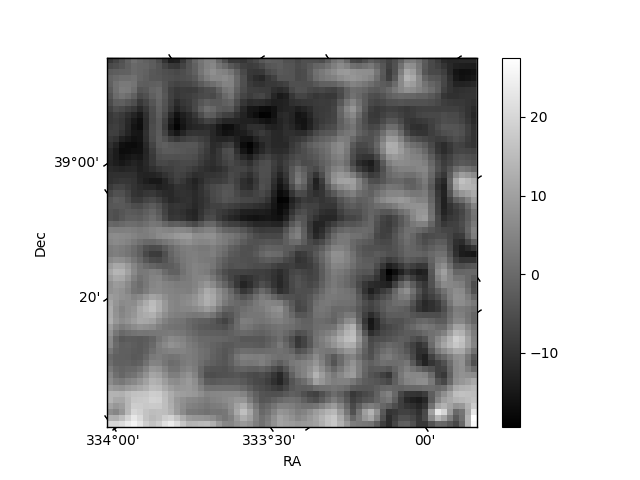

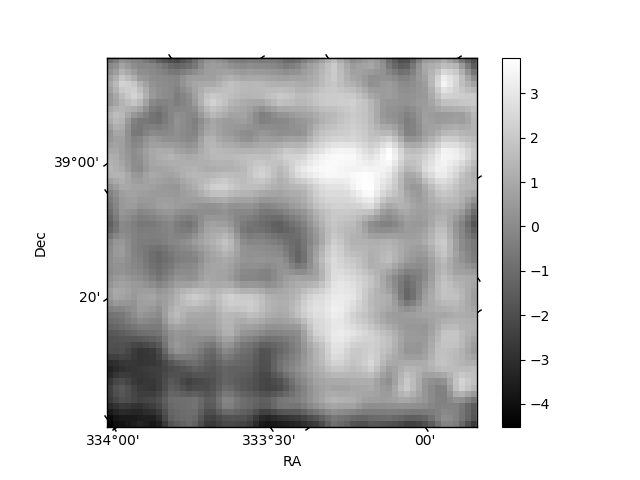

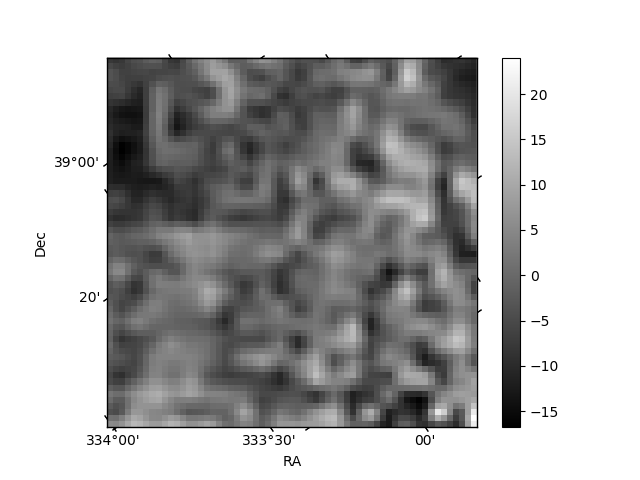

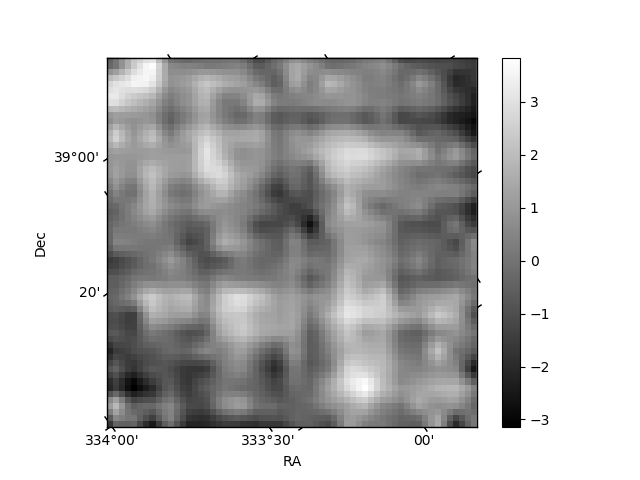

| Plot type | Count rate plots | Images |
|---|---|---|

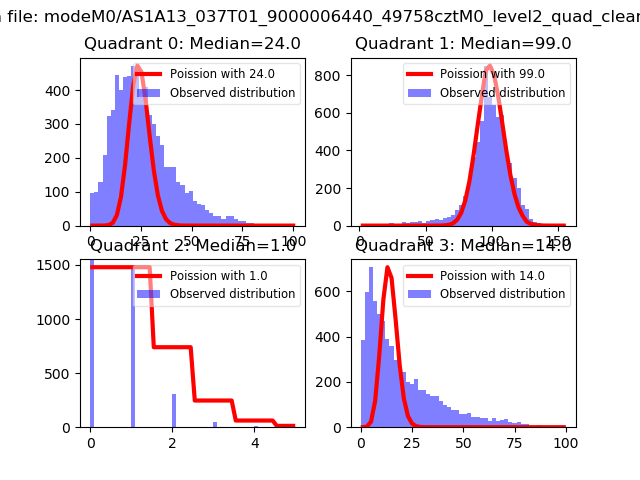

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

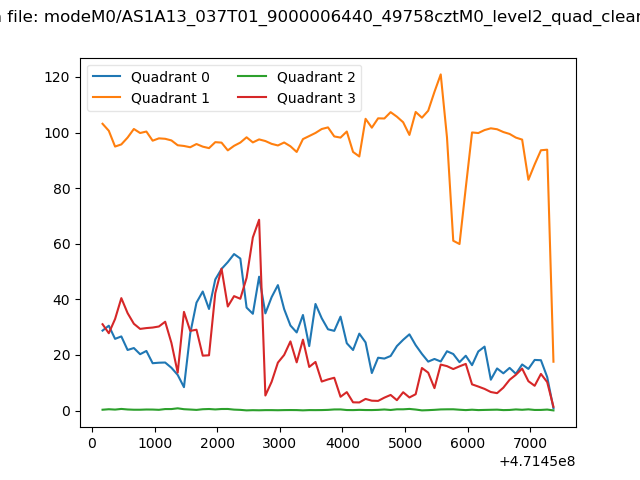

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

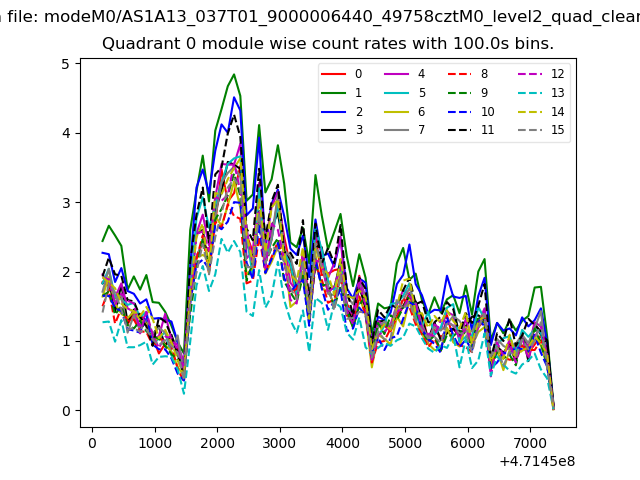

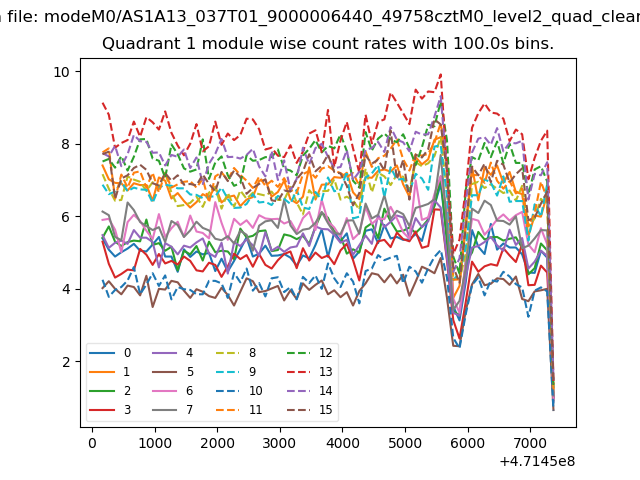

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

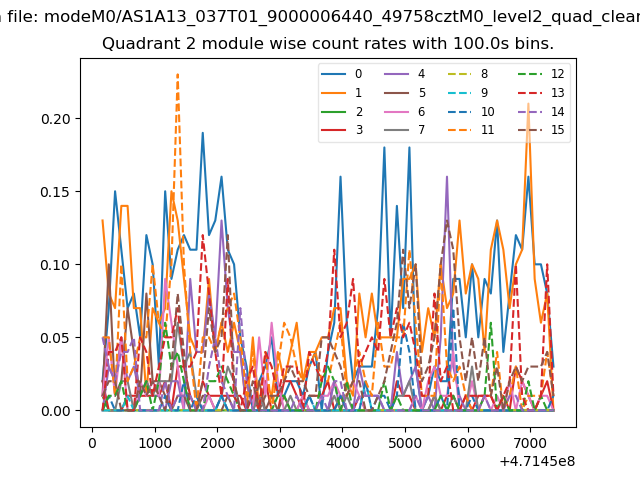

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

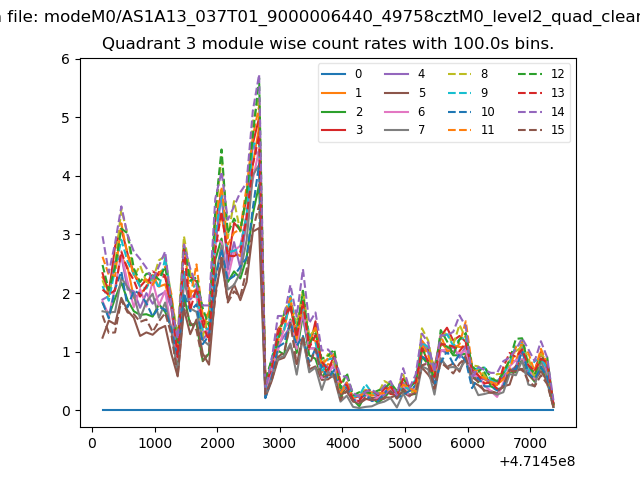

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

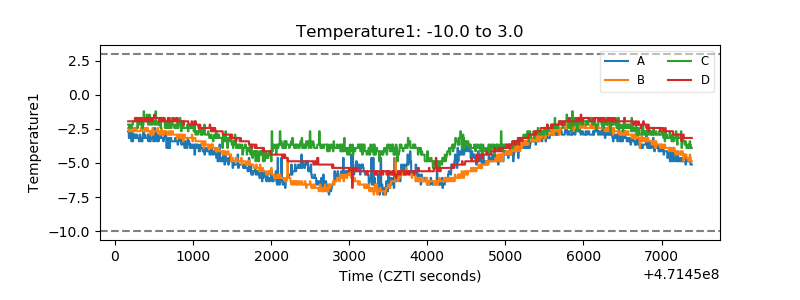

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

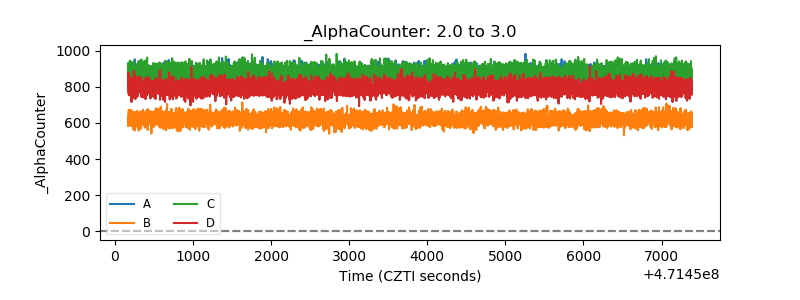

| Alpha Counter |  |

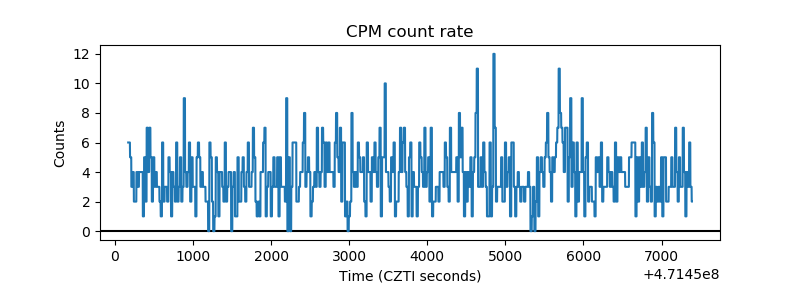

| _CPM_Rate |  |

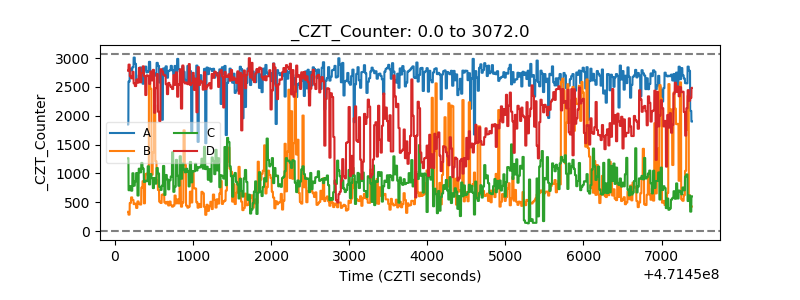

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

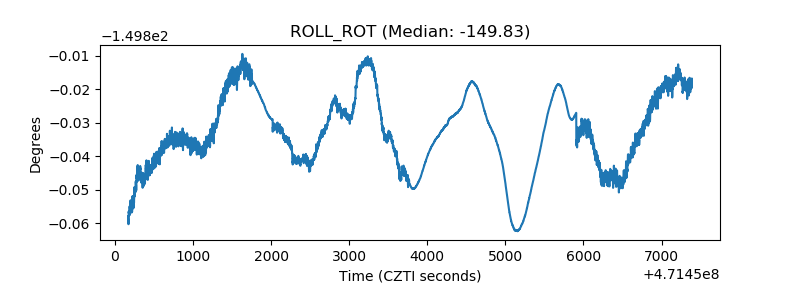

| _ROLL_ROT |  |

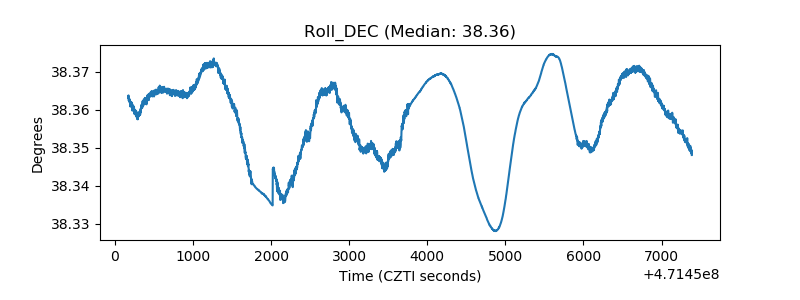

| _Roll_DEC |  |

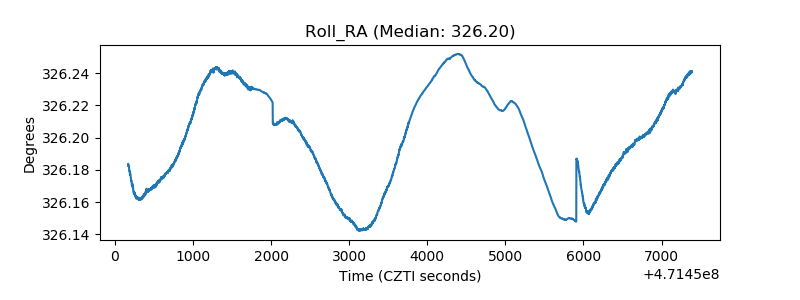

| _Roll_RA |  |

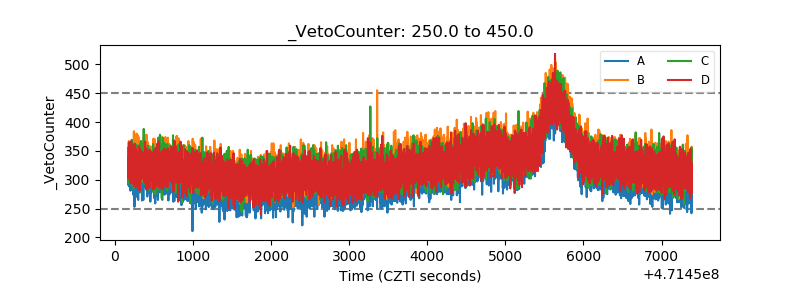

| Veto Counter |  |
