| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A13_037T01_9000006440_49853cztM0_level2.fits | modeM0/AS1A13_037T01_9000006440_49853cztM0_level2_quad_clean.evt |
| Size (bytes) | 910,555,200 | 52,885,440 |
| Size | 868.4 MB | 50.4 MB |
| Events in quadrant A | 6,565,681 | 530,697 |
| Events in quadrant B | 3,417,082 | 642,969 |
| Events in quadrant C | 11,069,939 | 5,167 |
| Events in quadrant D | 12,184,304 | 2,058 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12 | 0 |
| B | 0 | 12 | 0 |
| C | 0 | 12 | 0 |
| D | 0 | 12 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 120 | 0 |
| B | 0 | 120 | 0 |
| C | 0 | 120 | 0 |
| D | 0 | 120 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 23721 | 1 |
| B | 0 | 14275 | 1 |
| C | 0 | 37058 | 1 |
| D | 0 | 40346 | 1 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6024 | 723 | 12.001992% |
| B | 6024 | 135 | 2.241036% |
| C | 6025 | 5992 | 99.452282% |
| D | 6025 | 6013 | 99.800830% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

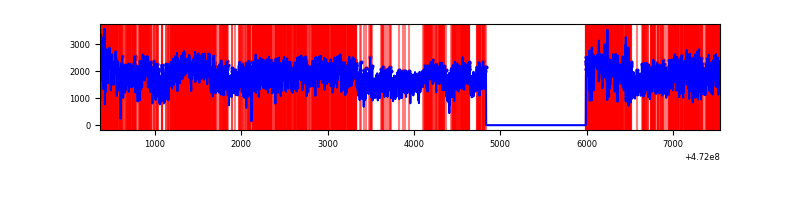

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7179 | 6025 | 565 | 565 | 7.87% | 9.38% |  |
| B | 7179 | 6025 | 55 | 55 | 0.77% | 0.91% |  |
| C | 7179 | 6024 | 2040 | 2040 | 28.42% | 33.86% |  |
| D | 7179 | 6024 | 3035 | 3035 | 42.28% | 50.38% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 3 | 84 | 1096311 | 6910.52 | 635 | 620 | 158.6 |
| A | 8 | 38 | 554272 | 3491.88 | 635 | 620 | 158.6 |
| A | 15 | 160 | 346051 | 2178.63 | 635 | 620 | 158.6 |
| B | 4 | 206 | 205664 | 1467.26 | 661 | 641 | 139.7 |
| B | 10 | 28 | 201477 | 1437.3 | 661 | 641 | 139.7 |
| B | 0 | 229 | 173740 | 1238.8 | 661 | 641 | 139.7 |
| C | 15 | 189 | 3992477 | 107836.18 | 112 | 110 | 37.0 |
| C | 15 | 197 | 1800812 | 48638.02 | 112 | 110 | 37.0 |
| C | 15 | 164 | 999848 | 27003.51 | 112 | 110 | 37.0 |
| D | 7 | 61 | 4581917 | 104307.45 | 137 | 131 | 43.9 |
| D | 8 | 129 | 2022844 | 46048.43 | 137 | 131 | 43.9 |
| D | 11 | 176 | 1730147 | 39384.98 | 137 | 131 | 43.9 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

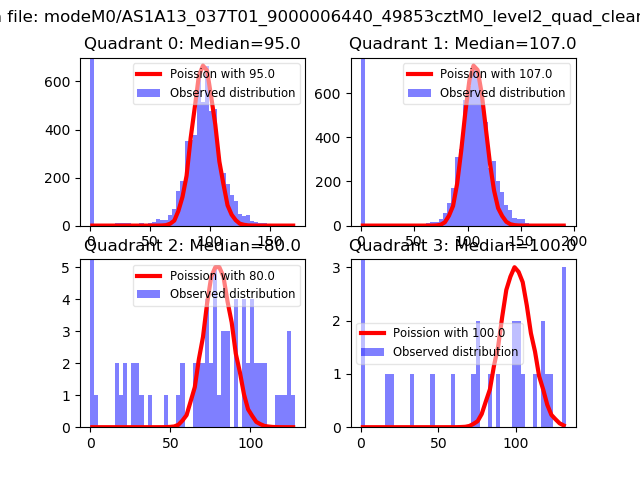

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

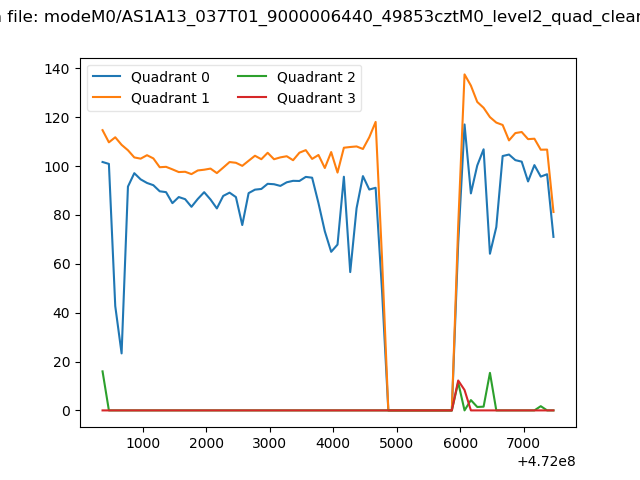

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

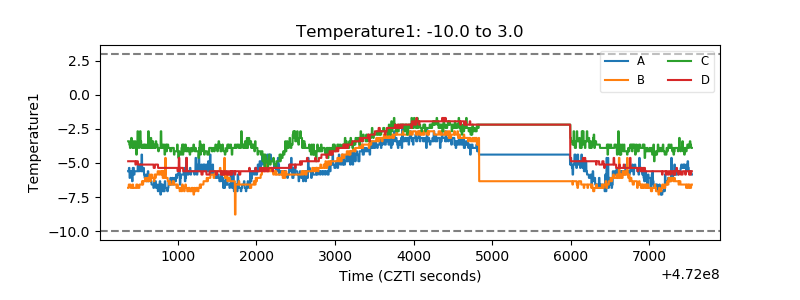

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

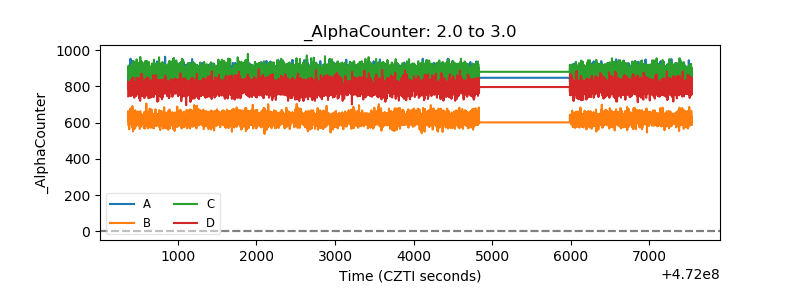

| Alpha Counter |  |

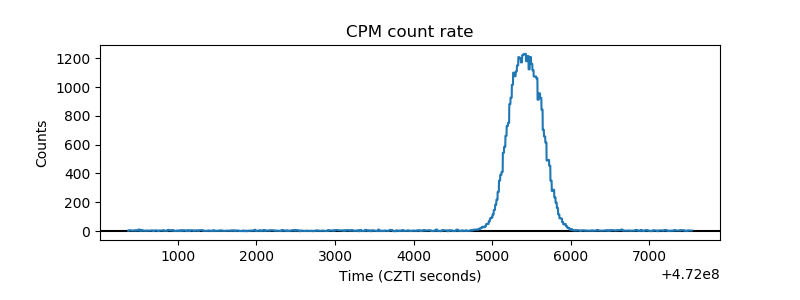

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |

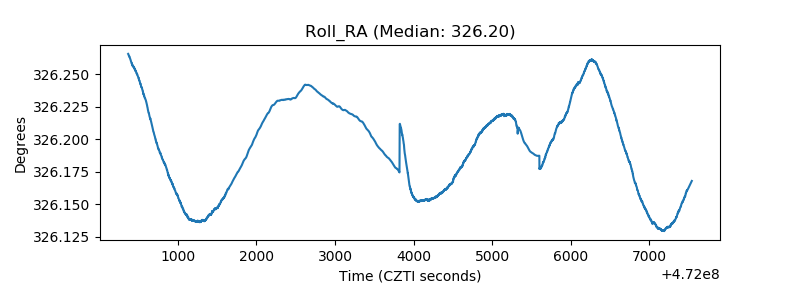

| _Roll_RA |  |
| Veto Counter |  |
