| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1C09_003T01_9000006442_50121cztM0_level2.fits | modeM0/AS1C09_003T01_9000006442_50121cztM0_level2_quad_clean.evt |
| Size (bytes) | 1,411,712,640 | 46,823,040 |
| Size | 1.3 GB | 44.7 MB |
| Events in quadrant A | 16,858,607 | 36,953 |
| Events in quadrant B | 3,947,644 | 661,378 |
| Events in quadrant C | 14,268,754 | 181,476 |
| Events in quadrant D | 16,654,338 | 59,230 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 54796 | 3 |
| B | 0 | 16634 | 0 |
| C | 0 | 47099 | 0 |
| D | 0 | 54149 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 138 | 0 |
| B | 0 | 138 | 0 |
| C | 0 | 138 | 0 |
| D | 0 | 138 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6860 | 6523 | 95.087464% |
| B | 6860 | 176 | 2.565598% |
| C | 6861 | 5090 | 74.187436% |
| D | 6861 | 6261 | 91.254919% |

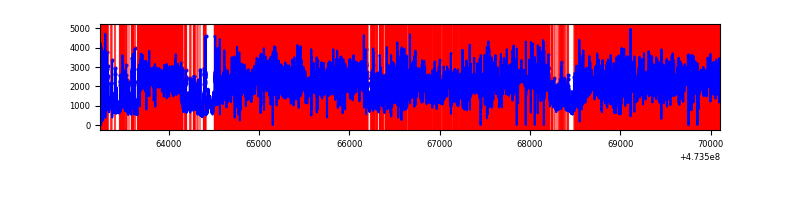

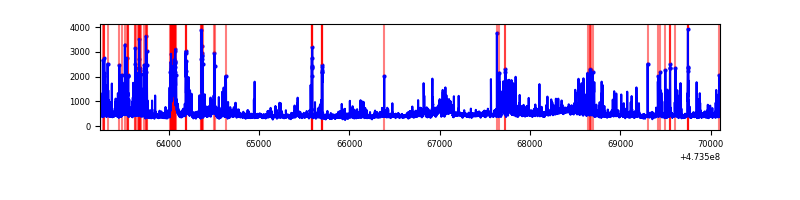

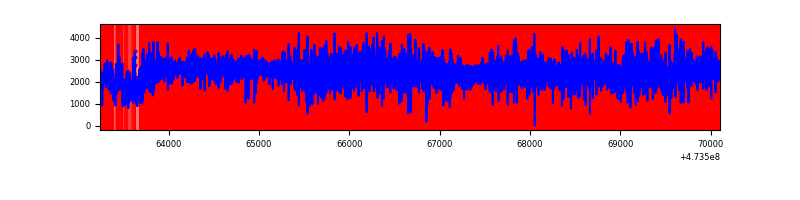

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 6860 | 6860 | 5890 | 5890 | 85.86% | 85.86% |  |
| B | 6860 | 6860 | 110 | 110 | 1.60% | 1.60% |  |
| C | 6861 | 6861 | 4089 | 4089 | 59.60% | 59.60% |  |
| D | 6861 | 6861 | 5793 | 5793 | 84.43% | 84.43% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 0 | 98 | 7297618 | 97932.16 | 293 | 285 | 74.5 |
| A | 8 | 8 | 3264357 | 43804.72 | 293 | 285 | 74.5 |
| A | 6 | 250 | 2655751 | 35637.07 | 293 | 285 | 74.5 |
| B | 2 | 176 | 370647 | 2537.32 | 689 | 666 | 145.8 |
| B | 5 | 185 | 301351 | 2062.09 | 689 | 666 | 145.8 |
| B | 4 | 216 | 116814 | 796.54 | 689 | 666 | 145.8 |
| C | 15 | 197 | 2142794 | 18958.49 | 395 | 393 | 113.0 |
| C | 4 | 111 | 1415688 | 12524.2 | 395 | 393 | 113.0 |
| C | 13 | 250 | 1354774 | 11985.16 | 395 | 393 | 113.0 |
| D | 7 | 61 | 5010034 | 49736.8 | 333 | 321 | 100.7 |
| D | 15 | 106 | 2407597 | 23899.61 | 333 | 321 | 100.7 |
| D | 15 | 168 | 2159526 | 21436.75 | 333 | 321 | 100.7 |

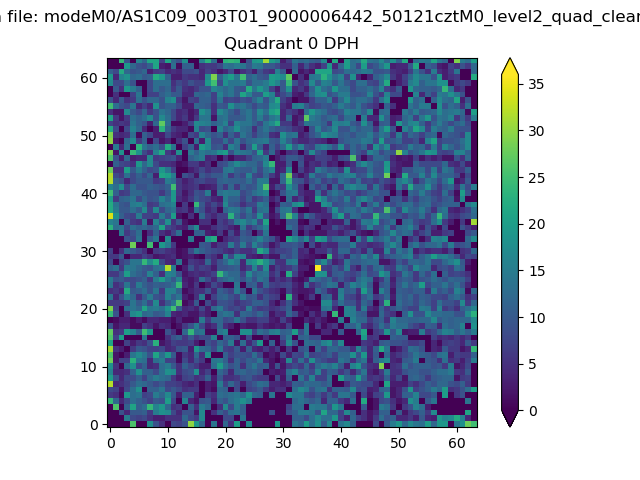

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

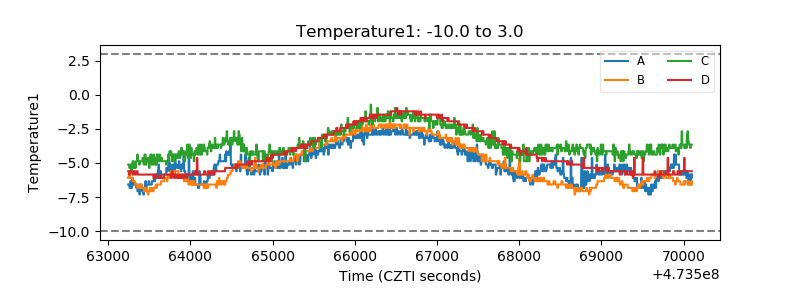

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

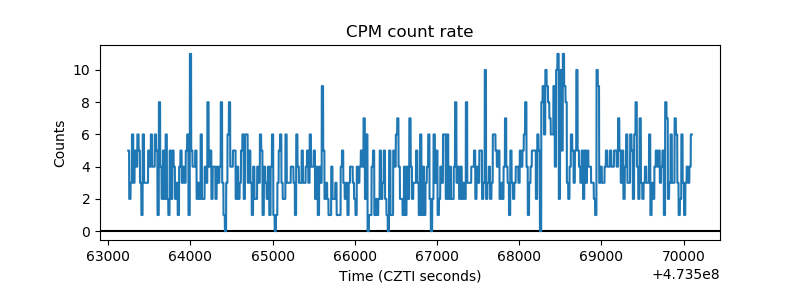

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

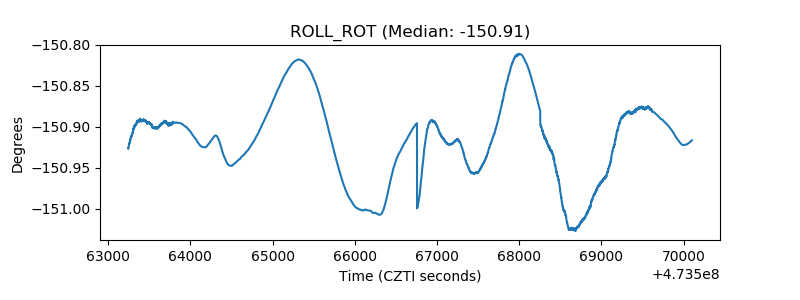

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
