| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1C09_003T01_9000006442_50376cztM0_level2.fits | modeM0/AS1C09_003T01_9000006442_50376cztM0_level2_quad_clean.evt |
| Size (bytes) | 693,636,480 | 87,960,960 |
| Size | 661.5 MB | 83.9 MB |
| Events in quadrant A | 3,860,348 | 636,487 |
| Events in quadrant B | 3,703,369 | 688,737 |
| Events in quadrant C | 12,051,738 | 324,974 |
| Events in quadrant D | 5,554,978 | 557,959 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13 | 0 |
| B | 0 | 13 | 0 |
| C | 0 | 14 | 0 |
| D | 0 | 14 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 15735 | 2 |
| B | 0 | 15473 | 2 |
| C | 0 | 40309 | 9 |
| D | 0 | 21132 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 134 | 0 |
| B | 0 | 134 | 0 |
| C | 0 | 134 | 0 |
| D | 0 | 134 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6522 | 168 | 2.575897% |
| B | 6522 | 211 | 3.235204% |
| C | 6521 | 3561 | 54.608189% |
| D | 6521 | 414 | 6.348720% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

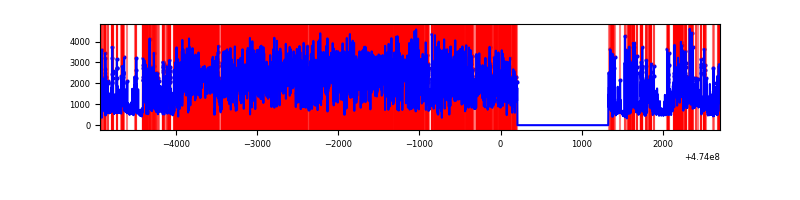

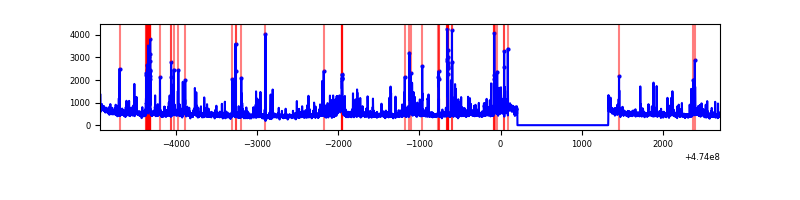

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7642 | 6523 | 63 | 63 | 0.82% | 0.97% |  |
| B | 7642 | 6523 | 68 | 68 | 0.89% | 1.04% |  |
| C | 7641 | 6521 | 2968 | 2968 | 38.84% | 45.51% |  |
| D | 7641 | 6522 | 300 | 300 | 3.93% | 4.60% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 12 | 250 | 155168 | 868.86 | 722 | 704 | 177.8 |
| A | 4 | 3 | 153153 | 857.52 | 722 | 704 | 177.8 |
| A | 7 | 221 | 99175 | 553.9 | 722 | 704 | 177.8 |
| B | 5 | 185 | 174132 | 1150.44 | 714 | 689 | 150.8 |
| B | 5 | 172 | 112491 | 741.58 | 714 | 689 | 150.8 |
| B | 1 | 238 | 105246 | 693.52 | 714 | 689 | 150.8 |
| C | 15 | 235 | 2488503 | 16535.33 | 538 | 533 | 150.5 |
| C | 0 | 208 | 1788573 | 11883.52 | 538 | 533 | 150.5 |
| C | 15 | 148 | 1213971 | 8064.65 | 538 | 533 | 150.5 |
| D | 3 | 12 | 772642 | 4099.88 | 679 | 655 | 188.3 |
| D | 15 | 165 | 377716 | 2002.5 | 679 | 655 | 188.3 |
| D | 7 | 61 | 253241 | 1341.44 | 679 | 655 | 188.3 |

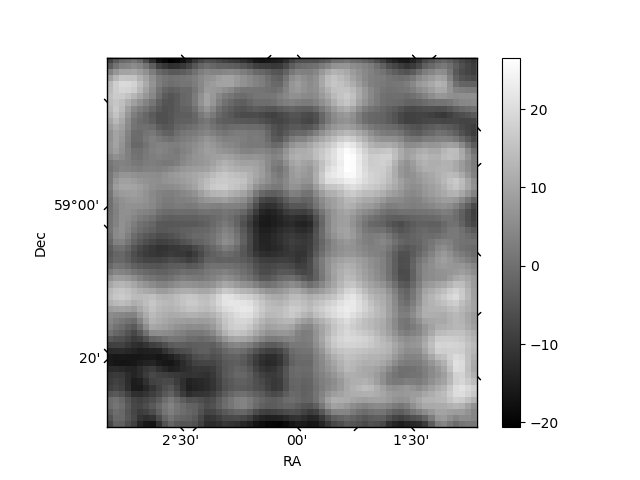

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

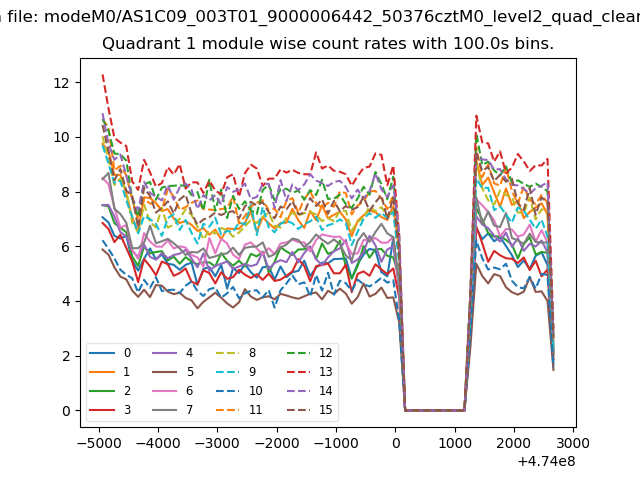

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

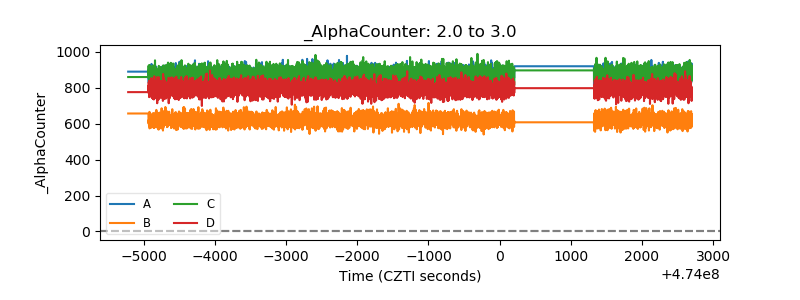

| Alpha Counter |  |

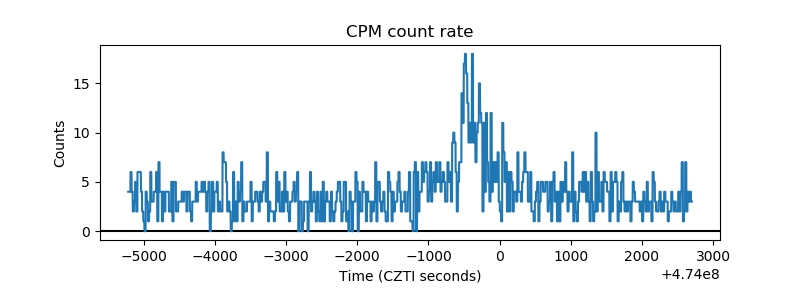

| _CPM_Rate |  |

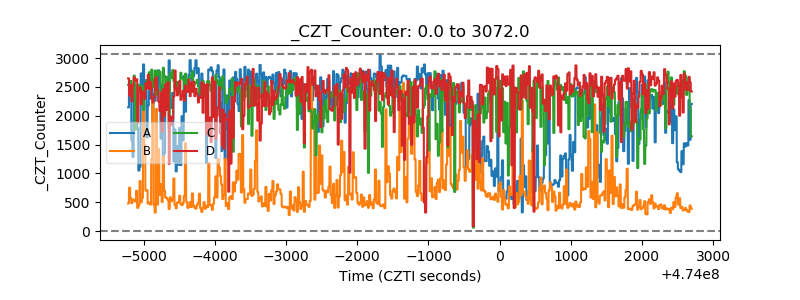

| CZT Counter |  |

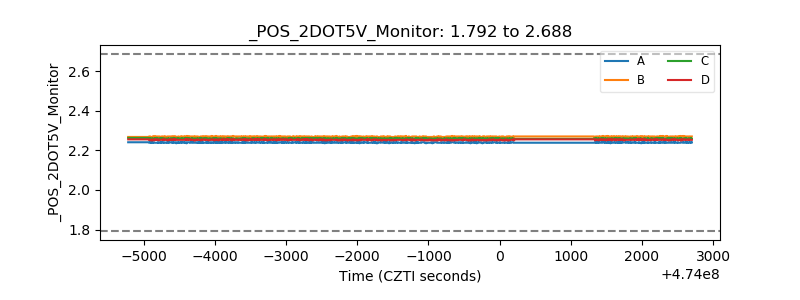

| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
