| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1T05_241T01_9000006446_50658cztM0_level2.fits | modeM0/AS1T05_241T01_9000006446_50658cztM0_level2_quad_clean.evt |
| Size (bytes) | 949,723,200 | 99,097,920 |
| Size | 905.7 MB | 94.5 MB |
| Events in quadrant A | 4,888,446 | 702,951 |
| Events in quadrant B | 9,902,805 | 703,843 |
| Events in quadrant C | 13,402,114 | 440,635 |
| Events in quadrant D | 6,362,579 | 612,060 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 19895 | 0 |
| B | 0 | 34862 | 0 |
| C | 0 | 45219 | 0 |
| D | 0 | 24601 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 154 | 0 |
| B | 0 | 154 | 0 |
| C | 0 | 154 | 0 |
| D | 0 | 154 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7778 | 165 | 2.121368% |
| B | 7778 | 1086 | 13.962458% |
| C | 7779 | 3171 | 40.763594% |
| D | 7779 | 641 | 8.240134% |

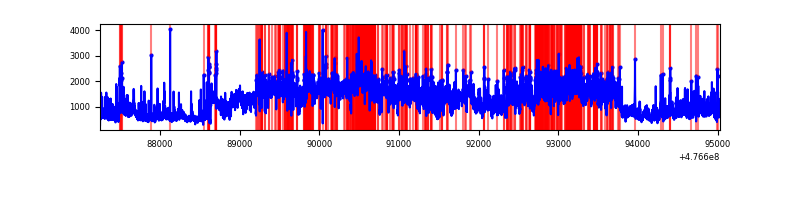

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7778 | 7778 | 128 | 128 | 1.65% | 1.65% |  |
| B | 7778 | 7778 | 642 | 642 | 8.25% | 8.25% |  |
| C | 7779 | 7779 | 2898 | 2898 | 37.25% | 37.25% |  |
| D | 7779 | 7779 | 565 | 565 | 7.26% | 7.26% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 4 | 4 | 666847 | 3359.9 | 805 | 785 | 198.2 |
| A | 8 | 246 | 161409 | 810.26 | 805 | 785 | 198.2 |
| A | 4 | 3 | 147104 | 738.1 | 805 | 785 | 198.2 |
| B | 5 | 172 | 4094182 | 24223.19 | 782 | 755 | 169.0 |
| B | 4 | 170 | 1583006 | 9363.1 | 782 | 755 | 169.0 |
| B | 4 | 206 | 238703 | 1408.08 | 782 | 755 | 169.0 |
| C | 15 | 174 | 3327983 | 18832.66 | 640 | 636 | 176.7 |
| C | 1 | 124 | 2354238 | 13321.3 | 640 | 636 | 176.7 |
| C | 15 | 1 | 1640967 | 9284.21 | 640 | 636 | 176.7 |
| D | 10 | 102 | 926766 | 4426.98 | 760 | 735 | 209.2 |
| D | 7 | 110 | 770271 | 3678.84 | 760 | 735 | 209.2 |
| D | 7 | 60 | 535182 | 2554.98 | 760 | 735 | 209.2 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

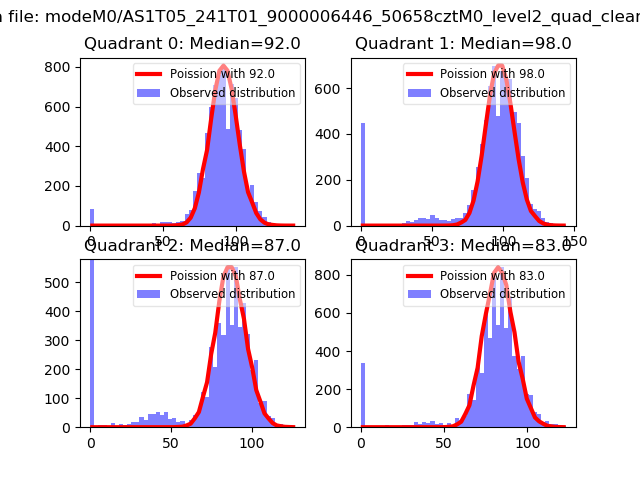

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

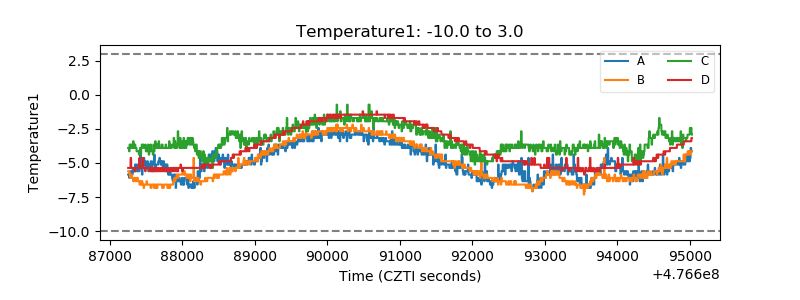

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

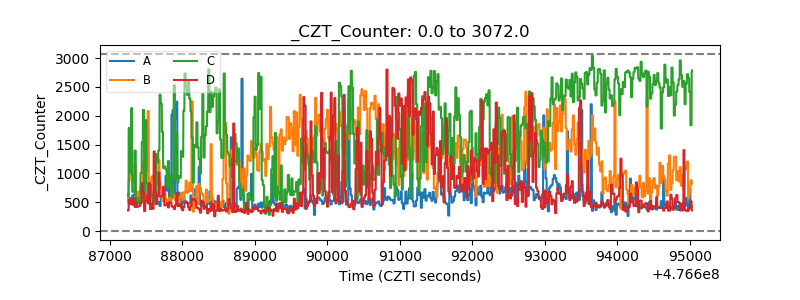

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

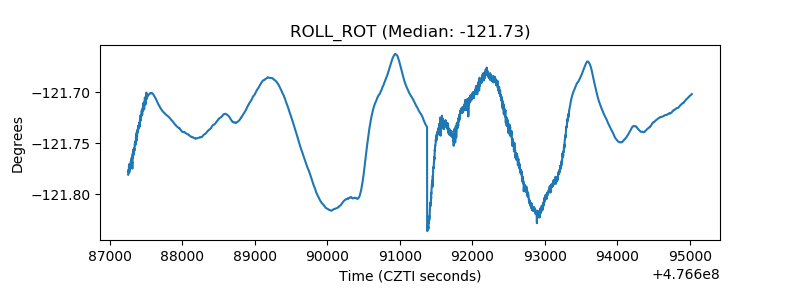

| _ROLL_ROT |  |

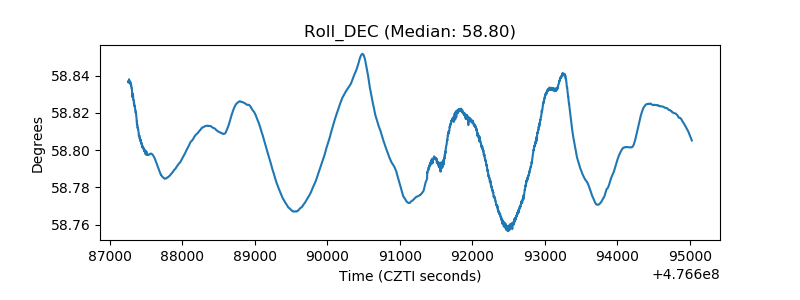

| _Roll_DEC |  |

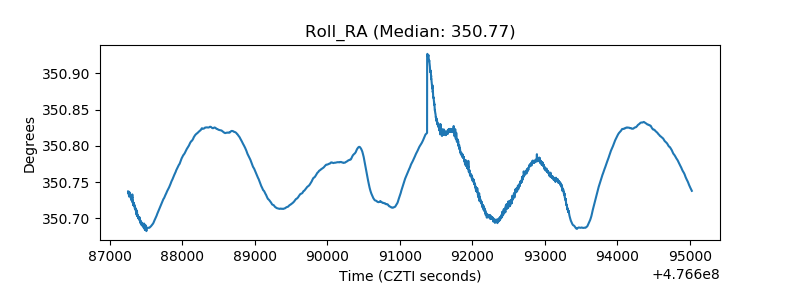

| _Roll_RA |  |
| Veto Counter |  |
