| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1T05_241T01_9000006446_50666cztM0_level2.fits | modeM0/AS1T05_241T01_9000006446_50666cztM0_level2_quad_clean.evt |
| Size (bytes) | 521,763,840 | 90,103,680 |
| Size | 497.6 MB | 85.9 MB |
| Events in quadrant A | 4,601,878 | 588,861 |
| Events in quadrant B | 5,263,746 | 595,938 |
| Events in quadrant C | 4,524,478 | 577,071 |
| Events in quadrant D | 4,445,162 | 535,132 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 11 | 0 |
| B | 0 | 11 | 0 |
| C | 0 | 11 | 0 |
| D | 0 | 11 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 17880 | 1 |
| B | 0 | 19751 | 1 |
| C | 0 | 17602 | 2 |
| D | 0 | 17512 | 1 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 126 | 0 |
| B | 0 | 126 | 0 |
| C | 0 | 126 | 0 |
| D | 0 | 126 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6174 | 251 | 4.065436% |
| B | 6175 | 707 | 11.449393% |
| C | 6174 | 221 | 3.579527% |
| D | 6174 | 283 | 4.583738% |

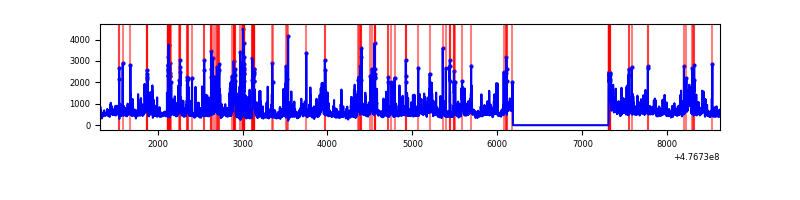

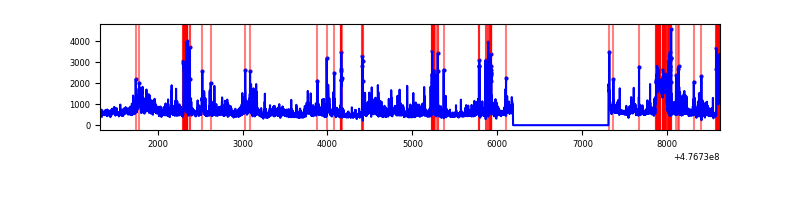

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7299 | 6175 | 194 | 194 | 2.66% | 3.14% |  |
| B | 7300 | 6176 | 523 | 523 | 7.16% | 8.47% |  |
| C | 7299 | 6175 | 163 | 163 | 2.23% | 2.64% |  |
| D | 7299 | 6175 | 274 | 274 | 3.75% | 4.44% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 9 | 191 | 812623 | 5048.6 | 654 | 639 | 160.8 |
| A | 8 | 38 | 194573 | 1205.81 | 654 | 639 | 160.8 |
| A | 12 | 80 | 192439 | 1192.54 | 654 | 639 | 160.8 |
| B | 5 | 172 | 1426110 | 10498.59 | 638 | 617 | 135.8 |
| B | 4 | 170 | 610418 | 4491.11 | 638 | 617 | 135.8 |
| B | 5 | 185 | 163672 | 1200.88 | 638 | 617 | 135.8 |
| C | 15 | 231 | 414527 | 2303.37 | 653 | 646 | 179.7 |
| C | 0 | 224 | 369394 | 2052.19 | 653 | 646 | 179.7 |
| C | 13 | 3 | 226269 | 1255.66 | 653 | 646 | 179.7 |
| D | 3 | 12 | 844115 | 4753.26 | 641 | 619 | 177.5 |
| D | 8 | 246 | 380544 | 2140.95 | 641 | 619 | 177.5 |
| D | 10 | 102 | 207203 | 1164.14 | 641 | 619 | 177.5 |

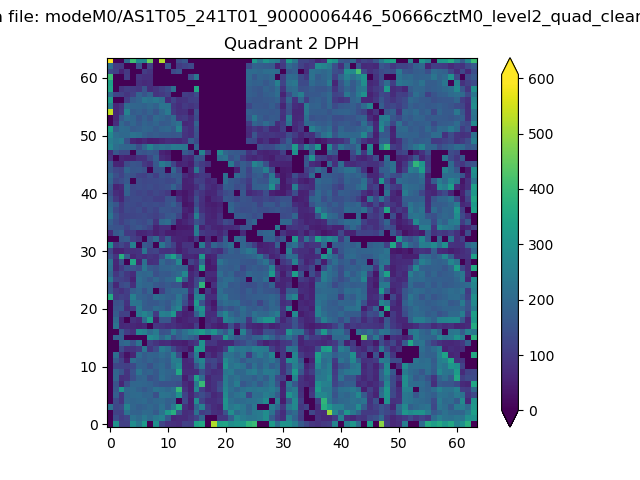

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

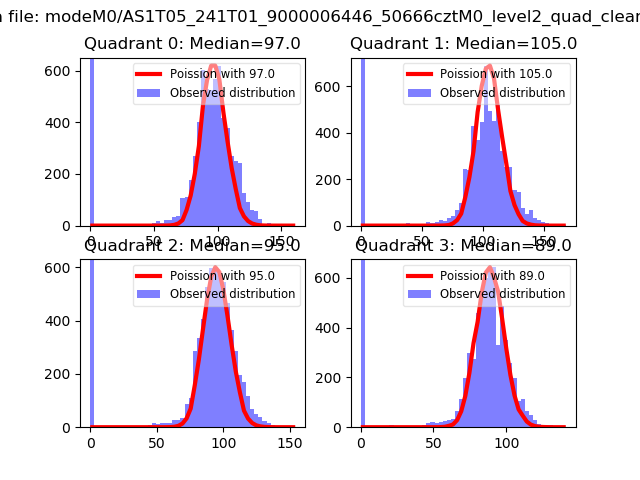

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

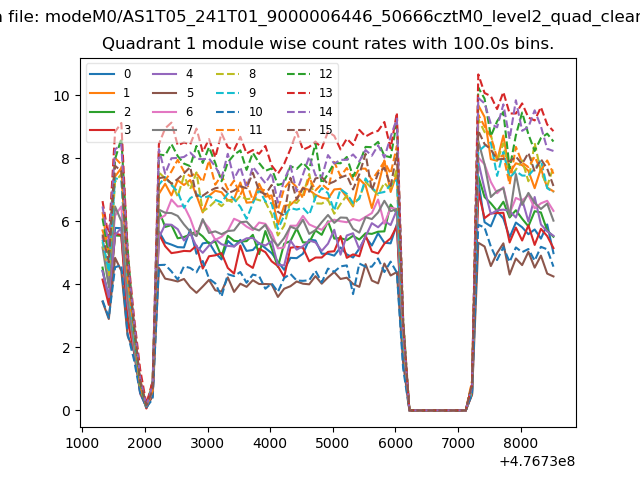

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

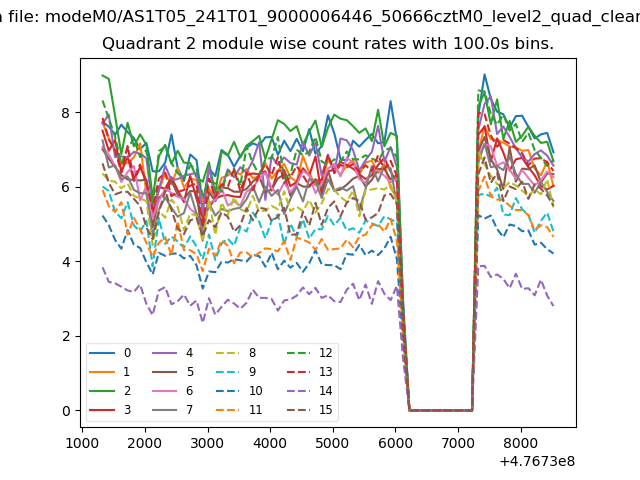

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

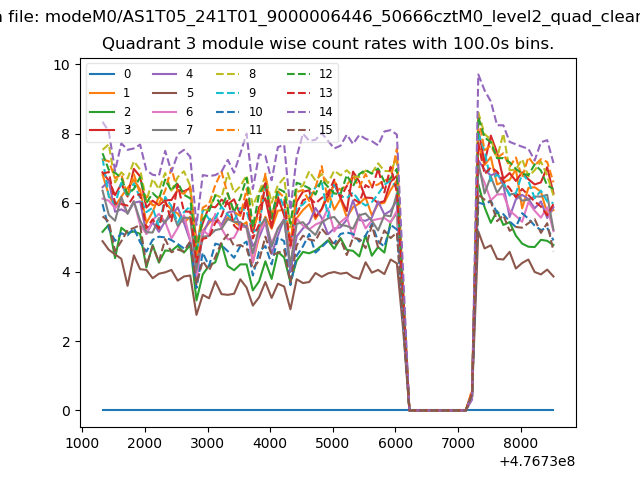

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
