| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1C07_001T01_9000006450_50788cztM0_level2.fits | modeM0/AS1C07_001T01_9000006450_50788cztM0_level2_quad_clean.evt |
| Size (bytes) | 870,523,200 | 95,895,360 |
| Size | 830.2 MB | 91.5 MB |
| Events in quadrant A | 4,418,068 | 710,228 |
| Events in quadrant B | 3,667,470 | 779,656 |
| Events in quadrant C | 16,549,139 | 279,827 |
| Events in quadrant D | 6,990,915 | 596,317 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 154 | 0 |
| B | 0 | 154 | 0 |
| C | 0 | 154 | 0 |
| D | 0 | 154 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 18608 | 0 |
| B | 0 | 16628 | 0 |
| C | 0 | 54436 | 0 |
| D | 0 | 26225 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7723 | 105 | 1.359575% |
| B | 7723 | 35 | 0.453192% |
| C | 7723 | 5146 | 66.632138% |
| D | 7723 | 792 | 10.255082% |

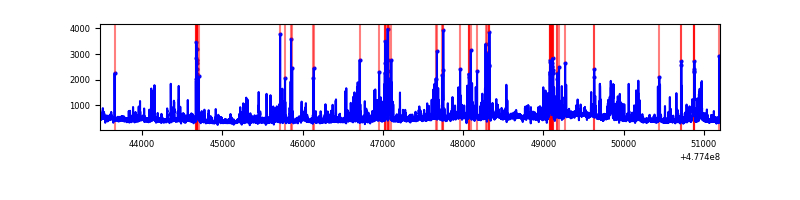

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7723 | 7723 | 73 | 73 | 0.95% | 0.95% |  |
| B | 7723 | 7723 | 12 | 12 | 0.16% | 0.16% |  |
| C | 7723 | 7723 | 4601 | 4601 | 59.58% | 59.58% |  |
| D | 7723 | 7723 | 729 | 729 | 9.44% | 9.44% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 4 | 249 | 237989 | 1186.53 | 801 | 782 | 199.9 |
| A | 9 | 13 | 150412 | 748.46 | 801 | 782 | 199.9 |
| A | 5 | 240 | 97305 | 482.81 | 801 | 782 | 199.9 |
| B | 7 | 0 | 129563 | 741.49 | 807 | 779 | 173.7 |
| B | 0 | 171 | 44237 | 250.21 | 807 | 779 | 173.7 |
| B | 7 | 252 | 35499 | 199.9 | 807 | 779 | 173.7 |
| C | 5 | 10 | 11285210 | 68531.56 | 592 | 587 | 164.7 |
| C | 4 | 5 | 1527747 | 9274.45 | 592 | 587 | 164.7 |
| C | 12 | 247 | 335756 | 2035.48 | 592 | 587 | 164.7 |
| D | 2 | 216 | 1555723 | 7399.99 | 749 | 721 | 210.1 |
| D | 11 | 245 | 406753 | 1932.24 | 749 | 721 | 210.1 |
| D | 2 | 249 | 259514 | 1231.55 | 749 | 721 | 210.1 |

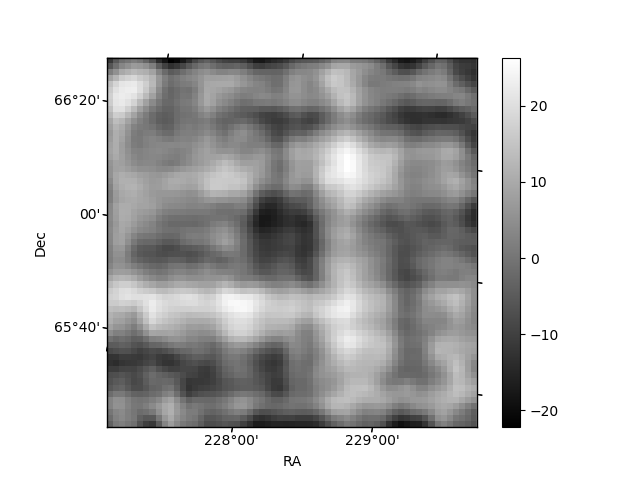

Histogram calculated using DETX and DETY for each event in the final _common_clean file

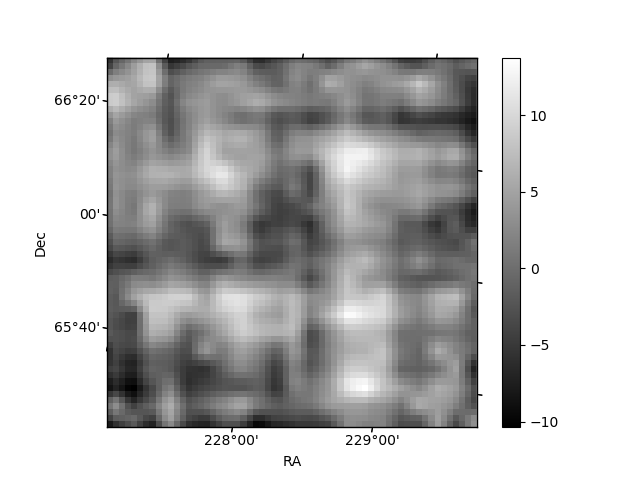

| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

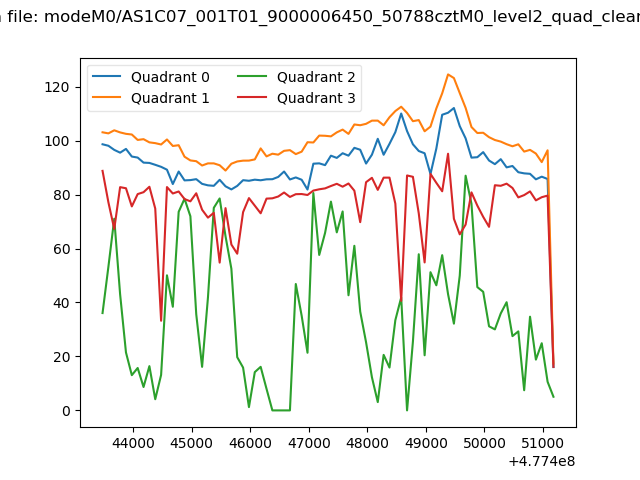

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

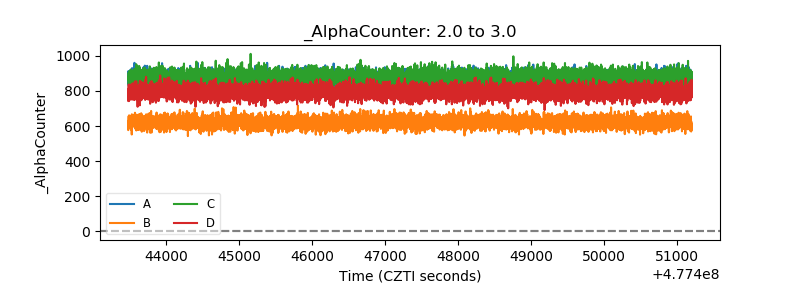

| Alpha Counter |  |

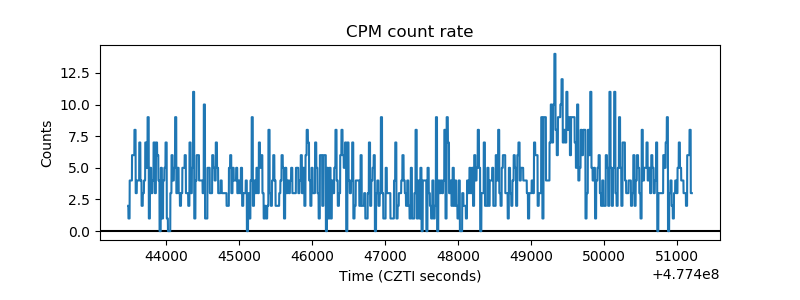

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

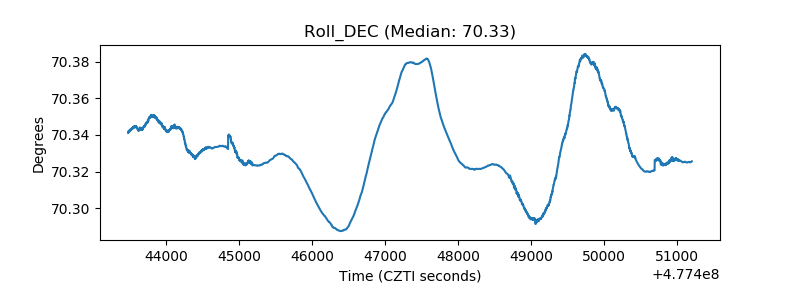

| _Roll_DEC |  |

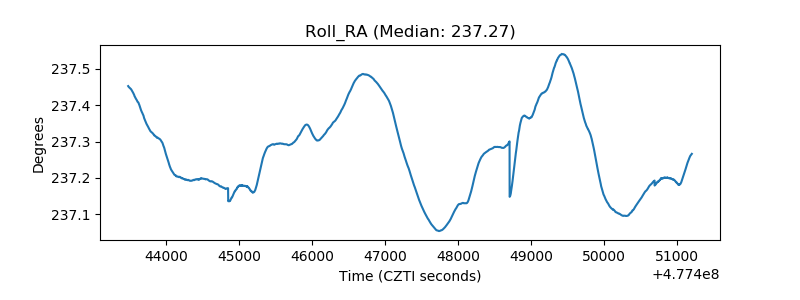

| _Roll_RA |  |
| Veto Counter |  |
