| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1C07_001T02_9000006452_51001cztM0_level2.fits | modeM0/AS1C07_001T02_9000006452_51001cztM0_level2_quad_clean.evt |
| Size (bytes) | 449,870,400 | 86,379,840 |
| Size | 429.0 MB | 82.4 MB |
| Events in quadrant A | 3,670,052 | 565,273 |
| Events in quadrant B | 4,366,724 | 605,213 |
| Events in quadrant C | 4,219,562 | 534,892 |
| Events in quadrant D | 3,943,827 | 502,528 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 120 | 0 |
| B | 0 | 120 | 0 |
| C | 0 | 120 | 0 |
| D | 0 | 120 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 11 | 0 |
| B | 0 | 11 | 0 |
| C | 0 | 11 | 0 |
| D | 0 | 11 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14758 | 1 |
| B | 0 | 16940 | 1 |
| C | 0 | 16570 | 1 |
| D | 0 | 15820 | 1 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5826 | 234 | 4.016478% |
| B | 5827 | 298 | 5.114124% |
| C | 5827 | 266 | 4.564956% |
| D | 5827 | 262 | 4.496310% |

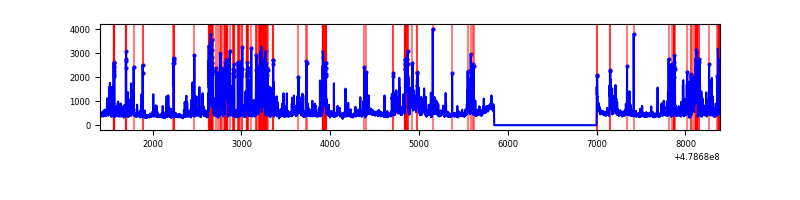

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 6981 | 5827 | 144 | 144 | 2.06% | 2.47% |  |
| B | 6982 | 5828 | 178 | 178 | 2.55% | 3.05% |  |
| C | 6982 | 5828 | 291 | 291 | 4.17% | 4.99% |  |
| D | 6982 | 5828 | 229 | 229 | 3.28% | 3.93% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 8 | 43 | 230514 | 1495.65 | 618 | 602 | 153.7 |
| A | 7 | 206 | 194947 | 1264.28 | 618 | 602 | 153.7 |
| A | 12 | 3 | 144752 | 937.74 | 618 | 602 | 153.7 |
| B | 4 | 170 | 1037487 | 8058.33 | 608 | 589 | 128.7 |
| B | 4 | 206 | 172407 | 1335.3 | 608 | 589 | 128.7 |
| B | 12 | 32 | 130604 | 1010.42 | 608 | 589 | 128.7 |
| C | 14 | 245 | 354086 | 2162.63 | 592 | 586 | 163.5 |
| C | 9 | 38 | 353663 | 2160.05 | 592 | 586 | 163.5 |
| C | 15 | 1 | 306635 | 1872.34 | 592 | 586 | 163.5 |
| D | 2 | 153 | 285558 | 1722.37 | 591 | 567 | 165.5 |
| D | 8 | 176 | 249760 | 1506.02 | 591 | 567 | 165.5 |
| D | 3 | 12 | 176538 | 1063.5 | 591 | 567 | 165.5 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

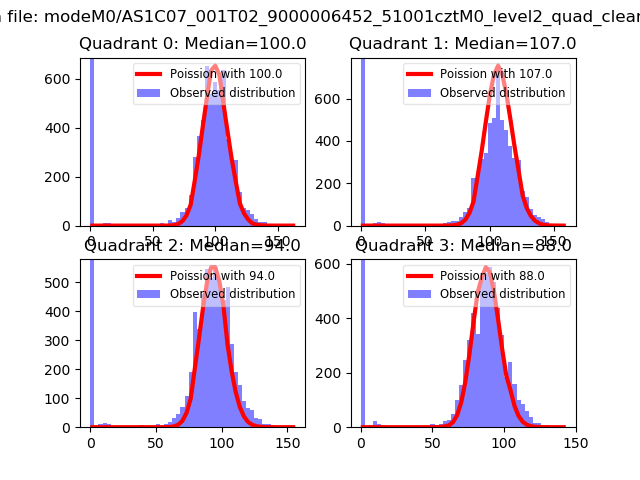

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

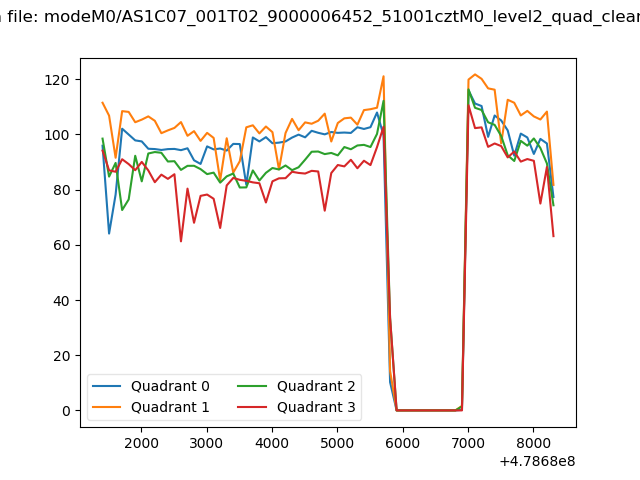

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

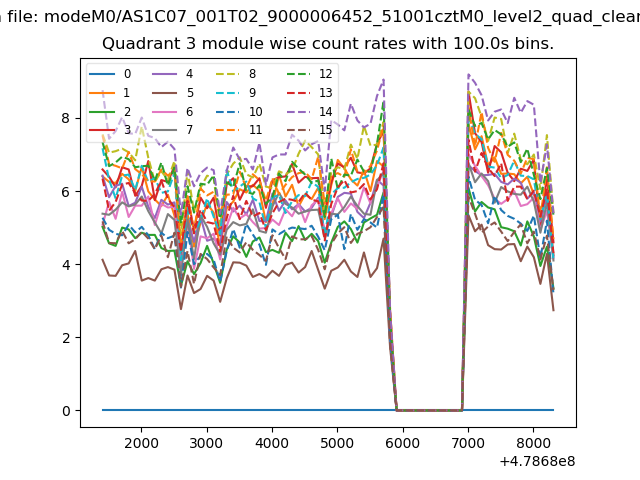

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

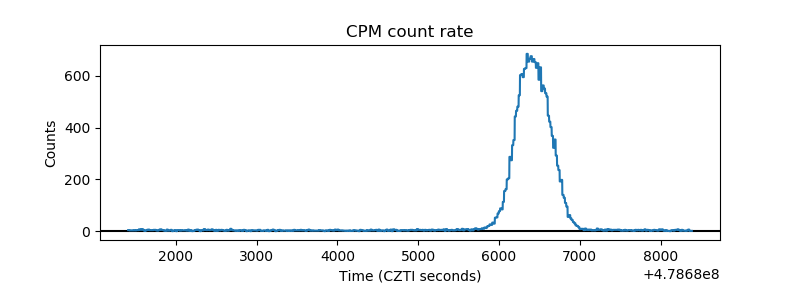

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

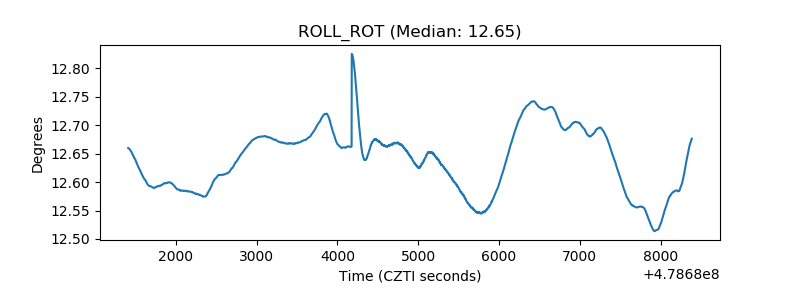

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

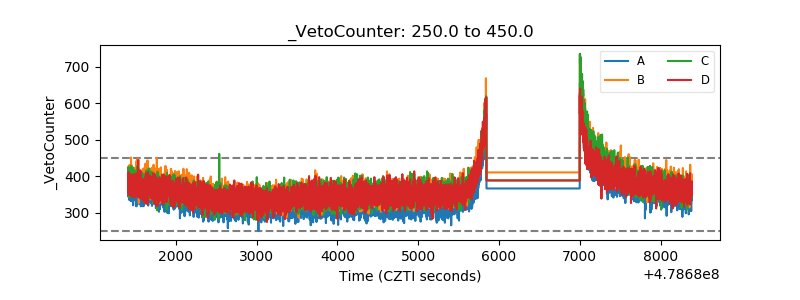

| Veto Counter |  |
