| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1C07_001T02_9000006452_51050cztM0_level2.fits | modeM0/AS1C07_001T02_9000006452_51050cztM0_level2_quad_clean.evt |
| Size (bytes) | 825,082,560 | 95,748,480 |
| Size | 786.9 MB | 91.3 MB |
| Events in quadrant A | 7,651,751 | 618,896 |
| Events in quadrant B | 6,094,569 | 693,535 |
| Events in quadrant C | 6,288,186 | 621,913 |
| Events in quadrant D | 9,944,408 | 456,448 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 146 | 0 |
| B | 0 | 146 | 0 |
| C | 0 | 146 | 0 |
| D | 0 | 146 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 27878 | 0 |
| B | 0 | 23128 | 2 |
| C | 0 | 23815 | 0 |
| D | 0 | 34528 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7294 | 819 | 11.228407% |
| B | 7294 | 551 | 7.554154% |
| C | 7294 | 406 | 5.566219% |
| D | 7294 | 2089 | 28.639978% |

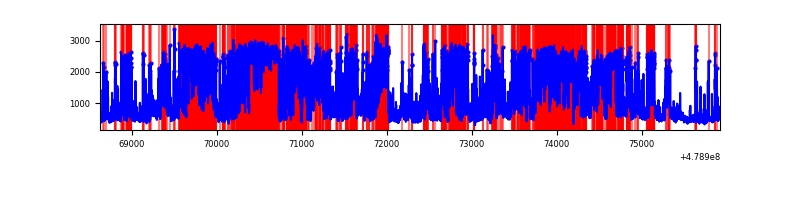

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7294 | 7294 | 709 | 709 | 9.72% | 9.72% |  |
| B | 7294 | 7294 | 406 | 406 | 5.57% | 5.57% |  |
| C | 7294 | 7294 | 423 | 423 | 5.80% | 5.80% |  |
| D | 7294 | 7294 | 2065 | 2065 | 28.31% | 28.31% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 253 | 1483932 | 8181.46 | 735 | 716 | 181.3 |
| A | 3 | 95 | 963213 | 5309.16 | 735 | 716 | 181.3 |
| A | 12 | 3 | 789088 | 4348.68 | 735 | 716 | 181.3 |
| B | 10 | 44 | 1089656 | 6969.22 | 738 | 714 | 156.3 |
| B | 4 | 171 | 505929 | 3233.37 | 738 | 714 | 156.3 |
| B | 4 | 81 | 389146 | 2485.96 | 738 | 714 | 156.3 |
| C | 12 | 249 | 1425901 | 7114.61 | 729 | 724 | 200.3 |
| C | 12 | 247 | 981875 | 4897.99 | 729 | 724 | 200.3 |
| C | 1 | 44 | 198461 | 987.12 | 729 | 724 | 200.3 |
| D | 8 | 176 | 3433588 | 19231.49 | 632 | 611 | 178.5 |
| D | 9 | 1 | 1335389 | 7477.41 | 632 | 611 | 178.5 |
| D | 10 | 172 | 734127 | 4109.15 | 632 | 611 | 178.5 |

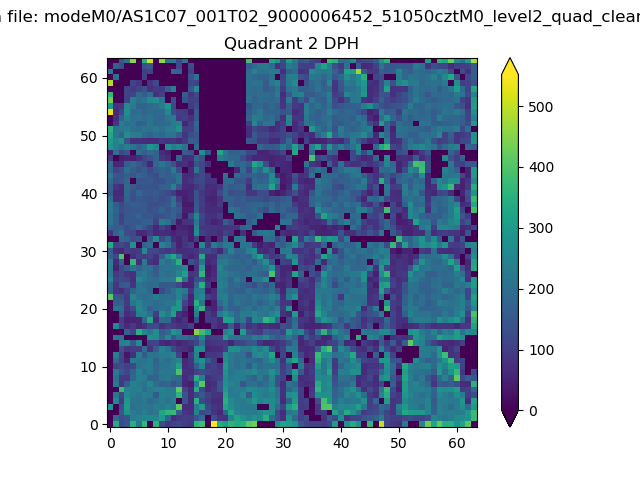

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

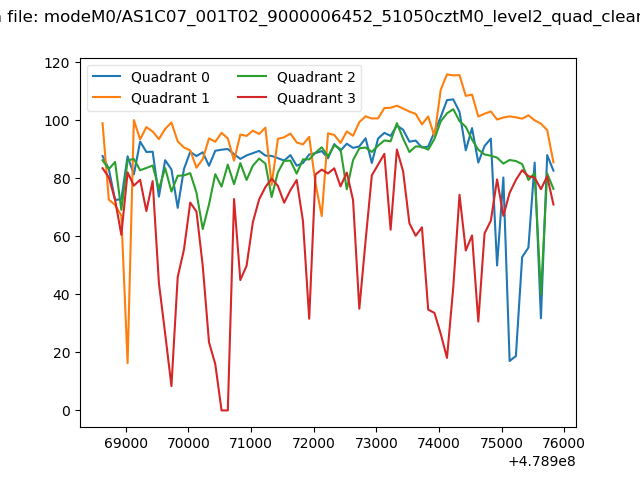

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

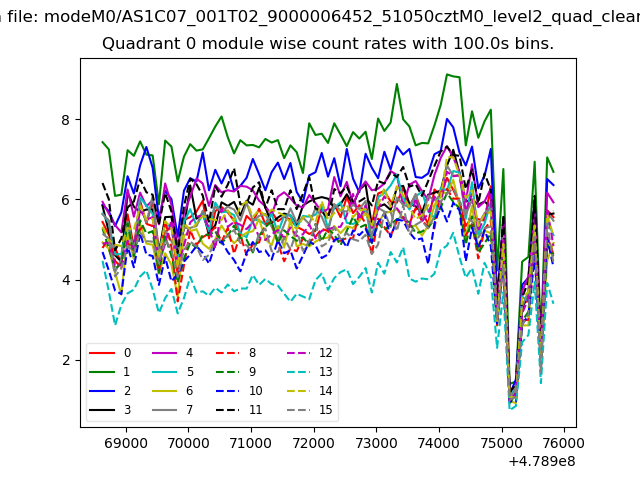

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

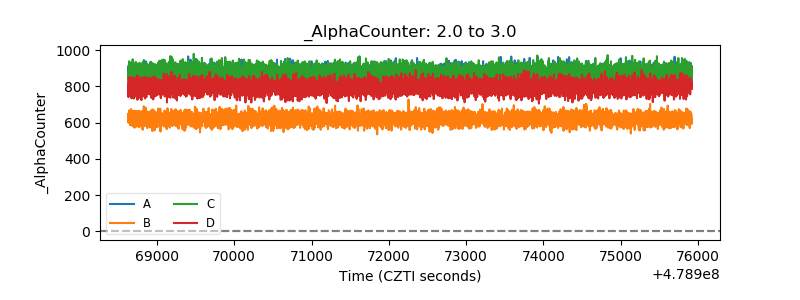

| Alpha Counter |  |

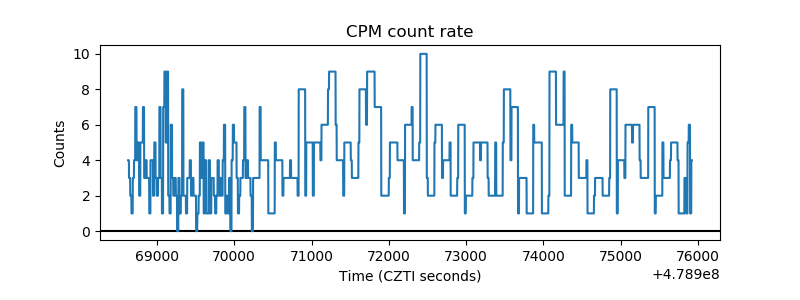

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

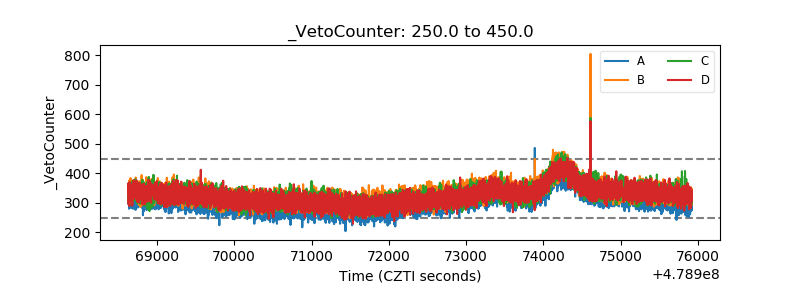

| Veto Counter |  |
