| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1C07_001T01_9000006454_51176cztM0_level2.fits | modeM0/AS1C07_001T01_9000006454_51176cztM0_level2_quad_clean.evt |
| Size (bytes) | 645,920,640 | 92,499,840 |
| Size | 616.0 MB | 88.2 MB |
| Events in quadrant A | 6,211,483 | 594,556 |
| Events in quadrant B | 4,899,606 | 656,751 |
| Events in quadrant C | 6,887,313 | 559,707 |
| Events in quadrant D | 5,404,826 | 532,580 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 23065 | 1 |
| B | 0 | 19108 | 2 |
| C | 0 | 25018 | 1 |
| D | 0 | 20998 | 1 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 134 | 0 |
| B | 0 | 134 | 0 |
| C | 0 | 134 | 0 |
| D | 0 | 134 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 11 | 0 |
| B | 0 | 11 | 0 |
| C | 0 | 11 | 0 |
| D | 0 | 11 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6551 | 436 | 6.655472% |
| B | 6551 | 402 | 6.136468% |
| C | 6551 | 837 | 12.776675% |
| D | 6551 | 546 | 8.334605% |

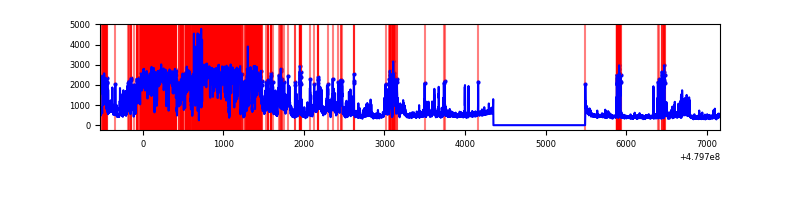

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7691 | 6552 | 435 | 435 | 5.66% | 6.64% |  |
| B | 7691 | 6552 | 284 | 284 | 3.69% | 4.33% |  |
| C | 7691 | 6552 | 1157 | 1157 | 15.04% | 17.66% |  |
| D | 7691 | 6552 | 714 | 714 | 9.28% | 10.90% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 12 | 80 | 1158907 | 7102.46 | 654 | 638 | 163.1 |
| A | 12 | 3 | 939850 | 5759.21 | 654 | 638 | 163.1 |
| A | 13 | 248 | 320723 | 1962.75 | 654 | 638 | 163.1 |
| B | 5 | 172 | 468459 | 3351.9 | 659 | 636 | 139.6 |
| B | 8 | 128 | 460691 | 3296.24 | 659 | 636 | 139.6 |
| B | 10 | 60 | 263411 | 1882.75 | 659 | 636 | 139.6 |
| C | 12 | 247 | 3270392 | 18518.79 | 637 | 631 | 176.6 |
| C | 15 | 147 | 274417 | 1550.63 | 637 | 631 | 176.6 |
| C | 4 | 13 | 199956 | 1128.91 | 637 | 631 | 176.6 |
| D | 2 | 62 | 2087325 | 11758.93 | 628 | 606 | 177.5 |
| D | 3 | 12 | 197243 | 1108.07 | 628 | 606 | 177.5 |
| D | 8 | 176 | 140318 | 787.3 | 628 | 606 | 177.5 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

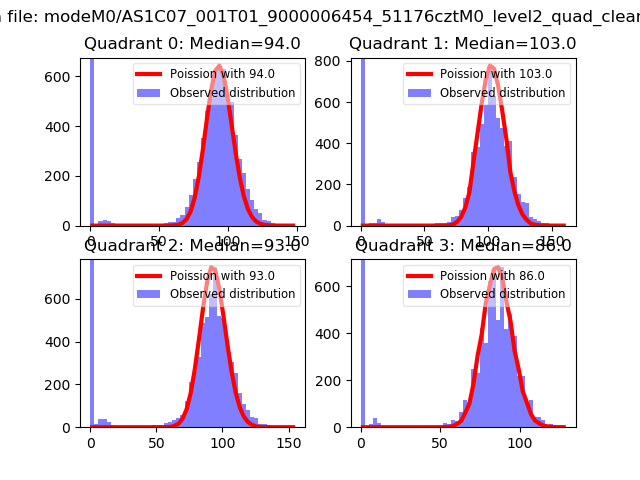

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

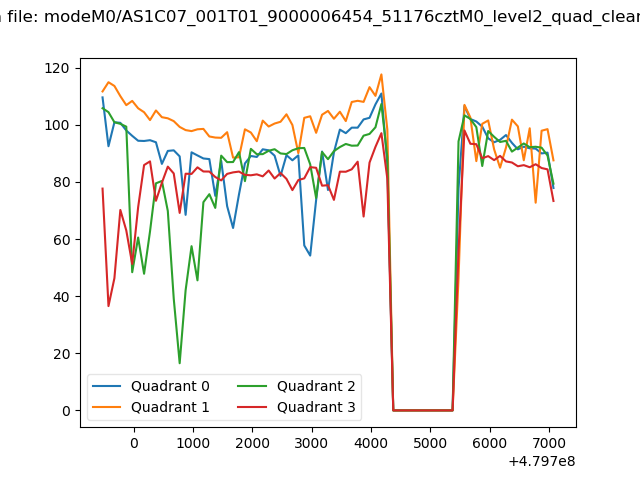

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

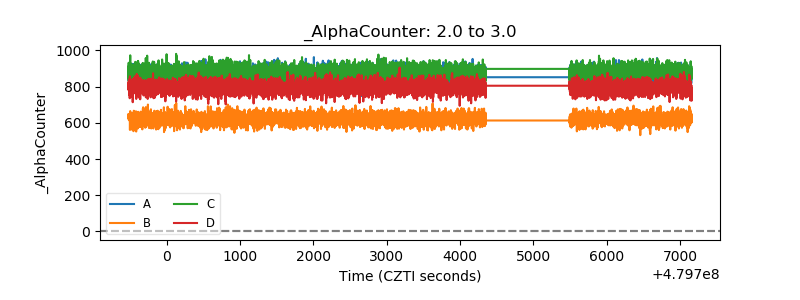

| Alpha Counter |  |

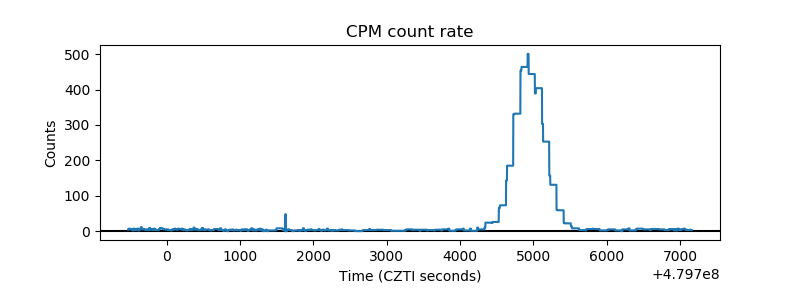

| _CPM_Rate |  |
| CZT Counter |  |

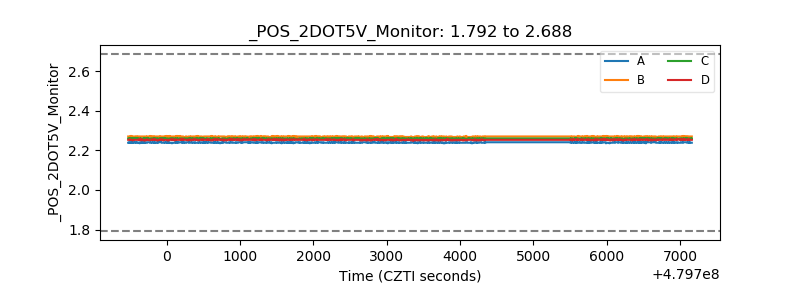

| +2.5 Volts monitor |  |

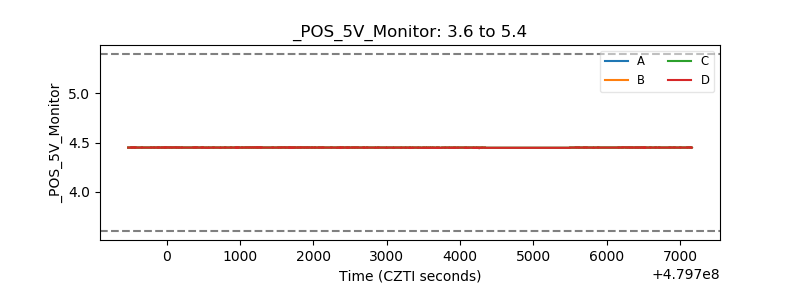

| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
