| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1C07_001T01_9000006454_51224cztM0_level2.fits | modeM0/AS1C07_001T01_9000006454_51224cztM0_level2_quad_clean.evt |
| Size (bytes) | 690,022,080 | 94,705,920 |
| Size | 658.1 MB | 90.3 MB |
| Events in quadrant A | 4,882,725 | 653,806 |
| Events in quadrant B | 9,651,126 | 493,178 |
| Events in quadrant C | 5,324,001 | 624,806 |
| Events in quadrant D | 5,114,771 | 583,867 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 19580 | 0 |
| B | 0 | 33758 | 0 |
| C | 0 | 20930 | 6 |
| D | 0 | 20428 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 148 | 0 |
| B | 0 | 148 | 0 |
| C | 0 | 148 | 0 |
| D | 0 | 148 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7346 | 188 | 2.559216% |
| B | 7347 | 2625 | 35.728869% |
| C | 7346 | 448 | 6.098557% |
| D | 7346 | 377 | 5.132045% |

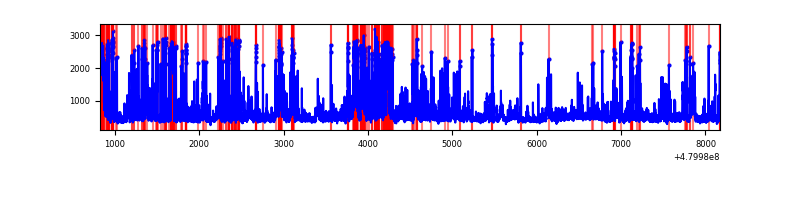

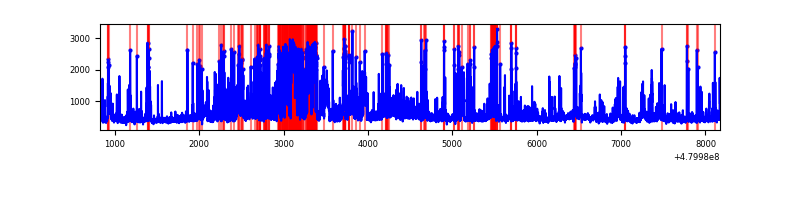

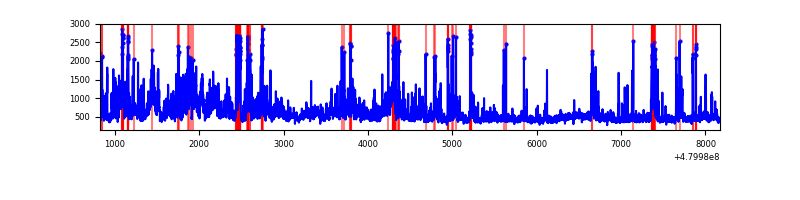

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7346 | 7346 | 154 | 154 | 2.10% | 2.10% |  |
| B | 7347 | 7347 | 2102 | 2102 | 28.61% | 28.61% |  |
| C | 7346 | 7346 | 457 | 457 | 6.22% | 6.22% |  |
| D | 7346 | 7346 | 368 | 368 | 5.01% | 5.01% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 12 | 3 | 581785 | 3132.36 | 746 | 728 | 185.5 |
| A | 9 | 160 | 325082 | 1748.53 | 746 | 728 | 185.5 |
| A | 8 | 26 | 222874 | 1197.54 | 746 | 728 | 185.5 |
| B | 6 | 255 | 2450255 | 17914.43 | 629 | 607 | 136.7 |
| B | 12 | 32 | 2170911 | 15871.57 | 629 | 607 | 136.7 |
| B | 5 | 185 | 1576614 | 11525.44 | 629 | 607 | 136.7 |
| C | 4 | 12 | 1124164 | 5667.95 | 714 | 711 | 198.2 |
| C | 1 | 60 | 343523 | 1729.53 | 714 | 711 | 198.2 |
| C | 4 | 13 | 336086 | 1692.01 | 714 | 711 | 198.2 |
| D | 3 | 12 | 727811 | 3652.08 | 705 | 680 | 199.1 |
| D | 10 | 181 | 319857 | 1603.09 | 705 | 680 | 199.1 |
| D | 10 | 172 | 264885 | 1326.99 | 705 | 680 | 199.1 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

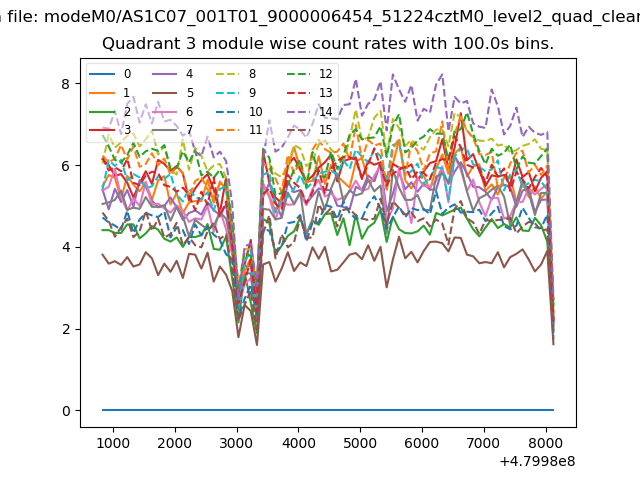

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

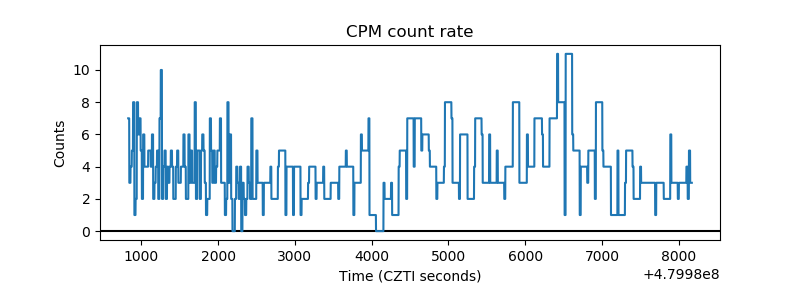

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

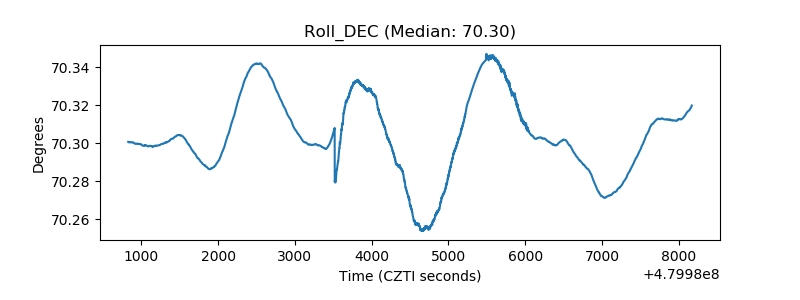

| _Roll_DEC |  |

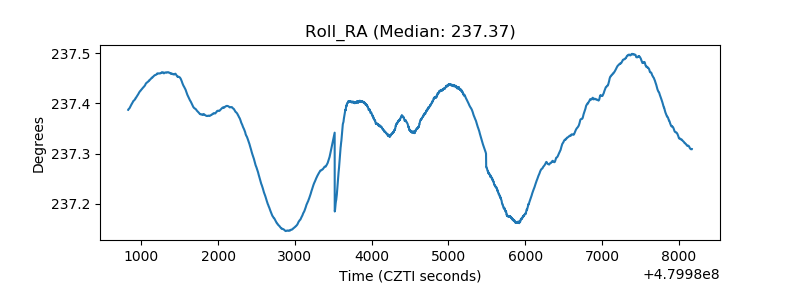

| _Roll_RA |  |
| Veto Counter |  |
