| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1C07_001T03_9000006456_51408cztM0_level2.fits | modeM0/AS1C07_001T03_9000006456_51408cztM0_level2_quad_clean.evt |
| Size (bytes) | 638,009,280 | 88,084,800 |
| Size | 608.5 MB | 84.0 MB |
| Events in quadrant A | 4,990,512 | 589,454 |
| Events in quadrant B | 3,730,031 | 679,211 |
| Events in quadrant C | 9,801,454 | 419,541 |
| Events in quadrant D | 4,608,679 | 541,215 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 128 | 0 |
| B | 0 | 128 | 0 |
| C | 0 | 128 | 0 |
| D | 0 | 128 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 19154 | 4 |
| B | 0 | 15496 | 2 |
| C | 0 | 33437 | 2 |
| D | 0 | 18099 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13 | 0 |
| B | 0 | 14 | 0 |
| C | 0 | 14 | 0 |
| D | 0 | 14 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6269 | 562 | 8.964747% |
| B | 6269 | 230 | 3.668847% |
| C | 6269 | 2404 | 38.347424% |
| D | 6269 | 482 | 7.688627% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7499 | 6270 | 395 | 395 | 5.27% | 6.30% |  |
| B | 7499 | 6270 | 119 | 119 | 1.59% | 1.90% |  |
| C | 7499 | 6270 | 2088 | 2088 | 27.84% | 33.30% |  |
| D | 7499 | 6269 | 360 | 360 | 4.80% | 5.74% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 4 | 175 | 653932 | 3977.79 | 668 | 652 | 164.2 |
| A | 7 | 29 | 440600 | 2678.82 | 668 | 652 | 164.2 |
| A | 12 | 250 | 319453 | 1941.16 | 668 | 652 | 164.2 |
| B | 5 | 185 | 257108 | 1792.87 | 678 | 655 | 143.0 |
| B | 5 | 172 | 219512 | 1530.03 | 678 | 655 | 143.0 |
| B | 10 | 247 | 93152 | 646.65 | 678 | 655 | 143.0 |
| C | 4 | 12 | 4799090 | 29966.43 | 579 | 573 | 160.1 |
| C | 15 | 179 | 1651249 | 10308.37 | 579 | 573 | 160.1 |
| C | 10 | 171 | 479747 | 2992.41 | 579 | 573 | 160.1 |
| D | 8 | 176 | 734551 | 4049.23 | 648 | 623 | 181.3 |
| D | 3 | 12 | 446382 | 2459.35 | 648 | 623 | 181.3 |
| D | 11 | 176 | 334680 | 1843.06 | 648 | 623 | 181.3 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

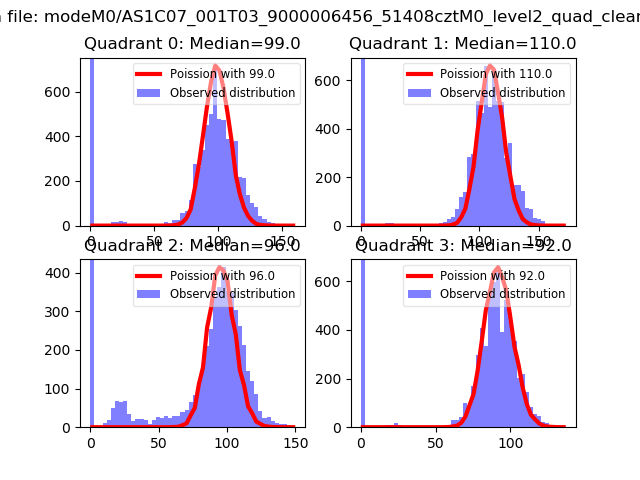

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

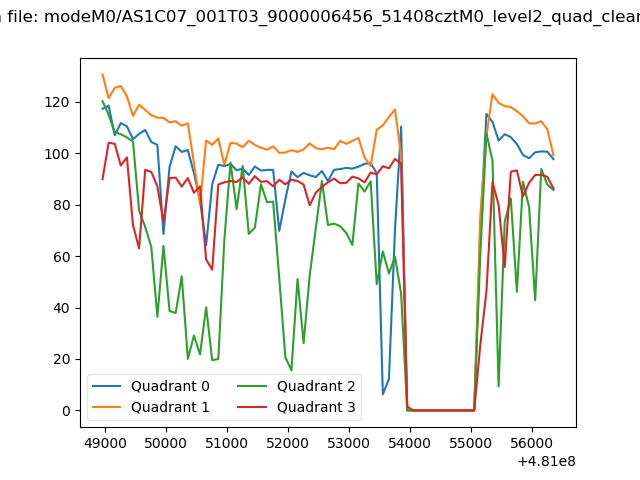

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

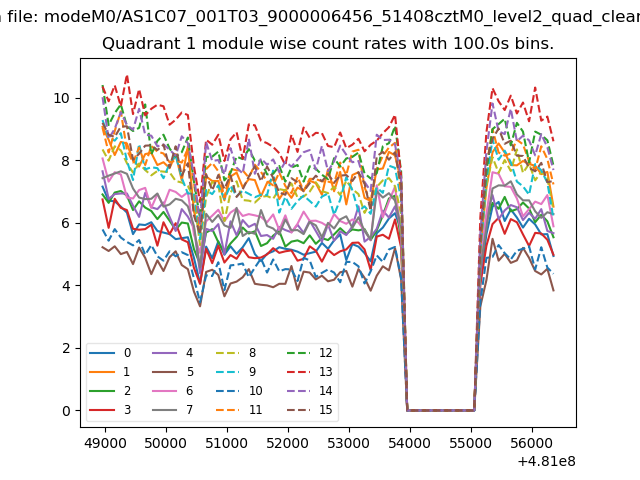

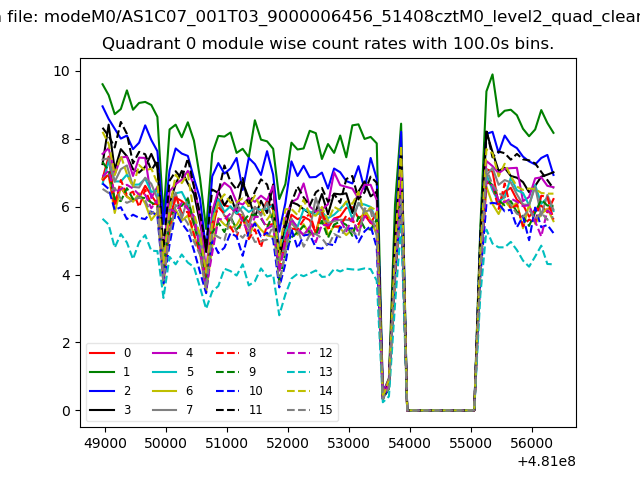

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

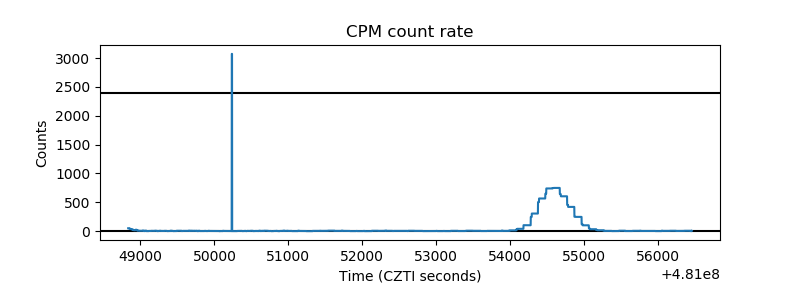

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

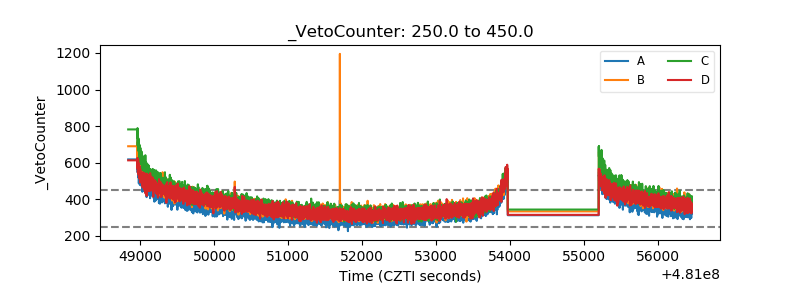

| Veto Counter |  |
