| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A13_090T01_9000006458_51426cztM0_level2.fits | modeM0/AS1A13_090T01_9000006458_51426cztM0_level2_quad_clean.evt |
| Size (bytes) | 887,711,040 | 105,016,320 |
| Size | 846.6 MB | 100.2 MB |
| Events in quadrant A | 7,834,797 | 729,138 |
| Events in quadrant B | 5,001,093 | 814,213 |
| Events in quadrant C | 14,311,119 | 392,353 |
| Events in quadrant D | 5,088,015 | 682,256 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 29045 | 2 |
| B | 0 | 20398 | 2 |
| C | 0 | 48033 | 2 |
| D | 0 | 20800 | 4 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 8 | 0 |
| B | 0 | 8 | 0 |
| C | 0 | 8 | 0 |
| D | 0 | 8 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 166 | 0 |
| B | 0 | 166 | 0 |
| C | 0 | 166 | 0 |
| D | 0 | 166 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 8078 | 652 | 8.071305% |
| B | 8078 | 364 | 4.506066% |
| C | 8079 | 4147 | 51.330610% |
| D | 8078 | 216 | 2.673929% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 8928 | 8080 | 406 | 406 | 4.55% | 5.02% |  |
| B | 8928 | 8080 | 125 | 125 | 1.40% | 1.55% |  |
| C | 8929 | 8080 | 3665 | 3665 | 41.05% | 45.36% |  |
| D | 8928 | 8080 | 165 | 165 | 1.85% | 2.04% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 12 | 3 | 1626960 | 7456.25 | 879 | 854 | 218.1 |
| A | 12 | 250 | 787222 | 3605.77 | 879 | 854 | 218.1 |
| A | 7 | 64 | 488294 | 2235.08 | 879 | 854 | 218.1 |
| B | 5 | 185 | 314188 | 1629.61 | 891 | 859 | 192.3 |
| B | 5 | 172 | 265944 | 1378.69 | 891 | 859 | 192.3 |
| B | 10 | 14 | 85102 | 438.14 | 891 | 859 | 192.3 |
| C | 4 | 12 | 7895141 | 43823.01 | 653 | 648 | 180.1 |
| C | 15 | 179 | 2038738 | 11313.61 | 653 | 648 | 180.1 |
| C | 10 | 171 | 703845 | 3903.5 | 653 | 648 | 180.1 |
| D | 8 | 176 | 558804 | 2305.05 | 868 | 838 | 242.1 |
| D | 7 | 80 | 232357 | 956.44 | 868 | 838 | 242.1 |
| D | 3 | 12 | 221224 | 910.45 | 868 | 838 | 242.1 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file

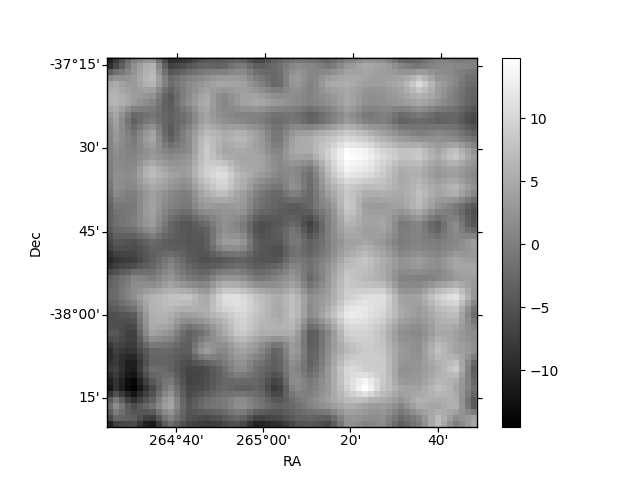

| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

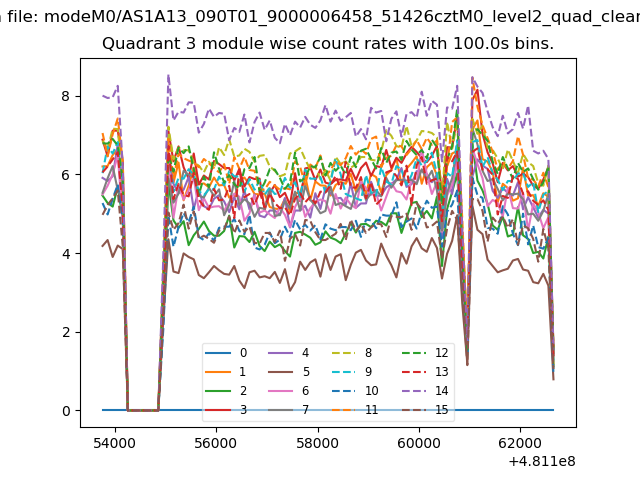

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

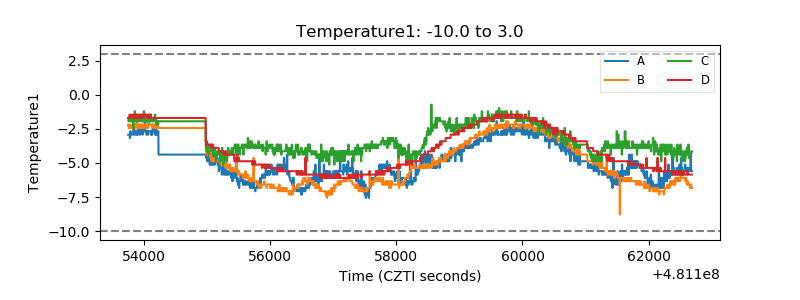

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

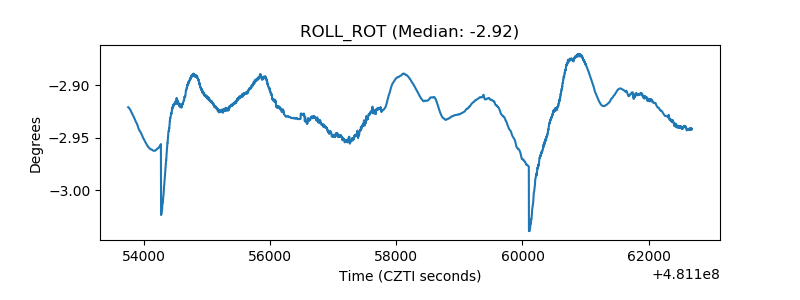

| _ROLL_ROT |  |

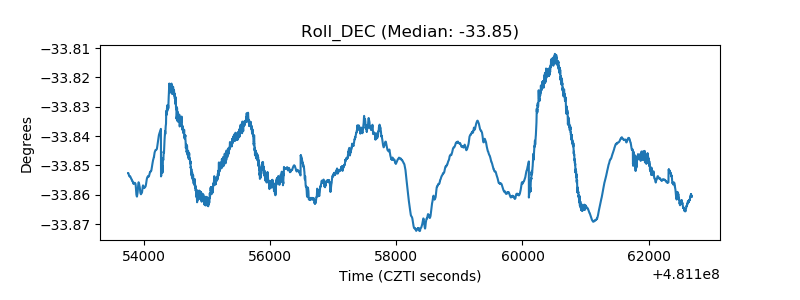

| _Roll_DEC |  |
| _Roll_RA |  |

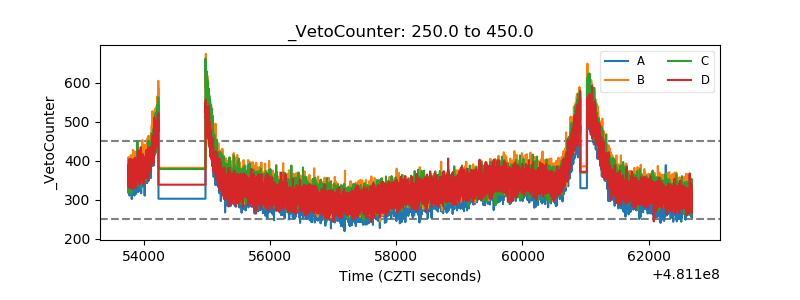

| Veto Counter |  |
