| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A13_090T01_9000006458_51515cztM0_level2.fits | modeM0/AS1A13_090T01_9000006458_51515cztM0_level2_quad_clean.evt |
| Size (bytes) | 884,367,360 | 108,120,960 |
| Size | 843.4 MB | 103.1 MB |
| Events in quadrant A | 8,432,828 | 648,660 |
| Events in quadrant B | 5,379,551 | 830,812 |
| Events in quadrant C | 8,716,004 | 622,620 |
| Events in quadrant D | 9,571,045 | 598,584 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 30842 | 0 |
| B | 0 | 21600 | 0 |
| C | 0 | 31540 | 0 |
| D | 0 | 34169 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 164 | 0 |
| B | 0 | 164 | 0 |
| C | 0 | 164 | 0 |
| D | 0 | 164 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 8244 | 1540 | 18.680252% |
| B | 8244 | 184 | 2.231926% |
| C | 8244 | 1496 | 18.146531% |
| D | 8244 | 1348 | 16.351286% |

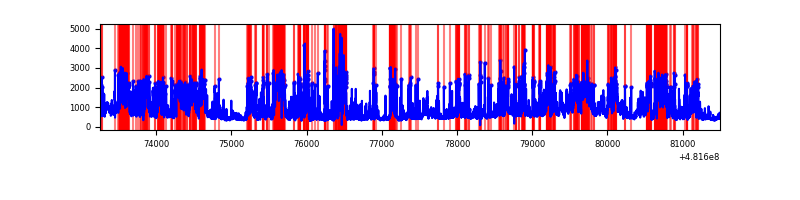

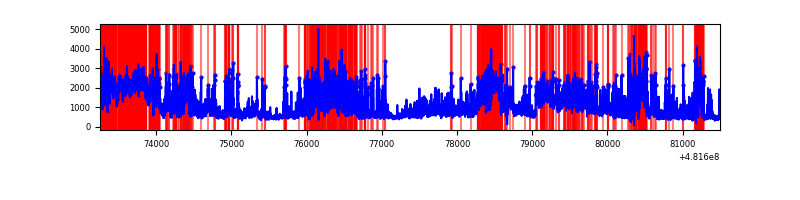

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 8244 | 8244 | 804 | 804 | 9.75% | 9.75% |  |
| B | 8244 | 8244 | 45 | 45 | 0.55% | 0.55% |  |
| C | 8244 | 8243 | 1320 | 1320 | 16.01% | 16.01% |  |
| D | 8244 | 8244 | 1237 | 1237 | 15.00% | 15.00% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 12 | 250 | 3442578 | 16775.05 | 831 | 811 | 205.2 |
| A | 4 | 249 | 359784 | 1749.62 | 831 | 811 | 205.2 |
| A | 7 | 64 | 307935 | 1496.91 | 831 | 811 | 205.2 |
| B | 15 | 52 | 340000 | 1774.33 | 886 | 855 | 191.1 |
| B | 10 | 254 | 271689 | 1416.94 | 886 | 855 | 191.1 |
| B | 5 | 172 | 269104 | 1403.42 | 886 | 855 | 191.1 |
| C | 15 | 1 | 3424365 | 15132.88 | 807 | 800 | 226.2 |
| C | 15 | 205 | 1034806 | 4570.53 | 807 | 800 | 226.2 |
| C | 13 | 3 | 333989 | 1472.77 | 807 | 800 | 226.2 |
| D | 11 | 176 | 2035170 | 9020.23 | 813 | 784 | 225.5 |
| D | 8 | 176 | 1766031 | 7826.9 | 813 | 784 | 225.5 |
| D | 1 | 3 | 730384 | 3234.96 | 813 | 784 | 225.5 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

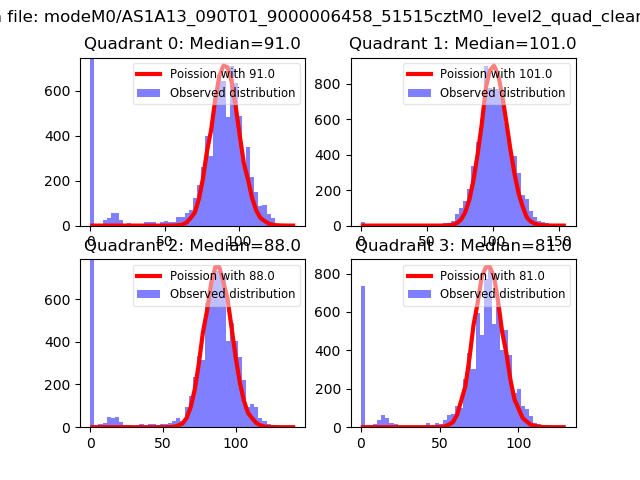

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

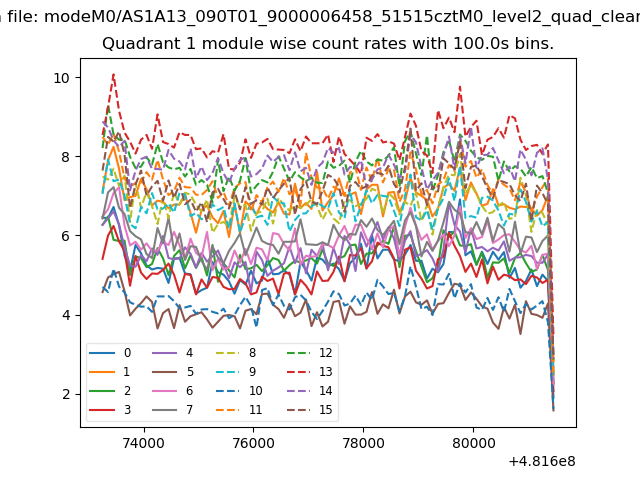

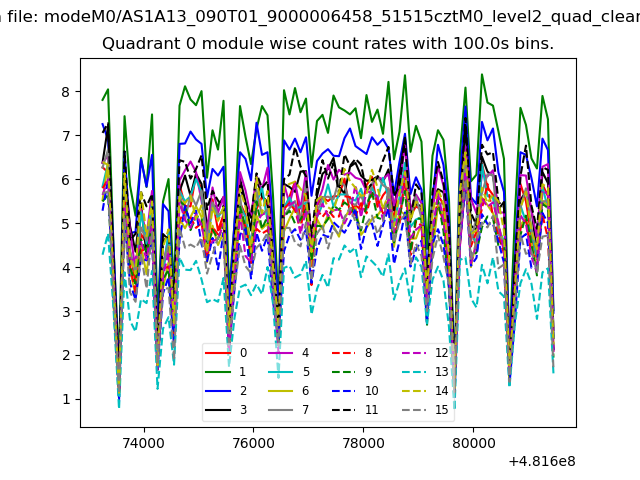

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

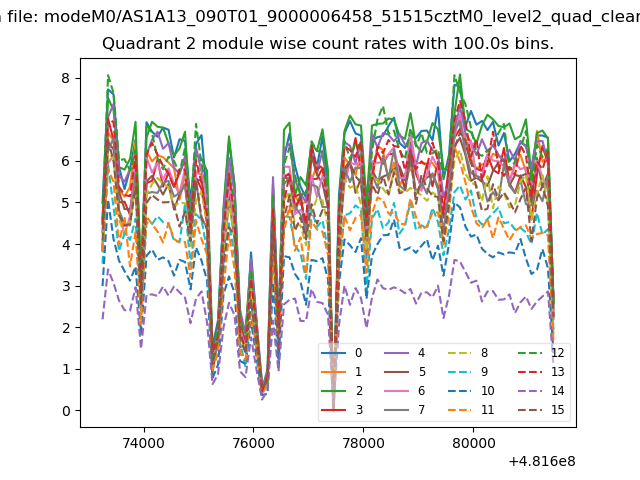

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |

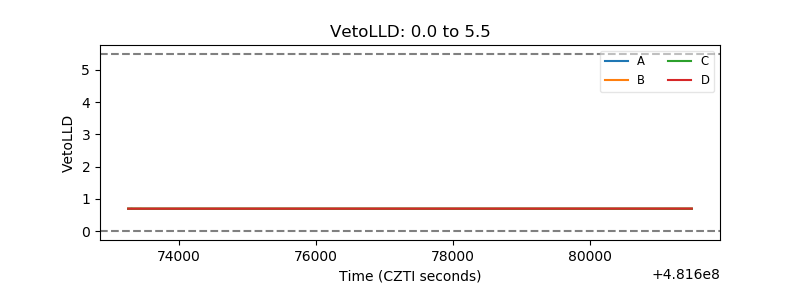

| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

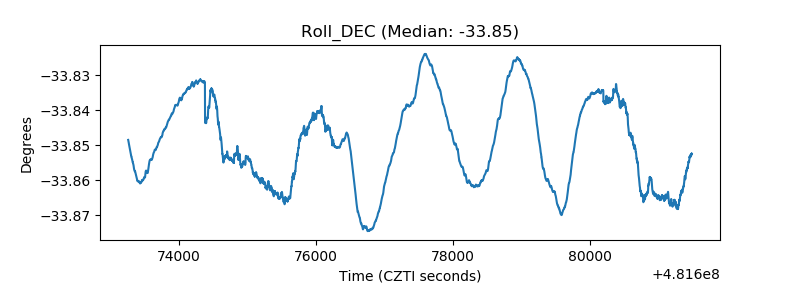

| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
