| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A13_037T05_9000006460_51596cztM0_level2.fits | modeM0/AS1A13_037T05_9000006460_51596cztM0_level2_quad_clean.evt |
| Size (bytes) | 585,861,120 | 101,764,800 |
| Size | 558.7 MB | 97.1 MB |
| Events in quadrant A | 4,401,974 | 686,367 |
| Events in quadrant B | 5,135,017 | 714,218 |
| Events in quadrant C | 4,698,491 | 646,998 |
| Events in quadrant D | 6,920,995 | 557,531 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12 | 0 |
| B | 0 | 13 | 0 |
| C | 0 | 13 | 0 |
| D | 0 | 13 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 17590 | 2 |
| B | 0 | 19829 | 2 |
| C | 0 | 18756 | 8 |
| D | 0 | 25229 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 138 | 0 |
| B | 0 | 138 | 0 |
| C | 0 | 138 | 0 |
| D | 0 | 138 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6838 | 230 | 3.363557% |
| B | 6838 | 503 | 7.355952% |
| C | 6837 | 332 | 4.855931% |
| D | 6837 | 1013 | 14.816440% |

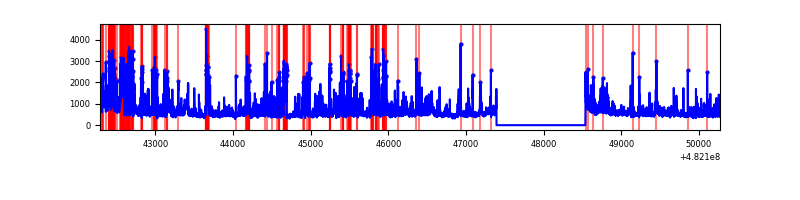

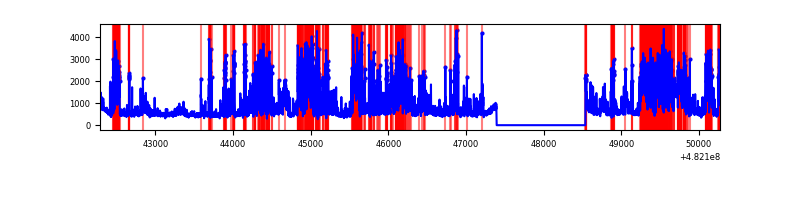

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7983 | 6839 | 81 | 81 | 1.01% | 1.18% |  |
| B | 7983 | 6838 | 272 | 272 | 3.41% | 3.98% |  |
| C | 7982 | 6838 | 232 | 232 | 2.91% | 3.39% |  |
| D | 7982 | 6838 | 809 | 809 | 10.14% | 11.83% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 12 | 250 | 703507 | 3720.35 | 777 | 760 | 188.9 |
| A | 4 | 175 | 204787 | 1080.12 | 777 | 760 | 188.9 |
| A | 5 | 240 | 72961 | 382.23 | 777 | 760 | 188.9 |
| B | 5 | 185 | 449082 | 2794.47 | 751 | 725 | 160.4 |
| B | 4 | 174 | 319782 | 1988.58 | 751 | 725 | 160.4 |
| B | 6 | 51 | 293270 | 1823.34 | 751 | 725 | 160.4 |
| C | 3 | 233 | 397125 | 1951.51 | 737 | 731 | 203.1 |
| C | 13 | 3 | 366080 | 1798.67 | 737 | 731 | 203.1 |
| C | 15 | 198 | 331542 | 1628.63 | 737 | 731 | 203.1 |
| D | 5 | 113 | 1650173 | 8192.33 | 721 | 694 | 201.3 |
| D | 2 | 155 | 483535 | 2398.09 | 721 | 694 | 201.3 |
| D | 3 | 12 | 456159 | 2262.12 | 721 | 694 | 201.3 |

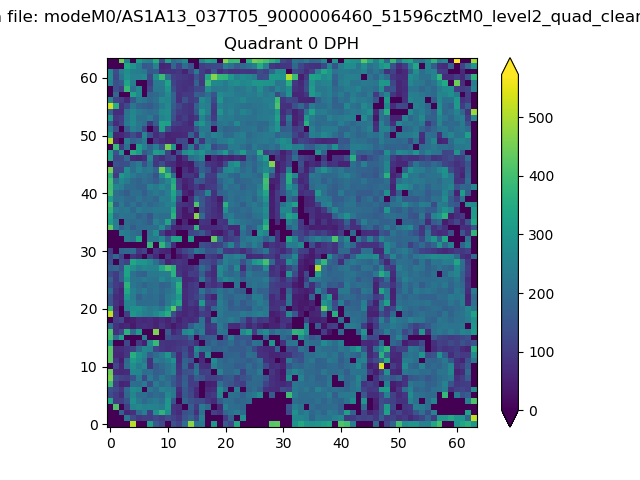

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

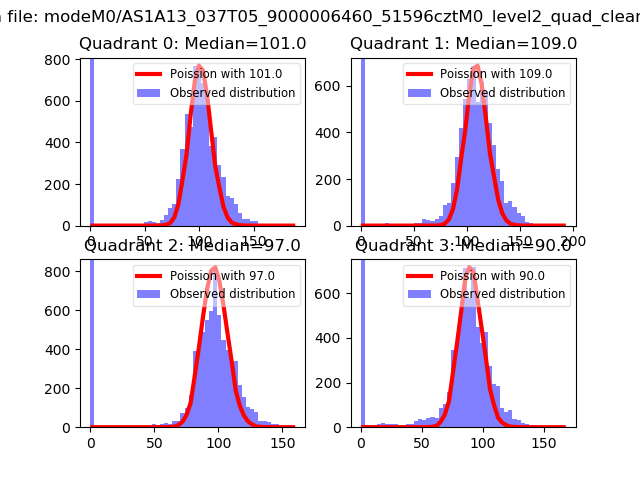

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

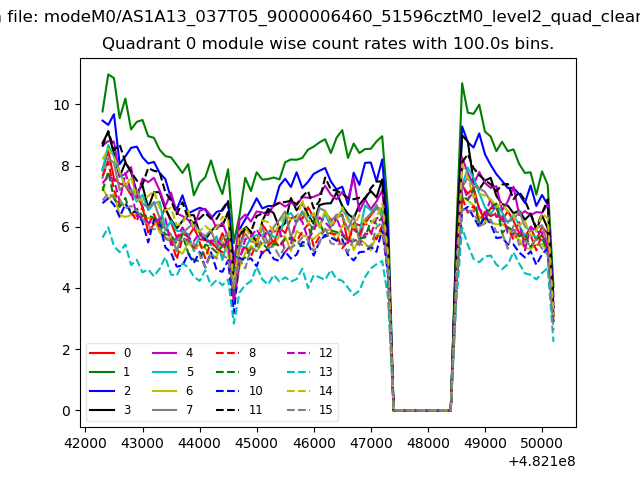

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

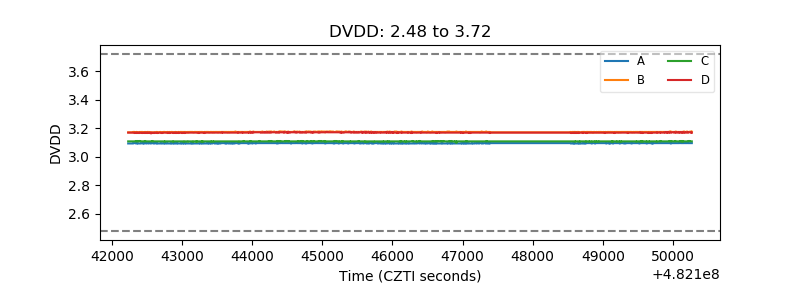

| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

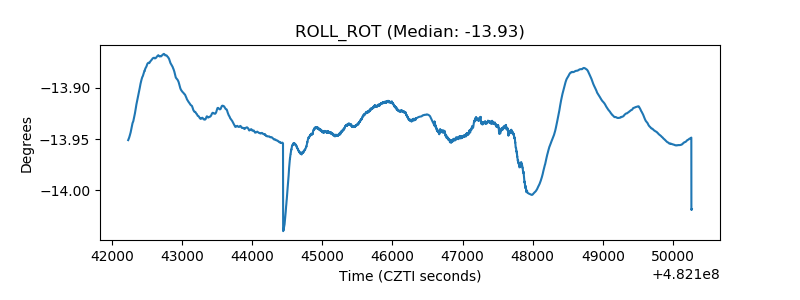

| _ROLL_ROT |  |
| _Roll_DEC |  |

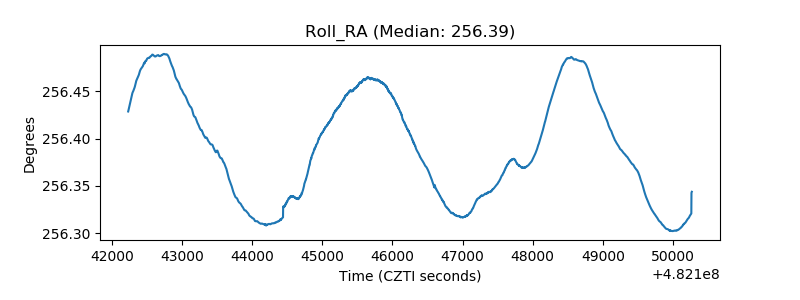

| _Roll_RA |  |
| Veto Counter |  |
